Possible Panel Run

[linden]

Closed









Read this before you order!

I have not had any original panel to go by so I can NOT guarantee that

different measurements are accurate and the size of the holes, text / numbers / lines are properly positioned on the panels,NOT MIL SPEC

If you want more information or pictures of different panels contact me via PM

Panels are made from:

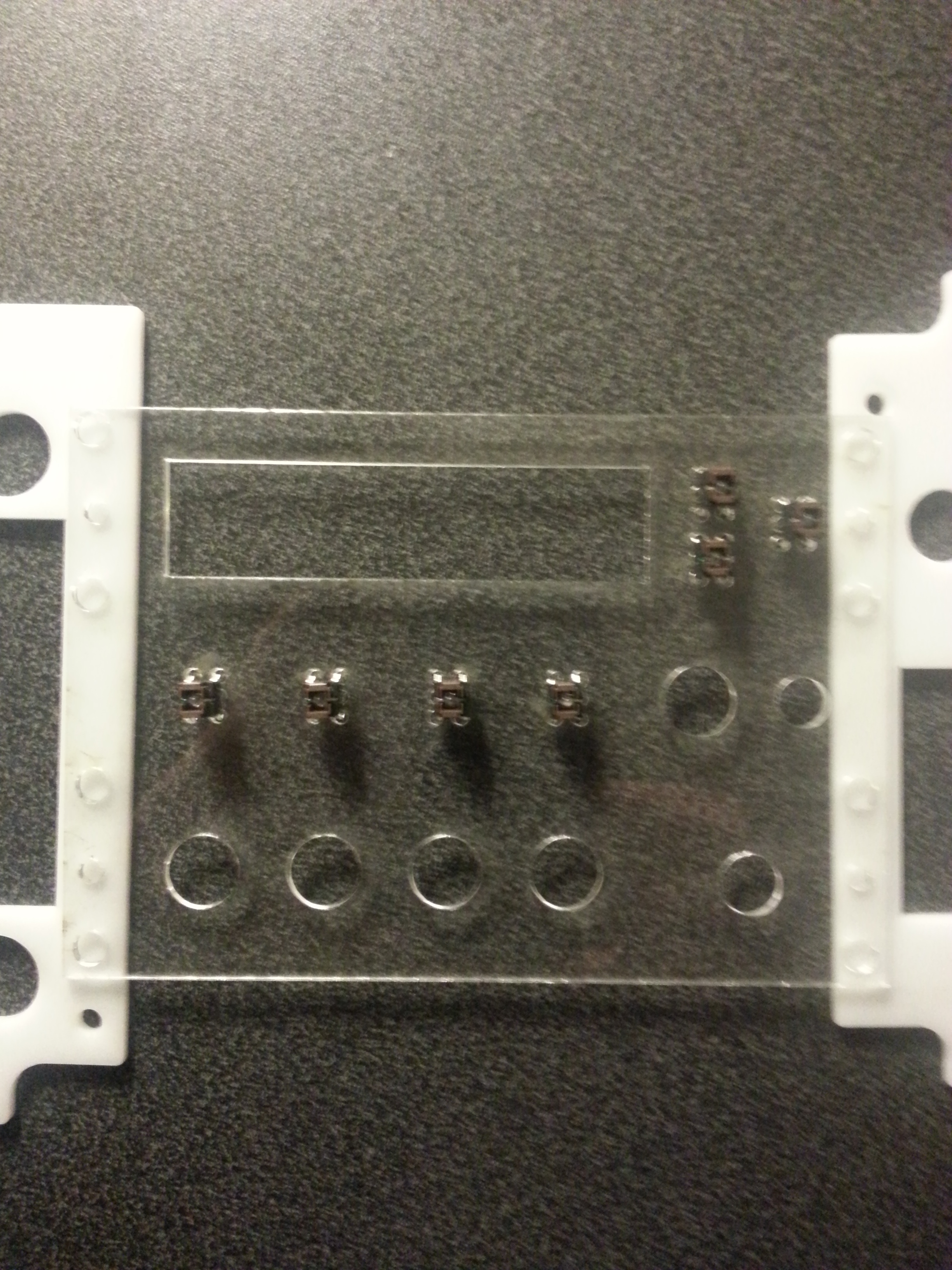

Frontplate 5mm/0,2inch Opal-White painted matte Black and engraved,Lightplate 3mm/0,12inch Opal-White, Backplate 2mm/0,08inch

clear.



*All panels are laser cut and laser engraved and can be backlit.

*Edges will not be painted

*Holes for Light Diode holder(6.5mm/0,26in only in Caution,Emergency,Sas Panel

*I will not milling down the oval holes



Price: 49$/Panel except panels marked with an *, not incl Electronics, Shipping and PayPal Fee

Pay 50% of the total price on order and 50% +shipping when panels are ready.

No refunds after run is closed



Shipping will be calculated when the panels are packed and ready to go.



Panels available at this time

AAP

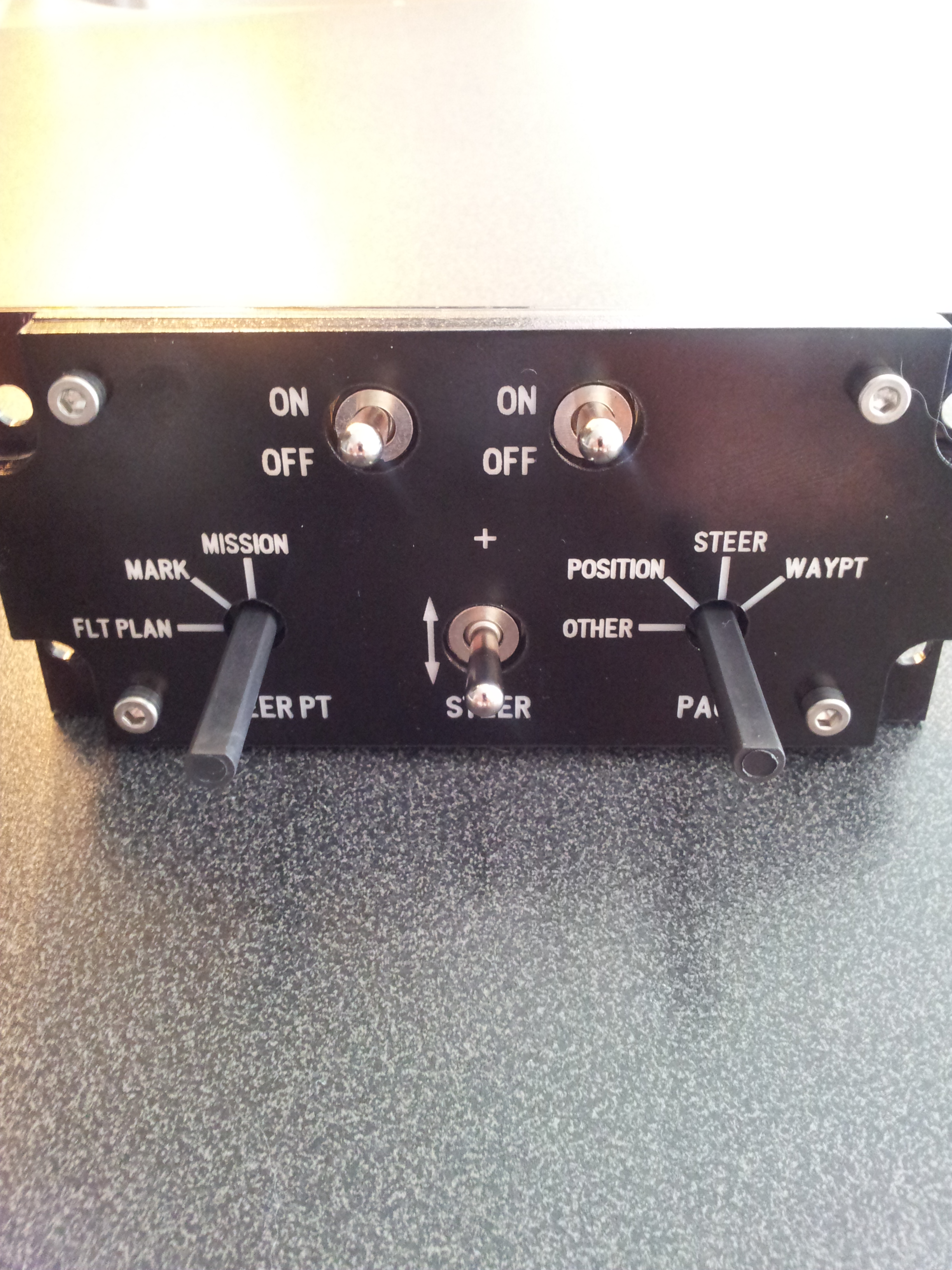

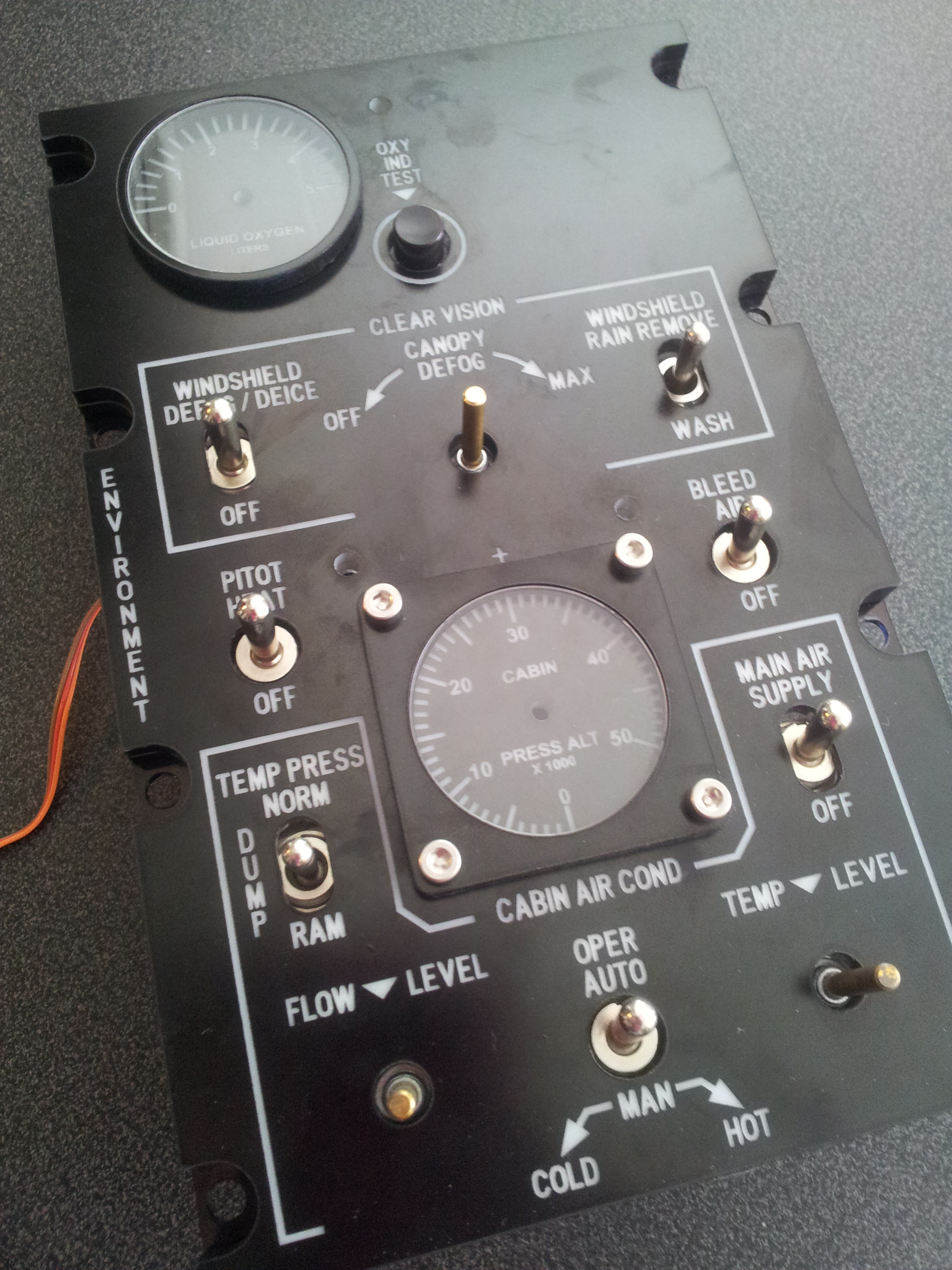

ENVIROMENT

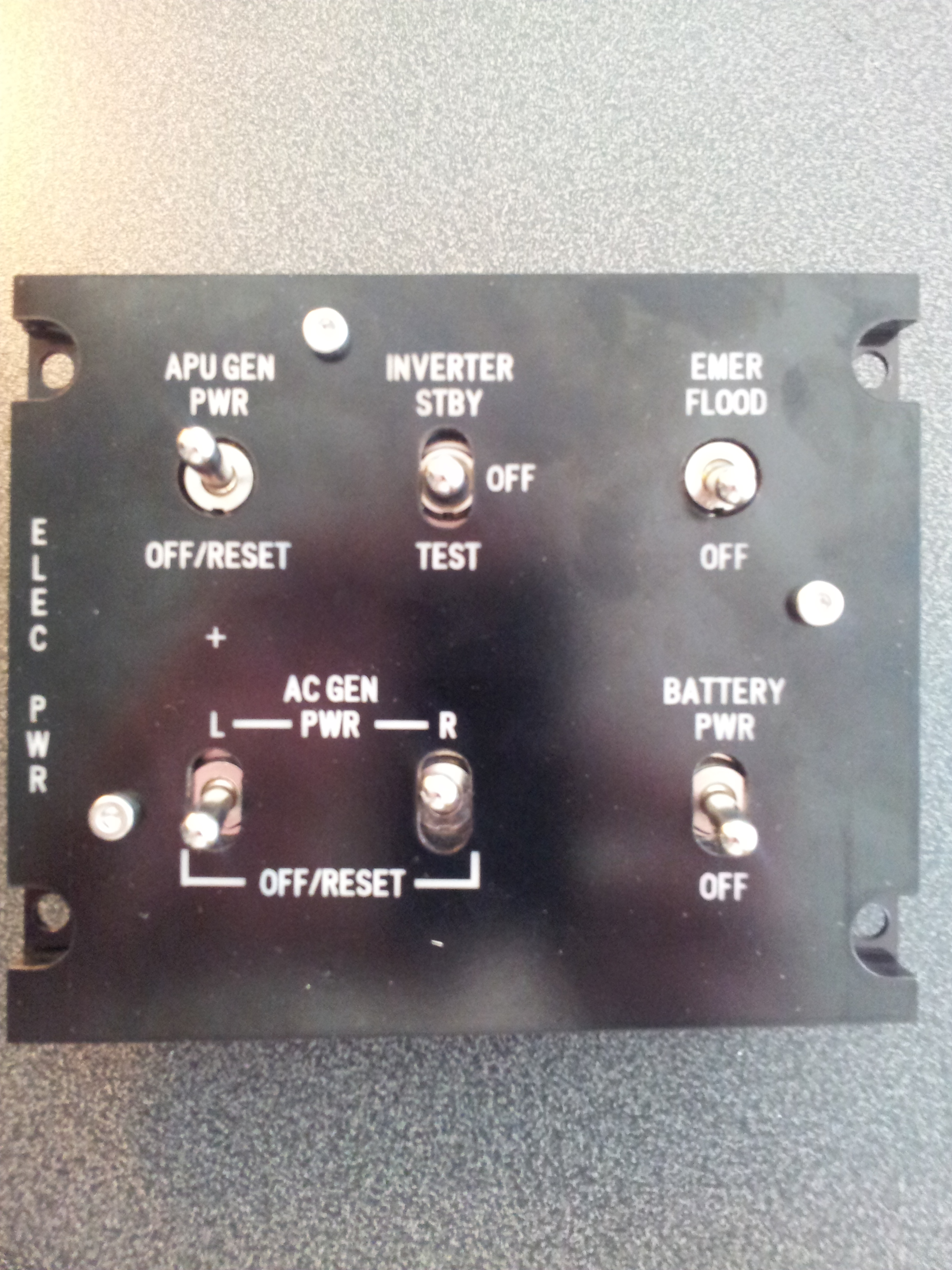

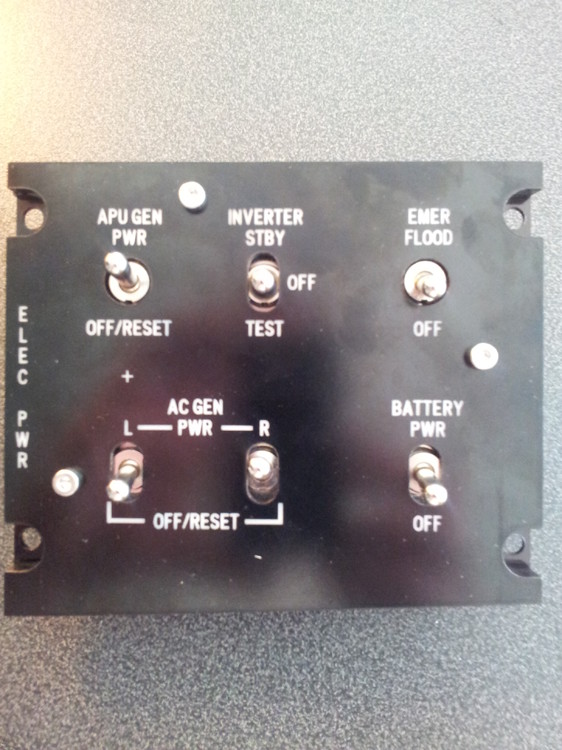

ELEC PWR

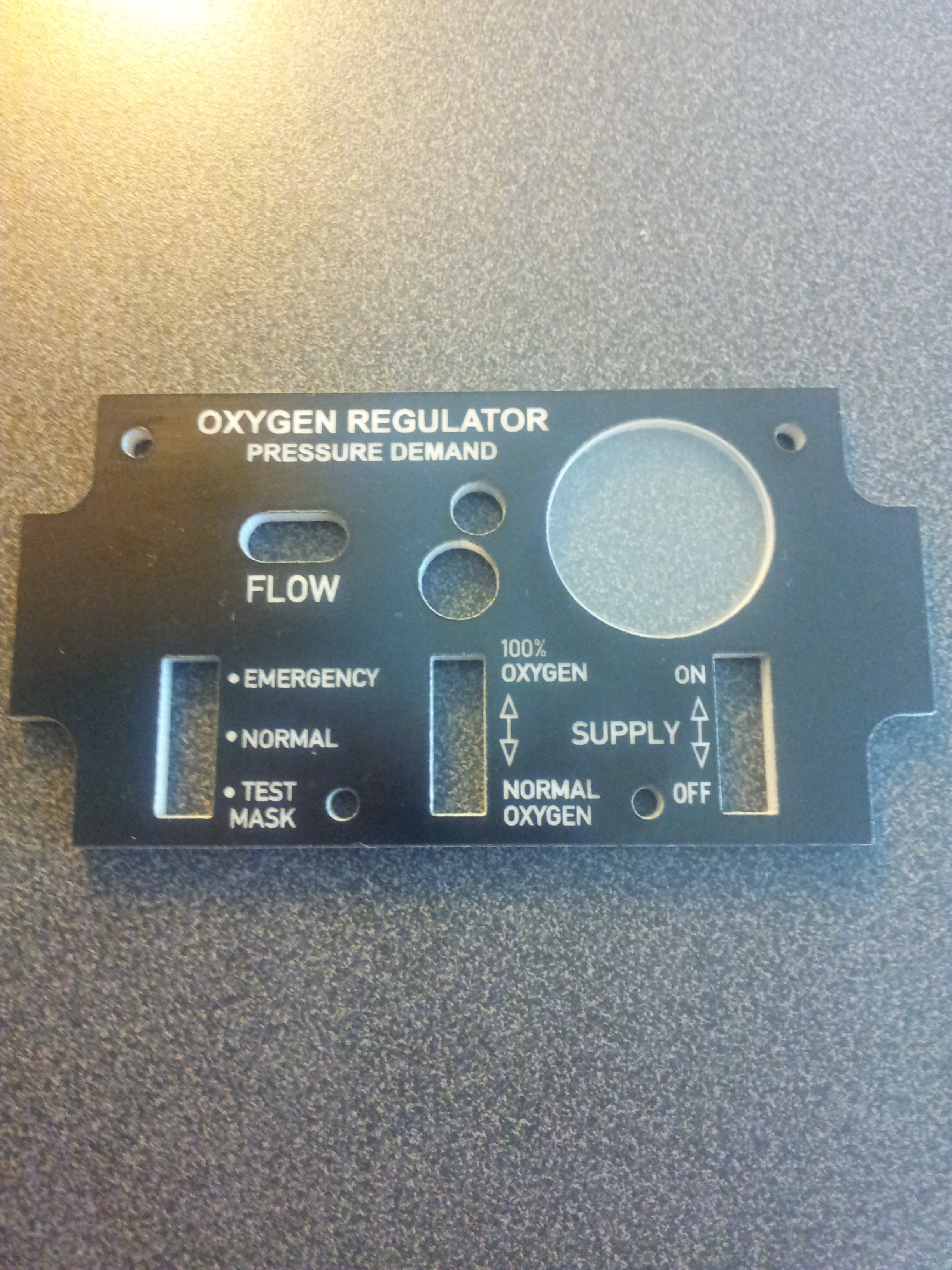

OXYGEN

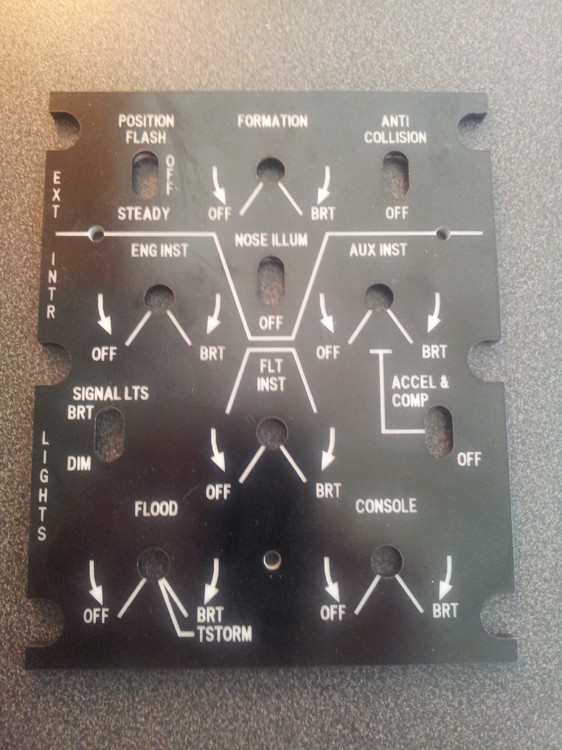

EXT / INTR LIGHT

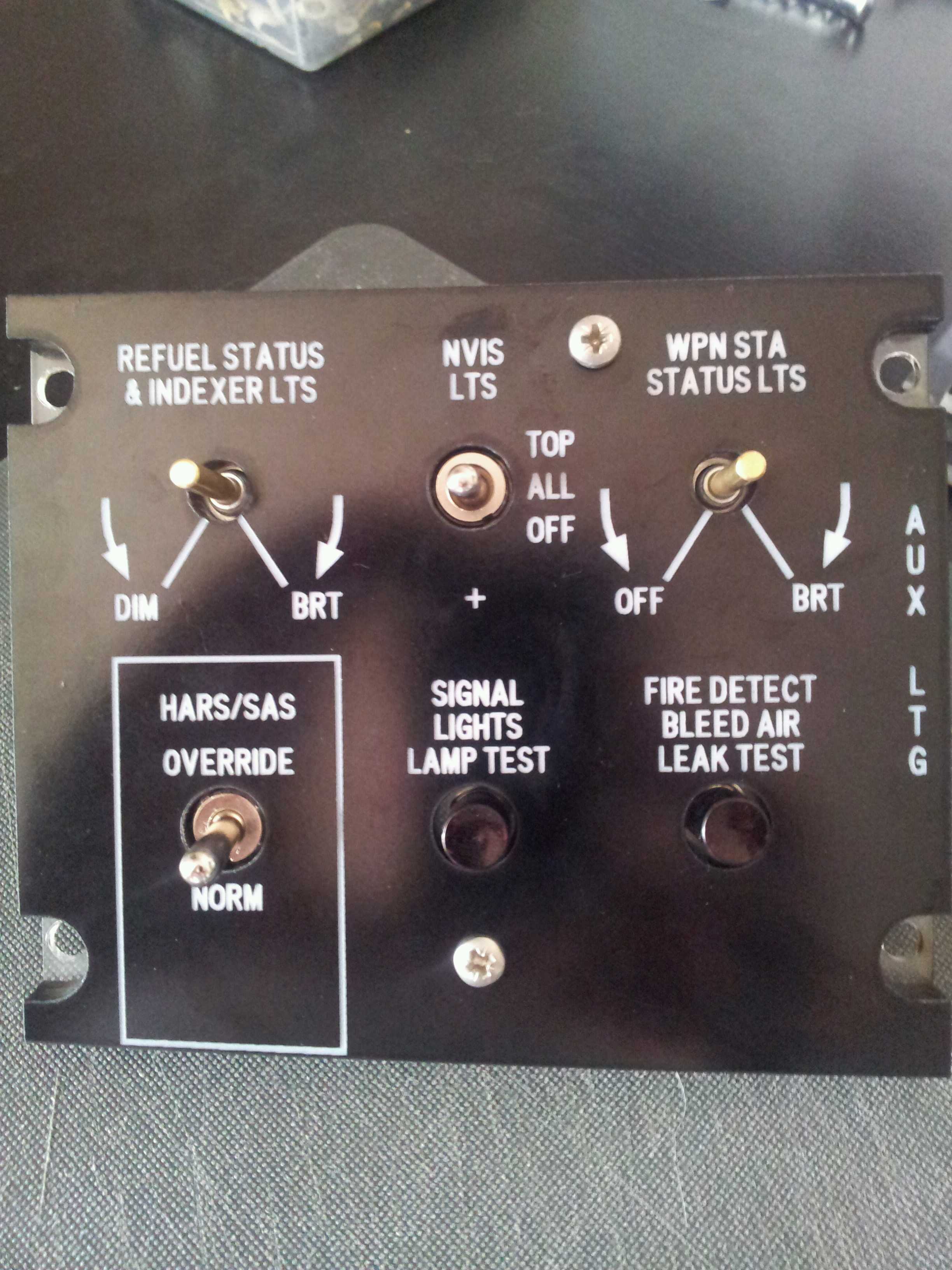

AUX LTG

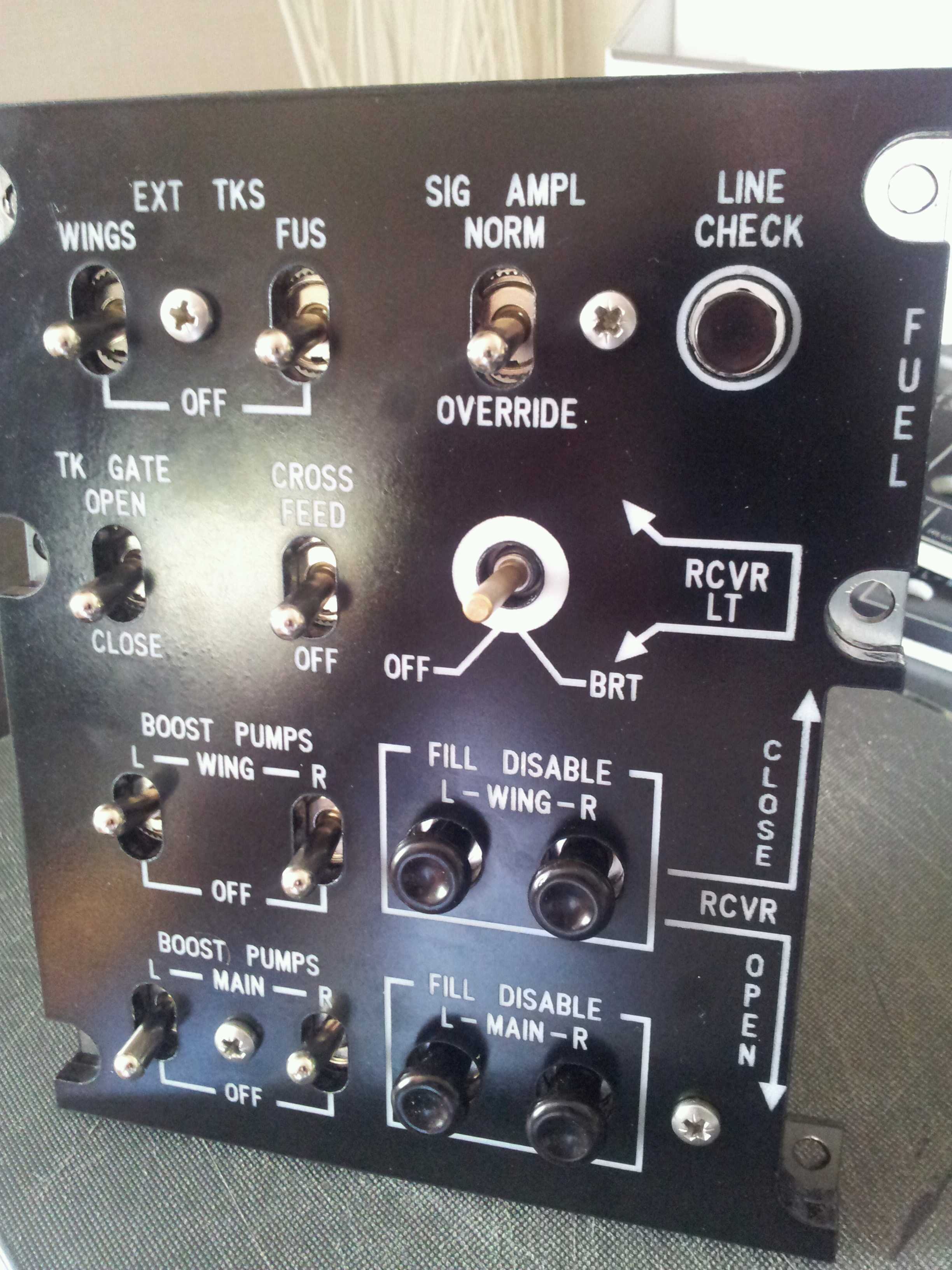

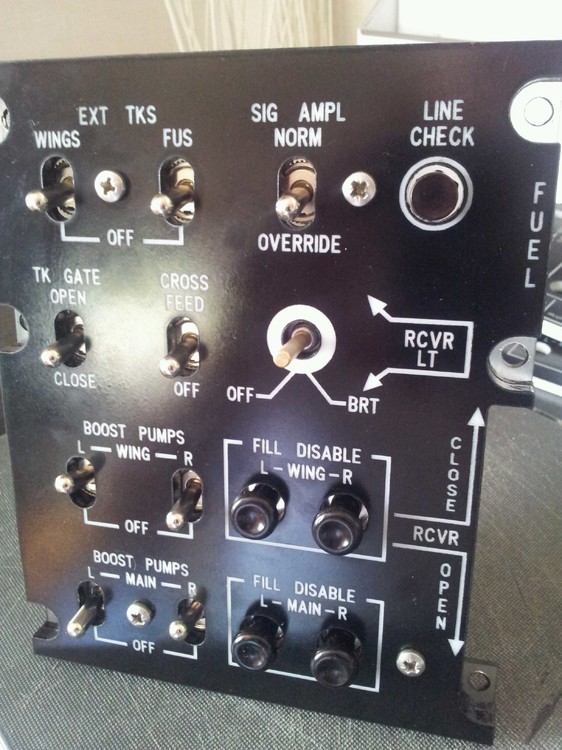

FUEL

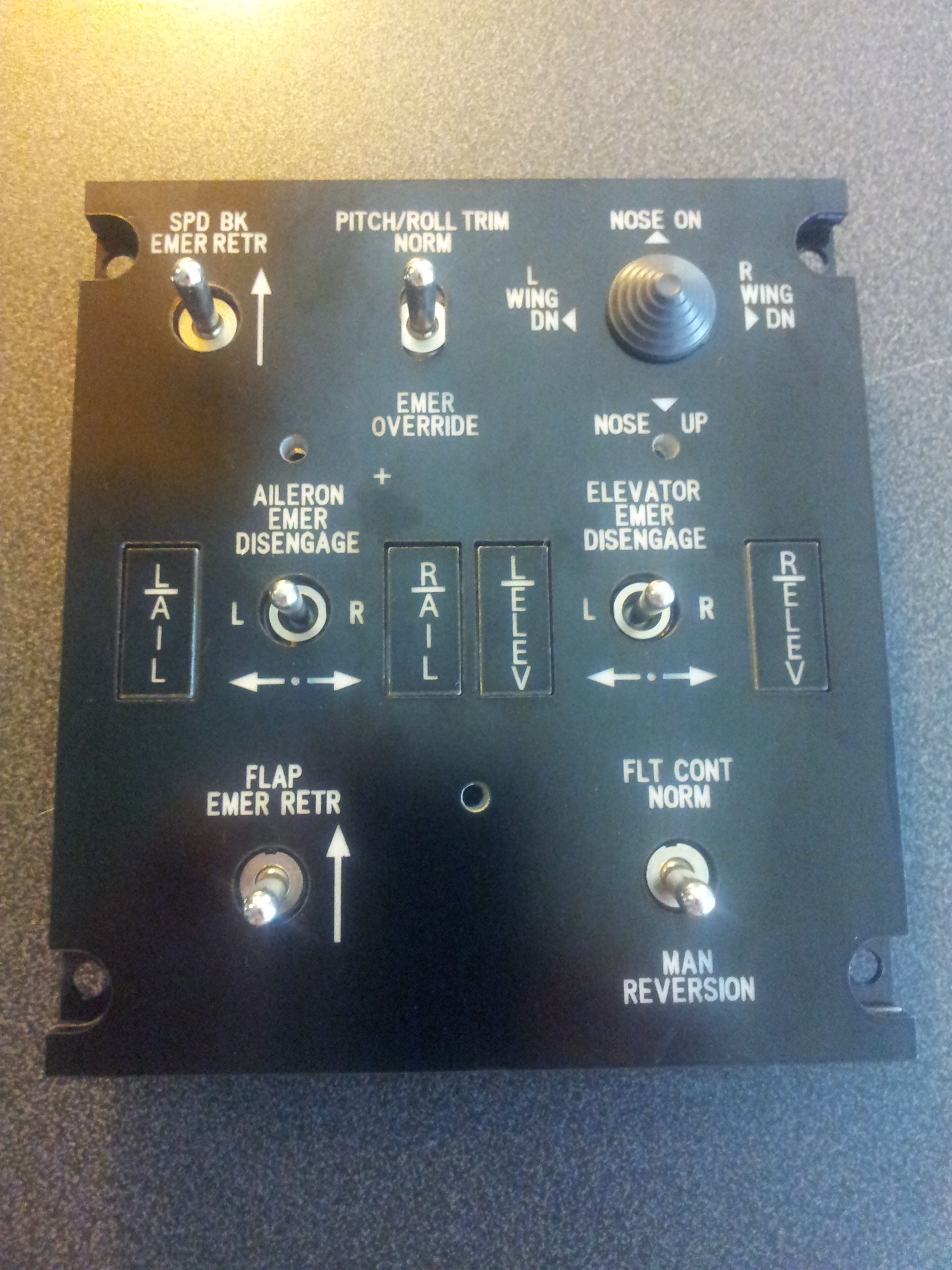

EMERGENCY(not with the yellow and white frame)

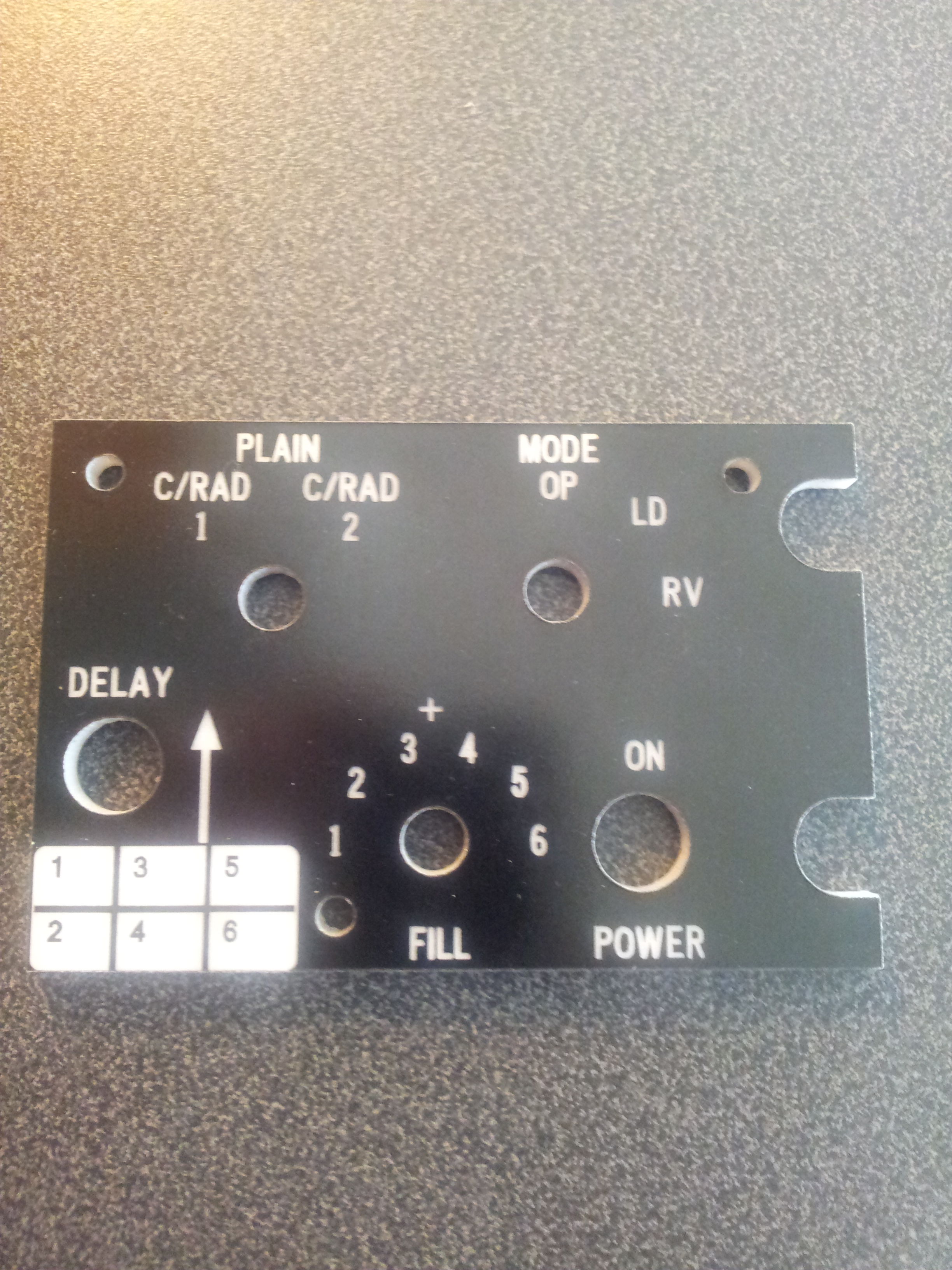

KY-58

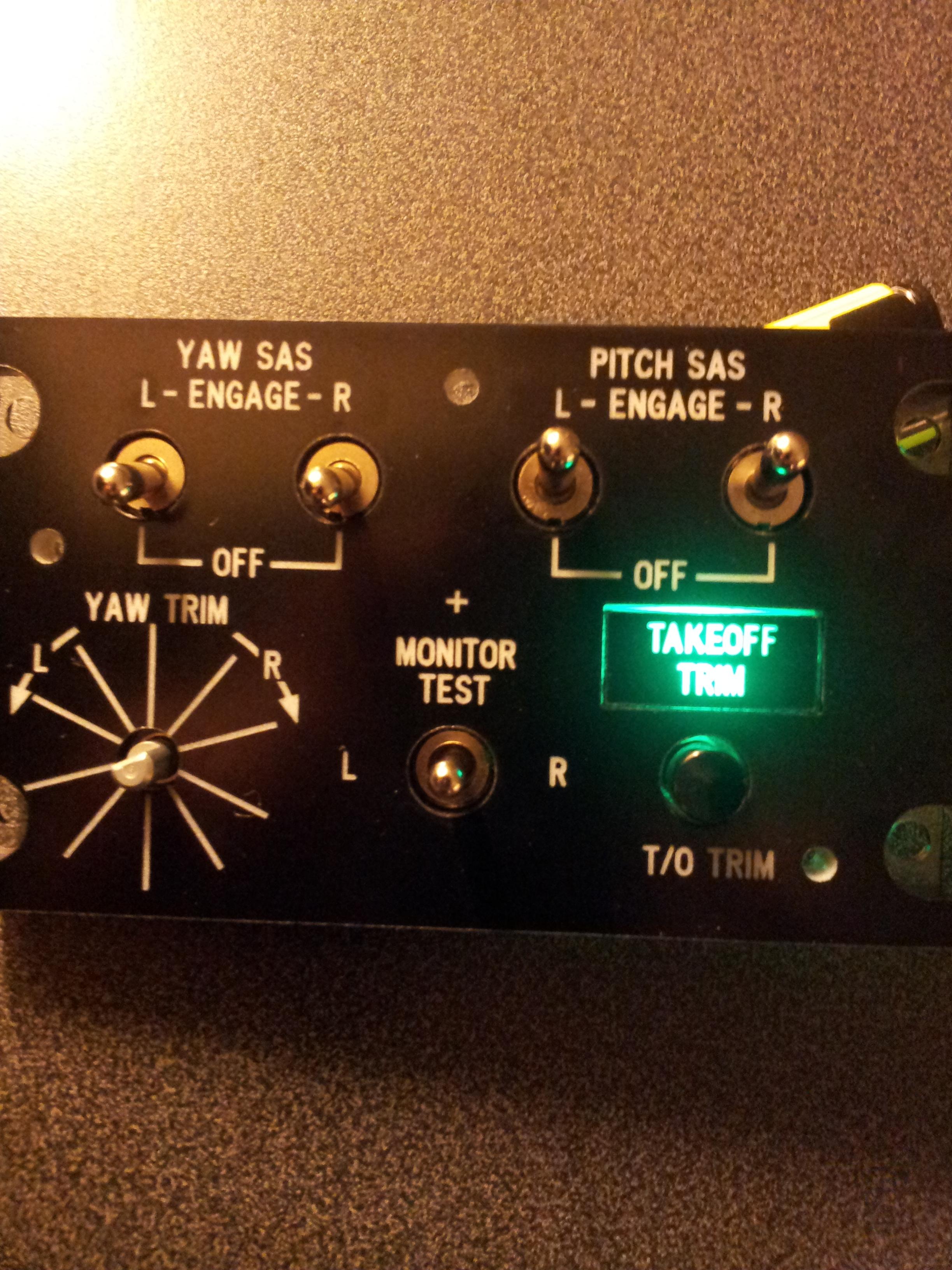

SAS

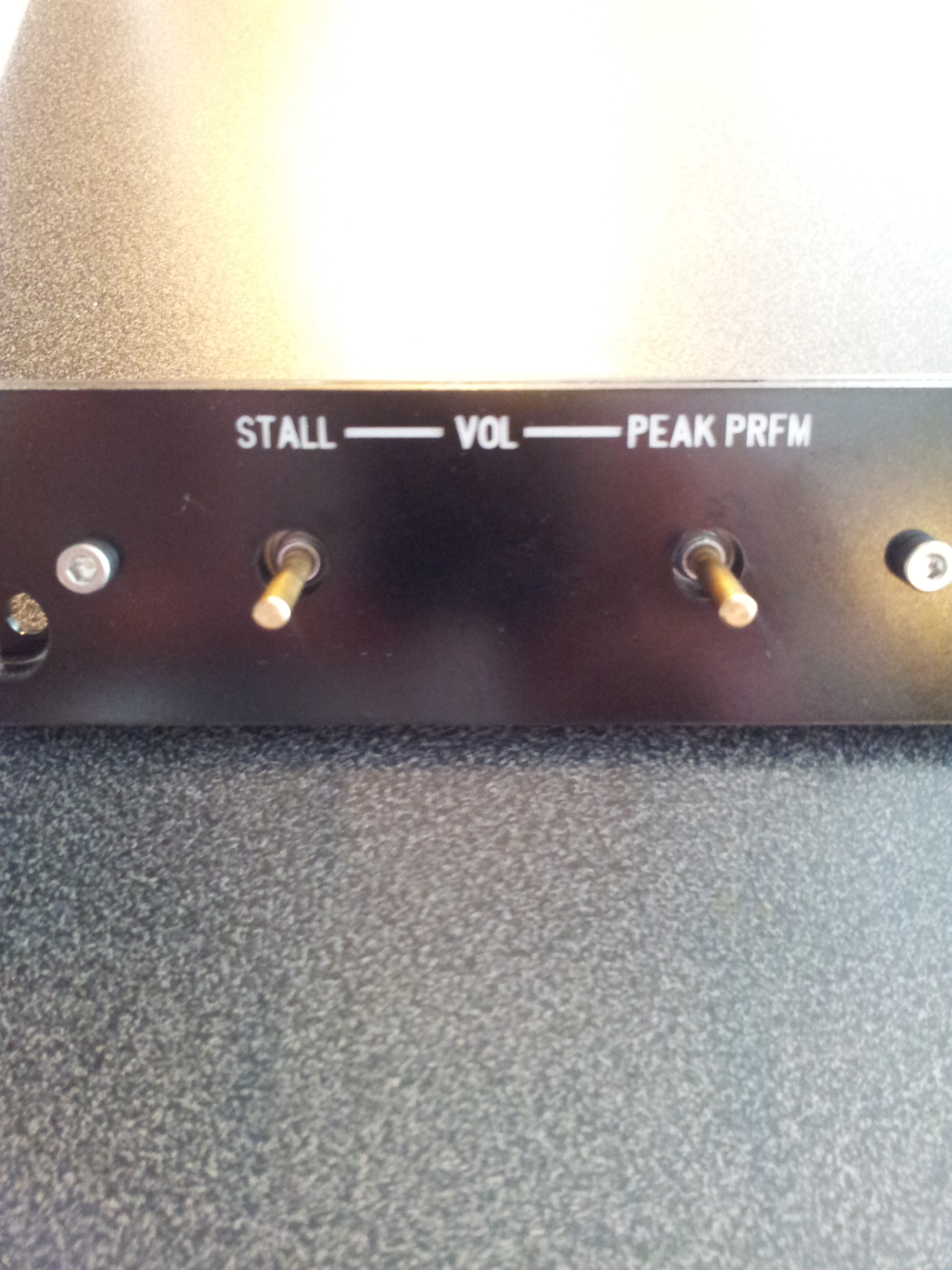

STALL

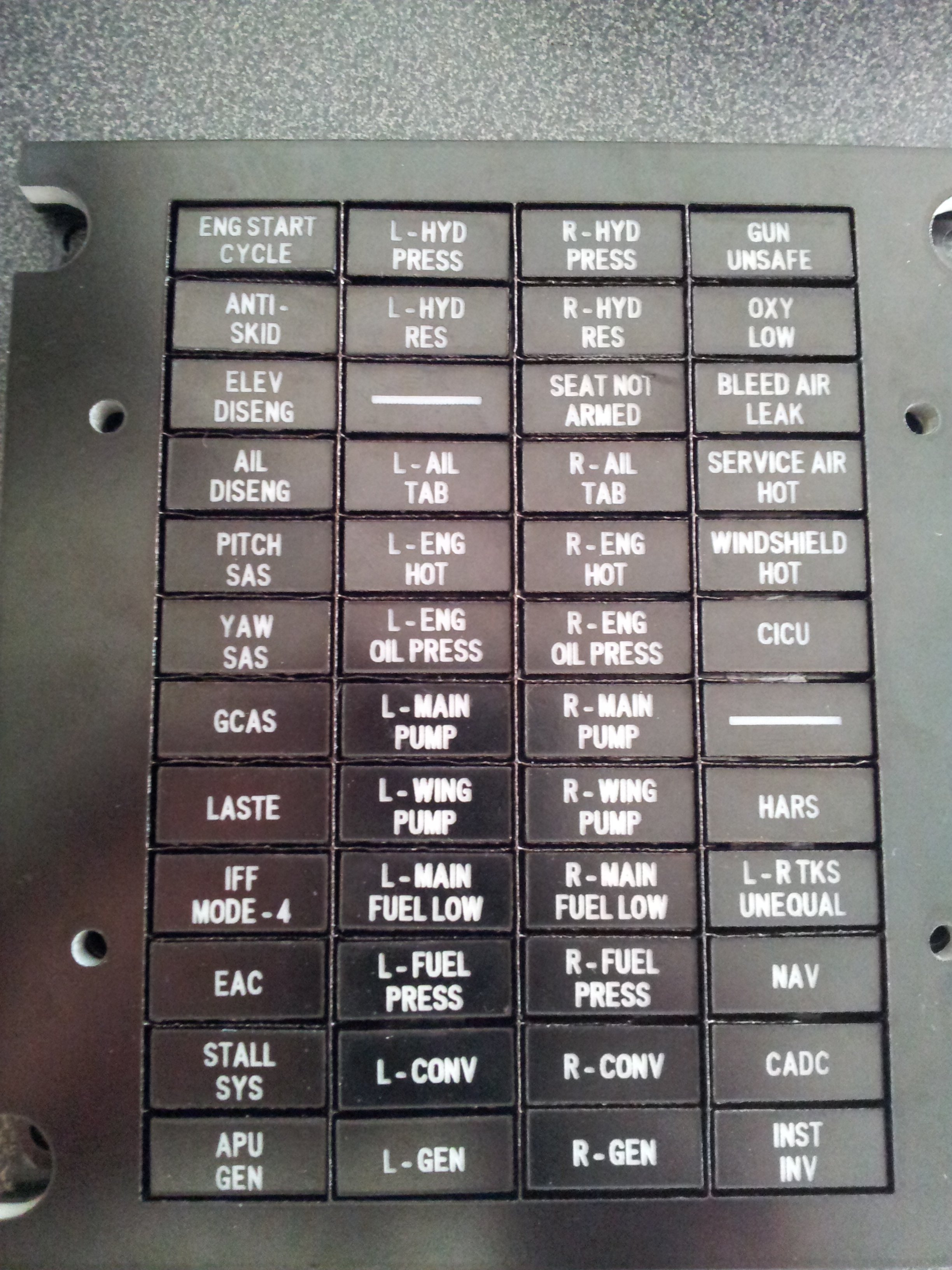

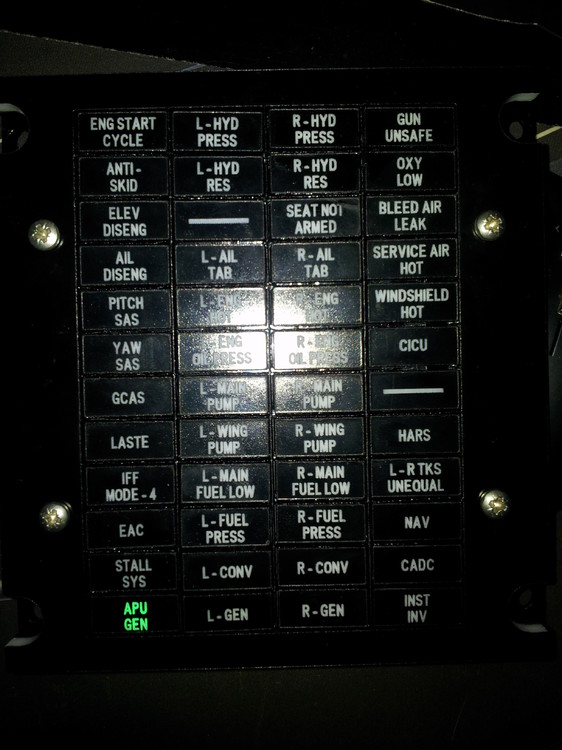

Caution

CDU* 158$ inkl Switches (69 pieces) Will Fit this LCD http://www.aliexpress.com/store/product/4-0-TFT-lcd-display/600281_521486526.html

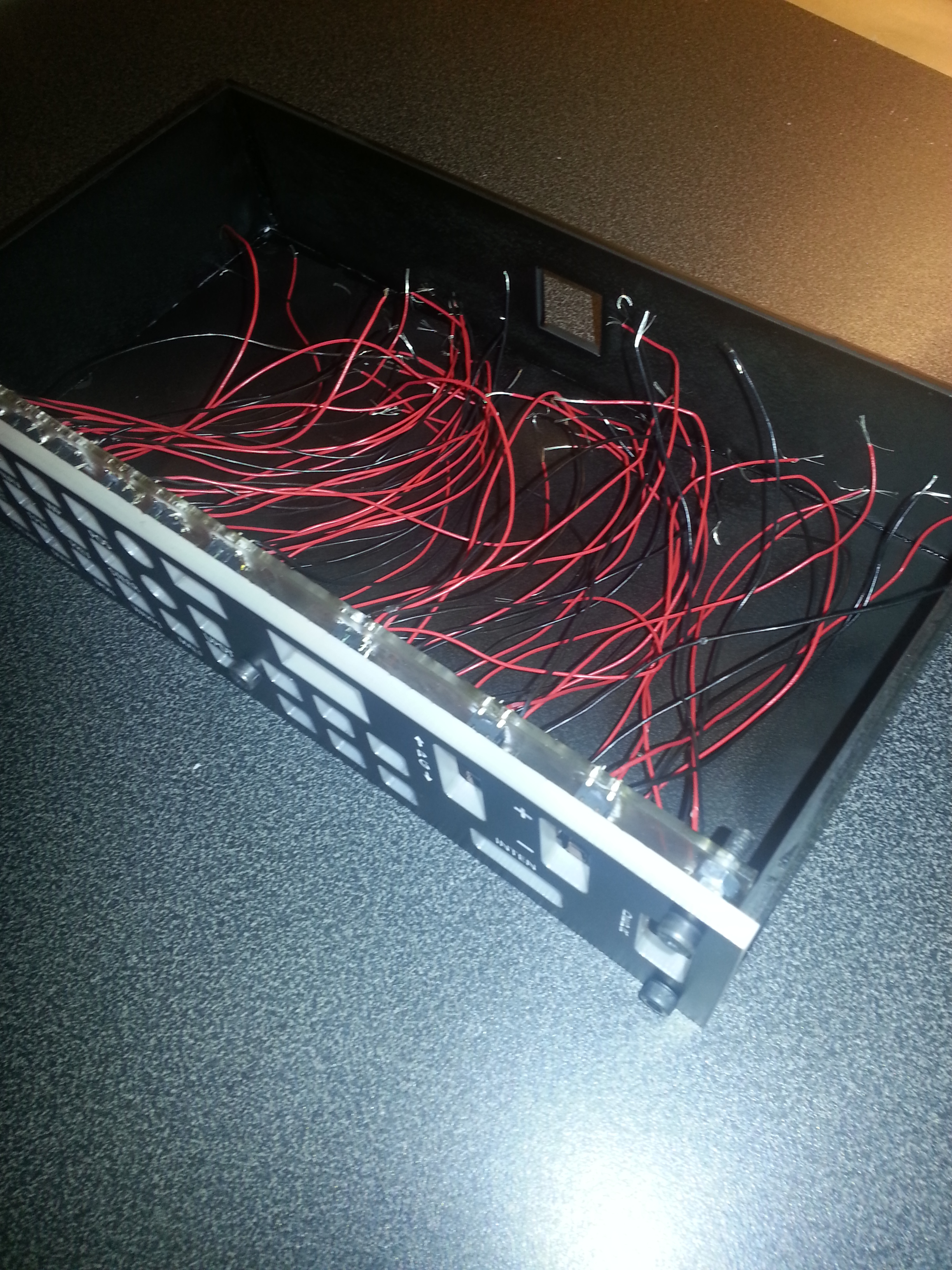

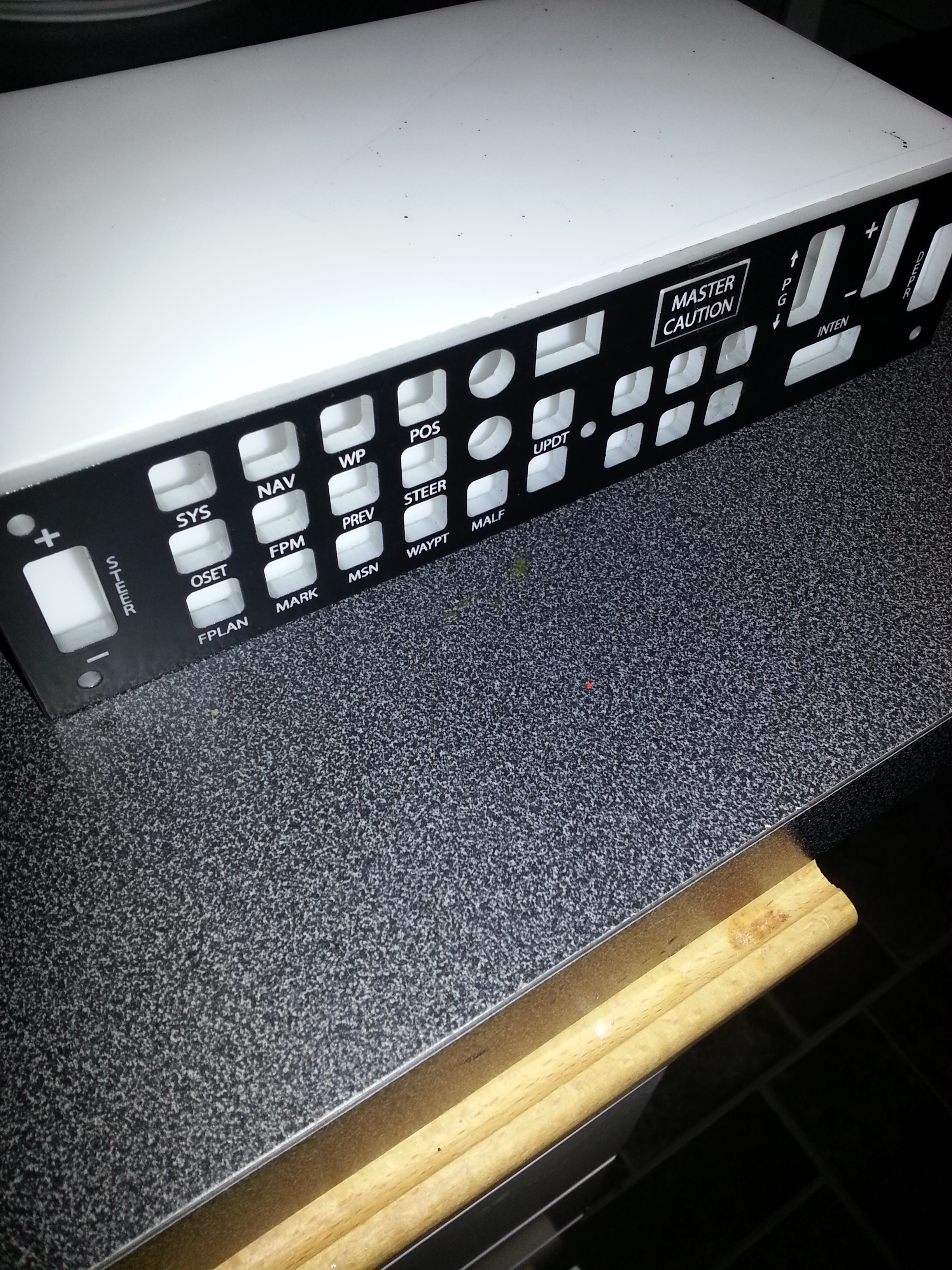

UFC* 174$ inkl Switches (35 pieces) Box will not be painted

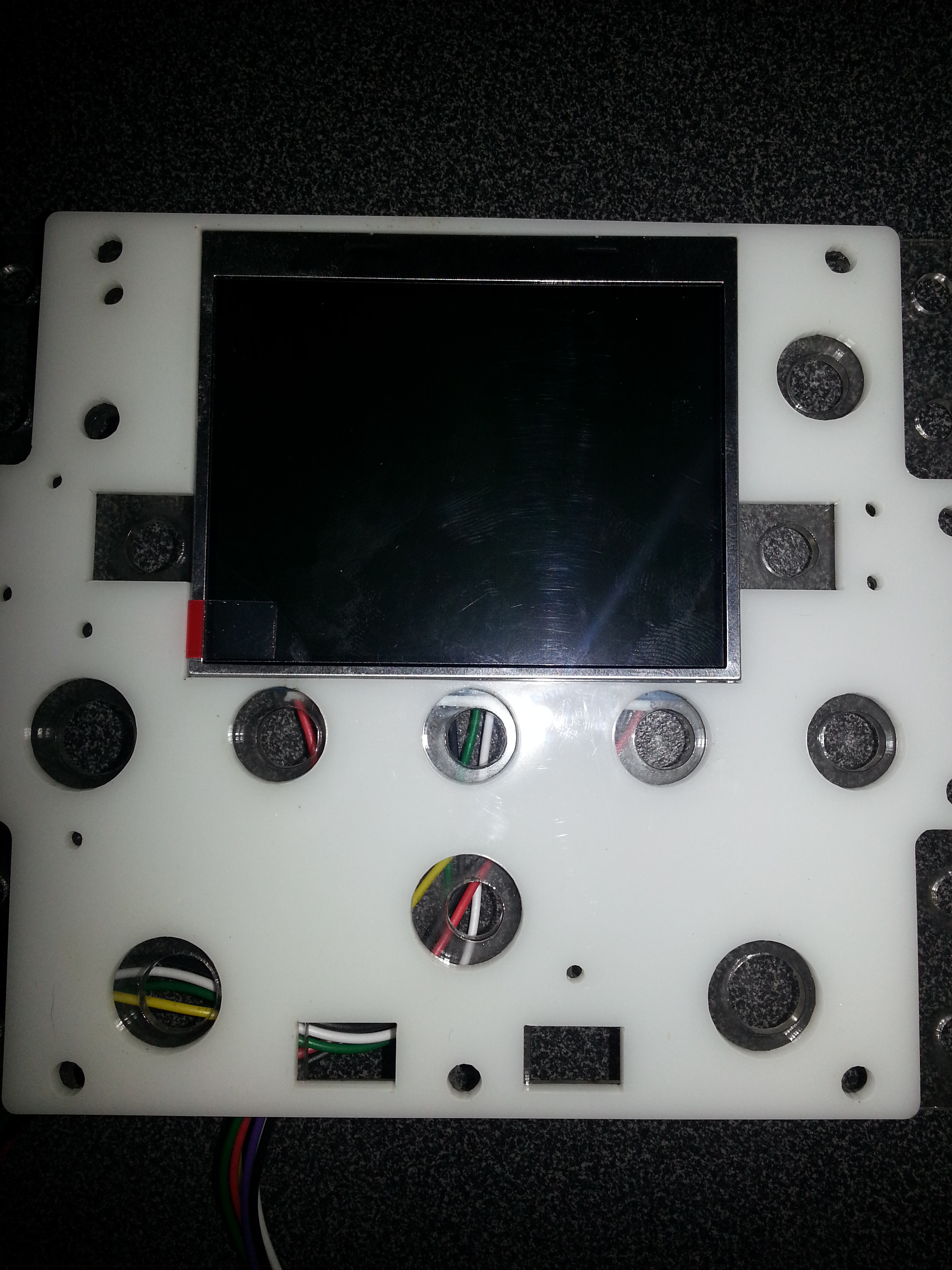

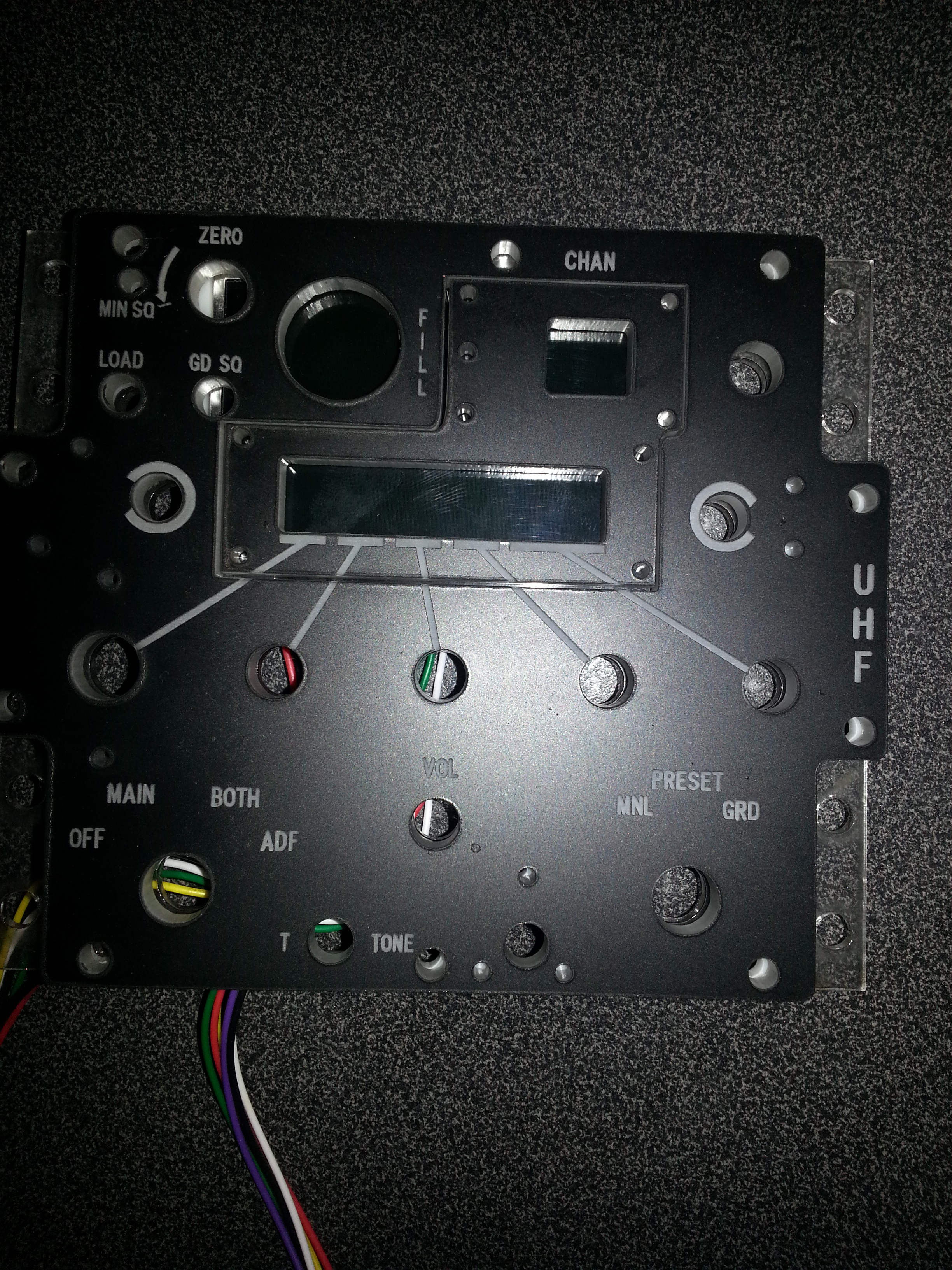

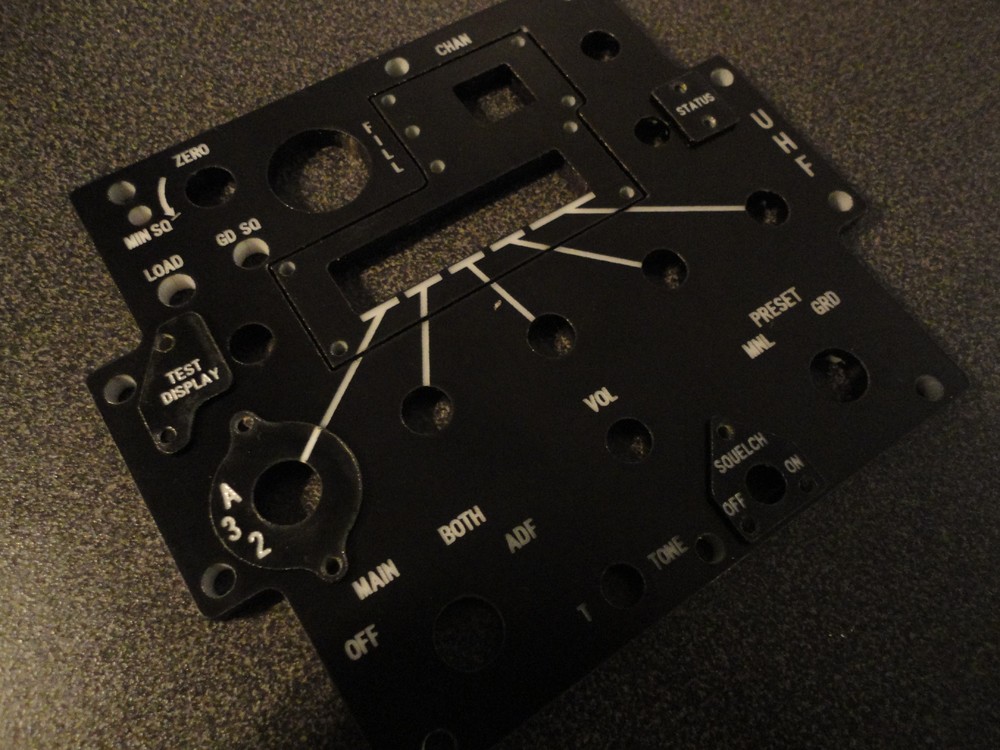

UHF Will fit this LCD http://www.aliexpress.com/store/product/3-5-VGA-VIDEO-LCD-SCREEN-MODULE-M07/600281_696893094.html

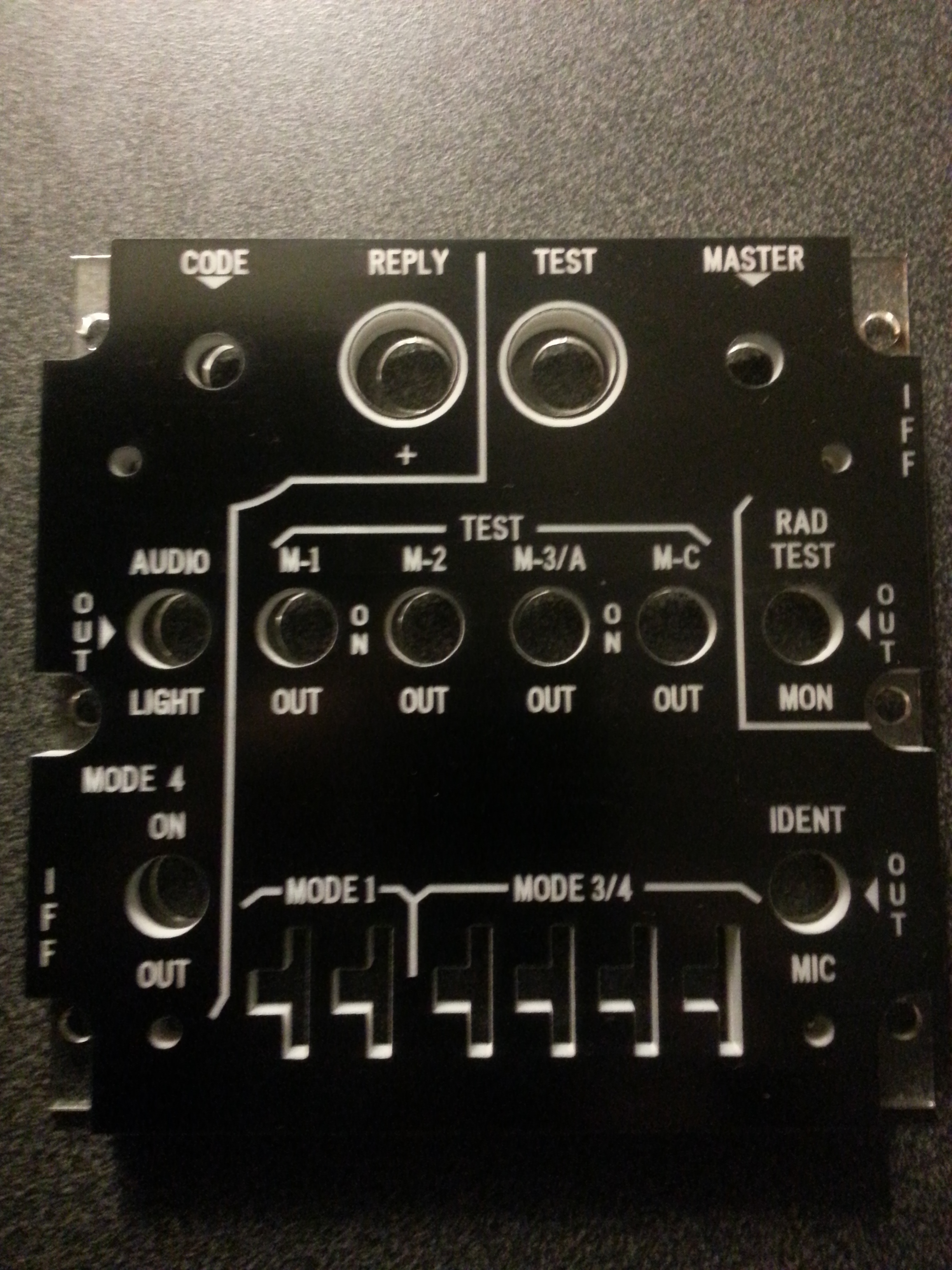

IFF

INTERCOMM

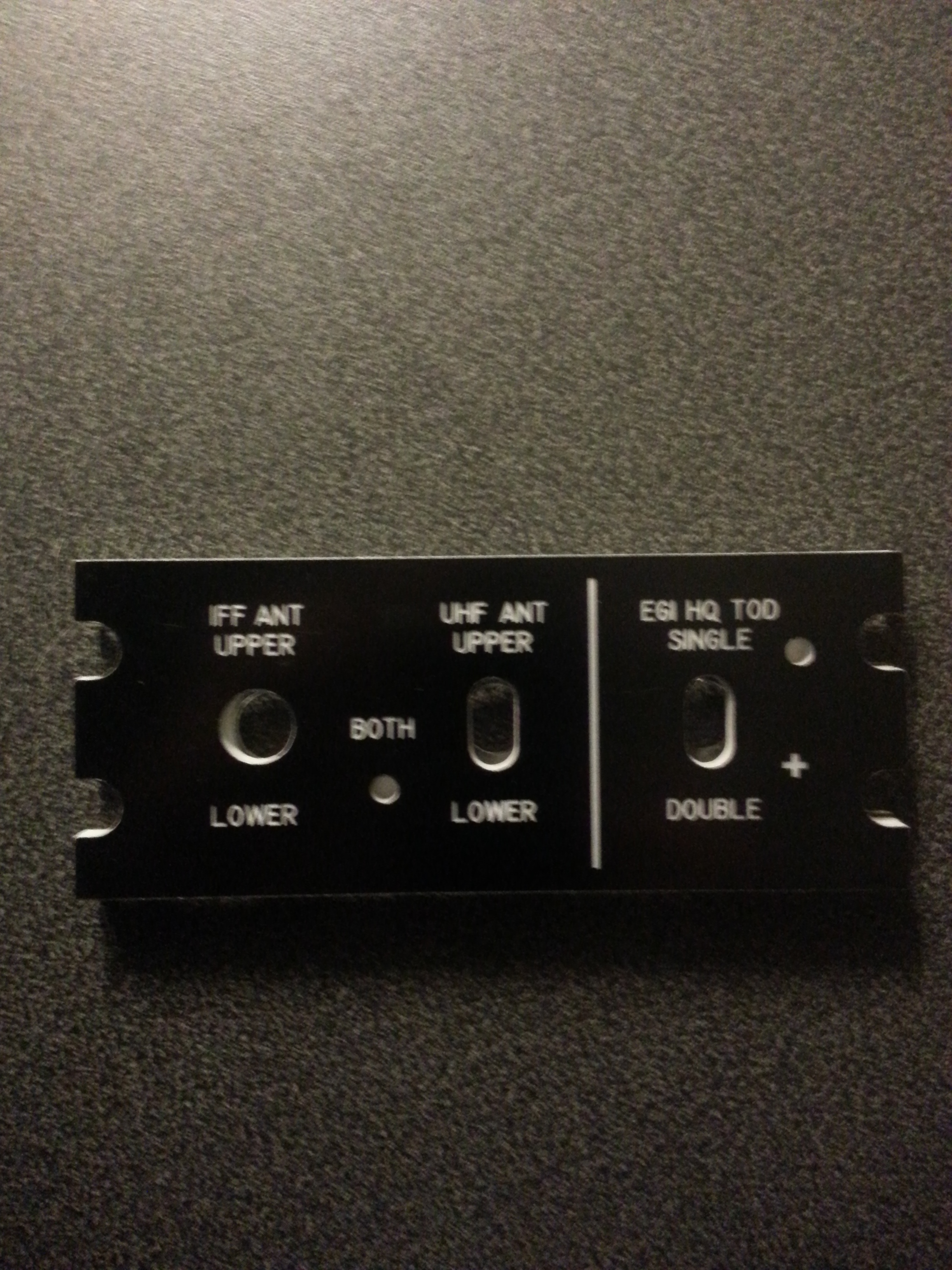

ANTENNA

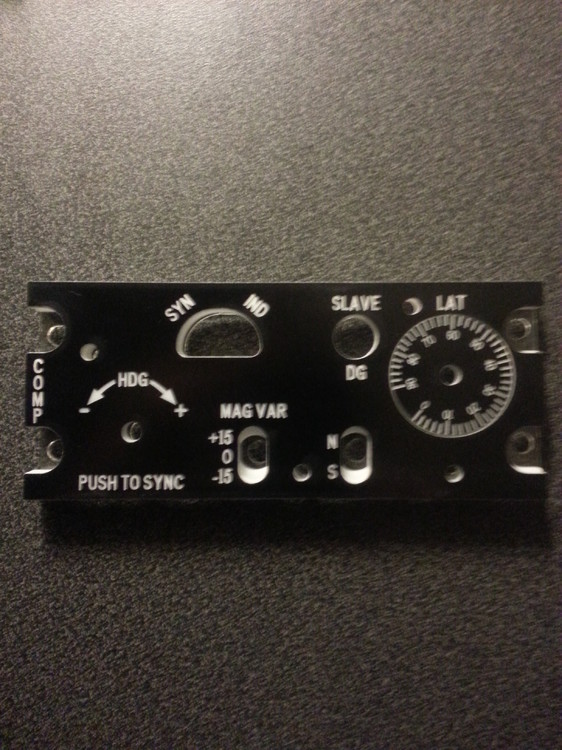

HARS

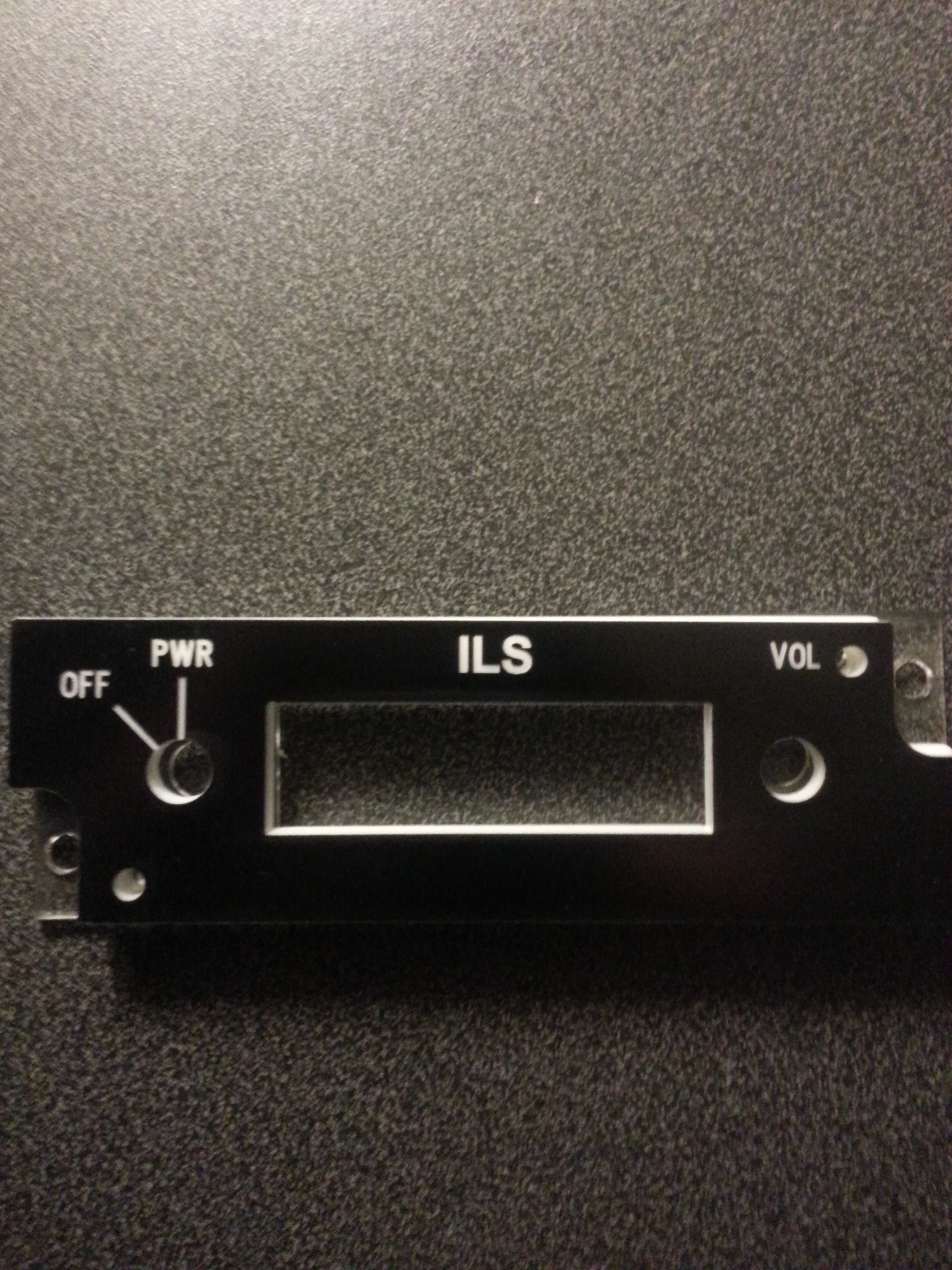

ILS Will Fit http://www.homecockpits.com/opencart/index.php?route=product/product&path=25_49&product_id=79

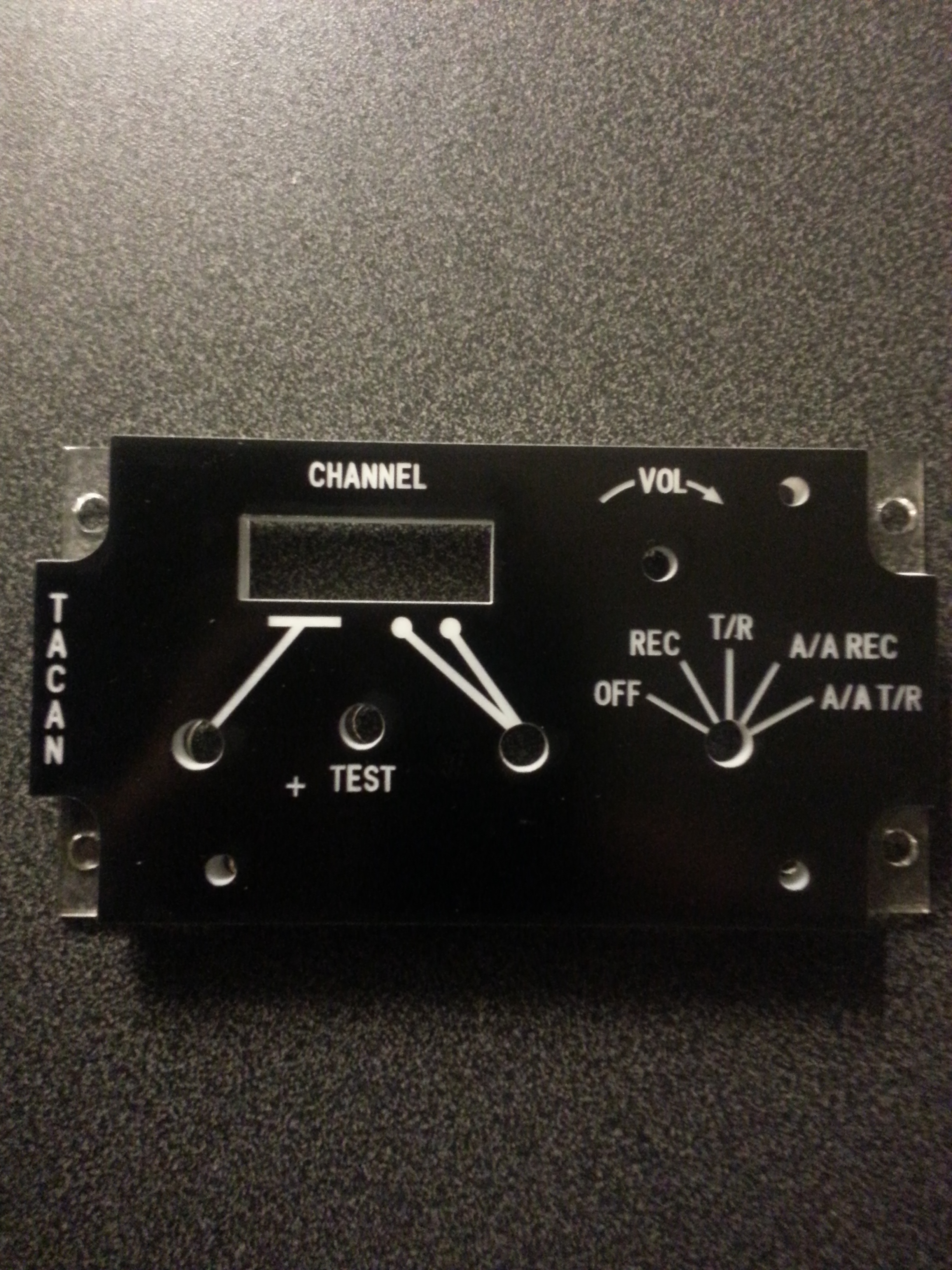

TACAN Will Fit http://www.homecockpits.com/opencart/index.php?route=product/product&path=25_49&product_id=78

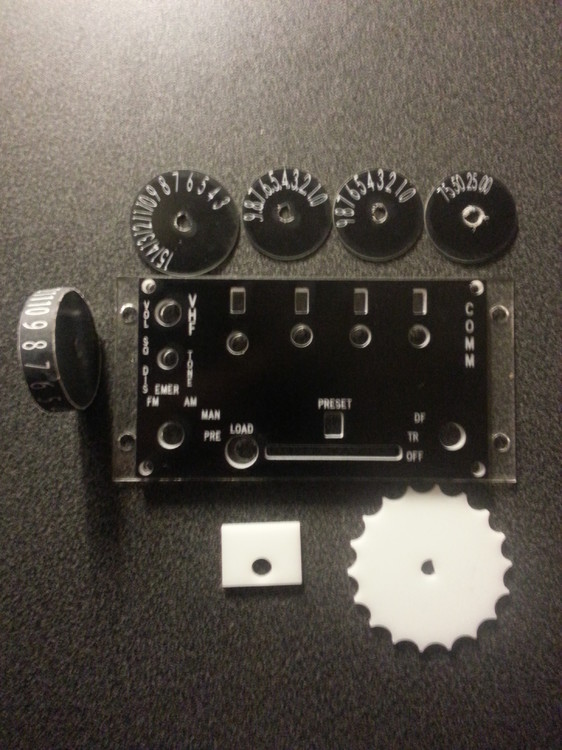

VHF* 60$

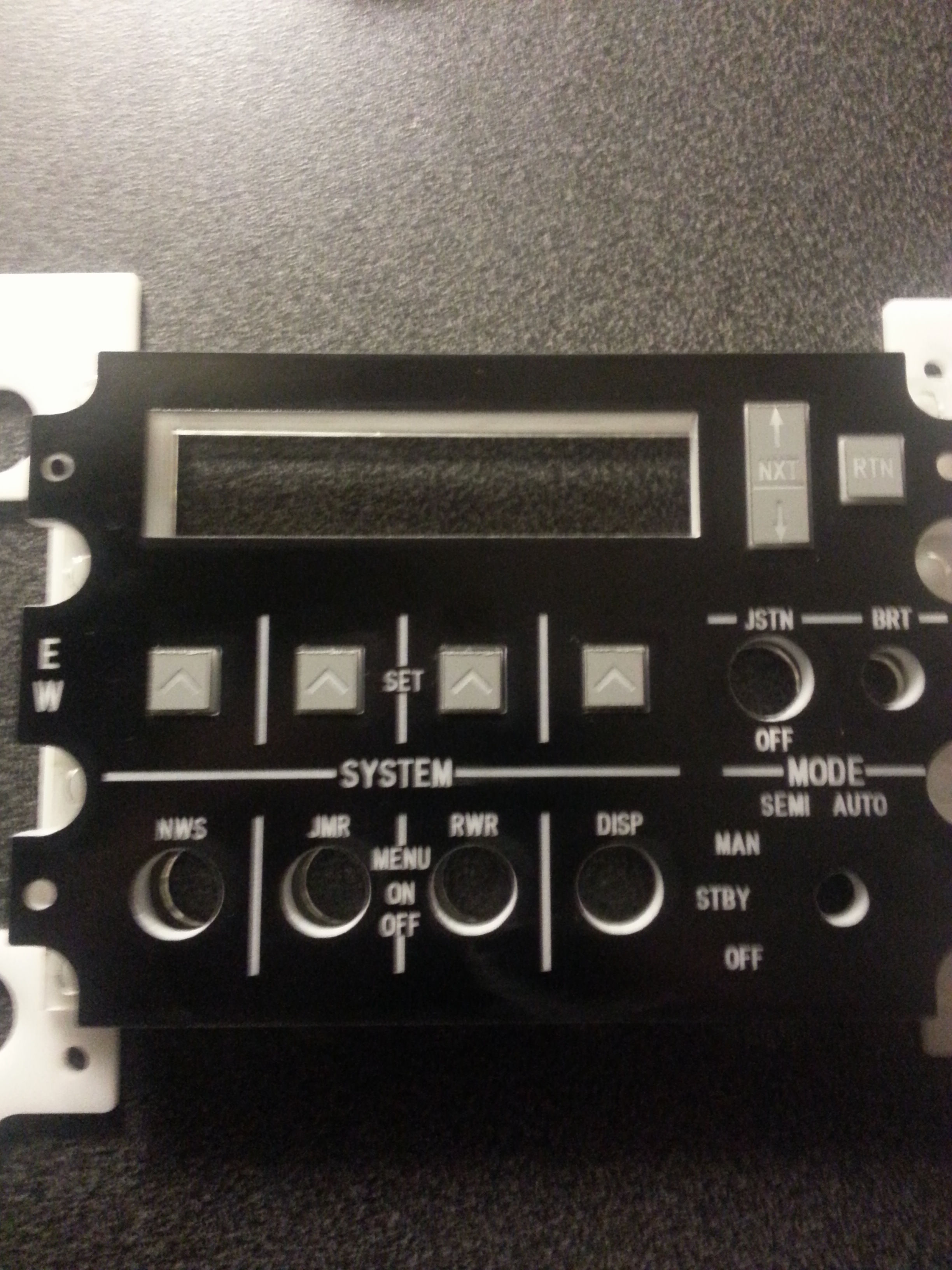

CMSP* 60$ inkl Switches (7 pieces) Will fit https://www.sparkfun.com/products/709?



Send order by PM:



Callsign:

Name:

Mailing Adress:

Panels to order:

I will then send the payment infomation

Closed

Edited February 26, 2013 by linden

[hog_driver111th]

Hey linden, if you plan on doing the CDU with all the buttons as option 1 (at that price) I may consider getting one. If not, any chance you can email me something of a design?

[TomDK]

+1 :thumbup:

Edited August 17, 2012 by TomDK

[MTFDarkEagle]

Yep, I'm with Hog on this. If you would be offering a CDU panel with buttons on option 2, I would be very interested!

[Deadman]

Guys IMHO there is no way to produce a CDU with Buttons for $45 to 50 USD

and at 5mm its way to thin for every thing to fit

Edited August 18, 2012 by Deadman

[linden]

I agree with you DM, it will not be possible for that price.

[DEChengst]

Very much interested as I can't machine them myself. Would love to have some stuff to continue my build during my November vacation.



EDIT: Option 2 please.

Edited August 18, 2012 by DEChengst

[MTFDarkEagle]

Well, what price would you have in mind for such an option Linden?

[linden]

im working on the cdu right now, when its done a can give you a price.

[MTFDarkEagle]

Cool mate ;)

[Jimbo]

+1, opt 2 please :)

[Strix]

Count me in on all!!



Opt: 2 of course

[hog_driver111th]

im working on the cdu right now, when its done a can give you a price.



Good enough for me! I'll be waiting.

[linden]

You are on the list!!

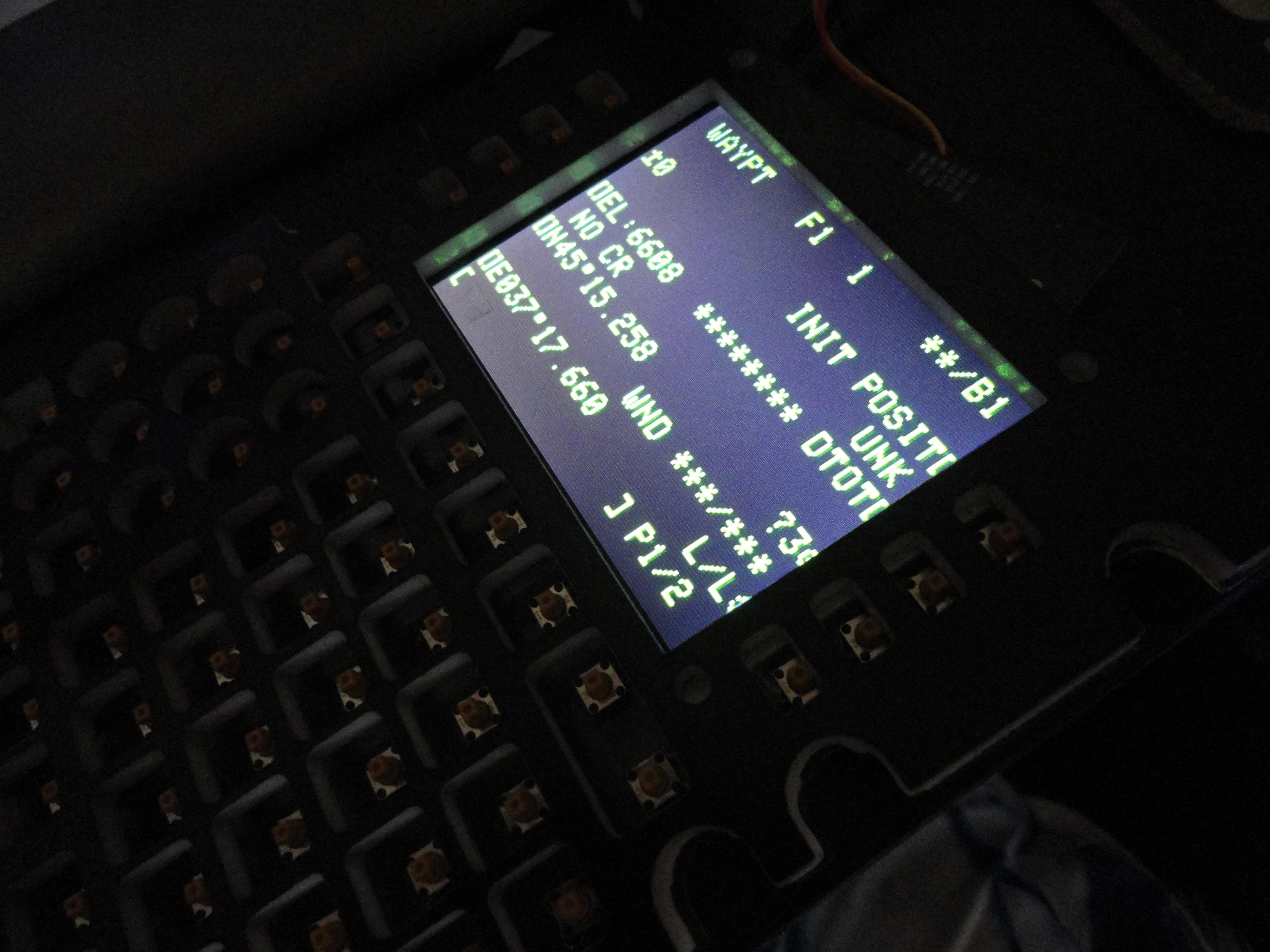

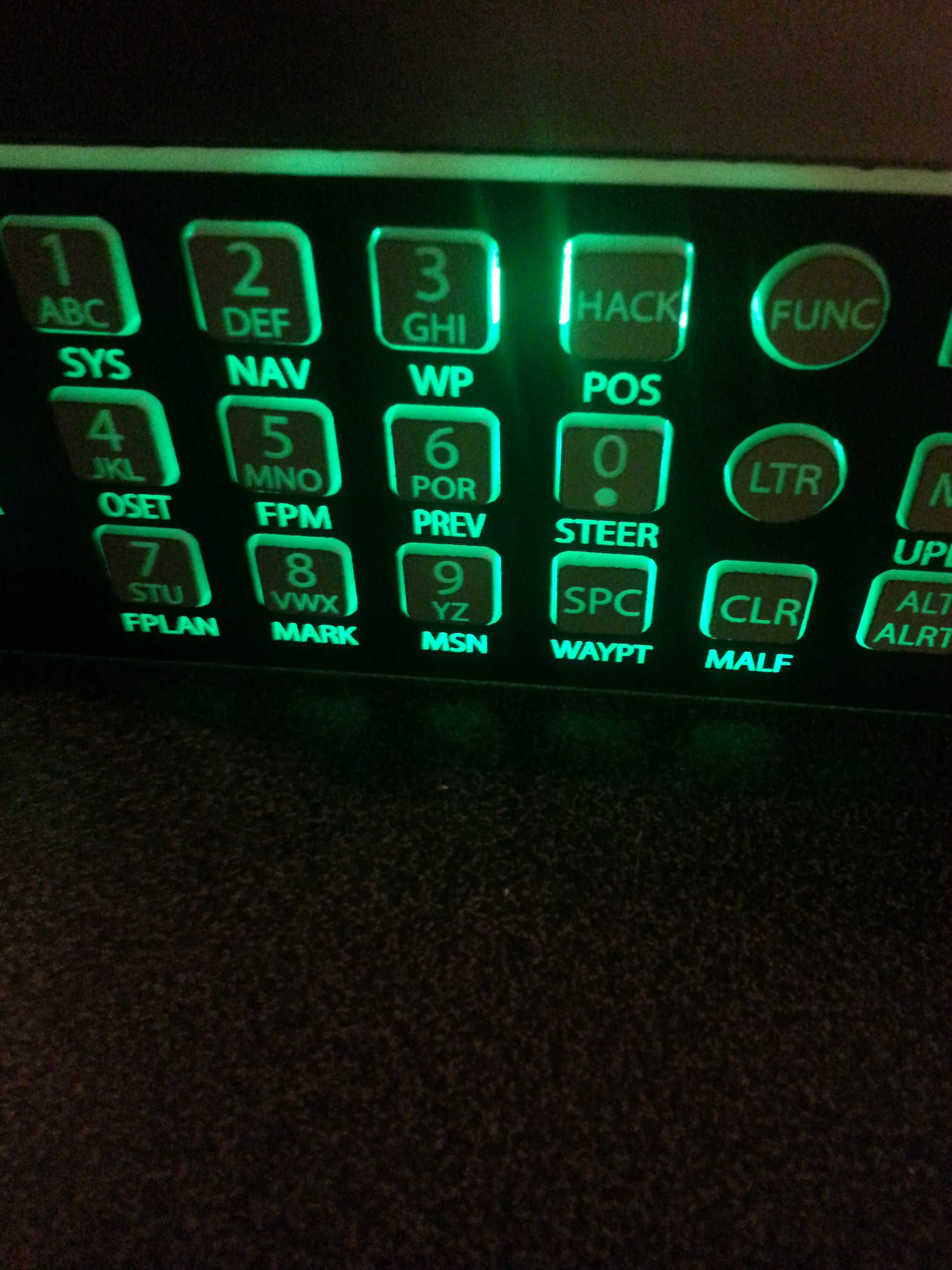

Here is some pic of the CDU, still working on it!!



http://forums.eagle.ru/showthread.php?p=1534627#post1534627http://

[Flim]

Ya, this panel making business is very time consuming and so many different variables to get it right. That is is why Mike a Vp charges $1300-1500 for a set of f-16 panels.



I would say a good cdu is worth at least $200 for the time it takes to make.

[linden]

For those who want panels, please specify which panels you want.

Then I can calculate how much material it will need and what the final price will be.



Thanks

[TomDK]

For me, please:



AAP

OXYGEN

EXT / INTR LIGHT

AUX LTG

EMERGENCY(not with the yellow and white frame)

SAS



CDU



Hopefully it will be around 350 Dollar plus shipping.

If you want I can send you 50% via PayPal, so you do not have all the cost for material.

[WildBillKelsoe]

im working on the cdu right now, when its done a can give you a price.



And a picture too if you please!! will it feature a 10 line /24 char/ln display? is it USB?



From manual

CDU Display Window. The display screen is a 10-line visual display of 24 characters per line. Line 1 displays the page label, active flight plan and steerpoint, DTSAS and EGI mode, and Figure of Merit (FOM). Line 2 is used primarily for annunciations. Lines 3 through 9 are used with the Line Select Keys (LSK). A scratchpad, with up to 15 enterable characters, occupies the left side of the 10th line (L10).

Each of these fields is distinguished by a L/R and 1-10 character.

[TomDK]

I think he is offering only the panels, cut out to build a CDU.

But, sure, would be great to get a complete unit !!



Tom





edit: Option 2 please

Edited August 21, 2012 by TomDK

[grmrepr0]

I'll take one of each in option #2.

[linden]

Thanks guys!!

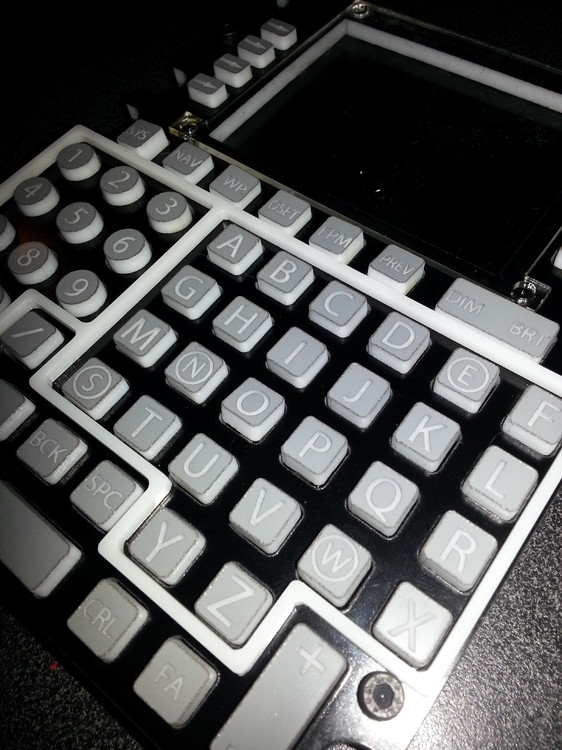

As for the CDU, im trying to make a low cost cdu that most can afford. But it is difficult to balance low cost and good quality.

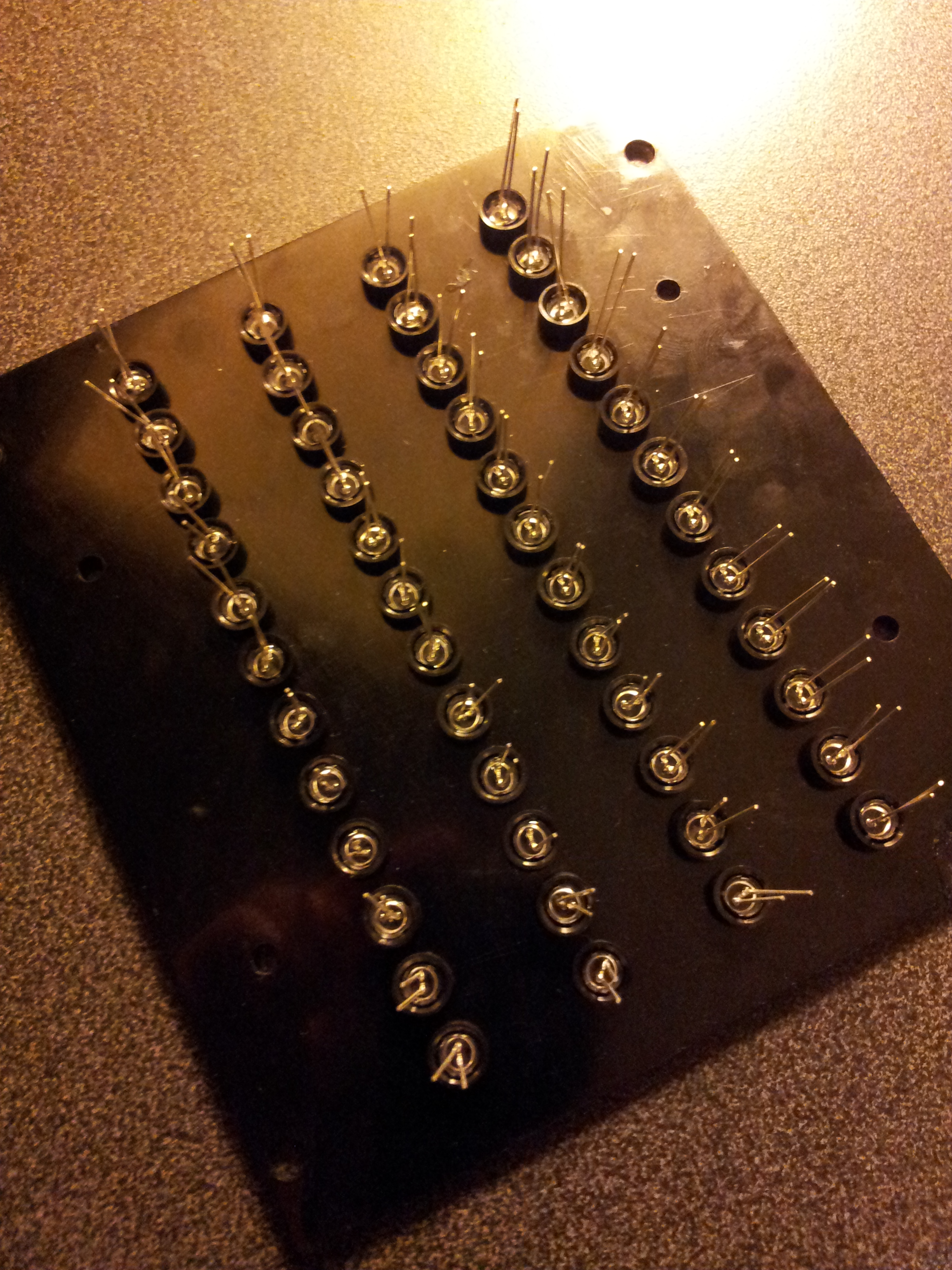

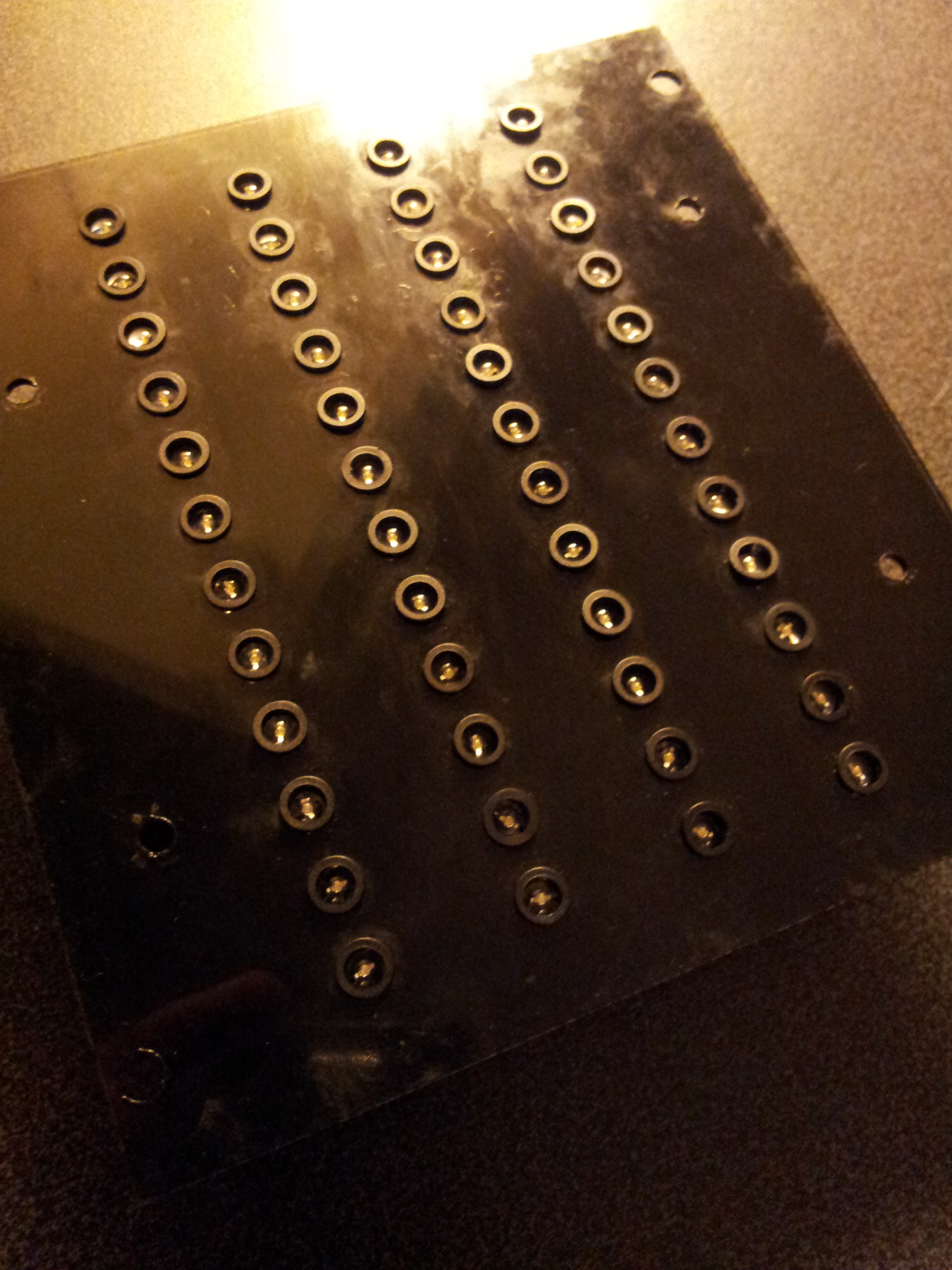

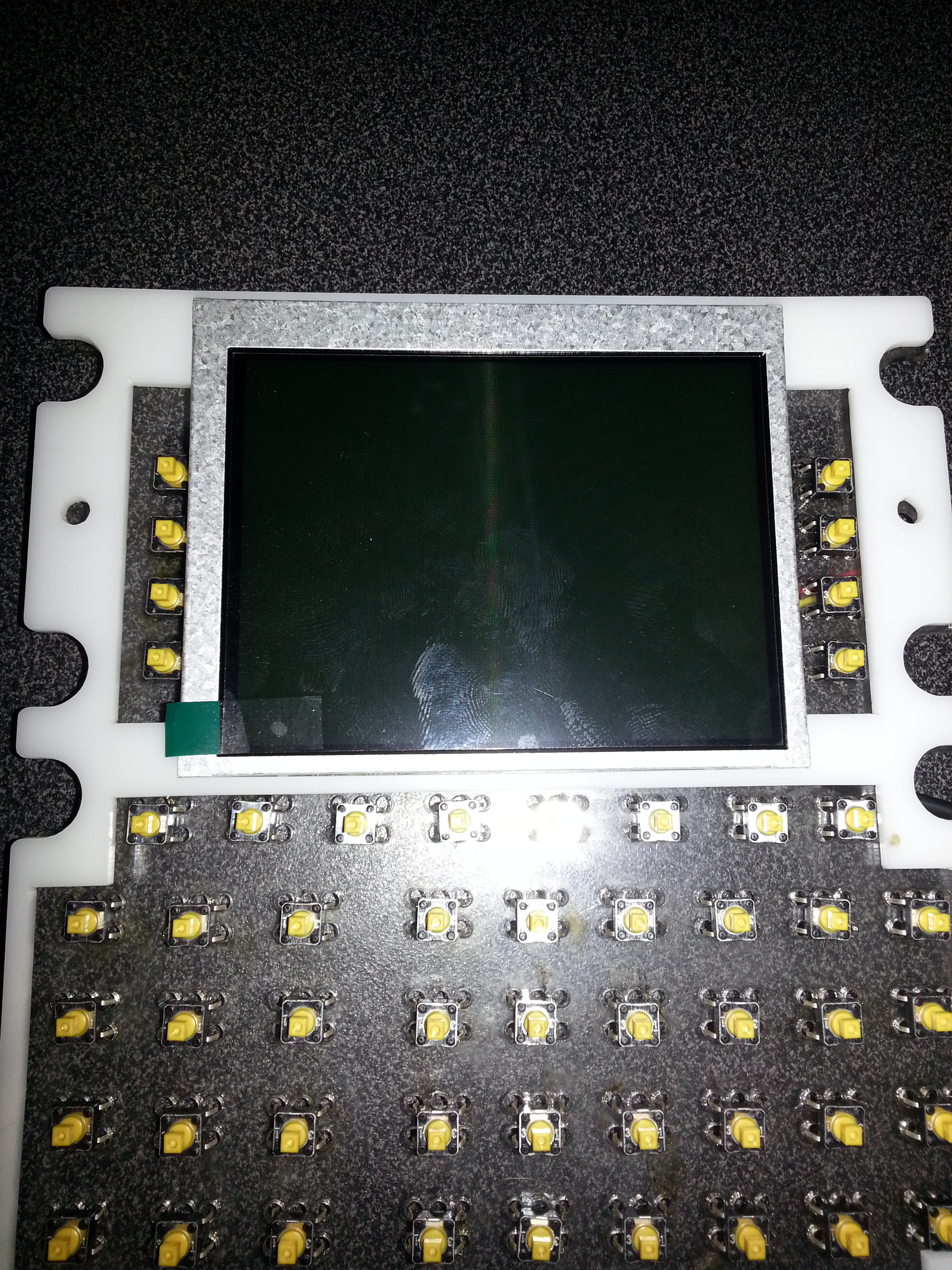

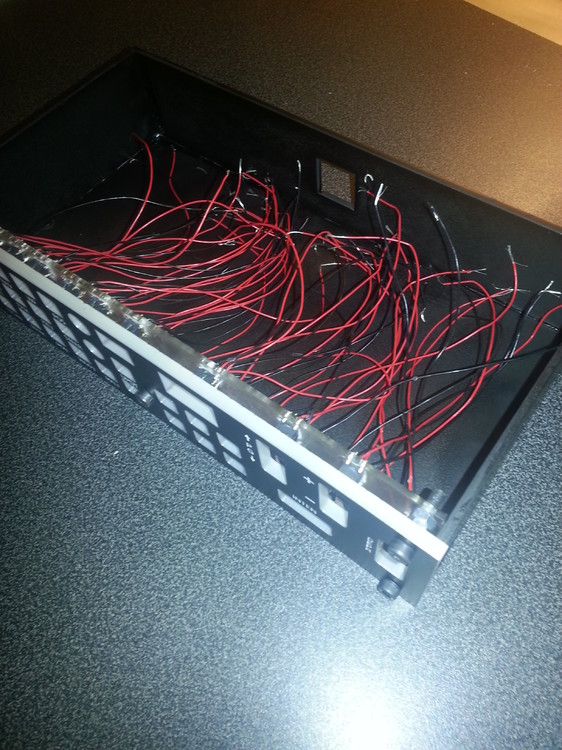

For this prototype i will not use a pcb, i will use the backplate to mount

the switches.

Then the buttons will have holes to fit the switches and it will fit an 4inch lcd.

I will keep working on it and hopefully there will be a cheap but good CDU in the near future.

[DEChengst]

For those who want panels, please specify which panels you want.



Option #2 please:



AAP

ENVIROMENT

ELEC PWR

OXYGEN

EXT / INTR LIGHT

AUX LTG

FUEL

EMERGENCY

KY-58

SAS

STALL

[linden]

Please see first post.



Updated!



Thanks

[linden]

Pictures of the panels are now available in first post.

[MTFDarkEagle]

Linden, question: with the CDU, do you plan to include the buttons? (i.e. the grey buttons with letter/number engraved)
