milit Posted June 23, 2021 Share Posted June 23, 2021 4 минуты назад, Маэстро сказал: requested TAS "Required TAS" seems to be closer =WRAG=345 R7 5800X @ 4,8 GHz; DDR4 32Gb RAM (+32Gb swap); Radeon RX 6800 16Gb; 3840x2160; Win10-64 Link to comment Share on other sites More sharing options...

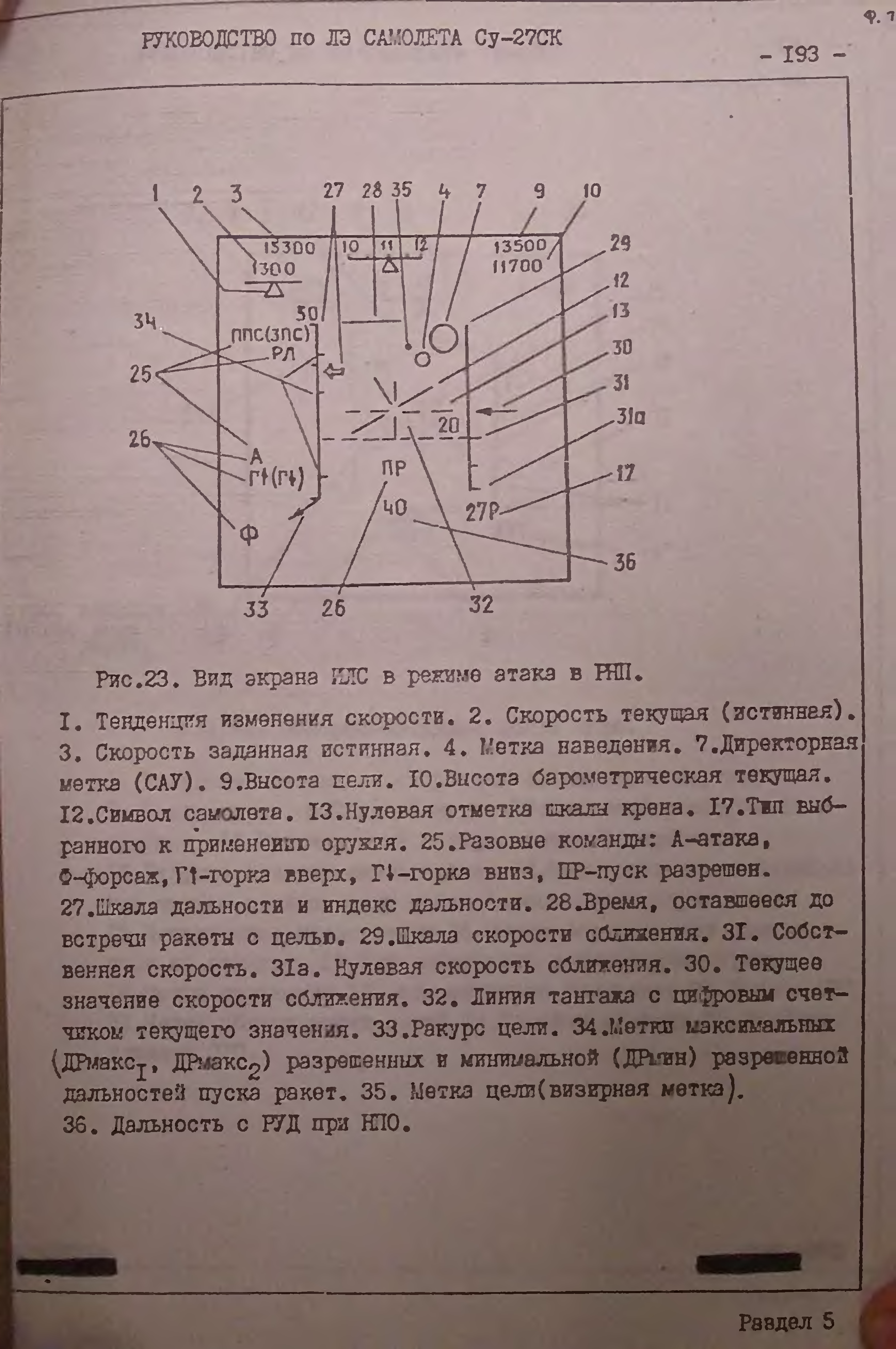

tavarish palkovnik Posted June 23, 2021 Share Posted June 23, 2021 (edited) However I consider all these velocity values on ILS or HUD as IAS-indicated airspeed, current and required IAS, текущая приборная скорость и заданная приборная скорость. From required IAS in this case 790km/h can be assumed that speed of target is around 640km/h=790-150. If algorithm of missile trajectory is done in missile's absolute coordinate system, it means with missile vs target true speed, then you can not use speed values indicated on ILS and such algorithm. PS...and maybe I'm totally wrong and values while RLPK is active are indeed TAS Edited June 23, 2021 by tavarish palkovnik Link to comment Share on other sites More sharing options...
Silver_Dragon Posted June 23, 2021 Share Posted June 23, 2021 12 hours ago, BlackPixxel said: It seems so Su-27SK, no a Su-27S Link to comment Share on other sites More sharing options...

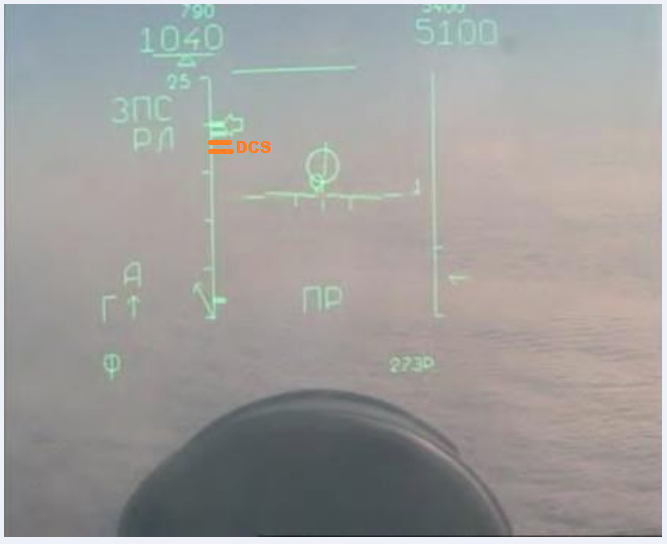

ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 16 часов назад, BlackPixxel сказал: You will propably find out that when correctly recreating the scene from the HUD photo the missile in DCS will "overperform", but that is just because the DLZ in the real Su-27 shows less ranges than the charts as additional safety margin. The Su-27 DLZ simulator that Chizh has shows the same behaviour. It seems to me that you are confusing something. The DLZ simulator shows approximately the same numbers as in the nomogram. Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
BlackPixxel Posted June 23, 2021 Share Posted June 23, 2021 1 minute ago, Chizh said: It seems to me that you are confusing something. The DLZ simulator shows approximately the same numbers as in the nomogram. DLZ sim shows about 15 % less than the chart. Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 11 минут назад, BlackPixxel сказал: DLZ sim shows about 15 % less than the chart. Why do you think so? Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
BlackPixxel Posted June 23, 2021 Share Posted June 23, 2021 2 minutes ago, Chizh said: Why do you think so? Look at your own posts and compare the range to the chart. Roughly 15% less each time. Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 Not so easy. At altitudes of 5 and 10 km, the simulator shows a little less. But at an altitude of 1 km, it is shown close to the nomogram. Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
BlackPixxel Posted June 23, 2021 Share Posted June 23, 2021 3 Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 R-27ER Altitude 1 km. Head-on. Speed: 1100 Chart: 28 Sim: 27.89 Speed: 900 Chart: 25.5 Sim: 25.39 Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
BlackPixxel Posted June 23, 2021 Share Posted June 23, 2021 I compared rear hemisphere, the HUD photo shows rear hemisphere. 1 Link to comment Share on other sites More sharing options...
FoxAlfa Posted June 23, 2021 Share Posted June 23, 2021 Yes, those 13-15% seem to be consistent, and if we add overmatch for the chart we would get the same number.... R-27R and T got similar improvements after changes, so maybe adjustment in that percentage would be good? it would be match and or overmatch the chart by just a bit in 1k and 5k range like it should.... for 10k we are getting in battery and other limits problem. 4 ------- All the people keep asking for capabilities to be modelled.... I want the limitations to be modelled.... limitations make for realistic simulation. Arguing with an engineer is like wrestling with a pig in the mud, after a bit you realize the pig likes it. Long time ago in galaxy far far away: https://www.deviantart.com/alfafox/gallery Link to comment Share on other sites More sharing options...

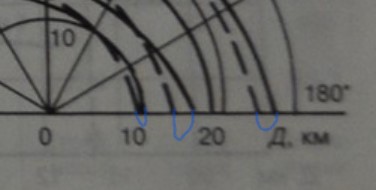

ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 6 минут назад, BlackPixxel сказал: I compared rear hemisphere, the HUD photo shows rear hemisphere. The chart is very inaccuracy in the rear at 1 km. Curve is not reasonable. Nevertheless, in the forward hemisphere, the data are almost the same. This suggests that your 15% hypothesis is not valid. Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
FoxAlfa Posted June 23, 2021 Share Posted June 23, 2021 (edited) 34 minutes ago, Chizh said: The chart is very inaccuracy in the rear at 1 km. Curve is not reasonable. Nevertheless, in the forward hemisphere, the data are almost the same. This suggests that your 15% hypothesis is not valid. With all due respect, to quote you from our missile discussion: "Think about what limits the range of a missile when launched into a tail-on? There is only one limitation - the energy of the missile, that is, the range at which the missile can intercept the target." And you were completely right, same here I would preferer that missile matched the tail-on range instead of head-on. I will run some test to confirm. Edited June 23, 2021 by FoxAlfa 4 ------- All the people keep asking for capabilities to be modelled.... I want the limitations to be modelled.... limitations make for realistic simulation. Arguing with an engineer is like wrestling with a pig in the mud, after a bit you realize the pig likes it. Long time ago in galaxy far far away: https://www.deviantart.com/alfafox/gallery Link to comment Share on other sites More sharing options...
Max1mus Posted June 23, 2021 Share Posted June 23, 2021 1 hour ago, FoxAlfa said: Yes, those 13-15% seem to be consistent, and if we add overmatch for the chart we would get the same number.... R-27R and T got similar improvements after changes, so maybe adjustment in that percentage would be good? it would be match and or overmatch the chart by just a bit in 1k and 5k range like it should.... for 10k we are getting in battery and other limits problem. What makes the least sense is that the R-27R was made to match the same graphs, but with the ER its suddenly inaccurate... Link to comment Share on other sites More sharing options...
Max1mus Posted June 23, 2021 Share Posted June 23, 2021 9 hours ago, tavarish palkovnik said: I truly belive that speed values on this ILS are not true speed but indicated speed. Velocity 1040km/h or 290m/s should be 355m/s of true speed and if 790km/h or 220m/s is aimed that could mean that velocity of target is around 640km/h (180m/s). This is again not true speed of target which at 5400m should be 230m/s. With those two values, 355m/s against 230m/s, and with checking trajectory, I'm getting that in second 36th missile will have it's true speed of 390m/s and it will travel for 27900 m. 27900 - 36*230 = 19620m In case 1040km/h is true speed and accordingly 640km/h is true speed of target....after 40 second missile will have speed of 355m/s, will travel 28400m -> 28400 - 40*180 = 21200m With your scenario, we get the same result. HUDfootage_polkovnik_scenario.trk Missile has the necessairy additional speed 2.3km behind the target. Thats over 10%. Plus the 2-3G energy reserve minus maybe 100 km/h closure speed because the target is slightly cranking. But even without any provisions, the missile falls behind here. Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 3 часа назад, FoxAlfa сказал: With all due respect, to quote you from our missile discussion: "Think about what limits the range of a missile when launched into a tail-on? There is only one limitation - the energy of the missile, that is, the range at which the missile can intercept the target." And you were completely right, same here I would preferer that missile matched the tail-on range instead of head-on. I will run some test to confirm. You don't seem to really understand what the problem is. Look at the strange break in the curve at 1 km. This is a freehand edit, not reasonable. Please see And another nonsense of the ranges disbalance These nomograms can be used for a qualitative assessment, but the exact values should not be grabbed here. They are not accurate. 1 Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
FoxAlfa Posted June 23, 2021 Share Posted June 23, 2021 12 minutes ago, Chizh said: You don't seem to really understand what the problem is. Look at the strange break in the curve at 1 km. This is a freehand edit, not reasonable. No, I completely agree that freehand has deficiencies. Just looking space between 10km and 20km is different 20 and 30 and etc. I am commenting track and RL picture. Missile in DCS can't reach the target under those circumstances and this closes we can get to tail-on RL picture. Also, manual instructing the pilot to fire two missiles one on Rmax1 and other on Rmax2 also point that missile should be at least some reserve energy left. So, since we all agree the graph has deficiencies, can you reevaluate missile performance based on this picture once you return from you vacation? 4 ------- All the people keep asking for capabilities to be modelled.... I want the limitations to be modelled.... limitations make for realistic simulation. Arguing with an engineer is like wrestling with a pig in the mud, after a bit you realize the pig likes it. Long time ago in galaxy far far away: https://www.deviantart.com/alfafox/gallery Link to comment Share on other sites More sharing options...
Max1mus Posted June 23, 2021 Share Posted June 23, 2021 (edited) 1 hour ago, Chizh said: You don't seem to really understand what the problem is. Look at the strange break in the curve at 1 km. This is a freehand edit, not reasonable. Please see And another nonsense of the ranges disbalance These nomograms can be used for a qualitative assessment, but the exact values should not be grabbed here. They are not accurate. High altitude - battery life. And less drag, missile can travel at slower speeds longer. Speed difference makes a bigger gap. Low altitude - Missiles with big rocket motors over slick designs will have a smaller gap. Less time spent at slow speeds, more at high speeds. Compare it with the AIM-54. If anything, the inconsistency is that there is not a way bigger gap at high altitude than at 5km. The high missile should spent more time at slow speeds. But the explanation is battery life being the limitation, not energy. Edited June 23, 2021 by Max1mus Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 23, 2021 Author ED Team Share Posted June 23, 2021 1 час назад, FoxAlfa сказал: Missile in DCS can't reach the target under those circumstances and this closes we can get to tail-on RL picture. Please describe clear circumstances so I can check. 54 минуты назад, Max1mus сказал: High altitude - battery life. And less drag, missile can travel at slower speeds longer. Speed difference makes a bigger gap. Low altitude - Missiles with big rocket motors over slick designs will have a smaller gap. Less time spent at slow speeds, more at high speeds. Compare it with the AIM-54. If anything, the inconsistency is that there is not a way bigger gap at high altitude than at 5km. The high missile should spent more time at slow speeds. But the explanation is battery life being the limitation, not energy. You are trying to explain mistakes that have arisen from the manipulation of this nomogram. The DLZ simulator gives in this case the values that are more correct. Altitude = 1 km, rear hemisphere. Speed = 900 km/h Max Range = 8.47 km. Speed = 1100 km/h Max Range = 7.95 km. Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
Max1mus Posted June 23, 2021 Share Posted June 23, 2021 27 minutes ago, Chizh said: Please describe clear circumstances so I can check. You are trying to explain mistakes that have arisen from the manipulation of this nomogram. The DLZ simulator gives in this case the values that are more correct. Altitude = 1 km, rear hemisphere. Speed = 900 km/h Max Range = 8.47 km. Speed = 1100 km/h Max Range = 7.95 km. What does the DLZ simulator show for this situation? Link to comment Share on other sites More sharing options...
BlackPixxel Posted June 23, 2021 Share Posted June 23, 2021 In all rear hemisphere cases (1 km, 5 km, 10 km) the DLZ sim shows 15% less than the chart, so we can assume that the DLZ has some extra safety margin. The "errors" in the hand drawing of the chart can not result in the missiles having consistenty 15% more range in the chart than in the sim, in all three altitudes. 6 Link to comment Share on other sites More sharing options...
FoxAlfa Posted June 23, 2021 Share Posted June 23, 2021 2 hours ago, Chizh said: Please describe clear circumstances so I can check Max1mus posted the picture and track worth investigating... DCS missiles doesn't reach target in those circumstances. 1 hour ago, Max1mus said: What does the DLZ simulator show for this situation? 1 ------- All the people keep asking for capabilities to be modelled.... I want the limitations to be modelled.... limitations make for realistic simulation. Arguing with an engineer is like wrestling with a pig in the mud, after a bit you realize the pig likes it. Long time ago in galaxy far far away: https://www.deviantart.com/alfafox/gallery Link to comment Share on other sites More sharing options...
Max1mus Posted June 23, 2021 Share Posted June 23, 2021 (edited) 5 hours ago, Chizh said: You don't seem to really understand what the problem is. Look at the strange break in the curve at 1 km. This is a freehand edit, not reasonable. Please see And another nonsense of the ranges disbalance These nomograms can be used for a qualitative assessment, but the exact values should not be grabbed here. They are not accurate. As a little experiment, i tested the AIM-54A Mk60 in game under the same conditions (In the rear hemisphere). Cutoff speed is target speed+150 m/s. /EDIT: 150m/s! The lowest value has the smallest difference, medium bigger and highest has the biggest. It should be like this on the R-27ER too. The 60s battery life just stops it from following that trend up into very high altitudes. (R-27ER TOF for the slow target at 10km is around 55s). And some slight maneuvers would increase that time to 60, even if it had less drag. Remember what the Su-35 pilot said about reserve energy for maneuvering. And infact, your in game R-27ER as tested by Maestro follows that trend precisely. Look at it. The gaps are like on the chart in game. Its simply worse than on the chart. But not different. Spoiler Edited June 23, 2021 by Max1mus 2 Link to comment Share on other sites More sharing options...
ED Team Chizh Posted June 24, 2021 Author ED Team Share Posted June 24, 2021 6 hours ago, FoxAlfa said: Max1mus posted the picture and track worth investigating... DCS missiles doesn't reach target in those circumstances. What is target params? Единственный урок, который можно извлечь из истории, состоит в том, что люди не извлекают из истории никаких уроков. (С) Джордж Бернард Шоу Link to comment Share on other sites More sharing options...
