He found the deal on eBay.

No idea but I would try to stay away from search like F-16, F-18 Flight simulator those tend to drive prices up where as part number and general description may show better results all so look at other sections than Aviation or military collectibles.

Correction on the Mag switches he picked up 5 for 12 pounds with shipping so great switches are out there on many different eBay site just do your home work.

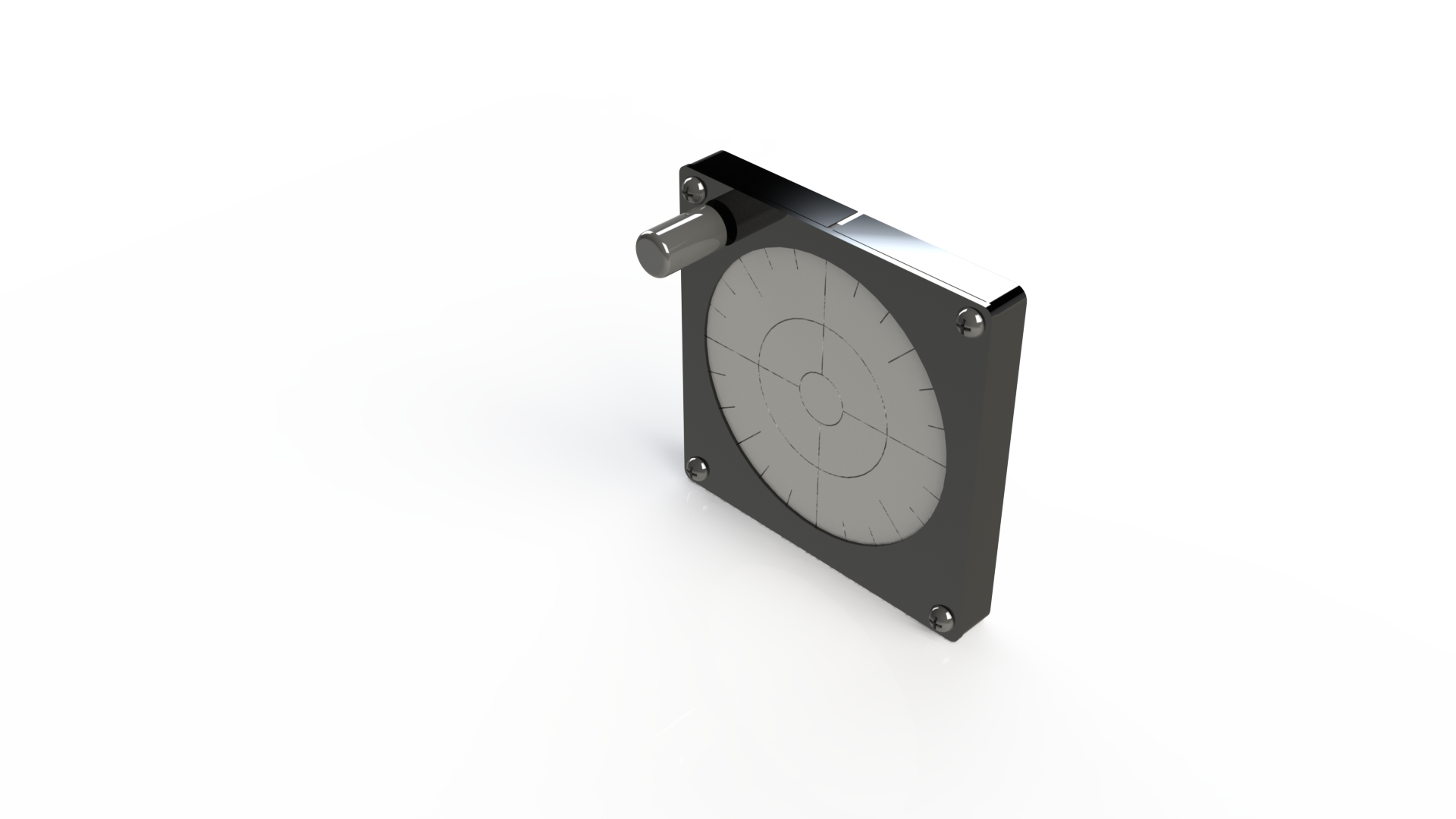

Original IP 1310 RWR indicator with a TFT screen

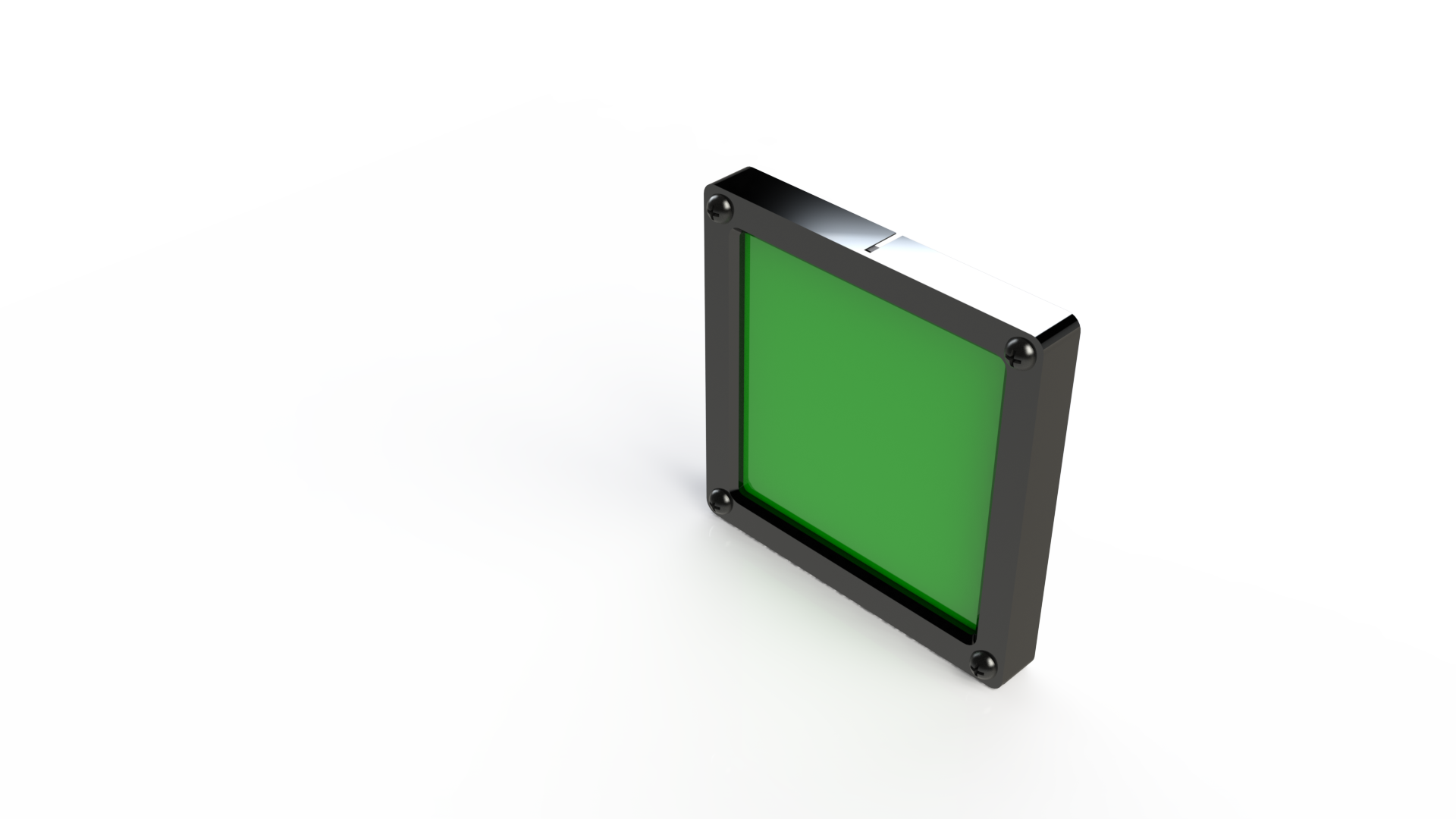

Here is a digital RWR I made up these can be found in newer F-16 the Bright knob is remove so I found a screen that would fit

ebay I know a guy that picked up at least 4 mag switches off of the eBay in the UK for 12 euros each so keep an eye out that is why I made the switch list

Ghost maybe.

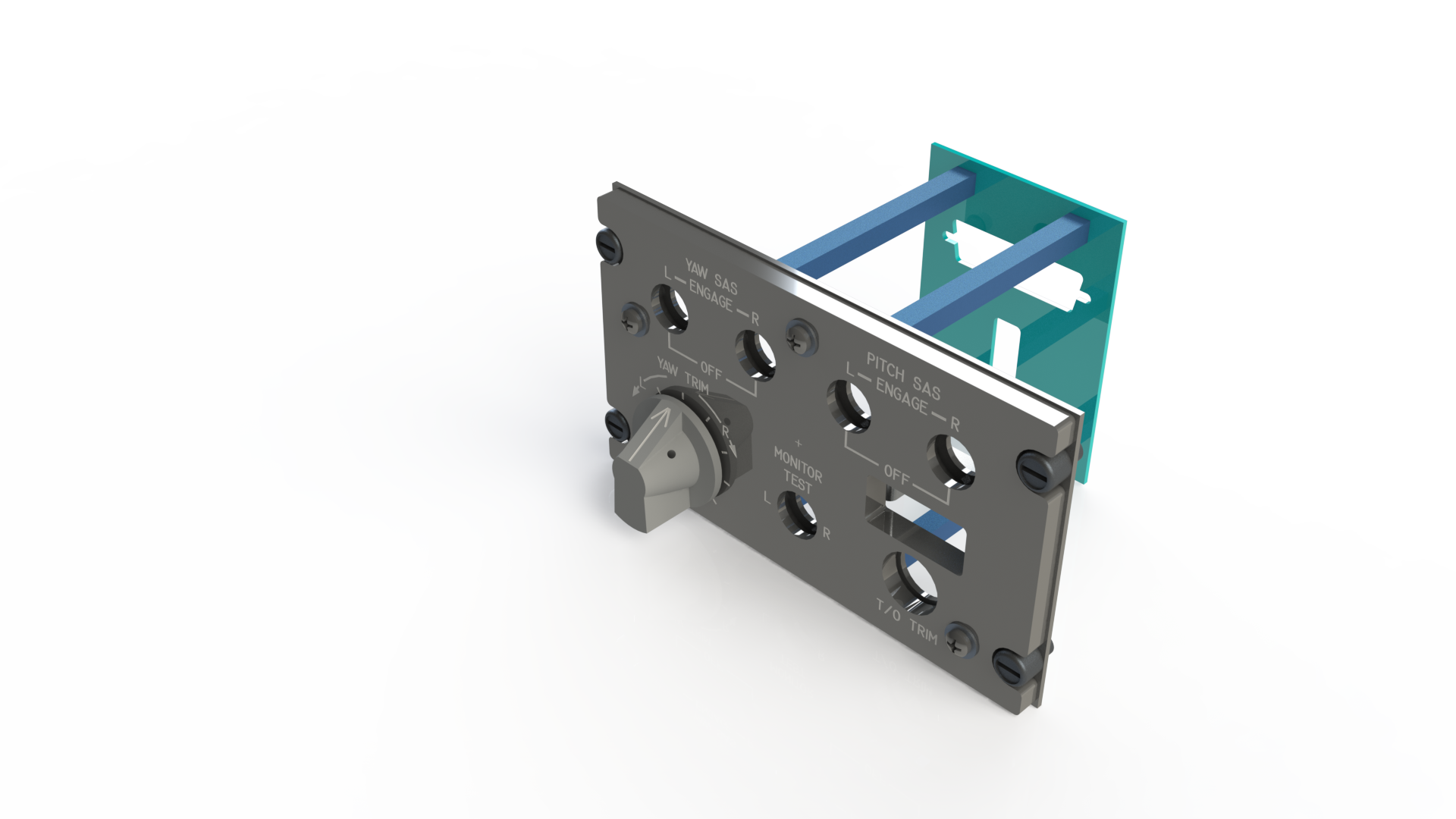

Well had a bit of time so I worked on the SAS panel The dimension were taken from my panel and are accurate so it will fit with the other panels . Just in case any one is going to ask.

Nice name calling there Sorry for trying to get you some real information have a great day

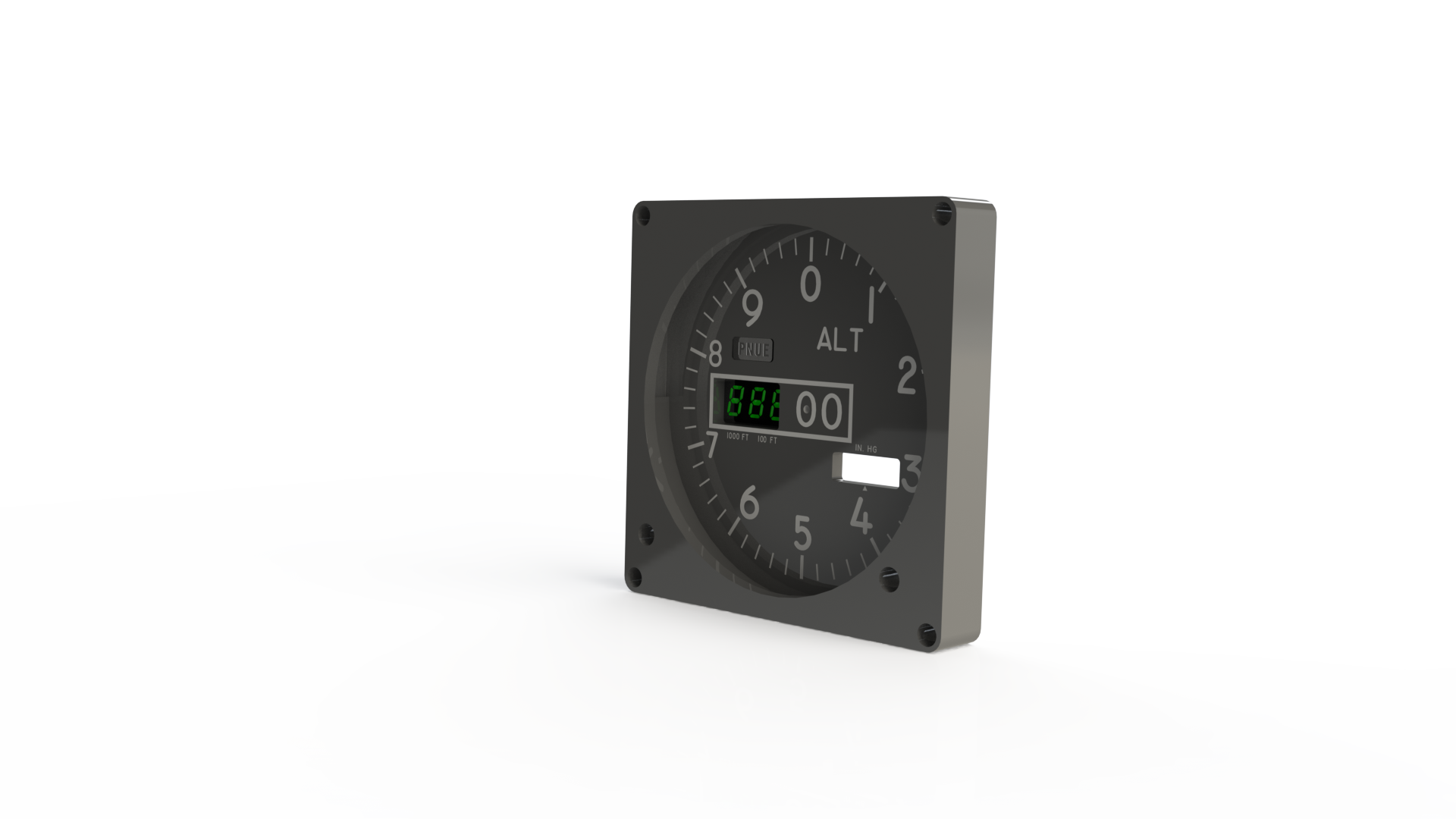

No I did not criticize your choice but some one else's statement, There is ton of suff I have that is not in my build thread most of it has been removed. The statement i made and information I supplied was only to give you the option of having and using information you did not seam to have. You all so are a bit confusing when you post a drawing with an AAU 34 with what appear to be OLEDs display. So any way I was just wanting to get you some information. I have no consern about how or what you build Cheers. I did make an adapted version of the Alt several years ago in SW do to thew type of display on the real unit

Thanks for the link found a few pics Who Are the purist?sounds pretty bad there.

Good picture of an A-10 C simulator at the 127th https://www.dvidshub.net/image/4909018/gov-snyder-visits-sangb

Because some are just not that way so you can tell them something until you are blue in the face. show them and maybe they will stop and think for a minute . Then again may be not

lesthegrngo I have scanned threw the list of your threads but don't seam to see a build thread. I am not familiar with your build do you have a link? Cheers

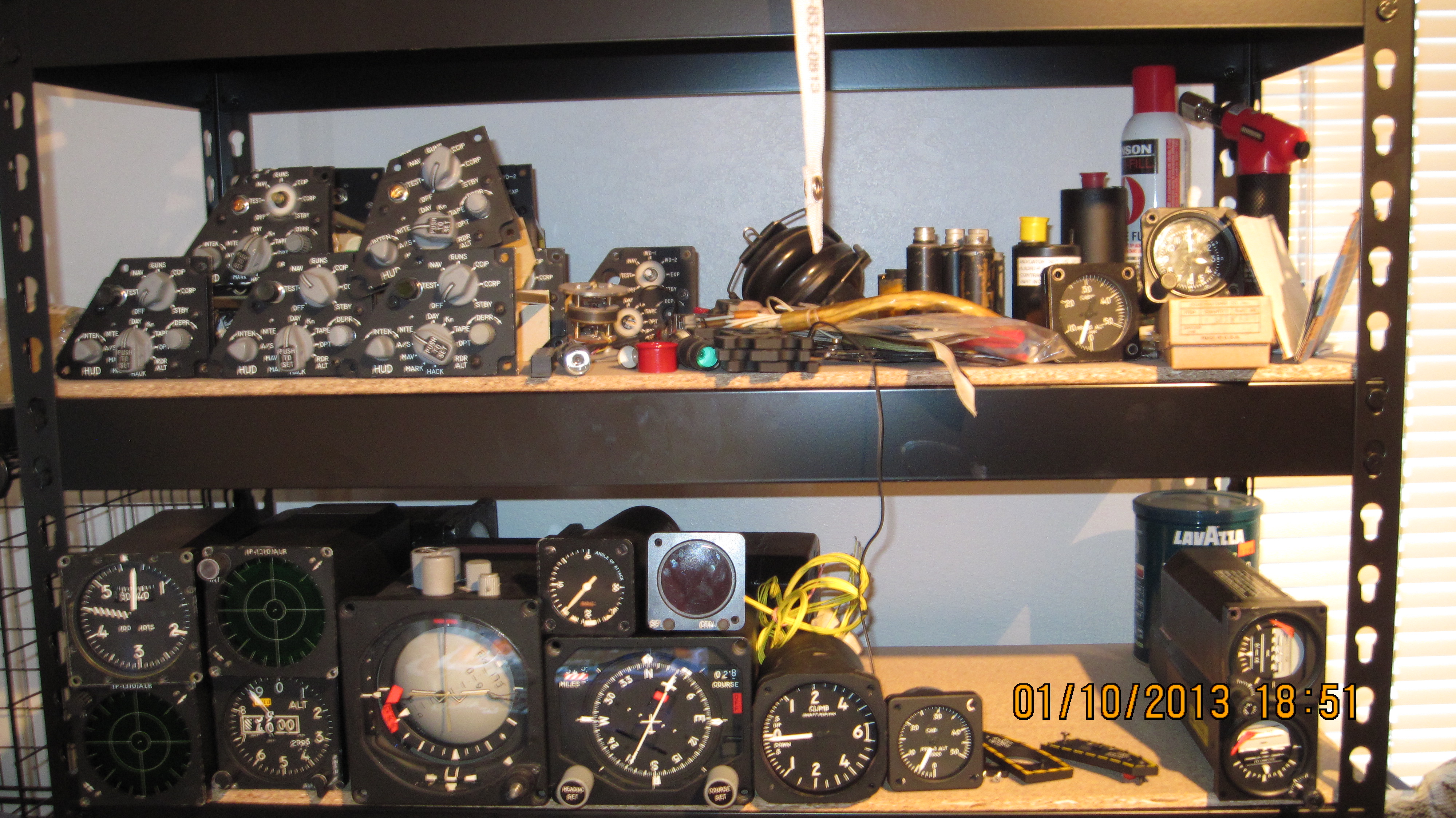

I have been ask to prove I have an AAU-34/A or a military altimeter here are a couple of picture of two units the AAU-34/A real instrument located on the bottom shelf left side to the right of the RWR IP 1310A indicator the second is an AAU-19/A for a simulator any thing else?...

Unfortunately you may have missed the post in the tread where i stated that the pit is in storage and it still is. Finding an affordable house that the wife like in the are we are living in has proven to be a challenge.I will post a pic i found in the hard drive of my AAU-34/ and an AAU-19/A simulator instrument on my thread Cheers

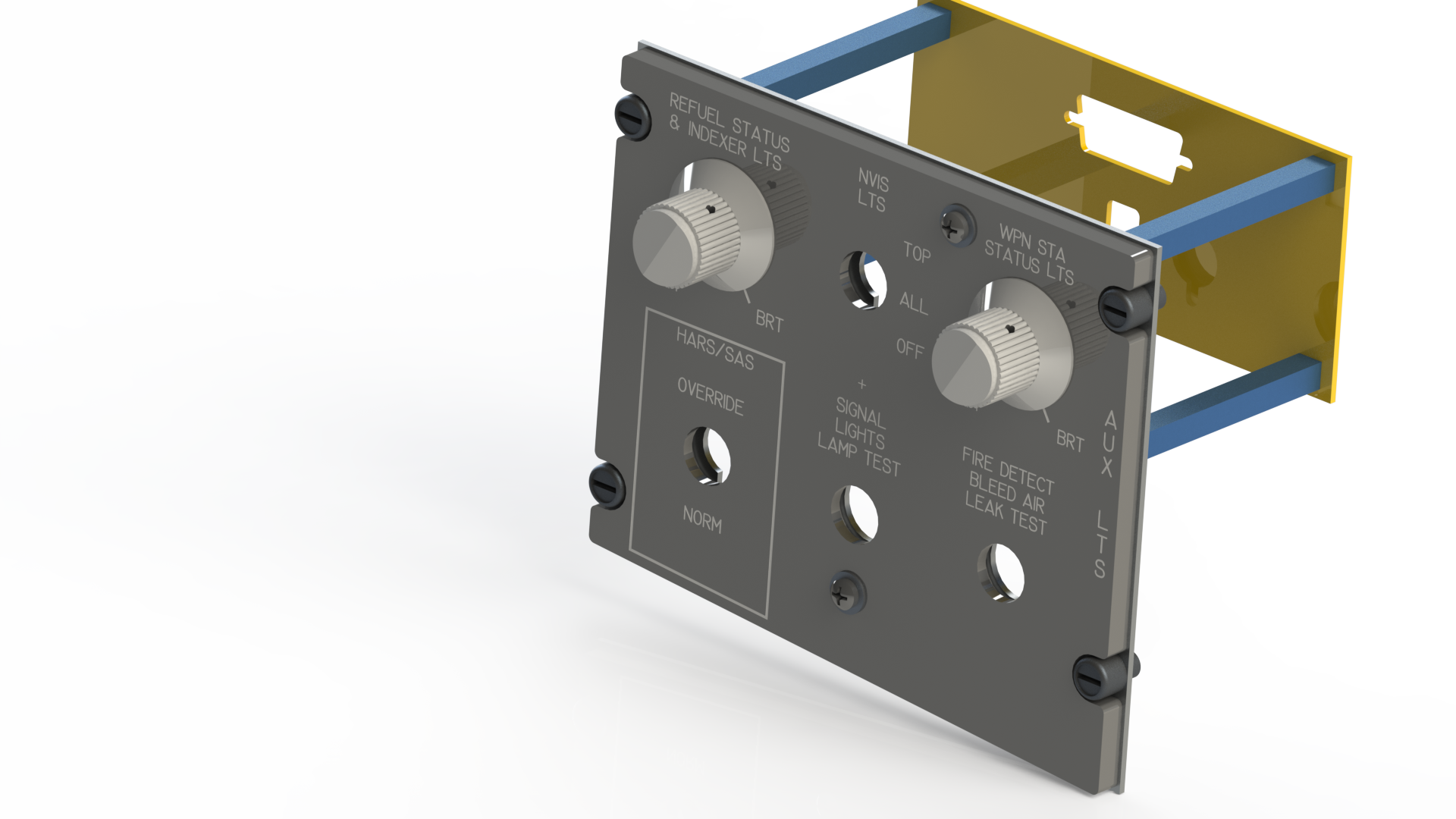

Had a few to create a new render not really what i would want it to look like should all be mat finished

reply sent

PM sent you have several problem and I have several questions

Considering I have been fluent in metric for over 20 years I find your comment quite offensive. The items were designed in imperial using it will actually make it easy for thing to fit together but hey bang you head against the wall its fun to watch

Gears work get a copy of mikes flight deck first book if you can find it it is out of print Building Simulated Aircraft Instrumentation.Then you may see the woods

The Altimeter that is currently in DCS A-10C is the AAU-34/A. It is a mechanical altimeter with out and LCD displays. So by using the LCDs You are making some thing closer to the unit i sent you a link to.

I have no displeasure with ED's choice of altimeter in the A-10 A or C model. As far as i have documents the unit is still an AAU-34/A Kollsman Servoed Altimeter. The model that I have currently in the A-10 FMT that i have It is not a build but a rebuild from an A-10-A model in to a C model. The reference to search for a "C" model is if you search for an AAU-34C/A Solid State Barometric Altimeter you will find the lay out for the type of Altimeter you wish to make I thought I had made it a clear hint to look for some thing perhaps i need to simply it for you. 3 minutes of a google search and hey what a find http://innovative-ss.com/wp-content/uploads/2016/08/SSBA_A10.pdf Now as far as you telling what i can or can't say well now that is just a waist of your time. Cheers

OK by your statement you do want to do it correctly,you want the headache of using metric. You want to do it your way Hey thats is great I have give you advice to try and help you and you have not accepted it. No Problem CNC don't care what unit of measure you use yes there is Gcode for each. So why would I take my time to present the Errors in the document when you have mad e up your mind? as a beginner just do your research there is all ready a sticky on how to make so so panels and back plates.
