The supply-house only place I get to be with my "pieces of wood, wires, and other debris" as my girl says :)

Nice work as always:thumbup: The needles is it homemade or did you find them on a store?

A new part is on the way, the Front extension and hinges are in place on the left side. Because I have been busy with panel building it goes very slowly forward, but it goes foreward anyway :) This think is gonna be BIG!!!:joystick:

The material has arrived:).. i will now paint the 5mm black and then sent it to the lasercompany. I think I will be able to send the panels to you in 2 weeks. /David

Got the knobs!! Really good quality!! Thanks DM!!

right now I update panels so they will fit with Deadmans knobs. /David

The covers has arrived, very happy with them!! :thumbup:

The 3mm and 2mm material has now arrived. I have order the 5mm and it will be shipped whit express as soon its back in stock. /David

Here is a less funny update. The material is out of stock so it will take about 3 weeks until it comes home. I can get the same material overseas but shipping is too expensive unfortunately. Hope you understand /David

The run is closed, i will now start to order materials.

Nice :thumbup:

Just want to remind you all that the panel run ends on Sunday. So you who have ordered panels, pay the 50% before Sunday otherwise your order will not be completed. Thanks

Yes you will need a card that can handle encoders the BU0836X is a good one for that

I use this card: http://forums.eagle.ru/showthread.php?t=80201 A good card with 256 digital inputs and 13 analog inputs.

Thanks :)

Nice work!!! :thumbup: Keep it up!!

Slowly it begins to look like something.....

Yes it will be buttons incl, if i will do a low cost cdu the buttons will be straight, like the + - DIM BRT.

Pictures of the panels are now available in first post.

Please see first post. Updated! Thanks

Thanks guys!! As for the CDU, im trying to make a low cost cdu that most can afford. But it is difficult to balance low cost and good quality. For this prototype i will not use a pcb, i will use the backplate to mount the switches. Then the buttons will have holes to fit the switches and it will fit an 4inch lcd. I will keep working on it and hopefully there will be a cheap but good CDU in the near future.

panel run updated! http://forums.eagle.ru/showthread.php?t=93150&page=2

For those who want panels, please specify which panels you want. Then I can calculate how much material it will need and what the final price will be. Thanks

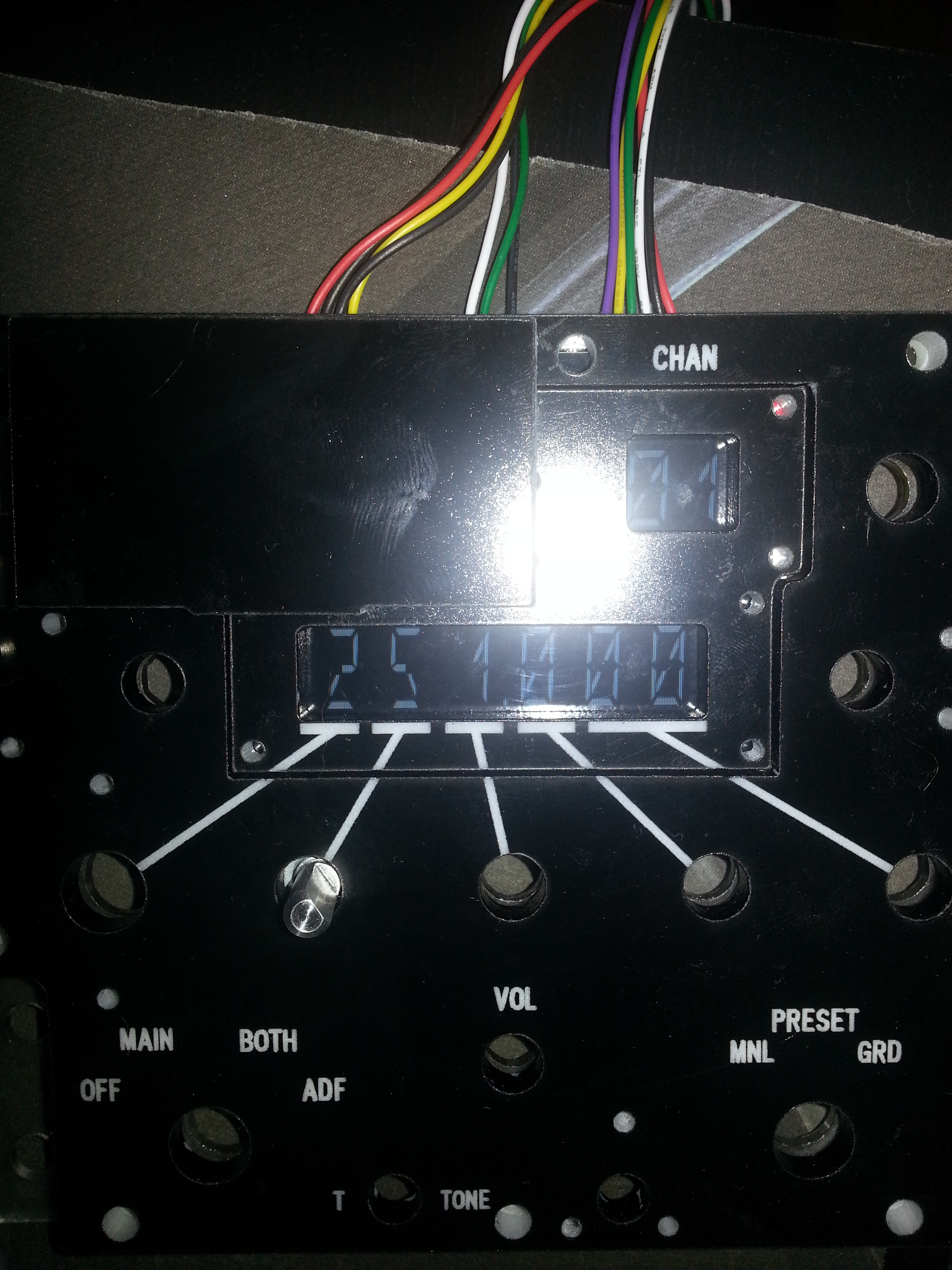

One more panel in progress

I thinks is raised, but i will paint it black on the sides, look here at DM´s CDU it looks like it. http://forums.eagle.ru/showthread.php?t=57846&page=30
