I have custom static scenery objects (wrecks, currently declared as fortifications) that I would like to place in different angles of TILT. In contrast to the MSFS scenery editor the DCS ME allows only cardinal orientation, but not tilting. Is there any workaround for this? I mean apart from the obvious 'tilting the object in Blender and exporting each position as separate object'...
-
Adding this just as a sidenote: Something that helps me very much for many scaling problems ─ without the need of going into the UV mapping edtor: the UV Warp MODIFIER. It allows you to do all the basic transformation for a texture (scale, rotate, offset). You see the result immediately. And modifiers are non-destructive. I never explicitely apply them, because the official blender exporter (at least the latest version I use) temporarily applies them when exporting your object.
-
You're speaking about the official plugin (linked above), not the Tobi one? You won't find anything in the object properties (like with the MSFS2024 exporter). You'll find an 'EDM Export' tab in the sidebar on the right side of the 3D-viewport (open with 'N'). Some options appear only if you highlight a mesh, e.g. 'two-sided object'. In Shader Editor (Graph window for materials) with Shift-A you can add an EDM material node (choice of six). And last not least, as a new export option (in the file ta) you should find 'Eagle Dynamics Model (.edm). Hope that helps you.
-
@b0rnkilla: tripod3 posted the link in the post above. But as others here already said: the fact that you are not able (anymore) to import models into Blender is not a bug, but a desired feature. To modify a model you need permission of its creator, you may ask him to give you his original files. The only alternative you have is to buy/download a similar model in the net or create ony from scratch by yourself.
- 12 replies
-
- 1
-
-
- edm
- edm exporter
- (and 7 more)
-
I have used 241504 from 07-Oct-2024 with Blender 3.6 and 4.2 (which I found at https://files.eagle.ru/mods/edm_blender_plugins/ ) but have now installed 247916 from above URL. Thanks! 2 questions Can I see anywhere for which Blender versions the EDM exporter versions are 'cleared' for? Some of my models need 2-sided materials. When I clear backface culling (camera) the viewport shading shows the material on both sides, but after exporting in the Viewer it's only one-sided. Thanks for any help! EDIT: Found the solution for 2-sided materials. It's in the exporter's window: null
-
Many thanks TeTeT! I'm in a similar situation, not able to just merge the code into some handy file and test it. Can't say that I understand much of it, but I don't think that tilting an object is addressed by any of the parameters (except by going the long way thru adjusting the ground). However, the ADD_HEIGHT param (maybe with a negative value) is certainly worth a try. However, with MSFS2024 release currently only shy of a few hours, I might resume my scenery projects there. Some screenshots I've seen show pebbles below the water surface, so I am very curious if my half sunken shipwrecks will finally look better than in FS2020...
-
This is interesting! Do you know which parameters are responsable? There are quite a few unknown to me. Like positioning = "ONLYHEIGTH". BTW, do you know where the so many parameters are explained?
-
Yes, I do have that option which corresponds to the yaw axis. But I miss the pitch and roll axis. I'm not a big fan of the MSFS SDK, but it gives you a decent 'gizmo' handle with all that. And with the 'snap-to-ground' checkbox unchecked you can even unlock the z-axis and place your custom object as much into the ground or up in the air as you want. BTW, you may scale up or down your object or instanced object, too, and technically it remains just another instance. All that, of course, allows you to bypass realism ─ at least in your own custom sceneries. And utmost realism seems like the holy grail to DCS devs...
- 8 replies
-
- 1
-
-
- static object
- tilt
- (and 2 more)
-
I have a number of new shipwrecks ready to place in the Normandy scenery. To give the scenery some variation I'd like to place the models in different 'poses', that is tilted in different degrees and axis. In my Maug movie I did that by creating and exporting individual .edm models for each pose, but I still think there must be a better and more ressourceful way (maybe a scripting hack?) of tilting an object in the scenery (as well as adjusting its height above oder under ground). Any help appreciated!
- 8 replies
-
- 1
-
-
- static object
- tilt
- (and 2 more)
-

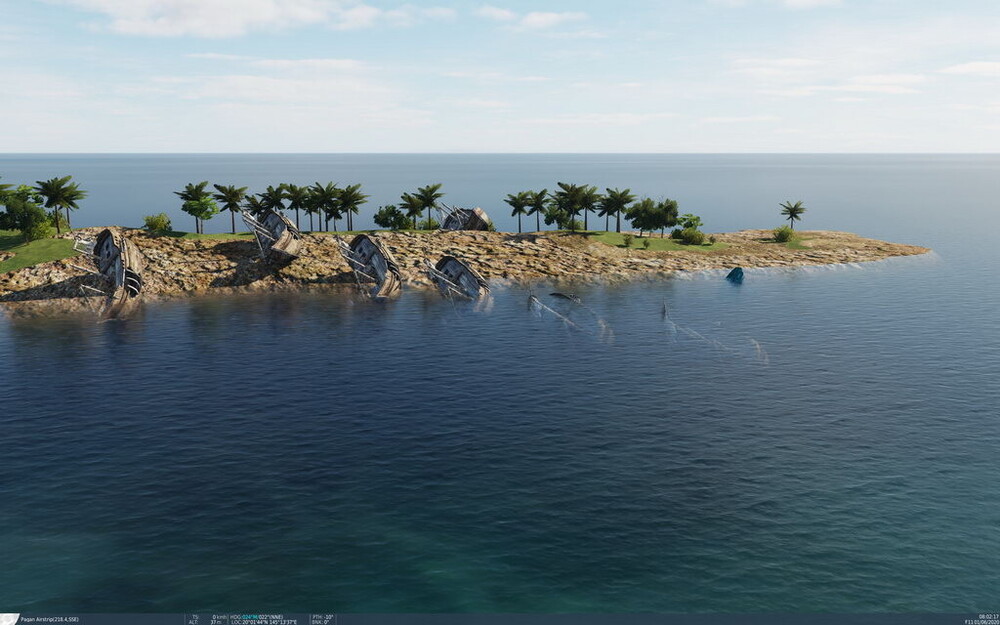

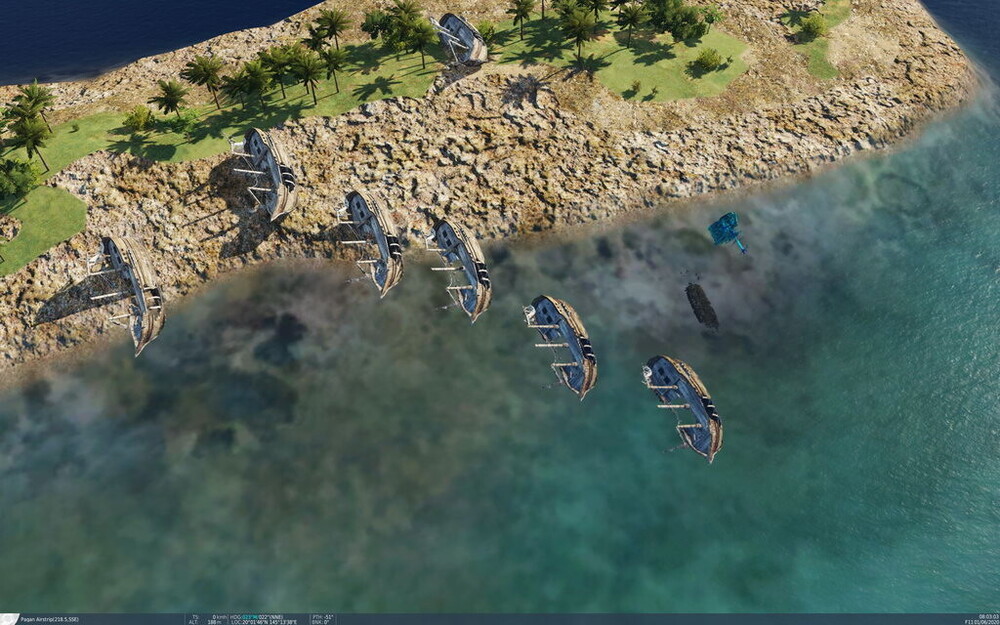

I have a number of custom shipwreck models that I would like to a) place on sea ground b) partly merge into sand/beaches Now when I place any of the models (all of category 'fortification' within 'structures') on the channel waters of N2 ─ they just float on the surface. Is there any category/type of static object where I can adjust the altitude value? Giving it a sub-zero value like I've read a few times in the past days? The very strange thing about all this is: 2.5 years ago I used the very same shipwreck models in a Marianas scenery - where they'd drop right to the seagoround of the Maug caldera. I can still load that scenery and the wrecks are still under water. Where is the difference? Any help much appreciated! EDIT: Well, I noticed it is (or rather can be) a matter of perspective/viewing angle ─ as the two attached screenshots demonstrate. However, at the time (2.5 yrs ago) when I worked on the Maug scenery that never caught my eye ─ which it certainly would have. So I wonder whether anything in the engine and especially in water rendering has changed? Or is it a setting ('water' is always 'high' with me)? Btw, my question whether there is any category/type of static object where I can actually adjust the altitude value is still open...
-
Thanks alot, I hadn't thought of the 'N-window'! BTW, do you have any experience with the EDM_Glass_Material node? What's the best practise to get a slightly tinted window? I get nice transparency in the viewport, but when I load the modell into model viewer all transparency is gone, the window is opaque.
-
Using Blender 4.2.1 and latest plugin 240006 (strangly the zip download bears no 240007). Though in viewport the EDM defaut material node shows both sides of a flat textile (flag) as textured, Model Viewer shows one side transparent. I searched for '2-sides' option, but didn't find the usual checkbox. However in custom properties I found a value for EDMTwoSides. I changed its value from 0 to 1 and 2, but none would make a difference. Thanks for any help! BTW, I much wondered why the Blender exporter doesn't have its own thread. Where can we submit assumed bugs?
-
Thanks for the quick answer. As I was prepared to pay $9.99 I may indeed go for the 'just ignore it' advice. The warning msg was just somewhat intriguing. BTW, are you a WWII backer, too, or is that error not tied to that?
-
I'm a WWII backer and have both Normandy and Channel installed. In the shop I have Normandy 2 offered for $9.99 with a remark underneath «You already have a serial number for this product». When I load it in the cart and go to checkout, same: Indeed, when I check all my licences I see a serial # beside Normandy 2.0 Map. I copied that numer to the Check licence form, but I turn round. With latest DCS update 2.8.4.39313 I only find the module as available in the shop. But then again the warning that I already have it. BTW, I checked in ME, there is the old map of Normand 1. How do I activate my serial?
-
Thanks, worked fine now.
