Thick8 Posted May 2, 2014 Posted May 2, 2014 I had a pair and sold them when i switched to Helios. Now I'm building a pit and will be reaquiring a pair. I downloaded the tech drawing from Thrustmaster and it seems that the screen size is 4.25" square. Is this right? I was thinking it was bigger. John All of my posted work, ideas and contributions are licensed under the Creative Commons - Attribution-NonCommercial 4.0 International (CC BY-NC 4.0,) which precludes commercial use but encourages sharing and building on for non-commercial purposes, ©John Muldoon
cichlidfan Posted May 2, 2014 Posted May 2, 2014 Without unpacking mine (temporary pit remodel) I would say that is correct. ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Need-To-Know Posted May 2, 2014 Posted May 2, 2014 4.25" inside measurement is correct just checked mine. Fight to fly, fly to fight, fight to win. Callsign: Need Shu-Ha-Ri
docfu Posted May 2, 2014 Posted May 2, 2014 I thought the same thing because I always thought they'd be like 8" square from looking at the pictures, but in real life, they are small and just look big in the game because they are close to the pilot...
Deadman Posted May 2, 2014 Posted May 2, 2014 Yes they are little girly MFDs not the manly size an A-10 deserves and need to its work :) https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Thick8 Posted May 6, 2014 Author Posted May 6, 2014 What is the size of real MFD's? These do look puny. All of my posted work, ideas and contributions are licensed under the Creative Commons - Attribution-NonCommercial 4.0 International (CC BY-NC 4.0,) which precludes commercial use but encourages sharing and building on for non-commercial purposes, ©John Muldoon
cichlidfan Posted May 6, 2014 Posted May 6, 2014 (edited) DM will have an actual answer, but IIRC (based on drawings that should have been close), it is only about 24" from the outer edge of one MFD frame to the other. The cockpit is pretty narrow. These people sell some that have a 5x5" display. http://www.pdt-usa.com/color_crts.htm Edited May 6, 2014 by cichlidfan ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
lxsapper Posted May 6, 2014 Posted May 6, 2014 They are the very much spot on real size. Real size F-16 MFDs, the A-10C's MFCDS are bigger, but those are not what the TM replicates. They are useable in a pit but.... :) A-10 MFCDs replicas would be so much better! ;)

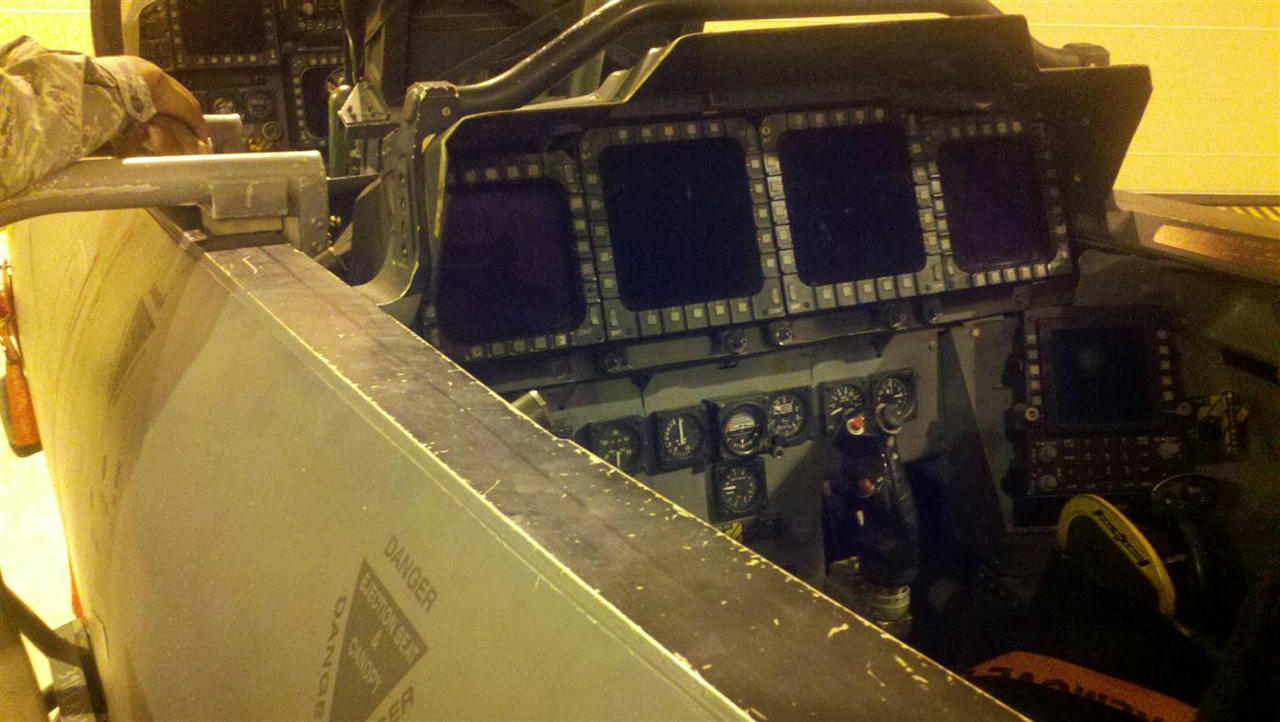

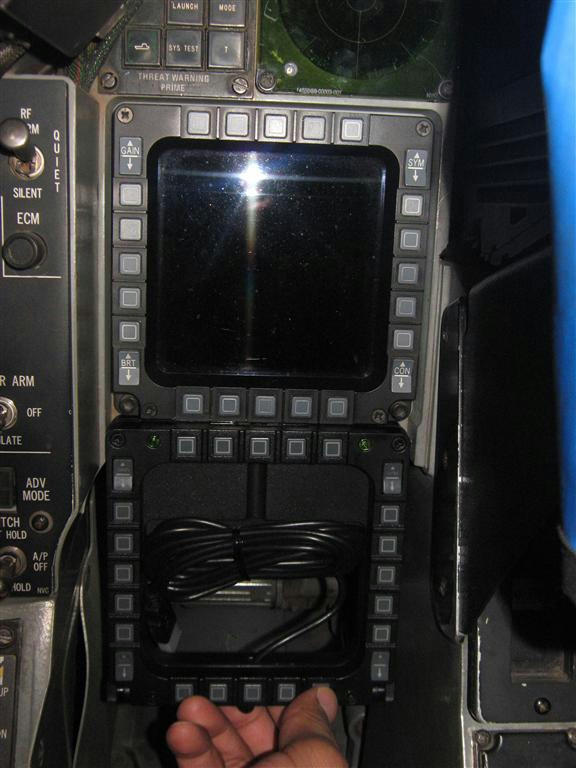

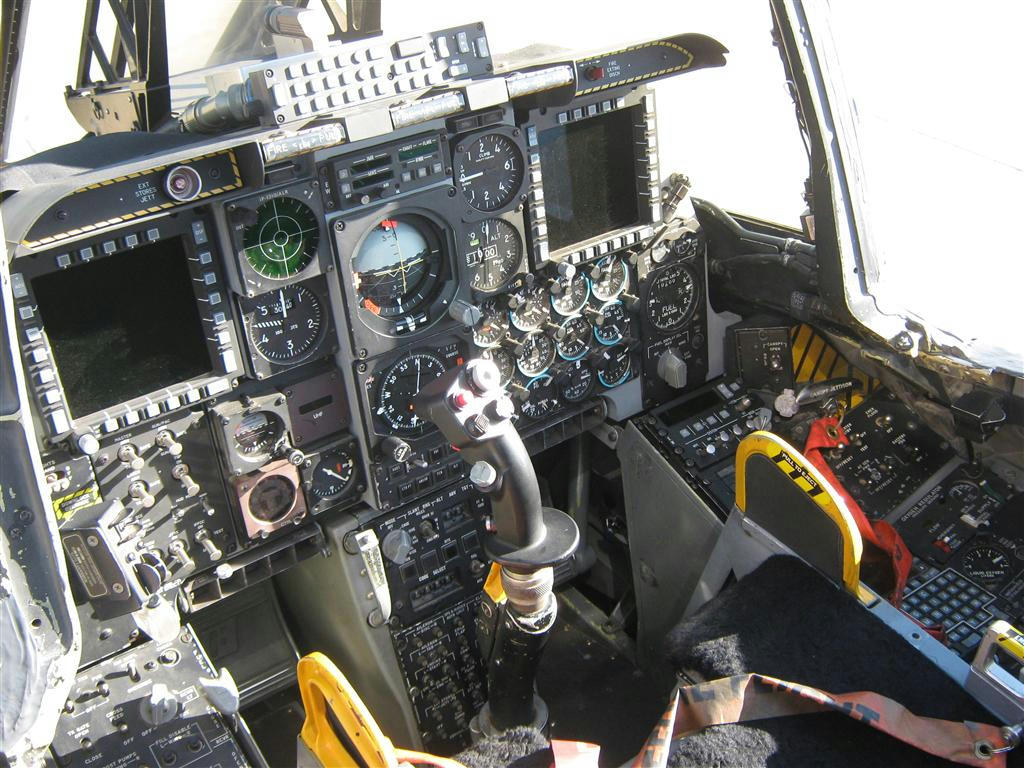

Cali Posted May 6, 2014 Posted May 6, 2014 Here is a pic I took a few years ago comparing them to the real F-16 MFD's. A-10 F-15E front seat F-15E back seat i7-4820k @ 3.7, Windows 7 64-bit, 16GB 1866mhz EVGA GTX 970 2GB, 256GB SSD, 500GB WD, TM Warthog, TM Cougar MFD's, Saitek Combat Pedals, TrackIR 5, G15 keyboard, 55" 4K LED
