Experiencing problems trying to land at Lochini-Tbilisi using ILS...



I've confirmed that I have the right ILS frequency (108.90 for runway 31), that my ILS is powered and set on my NMSP, however I cannot get my localizer bar to point me in the direction of the runway, it always seems to be pointing off to the side (which guides me off the path of the runway). The glideslope seems absolutely fine though...



Any ideas? Thanks!

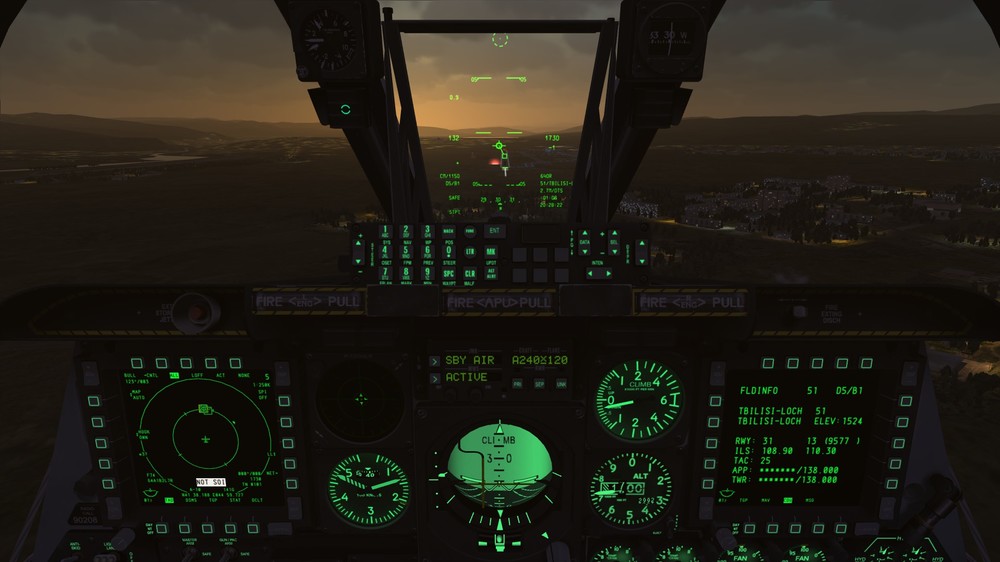

Attached screenshot as example.


Edited by Aeger

[sIGPIC][/sIGPIC]

Posted

bank left a bit and throttle back some



the yellow needles act as Flight Director (indicating to you as to which way to go) and not as an ILS repeater (letting you know where you are)

City Hall is easier to fight, than a boys' club - an observation :P

"Resort is had to ridicule only when reason is against us." - Jefferson

"Give a group of potheads a bunch of weed and nothing to smoke out of, and they'll quickly turn into engineers... its simply amazing."

EVGA X99 FTW, EVGA GTX980Ti FTW, i7 5930K, 16Gb Corsair Dominator 2666Hz, Windows 7 Ultimate 64Bit, Intel 520 SSD x 2, Samsung PX2370 monitor and all the other toys

-

"I am a leaf on the wind, watch how I soar"

Posted (edited)
bank left a bit and throttle back some

)



From where I'm sitting, he's smack-dab in the chute. No reason for the roll-bar to be so far off the side. To me it looks like a bug in the FD system. I know that, in the past, there were some issues with the front-course being off at some airports (I.e. not coinciding with the runway heading).



To OP; the Glideslope is fine. The Localizer is off to the side ;)

Edited by chaos

"It's not the years, honey. It's the mileage..."

Posted (edited)

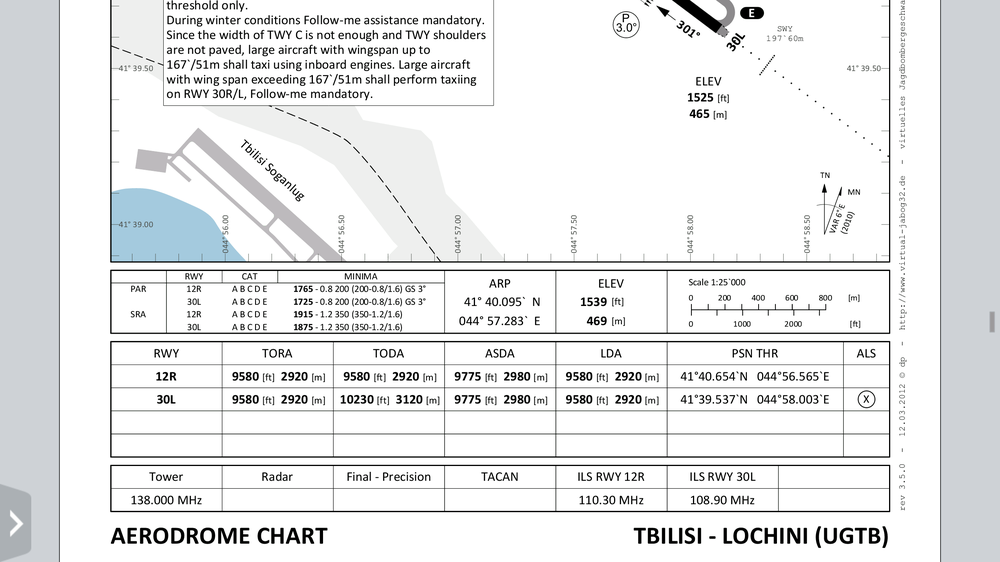

I bet that the issue is because Tbilisi-Lochini (UGTB) has no runway 31 but a runway 30L with a heading 301. I assume you've set the heading knob to 310 and that might be the confusing factor. I would politely suggest that you try setting it to 301.


Edited by DirtyFret
Posted
I bet that the issue is because Tbilisi-Lochini (UGTB) has no runway 31 but a runway 30L with a heading 301. I assume you've set the heading knob to 310 and that might be the confusing factor. I would politely suggest that you try setting it to 301.



That's not it. ILS data isn't like VOR/TACAN; the couse selector has no affect on it.



This assumes no DCS bugs of course.

Posted
That's not it. ILS data isn't like VOR/TACAN; the couse selector has no affect on it.



This assumes no DCS bugs of course.



Erm, yes it does. The flight director uses information from the the glideslope and localizer singals but it also needs to know the intended course to generate correct steering commands. Try playing around with the course dial on final approach. You'll find it does indeed have an affect.

  • Like 1
Posted

Nope. Nor the FD or ILS CDI use course settings (basic IFR). The FD is bugged in DCS but not all the times, it has strange behaviour depending on the situation.



In DCS, FD and ILS CDI seem to be working according to the course set, which should not happen as it is not how all instrument are built in this planet at least.



All runways headings are affected by magnetic deviation, so if the runway is 31 then the heading you should set according to the Georgia current deviation (and assuming DCS models it) will be around 305 or 301 instead of 310.





I am a naval aviator and have never seen this working properly in DCS. In fact, all navigation simulation is poor within DCS, but the systems and combat are magnific.





Hope this clarifies.





Thanks.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted
Erm, yes it does. The flight director uses information from the the glideslope and localizer singals but it also needs to know the intended course to generate correct steering commands. Try playing around with the course dial on final approach. You'll find it does indeed have an affect.



Raw ILS data is definitely not influenced by course setting, but I'm prepared to be proven wrong on the FD (I've not heard of it before, but it's perfectly possible that's an A10 feature). Do you have references?



I would say though, just because it has an affect in DCS doesn't mean it's correct.

Posted (edited)
Nope. Nor the FD or ILS CDI use course settings (basic IFR). The FD is bugged in DCS but not all the times, it has strange behaviour depending on the situation.



In DCS, FD and ILS CDI seem to be working according to the course set, which should not happen as it is not how all instrument are built in this planet at least.



All runways headings are affected by magnetic deviation, so if the runway is 31 then the heading you should set according to the Georgia current deviation (and assuming DCS models it) will be around 305 or 301 instead of 310.



I am a naval aviator and have never seen this working properly in DCS. In fact, all navigation simulation is poor within DCS, but the systems and combat are magnific.



Hope this clarifies.

Thanks.





Raw ILS data is definitely not influenced by course setting, but I'm prepared to be proven wrong on the FD (I've not heard of it before, but it's perfectly possible that's an A10 feature). Do you have references?



I would say though, just because it has an affect in DCS doesn't mean it's correct.

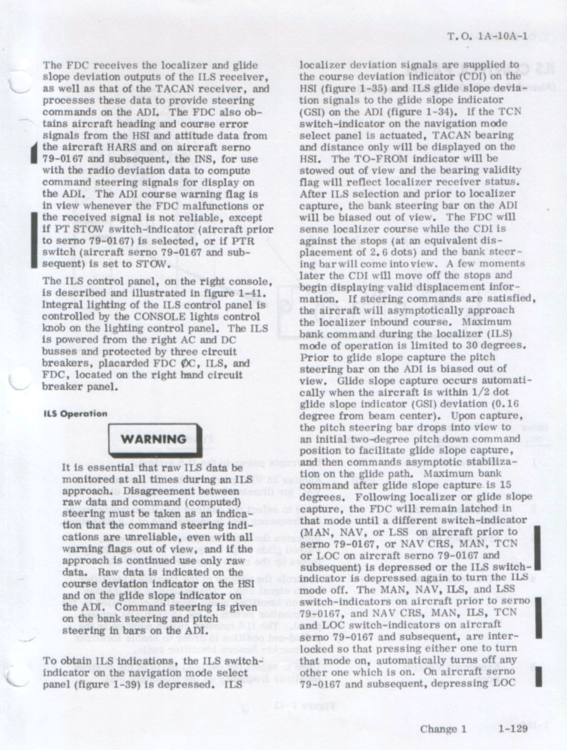

A source: A10-A manual.



p.s. source courtesy of Vibora from that "old" thread


Edited by DirtyFret
Posted
A source: A10-A manual.



You realize that you just proved I was right? :P





What the manual means is that the FD takes data and signals from the HSI in terms of current heading and the course that THE FREQUENCY SET IN THE ILS RADIO HAS LOADED FROM THE GROUND.



So the course you select with the knob will not affect the HSI needles or FD yellow drivers, period.





The manual is very clear, but if it's not enough you can always refer to how systems are built and the redundancy that this would give.





Thanks.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted
You realize that you just proved I was right? :P





What the manual means is that the FD takes data and signals from the HSI in terms of current heading and the course that THE FREQUENCY SET IN THE ILS RADIO HAS LOADED FROM THE GROUND.



So the course you select with the knob will not affect the HSI needles or FD yellow drivers, period.





The manual is very clear, but if it's not enough you can always refer to how systems are built and the redundancy that this would give.





Thanks.



My apologies, my previous reply might have come across as antagonistic. Not my intention.



My intention was to help solve OP's issue and given the information on that A10-A manual page, the info he/she gave us and the explanation from Olgred (the ED ILS coder guy) I believe that it would be worthwhile for the OP to test if the course setting being wrong might be the issue for him in DCS.

Posted

I just read Oleg's posts, and now I can see why this is happening. Not even the developers team understand how this works in real life, so they coded it wrong in the first place, confusing all of us into how it works in DCS and how it should work.



So I guess that if ED thinks that the course knob affects FD or HSI during ILS then there is no hope at all to get this fixed.





DCS is the first sim I see this not working properly. Even FSX (with all the limitations) replicates navigation correctly. But I guess that since FSX is merely for navigation training then it's normal that it works, when DCS is a much more complex simulator and it has room for mistakes.





Dont get me wrong, I love DCS so much.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted

Im a pilot too and I can say that all Johnny said is true in real life. Despite his reputation he is correct so far.





There could be some veeeeery old systems that use course knob indication to feed the FD but those systems didnt last long.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted
My apologies, my previous reply might have come across as antagonistic. Not my intention.



My intention was to help solve OP's issue and given the information on that A10-A manual page, the info he/she gave us and the explanation from Olgred (the ED ILS coder guy) I believe that it would be worthwhile for the OP to test if the course setting being wrong might be the issue for him in DCS.



Don't worry, it didn't. In all honesty I probably shouldn't have brought it up, as regardless of whether it's modelled correctly, it may have solved the OP's problem. My bad. At least we've learnt something :smartass:

Posted (edited)
[...]

Dont get me wrong, I love DCS so much.



me too:thumbup:



This can be very confusing for non-english speaking non aviation pro's like me.



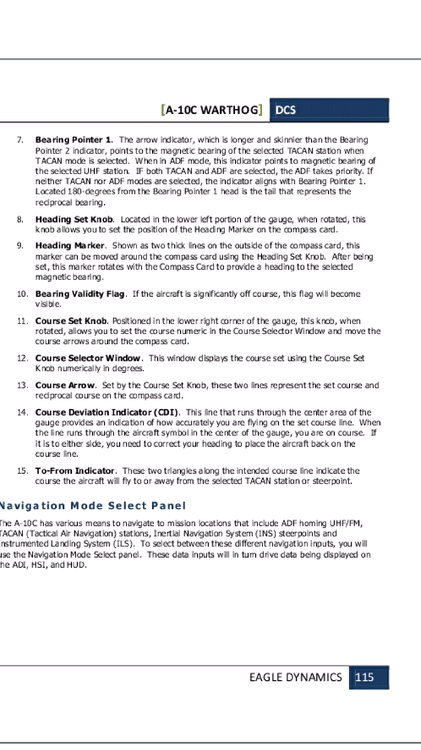

That manual page for example says "...FDC also obtains heading and course error signals from the HSI..." further below it states "ILS localizer deviation signals are supplied to the CDI on the HSI...".



This is where it gets superconfusing for me - isn't the CDI displaying course deviation(=course error?) in relation to the course set and the desired course set is set by the course knob as stated by the DCS A10-C manual?



But then again I do believe I am are straying a bit off-topic so I'll just keep my fingers crossed OP has been able to solve this.:pilotfly:


Edited by DirtyFret
Posted

Hi again guys, I wasnt trying to be rude ro anything either. So we are all cool.





I think I can explain this in a clearer way.





When you select ILS as the HSI source, then it wont matter what course you set, the ILS will always give you relative position to the localizer and the glideslope in the HSI.



Therefore, the FD takes all signals from the HSI and tells you where to point the aircraft to intercept those electronic lines calls localizer and glideslope. Once you get close to them the FD will tell you to go left or right/up or down to keep on track once intercepted.



So one way to understand this is to think that if the HSI does not rely on course selector, then why would the FD care about how it is set. The FD just watches that if the HSI needle is to the right (for example) then you must turn right to a certaing interpection heading. The FD needle will then go to the center since you are already in the interpection heading and once you finally intercept the localizer the FD will tell you to go left to maintain the localizer heading. :)

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted

I just remembered that the course knob can be used for Back Course Approaches, which are rare.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted

I tested this and the FD is directly influenced by the course selector :S



One of the first basic IFR lessons we get is that FDs are built not to take data from the course selector knob but from the ILS signal (which is just one instead of 360 from a TACAN or VOR) to mitigate any pilot or magnetic drift error input in the selector.



Makes me really sad to see such a basic IFR system not working as it should :(



At least the bearings on the kneeboard are correct and we can actually set them to make the FD work correctly.





Cheers guys!

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted

Wow, thanks guys for the feedback and wealth of information. Much appreciated. Good community here.



Johnny your comment below was spot on. As soon as I set my heading to 301, the localizer bar snapped right into place and aligned with the runway.



Nope. Nor the FD or ILS CDI use course settings (basic IFR). The FD is bugged in DCS but not all the times, it has strange behaviour depending on the situation.



In DCS, FD and ILS CDI seem to be working according to the course set, which should not happen as it is not how all instrument are built in this planet at least.



All runways headings are affected by magnetic deviation, so if the runway is 31 then the heading you should set according to the Georgia current deviation (and assuming DCS models it) will be around 305 or 301 instead of 310.





I am a naval aviator and have never seen this working properly in DCS. In fact, all navigation simulation is poor within DCS, but the systems and combat are magnific.





I'm glad this is resolved, but at the same time somewhat sad that it isn't properly modeled :cry:



Hopefully this will get addressed at some point.



Cheers all.

[sIGPIC][/sIGPIC]

Posted

Glad to help :)



I really hope this is fixed someday, DCS is too good to have something so basic not modeled correctly.



Be sure to check the VAD charts on the kneeboard (shift+K) to know the exact course for each airport and that way you should be good with the FD.





Cheers.

Intel Core i5-8600k + Cooler Master Hyper 212 EVO | Gigabyte GTX 1070 Aorus 8G | 32GB DDR4 Corsair Vengance LPX Black 3200MHz | Gigabyte Z370 Aorus Gaming 3 | WD Black SN750 NVMe 500GB | Samsung 850 EVO 250GB | WD Green 240GB | WD Caviar Black 1TB SATA 3 | WD Caviar Blue 500GB SATA 3 | EVGA 650 GQ 80+ Gold | Samsung CF391 Curved 32" | Corsair 400C | Steelseries Arctis 5 --- Razer Kraken X Lite | Logitech G305 | Redragon Dyaus 2 K509 | Xbox 360 | Saitek X-52 Pro | Thrustmaster TWCS | TrackIR 5

Posted

Hello Gents,



just as a reminder that there actually is plenty of equipment out there with a different operating logic than the industry norm I can tell you that in my daily driver the flight director is very much influenced by the selected course during the capture phase of an ILS approach. Though, no influence on the tracking phase.



That in mind I would not be so quick to judge that the flight director modelling in DCS A-10C is absolutely wrong. Probably something that should be looked into or confirmed but it might even be possible that it could work like the real deal.

Posted (edited)

hey... if you're off the localiser, you're off the localiser and glide scope, for that matter.

The compass might be 20 / 30/ 90deg (pick one) off track alignment... but the TACAN will be out, not the localiser - unless the Localiser is out as well

Edited by Wolf Rider

City Hall is easier to fight, than a boys' club - an observation :P

"Resort is had to ridicule only when reason is against us." - Jefferson

"Give a group of potheads a bunch of weed and nothing to smoke out of, and they'll quickly turn into engineers... its simply amazing."

EVGA X99 FTW, EVGA GTX980Ti FTW, i7 5930K, 16Gb Corsair Dominator 2666Hz, Windows 7 Ultimate 64Bit, Intel 520 SSD x 2, Samsung PX2370 monitor and all the other toys

-

"I am a leaf on the wind, watch how I soar"

Posted
Hello Gents,



just as a reminder that there actually is plenty of equipment out there with a different operating logic than the industry norm I can tell you that in my daily driver the flight director is very much influenced by the selected course during the capture phase of an ILS approach. Though, no influence on the tracking phase.



That in mind I would not be so quick to judge that the flight director modelling in DCS A-10C is absolutely wrong. Probably something that should be looked into or confirmed but it might even be possible that it could work like the real deal.



It is true that we might be wrong, but I've never flown an aircraft in my entire life that has an FD doing that, 1st because is against regulations (Johnny explained why), and second because the an ILS has only one signal in only one direction therefore both the HSI and FD have only one signal to track so it is impossible to make the FD change by the influence of course selector even if the builders wanted to (Johnny explained this as well).





You need to understand how all systems work and then you'll see that even if they wanted the FD to track more than one signal it'll be impossible since there is only one in an ILS transmitter.
