matbog's Mirage 2000C Pit

[matbog]

Hi all!



After taking some photos and measurments on the real thing and modeling on Onshape (see here: http://forums.eagle.ru/showthread.php?t=167586) I start the building.

I have a thread on Check Six (http://www.checksix-forums.com/viewtopic.php?f=286&t=170180) so I will just post some photos here without long explanations. But if you want to ask some questions don't hesitate!!

Edited July 11, 2016 by matbog

[matbog]

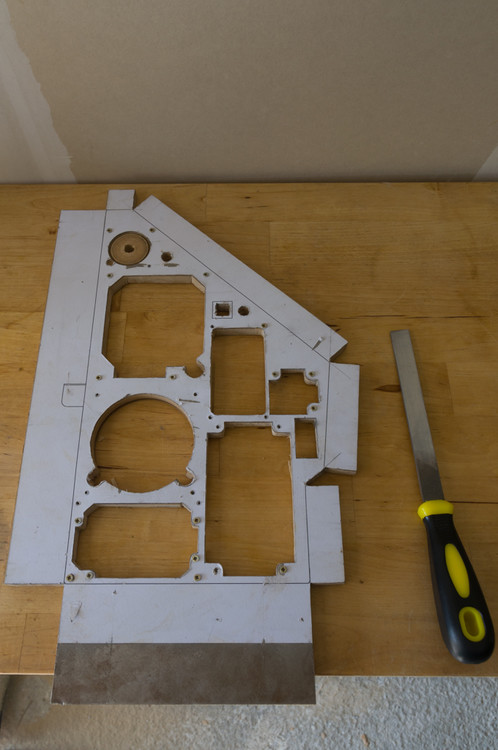

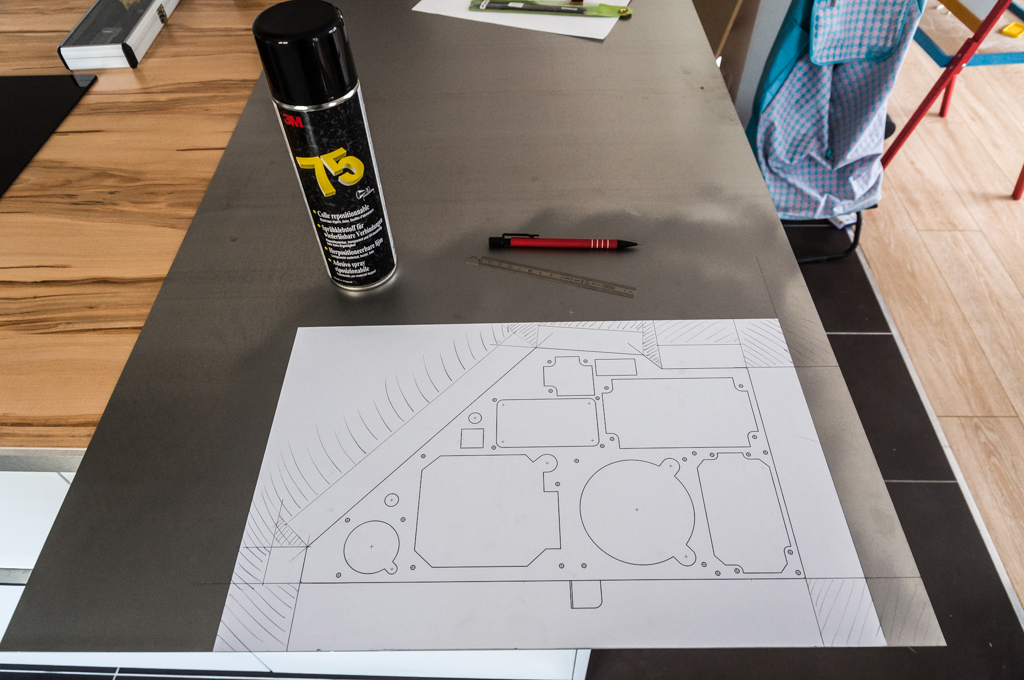

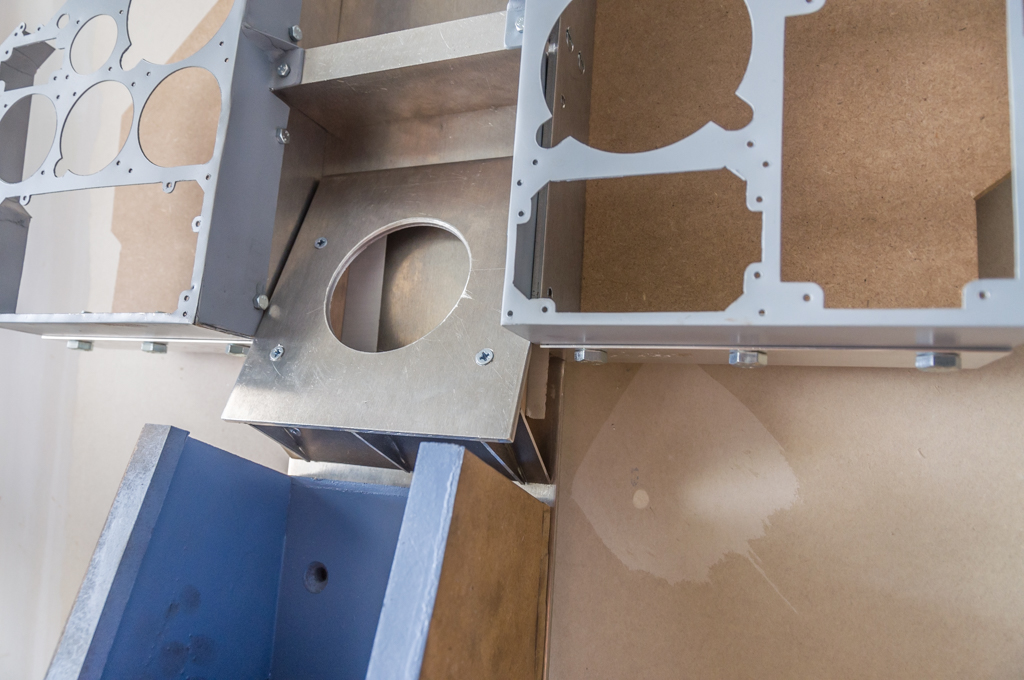

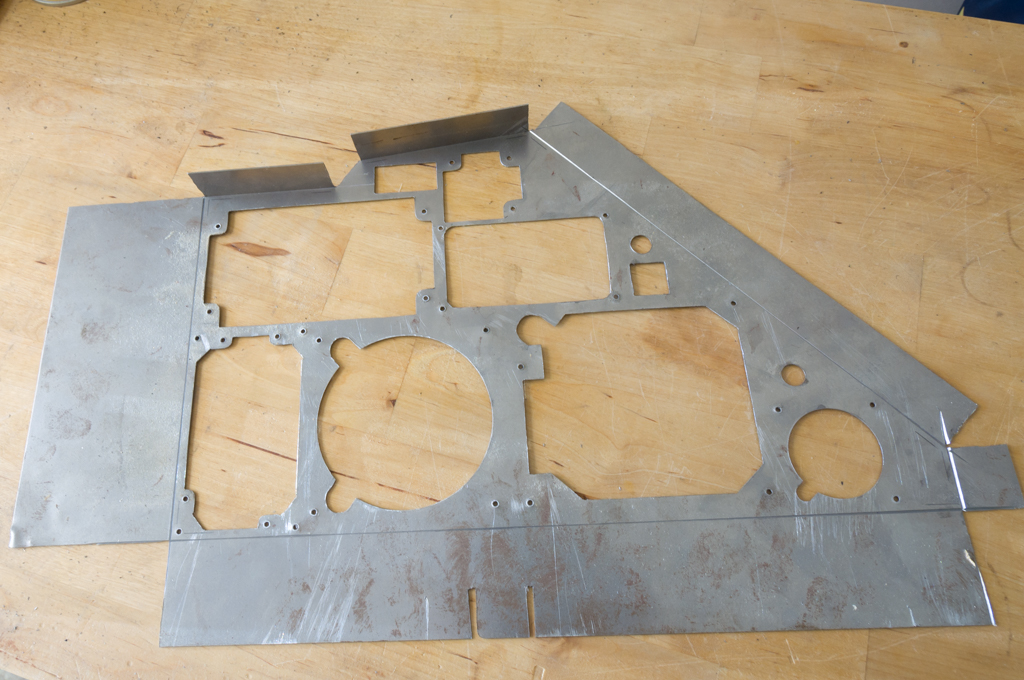

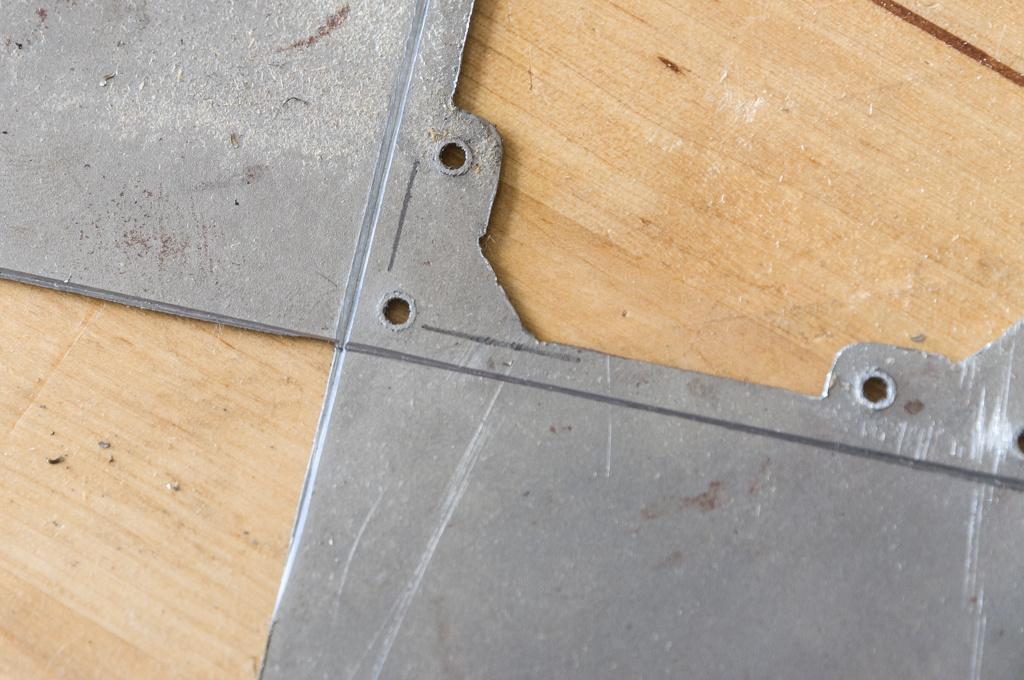

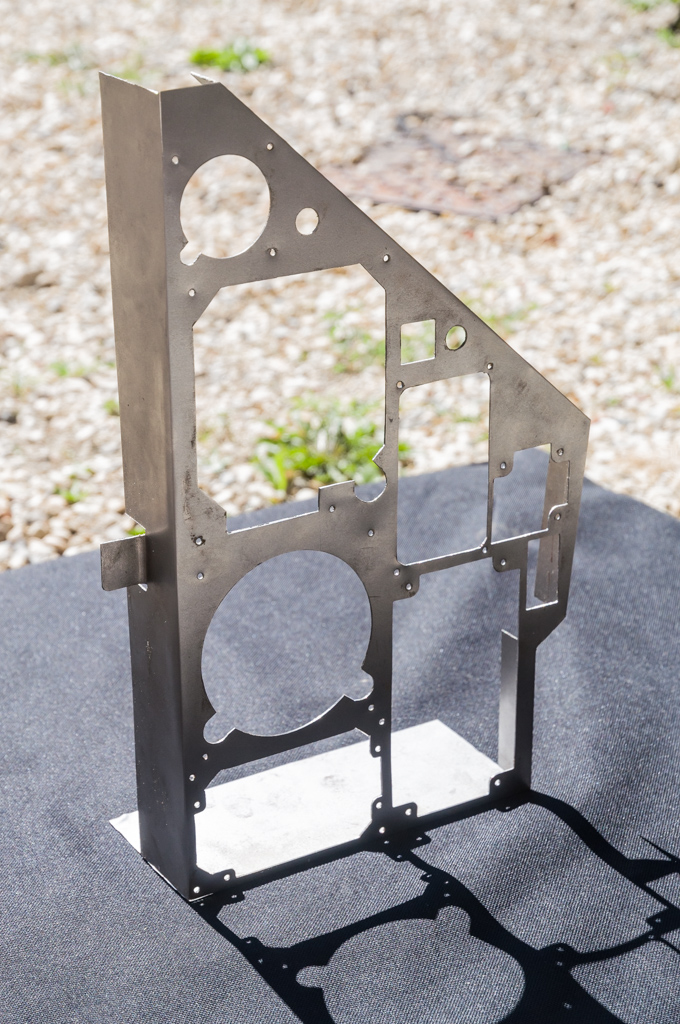

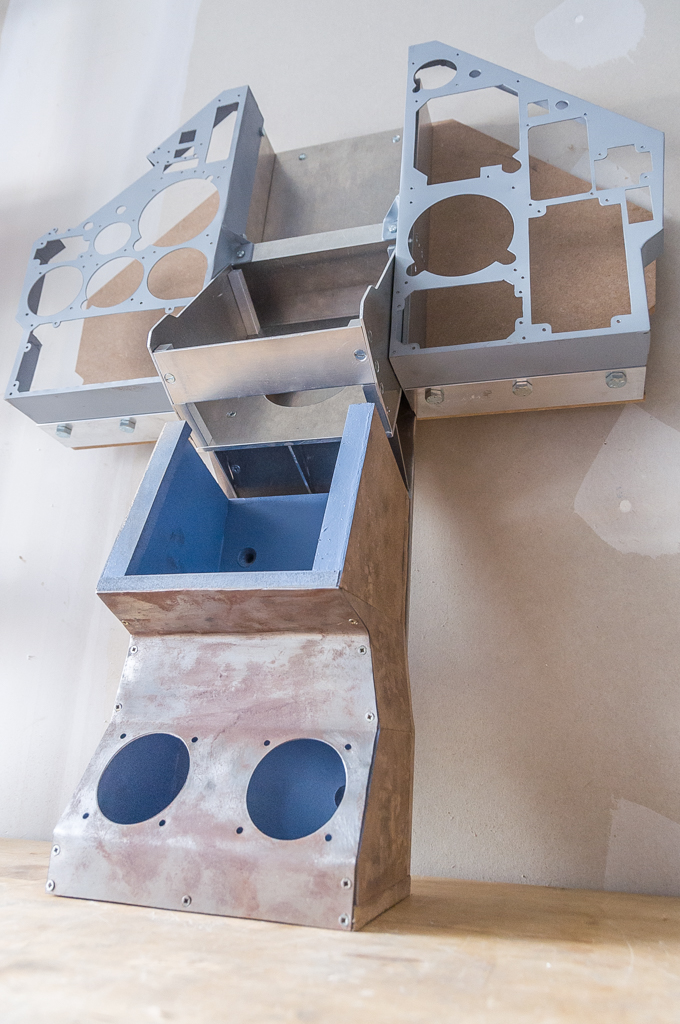

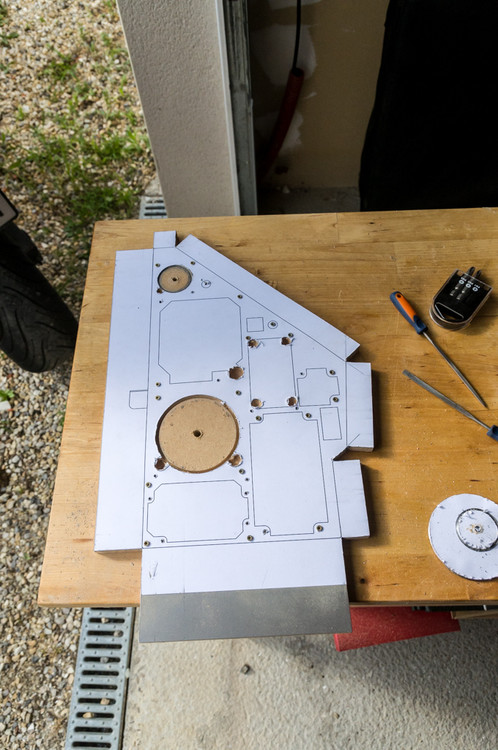

Here is the folding.

[matbog]

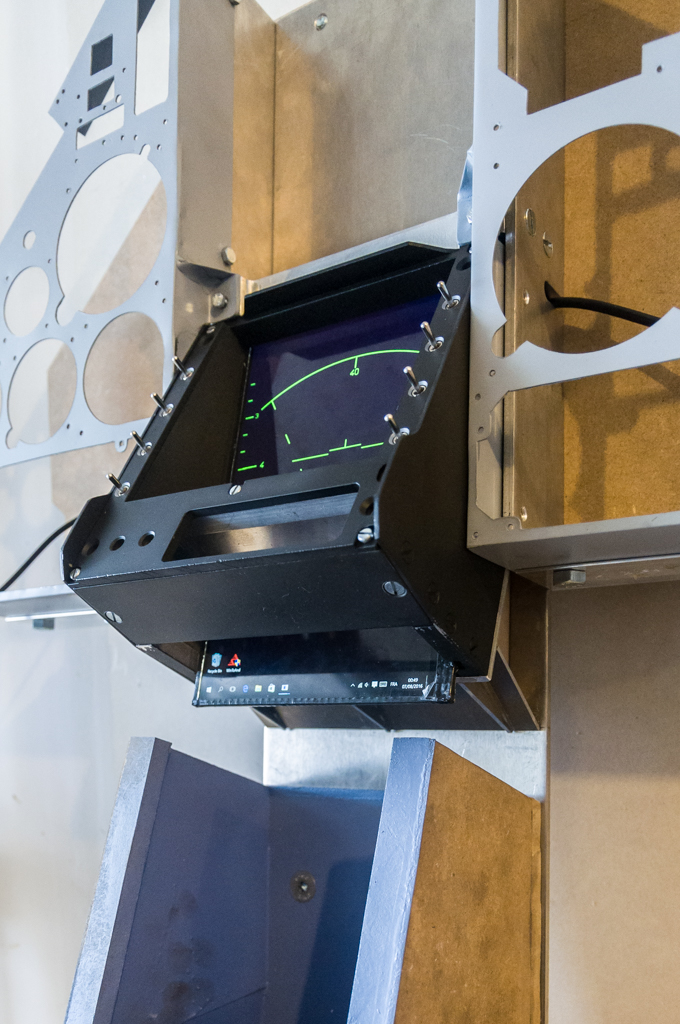

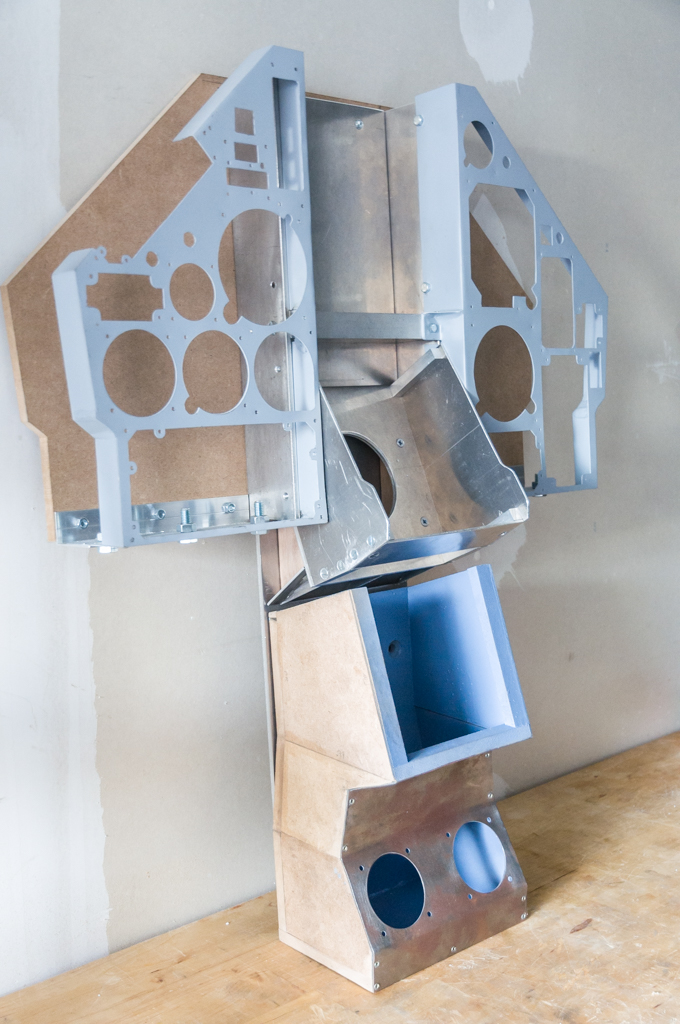

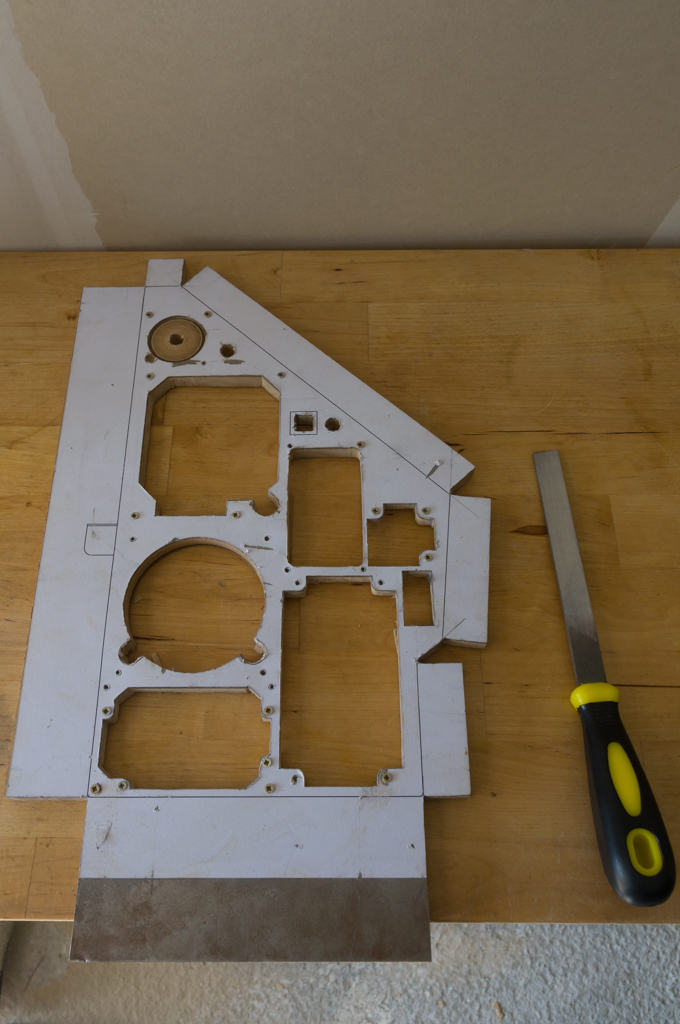

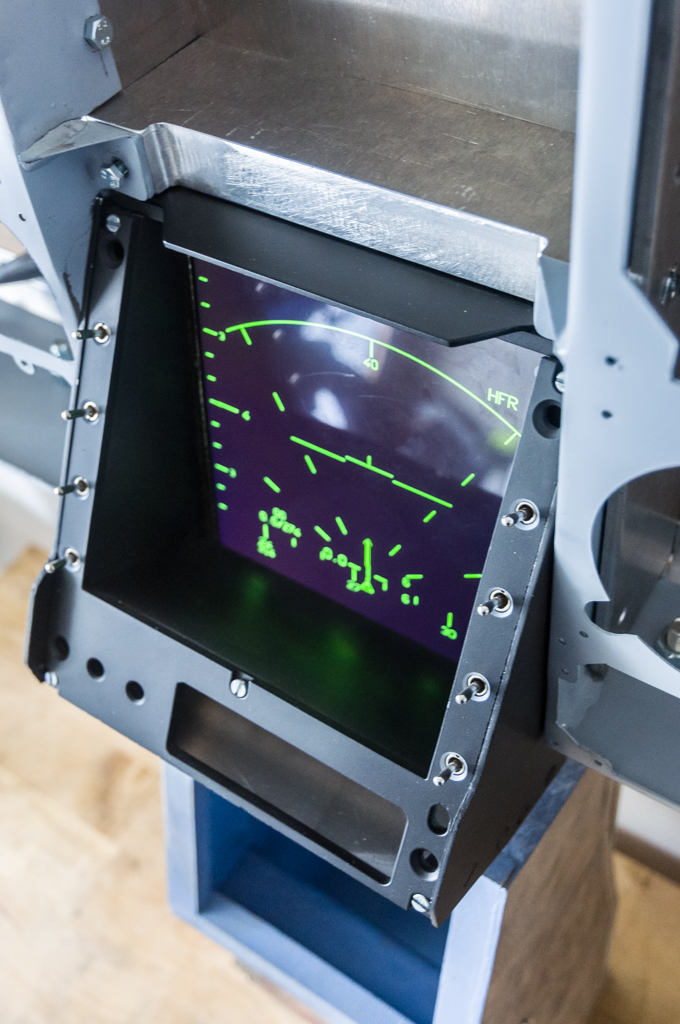

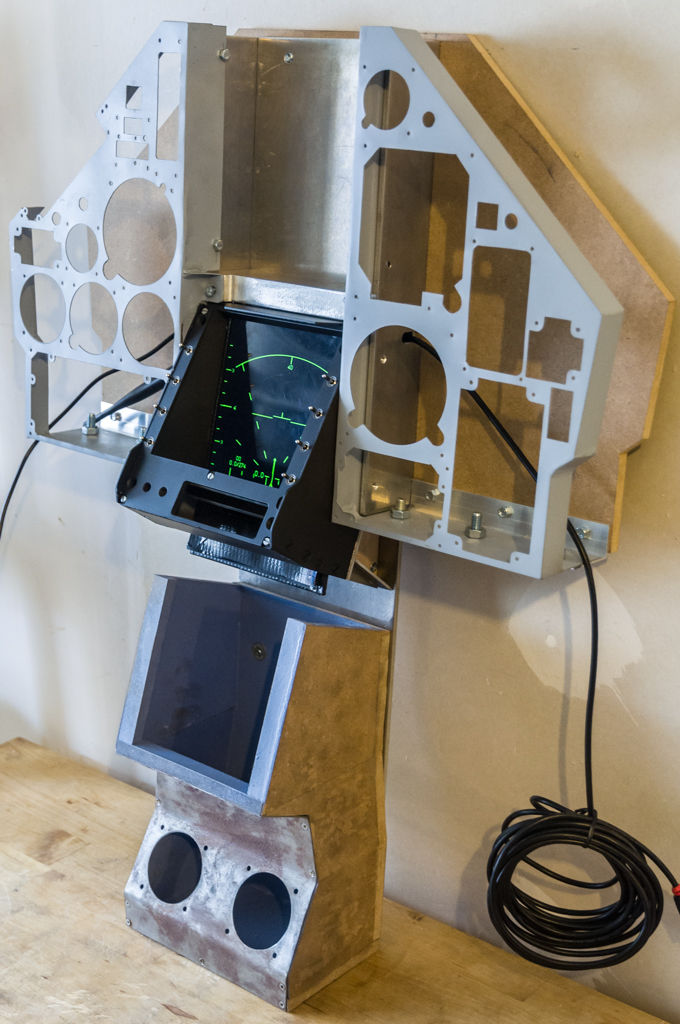

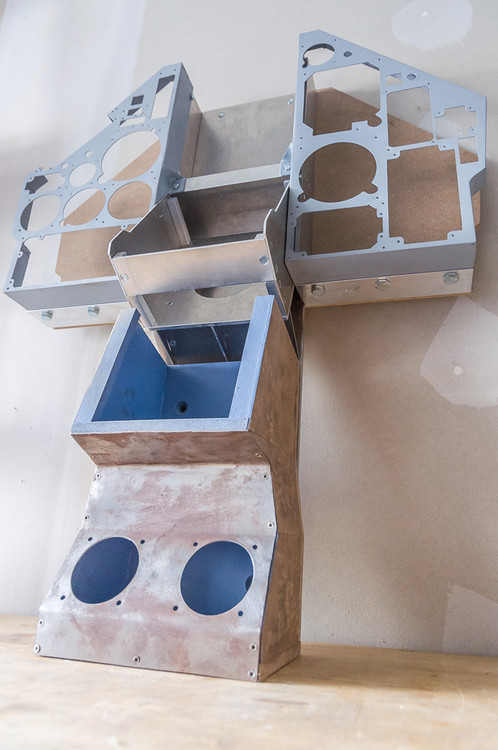

And where i am now

Edited July 11, 2016 by matbog

[matbog]

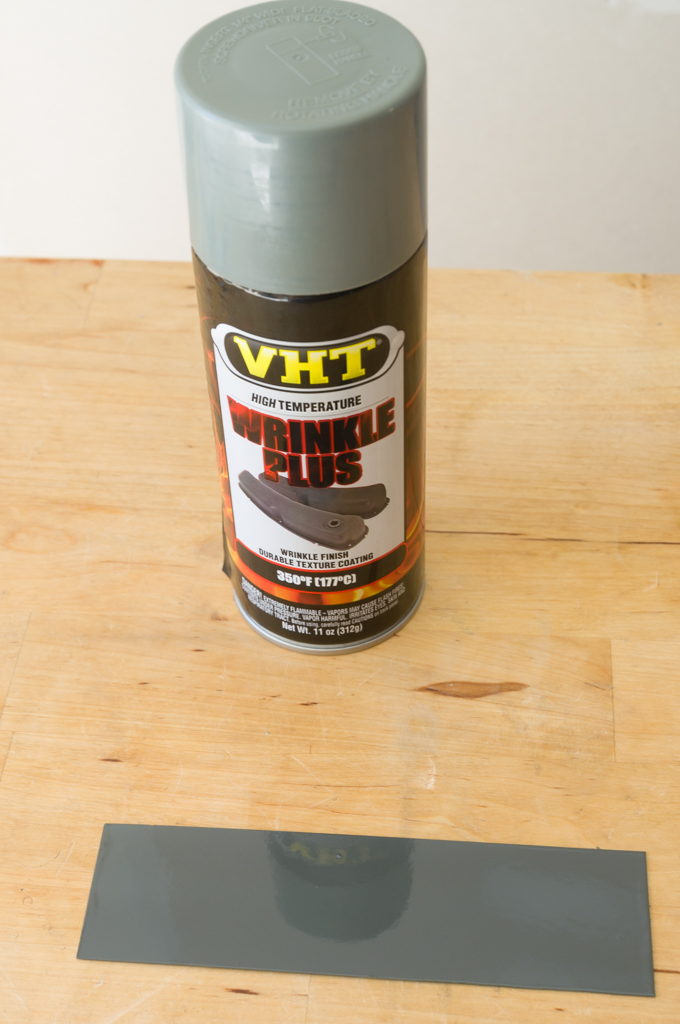

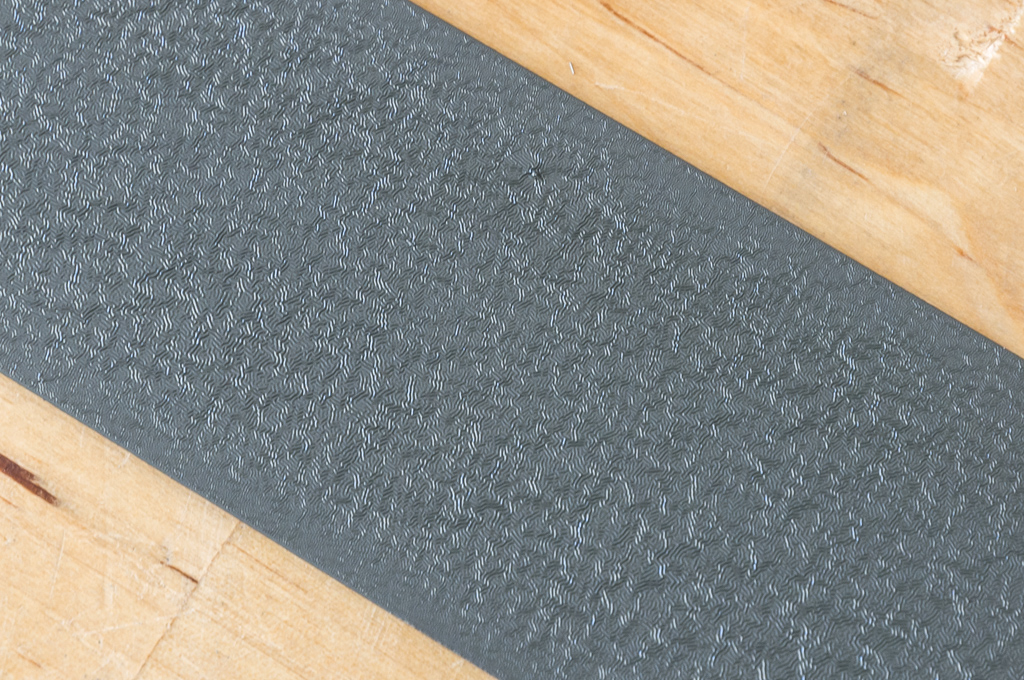

Here a test of the paint.

The wrinkles appears after 30 minutes of drying.

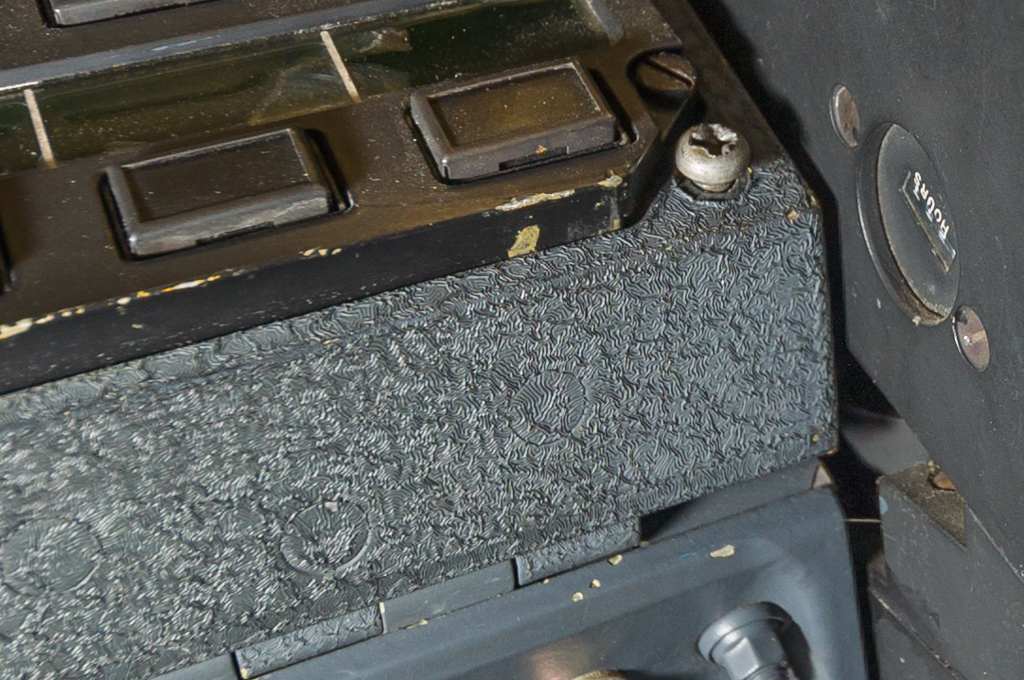

You can compare with the real one...pretty similar !!

[Lobinjaevel]

Yes!

Definitely keeping an eye on this, great start!

[Cripple]

V nice!

[matbog]

Thanks guys!

[matbog]

Hi!

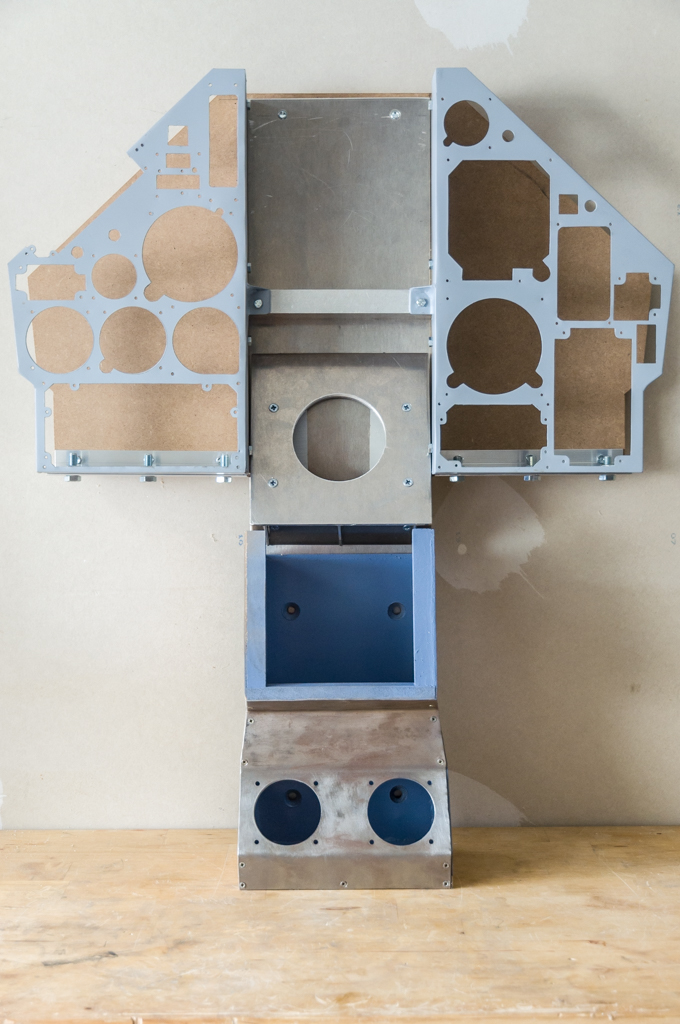

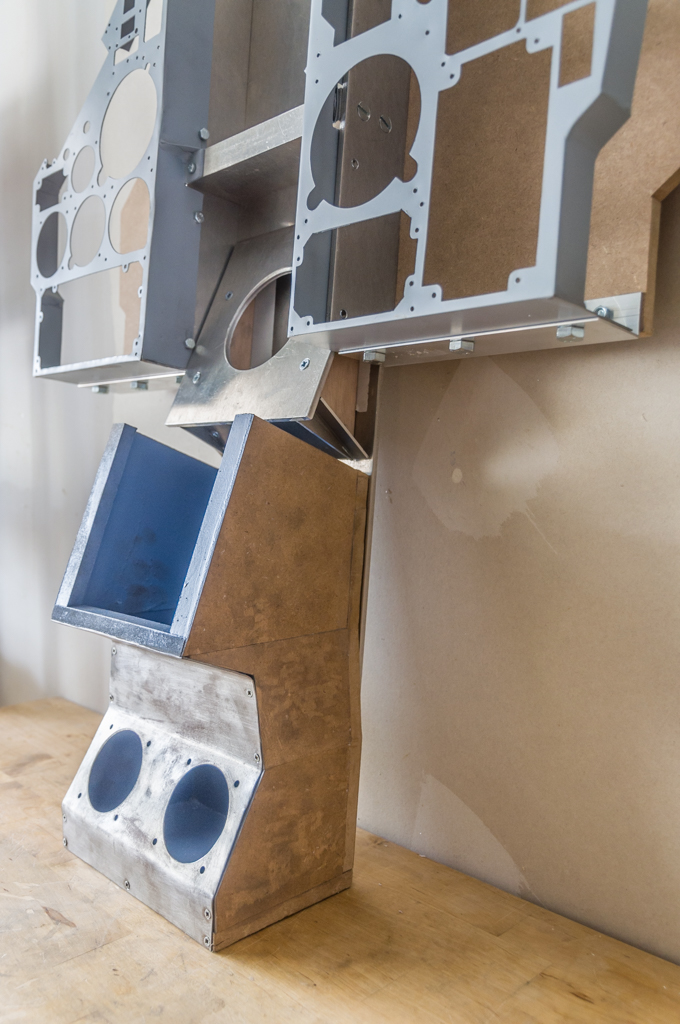

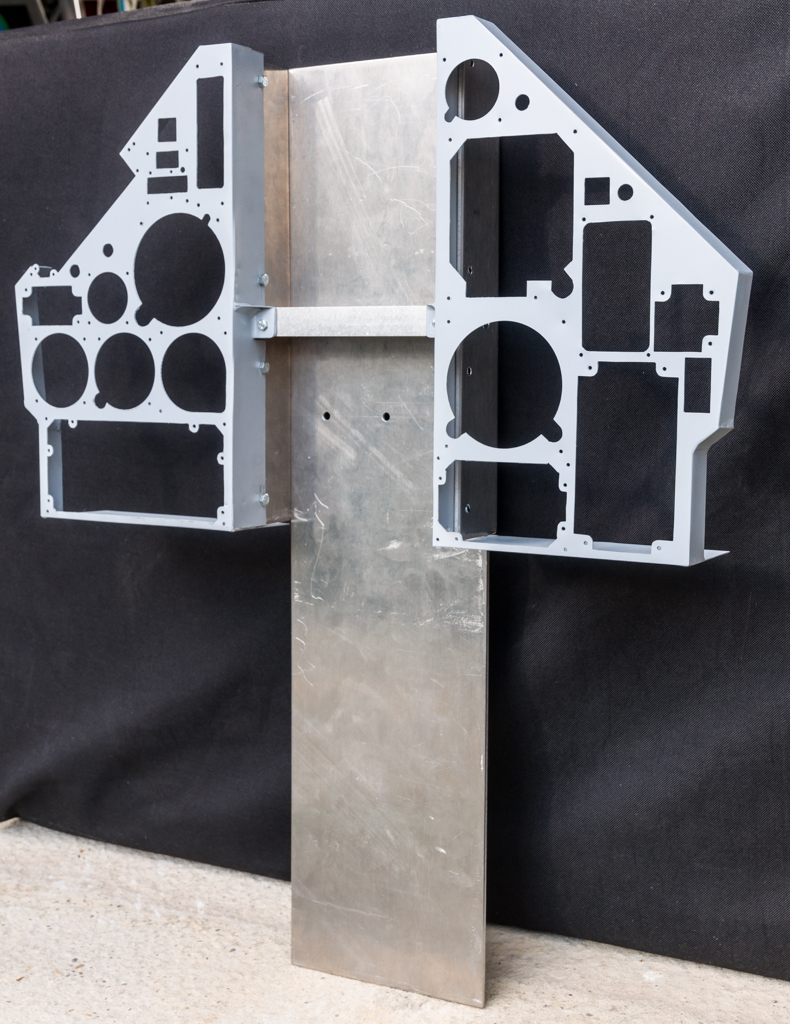

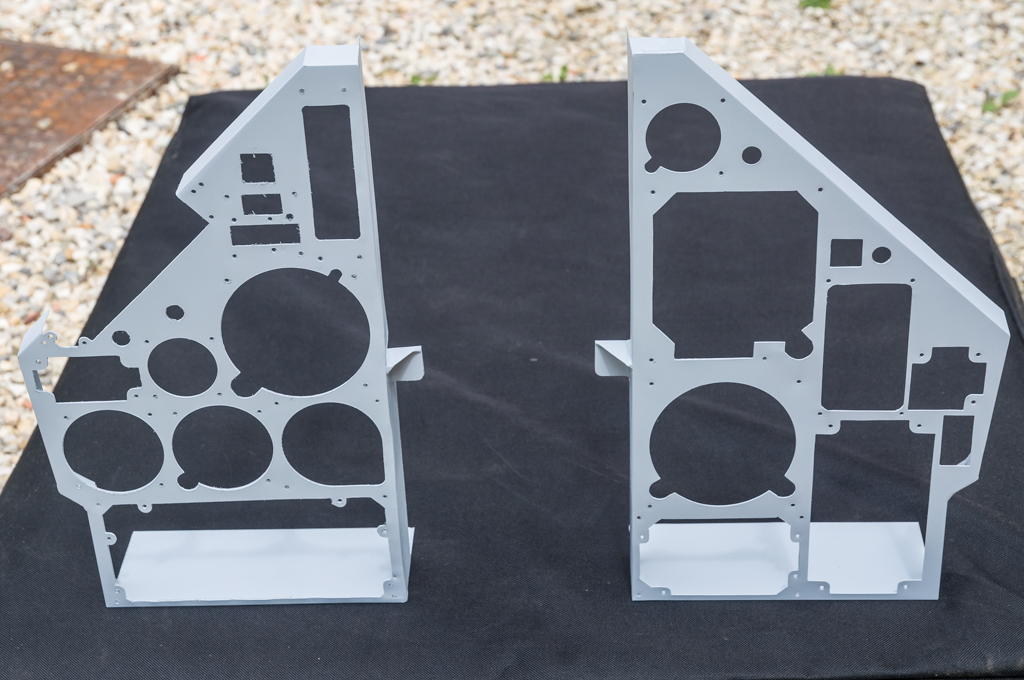

You can see here the 2 parts together with their primer coat.

[Jman]

Following, this should be interesting!

[matbog]

Probably the last update before going on vacation :pilotfly:

[droopy114]

Probably the last update before going on vacation :pilotfly:



Look very nice Matbog! do you have access to laser cut and bending CNC?

[matbog]

Sadly no :(

[Jman]

Probably the last update before going on vacation :pilotfly:



Looks great! Can't wait to see the final product.

[droopy114]

Sadly no :(



So this is even more impressive. IRL, i'm programmer/CNC driver, from laser cut, punching to bending... if you need help for some specific parts (not to big, of course.... i'm only an employee :D ) let me know, i can have a look at what you want. The CNC i have access:



http://www.amada.fr/produits/d-coupe-laser/lc-alpha-iv-113



http://www.amada.fr/produits/d-eacutecoupe-combin-e/lc-2012-c1-nt-285



http://www.amada.fr/produits/pliage/hfe-m2-37



http://www.amada.fr/produits/pliage-automatis/astro-165-w-92

[matbog]

Wow, thank you very much for your propostion, it is very kind of you.

These are monstruous machines!!!!

[droopy114]

Wow, thank you very much for your propostion, it is very kind of you.

These are monstruous machines!!!!



you are welcome, it will be with pleasure and easily doable by me.... if you are planning to do some console panel, it can be usefull. And yes, those machines are impressive when they are at work! It's one of my dream to built a full cockpit like yours, sadly my house is too small right now to do this....not to mention my wife will certainly kill me before i reach my goal :D

[matbog]

Yes the most complicated in this hobby is to convice your wife...or to be so insistent that she capitulates :music_whistling:

Until beginning of this year I was in an apartement and I design my pit to be less bulky as possible. It was installed in the leaving room but....yes it is not ideal.

You can see the entire thing following the link you'll find in the first post.

[droopy114]

Yes the most complicated in this hobby is to convice your wife...or to be so insistent that she capitulates :music_whistling:



Hehe so true :smilewink:

[matbog]

Back from holidays!

[matbog]

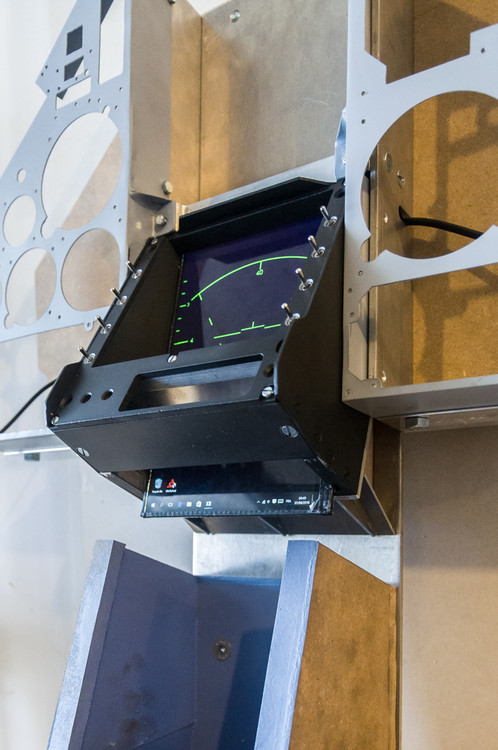

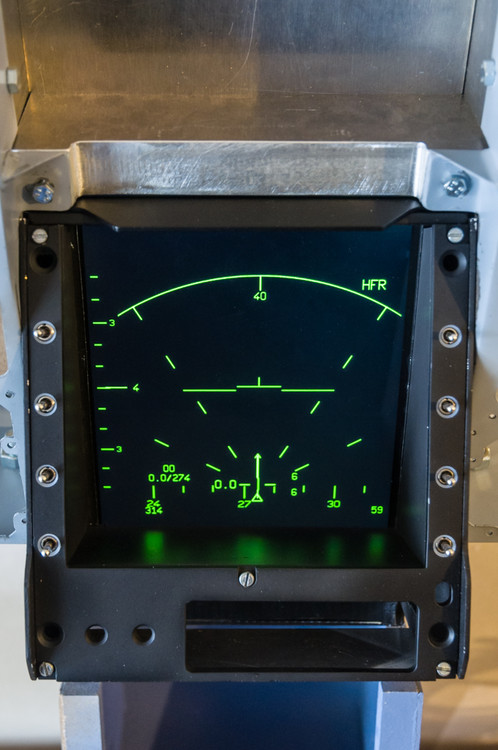

Here is the VTB...or just the beggining of it.

[BIGNEWY]

looks great. well done

[Hansolo]

+1 That is very skilled work you have done Sir :thumbup: Looking forward for more pictures as you progress.



Cheers

Hans

[Bubbles]

Incredible work, especially done with common tools.

[matbog]

Thanks a lot guys, it is motivating!!!

[matbog]

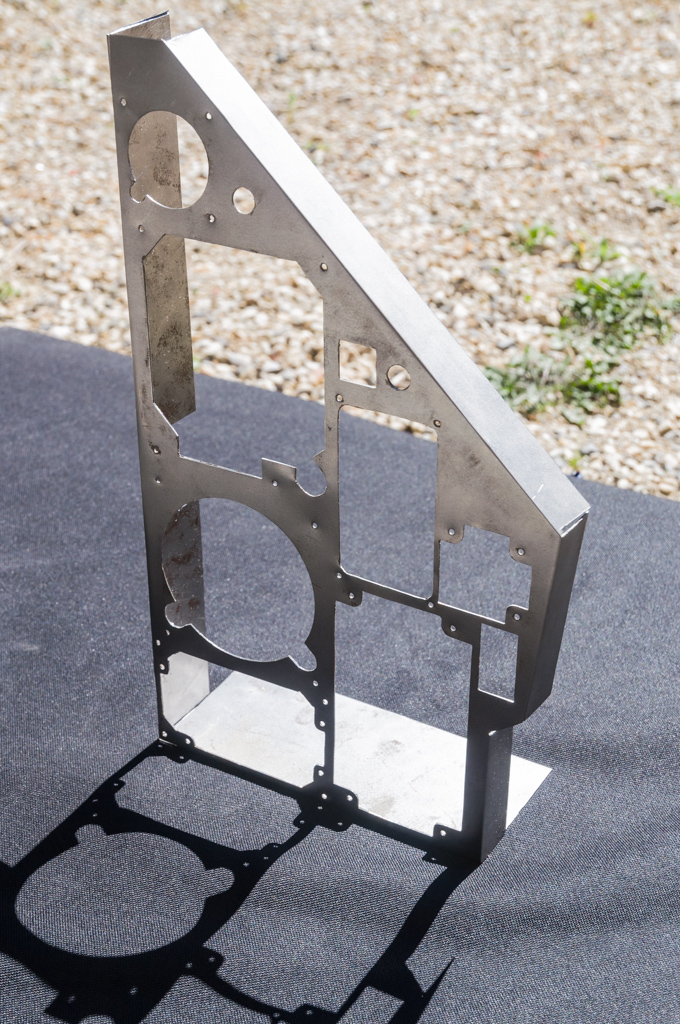

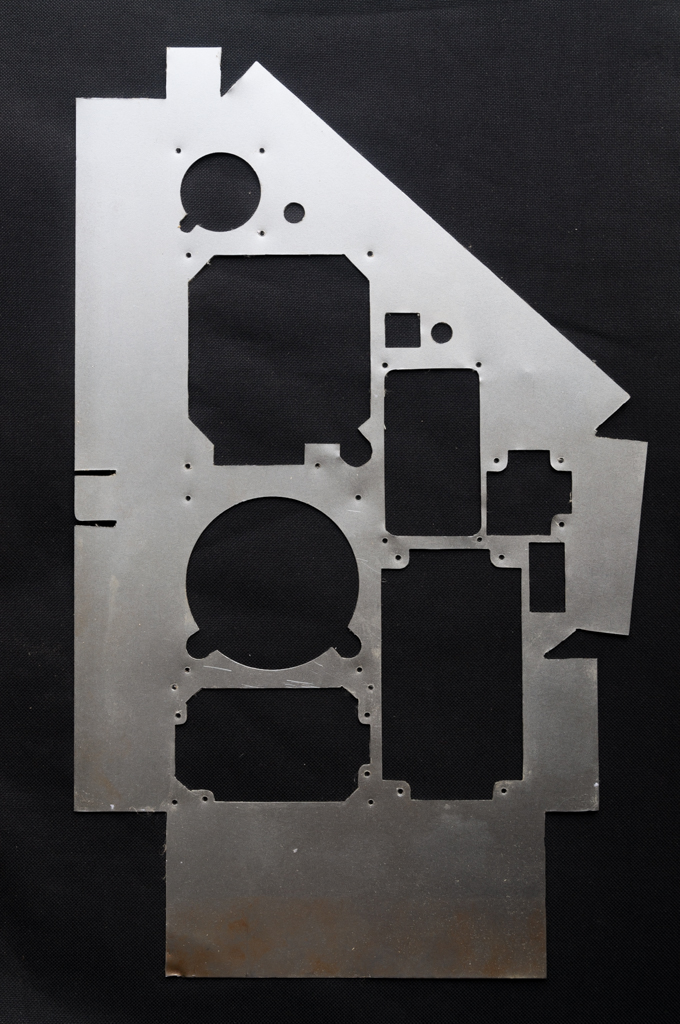

Here is the progress of the last week.
