The Jet Engine thread

[Vitormouraa]



[Buzzles]

Regarding the afterburner blueish flame, there is nothing secret about it :) It has a blueish/purple flame due to the combustion temperature and efficiency.



To add on: for a desktop sized practical example look at Bunsen burners. It's exactly the same principle.

[Vitormouraa]

The Jet Engine thread









Here we are yet again, with the GE-F101. Today, I will be getting information from our F101-GE-100.







The F101-GE-100, being produced by the General Electric engineering company, is an afterburner turbofan jet engine, which hauls more a** than most Boeing 757's out there. This engine provides the average thrust (depending on the variant of the engine that we are calling for here) of more than 30,000 lbs. of thrust, which is over 130 kN! This is for each engine, giving us a maximum base thrust of just topping over 120,000 lbs. of thrust, or 520 kN... And as you may know, the F101-GE-100 was the first of the General Electric family turbofan engines to provide an afterburner, being designed specifically for the designation of the powerplants for the B-1 Lancer, a strategic nuclear bomber. More or so to be even more specific, it was aimed at the Advanced Manned Strategic Aircraft (AMSA) project, for the B-1A Lancer. This engine was under the four variants of the B-1 Lancer for 11 years, going from 1970 to 1981.













You can see here provided is the engineering design of the F101-GE-100, which was signed under the contracting names of R. C. Hawkins and T. I. Hampton. Some of our information given here can be read, as such:







•


• Thrust Class: 30,000 lbs. (130k N)


• Airflow: ~350 lbs. / sec


• Inlet diameter: 45 in. (~1.14 m.)


• Length: 181 in. (~4.6 m.)


• Bypass ratio: 2:1









I would go on even more about this specific type, but I would rather let you read from our picture instead.













Now hopping onto our B-1 Lancer...







I'll save that for another time.







Nice post. This engine has almost the same frontal diameter as the TF34. Which is a high bypass engine! It's insane how big this thing is. The airflow is also similar. But produces 3x times the thrust of a TF34!

Edited April 3, 2018 by Vitormouraa

[kolga]



... You can see here now that the Raptor is going afterburner and clearly a Mach speed due to the wing vortices being created over the slats...





Interesting info, thanks! But i doubt he is supersonic with flaps down.

[Vitormouraa]

It wasn't. It was pushing some Gs.

[sobek]

I am guessing the fly by wire in the F-22 makes the flaps go down in tight turns because of G and allowing airflow to rush through, providing extra lift before the F-22 starts to sink.



At supersonic speeds, that would cause enourmous drag for no additional lift. That Raptor is definitely not supersonic.



You can have wing vapor at just about any speed, the airflow over the wing at high AoA causes low pressure regions to form. As the air flows through the low pressure regions, it is adiabatically cooled below the dew point, hence visible moisture.



Mach disks are caused by shockwaves off the nose and look very different.

Edited April 4, 2018 by sobek

[Vitormouraa]

[Vitormouraa]

LM1500 and LM1600 Gas turbine engines.



The LM1600 is an industrial engine based on the F404 engine, without the afterburner obviously.



[kolga]



The heck? Is that an afterburning private jet?

[Vitormouraa]

The heck? Is that an afterburning private jet?







Yup

[Yurgon]

Yup



Just when you think you've seen it all... great pic. :thumbup:

[Vitormouraa]

RB199's reverse thrust actuators in action!



https://twitter.com/hashtag/rb199

[mvsgas]

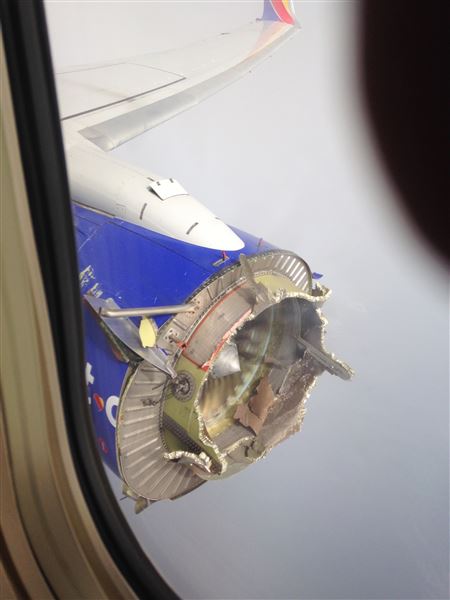

Woman killed on Southwest plane that made emergency landing in Philadelphia was nearly sucked out window

Look at this engine

http://www.trbimg.com/img-5ad648d1/turbine/ct-southwest-airlines-emergency-landing-20180417



Similar thing happened two years ago

http://www.toledoblade.com/Nation/2016/09/12/NTSB-releases-report-on-Southwest-flight-s-emergency-landing.html



NTSB preliminary report on the 2016 incident

https://app.ntsb.gov/pdfgenerator/ReportGeneratorFile.ashx?EventID=20160827X31134&AKey=1&RType=Prelim&IType=FA

[Vitormouraa]

The Jet Engine thread



Looks like they found a crack in the engine's fan blade. Due to centrifugal forces and fatigue, this crack probably developed into a bigger crack and the fan blade ended up flying towards the fuselage, breaking a window and killing a woman.



This is very serious. As mvsgas pointed out, the Southwest had a similar issue in 2016, so I wonder if that happened due to poor maintenance.



Article: https://www.flightglobal.com/news/articles/ntsb-finds-interior-crack-in-failed-southwest-cfm-447825/

Edited May 22, 2018 by Vitormouraa

[mvsgas]

NrSK7afoMjY

[mvsgas]

Here you can see the PW AB stages light up in sequence

bB2QfNNoSqM

[SkateZilla]

NrSK7afoMjY



Looks more like a Blade departure, and not a cracked blade.

[Vitormouraa]

Here you can see the PW AB stages light up in sequence

bB2QfNNoSqM



While GE engines don't have stages :)



Thanks for sharing!

[mvsgas]

While GE engines don't have stages :)



Thanks for sharing!



GE uses spray bars. IIRC, you have three sets: Local, Fan and core. You can have one fan spray bar missing/broken off without affecting performance. It also only use one igniter (PW-220 use two igniters)

[ATTACH]182846[/ATTACH]



[ATTACH]182847[/ATTACH]

[mvsgas]

QhmQTffYlbU

[Vitormouraa]

GE uses spray bars. IIRC, you have three sets: Local, Fan and core. You can have one fan spray bar missing/broken off without affecting performance. It also only use one igniter (PW-220 use two igniters)

[ATTACH]182846[/ATTACH]



[ATTACH]182847[/ATTACH]



Where did you get these images from? I'd love to get my hands on it. Is it publicly available?

[mvsgas]

Where did you get these images from? I'd love to get my hands on it. Is it publicly available?



The images are originally from a 1F-16CG-2-70FI-00-11. I do not know if it is publicly available, I do not have a copy. Over the years I collected stuff like this I used to study when I was working the aircraft. This images are from study material I got when I went through intake and exhaust class, back in 2000 while station in Osan AB.

[Vitormouraa]

T53 turboshaft engine



[mvsgas]

[mvsgas]
