DDI/MFD button numbering reference

[Bearfoot]

Is there a reference to which number corresponds to which button? E,g,, Button #1 is the upper left corner and numbering proceeds clockwise?

[bradleyjs]

I tried to attach a file showing the mappings but it won't attach. So, starting at PB1 (Top-Left Corner) is JOY_BTN16 then go clockwise.

[Wood]

Correct DDI obs buttons will start on the top left hand conrner of the DDI and move clockwise. I know there’s a reference somewhere just need to find it.

[Bearfoot]

Thanks!

[Habu_69]

I believe in the F/A-18C obs button 1 is the left side bottom button, then numbers progress clockwise. Different from A-10C and F-16C. Must be a Navy thing.

[Gosling]

On 7/18/2018 at 11:00 PM, Habu_69 said:

I believe in the F/A-18C obs button 1 is the left side bottom button, then numbers progress clockwise. Different from A-10C and F-16C. Must be a Navy thing.

I believe that to be true.

[Dallas88B]

On 7/19/2018 at 5:15 AM, Bearfoot said:

Is there a reference to which number corresponds to which button? E,g,, Button #1 is the upper left corner and numbering proceeds clockwise?

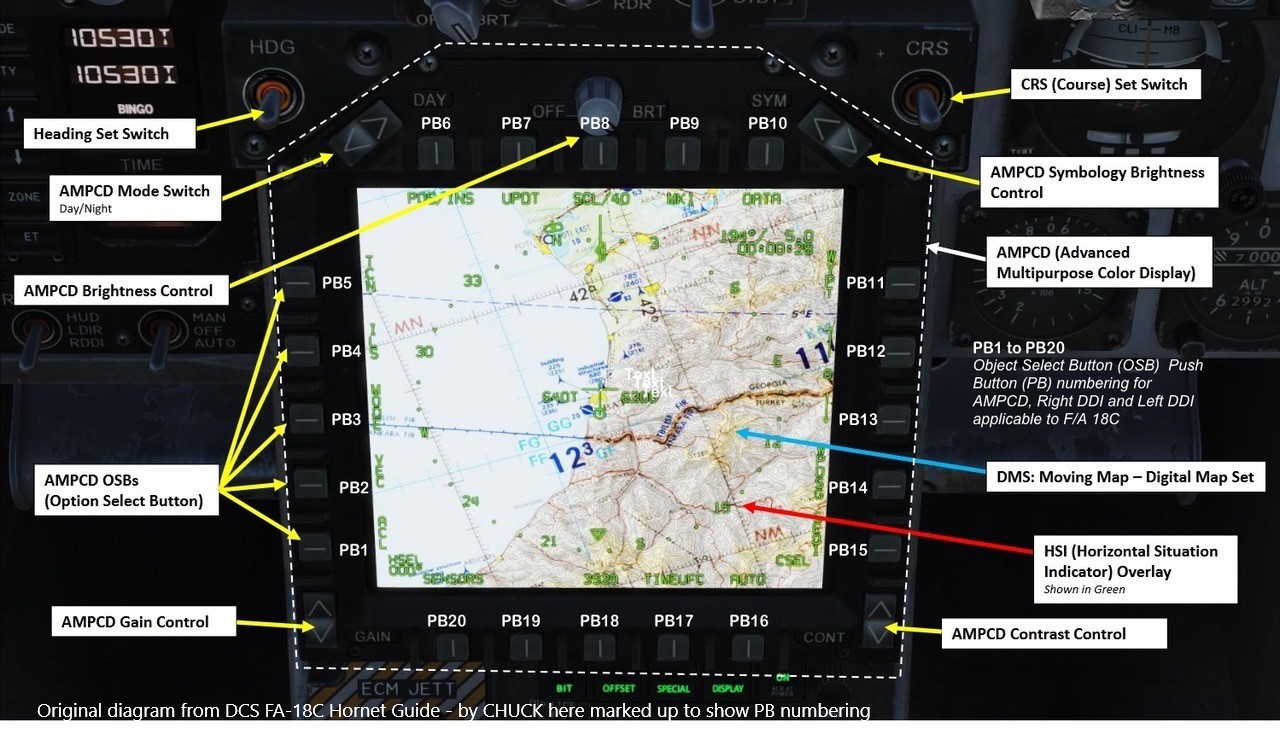

"There are 20 pushbuttons (PB) on the DDI which are used to select the function and the mode for proper indicator display. PB 1 is the lowest button on the left side, and then each PB button is numbered sequentially in a clockwise manner" according to DCS-FA-18C_Early_Access_Guide. I marked up this diagram from DCS FA-18C Hornet Guide - by CHUCK for my own uses so I figured I might as well post it here.
