reported earlier AMPCD Export but moving map is blurred out

[MacTKH]

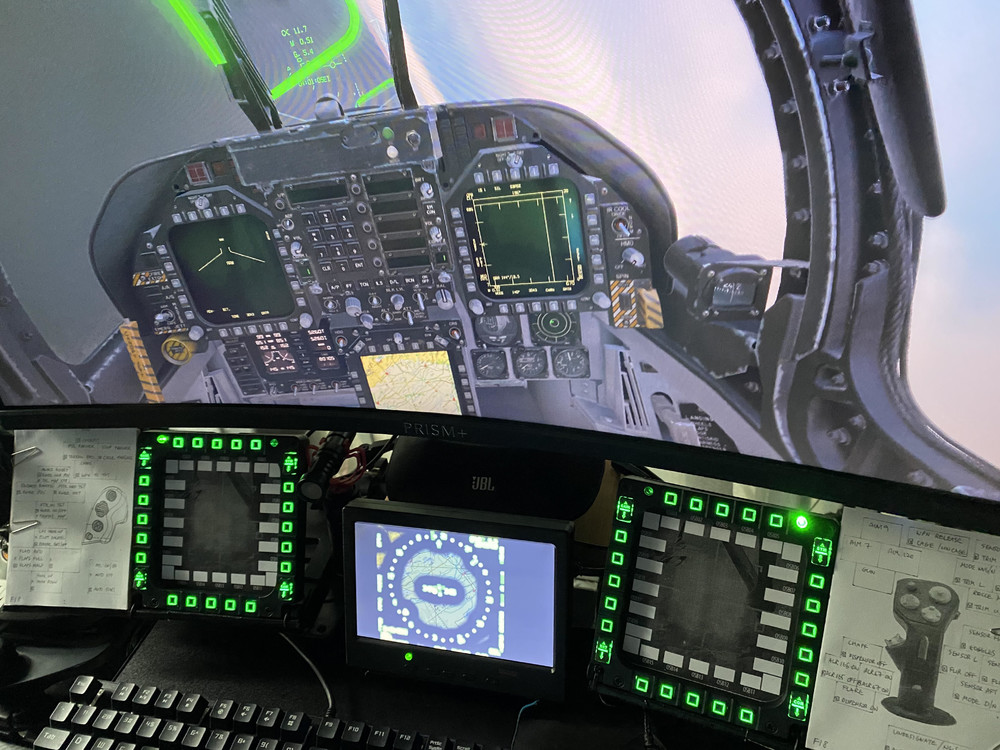

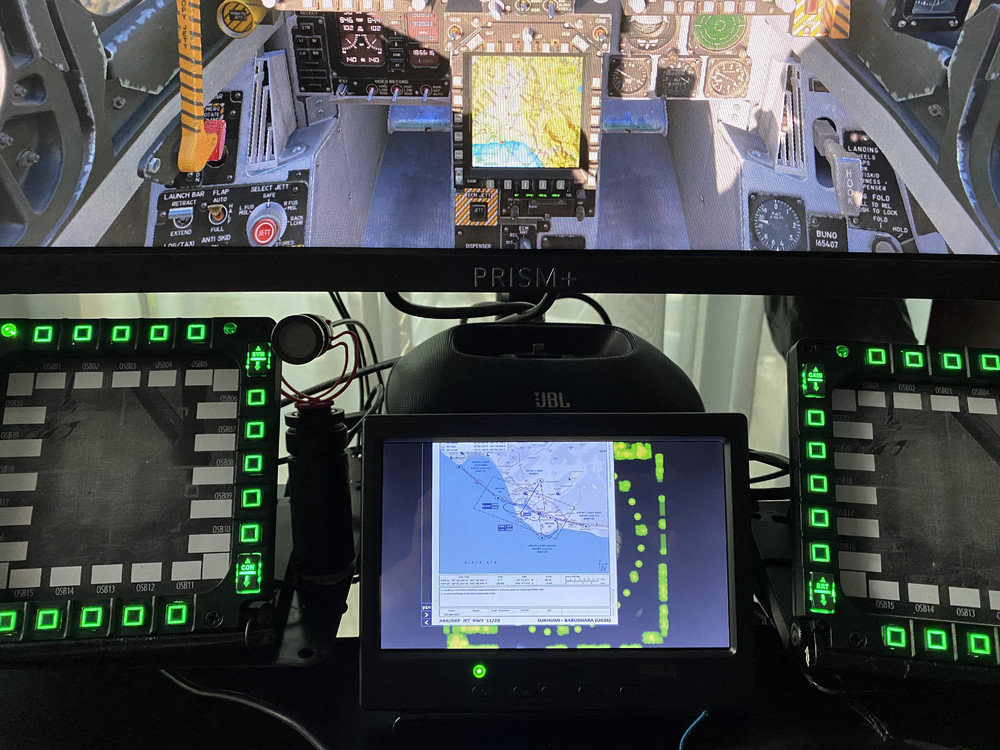

Hi Just new to DCS F18 and wanted to setup another display for kneeboard and AMPCD.  The kneeboard works fine but the AMPCD is blurred out even though its working fine in the main screen. The mods I have are the capt zeen AMPCD lua instructions to export and the eligibility enhancements on the MFD. I did try with a plain vanilla setup but this didnt work too.



Appreciate any advice to fix it.  Thanks in advance

[Foka]

What variable do you use for AMPCD export? Don't use "AMPCD", use "CENTER_MFCD" instead.

[MacTKH]

Thank you for the steer, that was what I used.  Will try "CENTER_MFCD" instead.

[MacTKH]

The screen is better now.  Thank you very much.

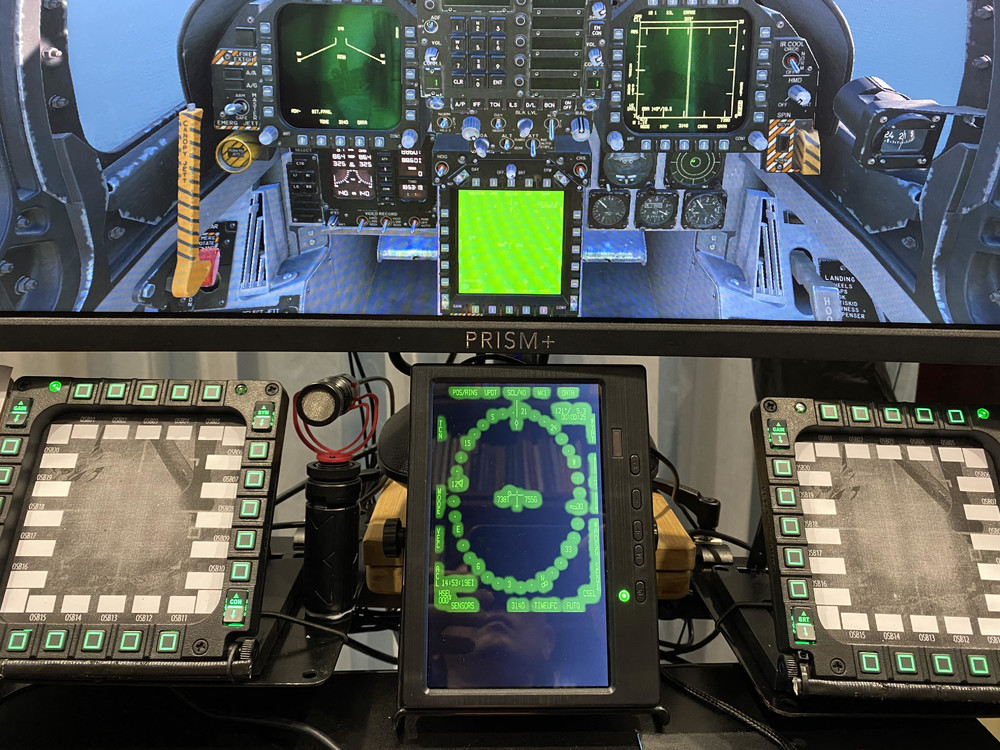

Is this what I am supposed to see?  Its different from the left and right MFDs.  I center one is very bright and I cant change level.  For the export center MFD, there is a green halo around the text.  Is that correct too?

[Greg_Mid_TN]

Hi All,

Any update on this issue. I have the exact same issue when exporting.

Thanks!

[Bunny Clark]

How are you setting up your display export?

[Greg_Mid_TN]

Hi! and thanks for the reply.



In my monitor .lua I have added:

CENTER_MFCD =
{
    x = 6850;
    y = 490;
    width = 450;
    height = 450;
}

In AMPCD_init.lua I have added:

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")
 try_find_assigned_viewport("CENTER_MFCD")

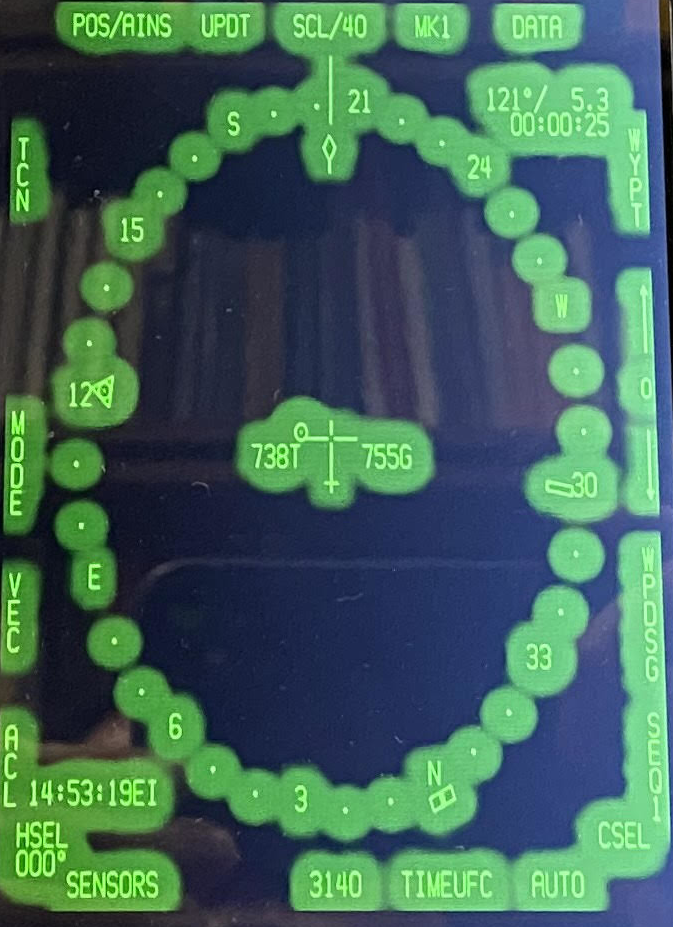

The export position and font are fine, but I get the same halo effect as above:



Here is my monitor lua complete:



_  = function(p) return p; end;
name = _('4 Screen');
Description = '--'
Viewports =
{
     Center =
     {
          x = 0;
          y = 0;
          width = 5760;
          height = 1080;
          viewDx = 0;
          viewDy = 0;
          aspect = 5760/1080;
     }
}

Gui =
{
    x = 0;
    y = 0;
    width = 5760;
    height = 1080;
}
UIMainView = Gui

LEFT_MFCD =
{
    x = 5820;
    y = 12;
    width = 400;
    height = 415;
}

RIGHT_MFCD =
{
    x = 6910;
    y = 15;
    width = 400;
    height = 415;
}

F14_TID =
{
    x = 5803;
    y = 30;
    width = 425;
    height = 460;
}



F14_VDI =
{
    x = 6890;
    y = 30;
    width = 425;
    height = 460;
}

F14_DDD =
{
    x = 6890;
    y = 520;
    width = 425;
    height = 460;
}

F14_HSD =
{
    x = 6890;
    y = 500;
    width = 425;
    height = 460;
}

F14_RWR =
{
    x = 5803;
    y = 520;
    width = 425;
    height = 460;
}

F16_RWR =
{
    x = 5883;
    y = 530;
    width = 350;
    height = 350;
}

EHSI =
{
    x = 6890;
    y = 550;
    width = 350;
    height = 350;
}

A10C_RWR =
{
    x = 5820;
    y = 520;
    width = 350;
    height = 350;
}

RWR_ALR67 =
{
    x = 5853;
    y = 530;
    width = 350;
    height = 350;
}

CENTER_MFCD =
{
    x = 6850;
    y = 490;
    width = 450;
    height = 450;
}

GU_MAIN_VIEWPORT = Viewports.Center



[BIGNEWY]

Hi,

this was reported some time ago but I have not had any update on the issue, I will try to chase it up.

thank you

[Greg_Mid_TN]

On 2/9/2022 at 9:04 AM, BIGNEWY said:

Hi,

this was reported some time ago but I have not had any update on the issue, I will try to chase it up.

thank you

Hi BIGNEWY,



Since the update last week, this is now no longer an issue. Don't know why, but I'll take it.



Thanks!

[BIGNEWY]

5 minutes ago, Greg_Mid_TN said:

Hi BIGNEWY,



Since the update last week, this is now no longer an issue. Don't know why, but I'll take it.



Thanks!

It always worries me when something fixes itself but thank you for letting me know, would like feedback from others also if they experience the same.
