reported Offset symbol rotates on HSI based on bearing from OAP

[Tholozor]

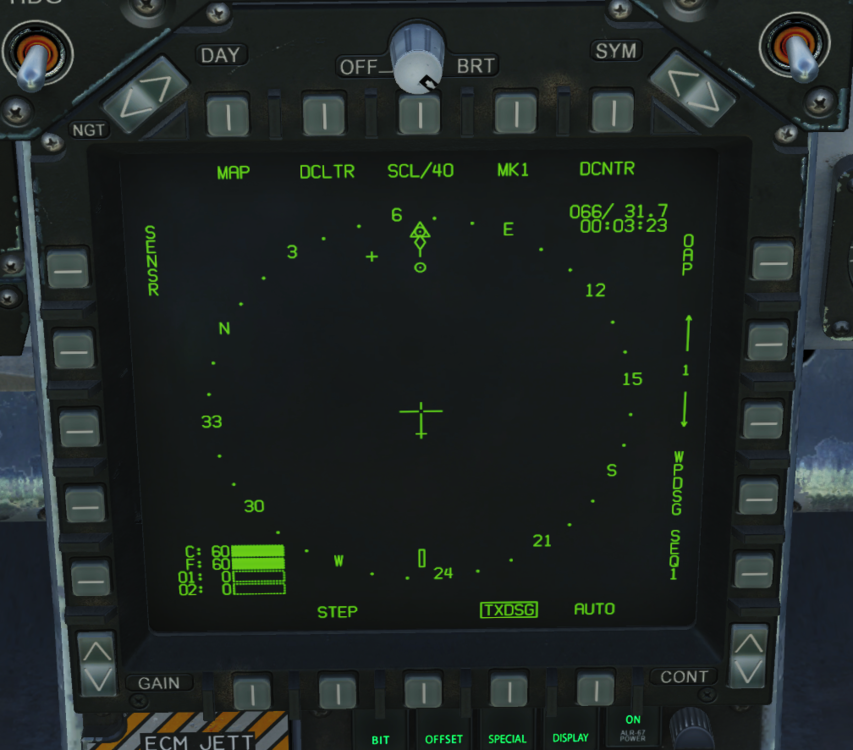

When an offset is established on an OAP, the offset symbol (+) is rotated on the HSI that aligns itself on the bearing the offset is applied. While not explicitly stated in the NATOPS in words, Fig. 24-12 shows the offset symbol is oriented vertically (relative to the display), regardless of it's relative position to the OAP. The offset symbol is oriented vertically on the SA page, however.

OAP_Offset_Symbol_Rotation.trk

Edited October 18, 2021 by Tholozor

[BIGNEWY]

I will ask the team but without clear evidence I can not confirm a change, we have assumed stuff in the past and it has been wrong.

[Swift.]

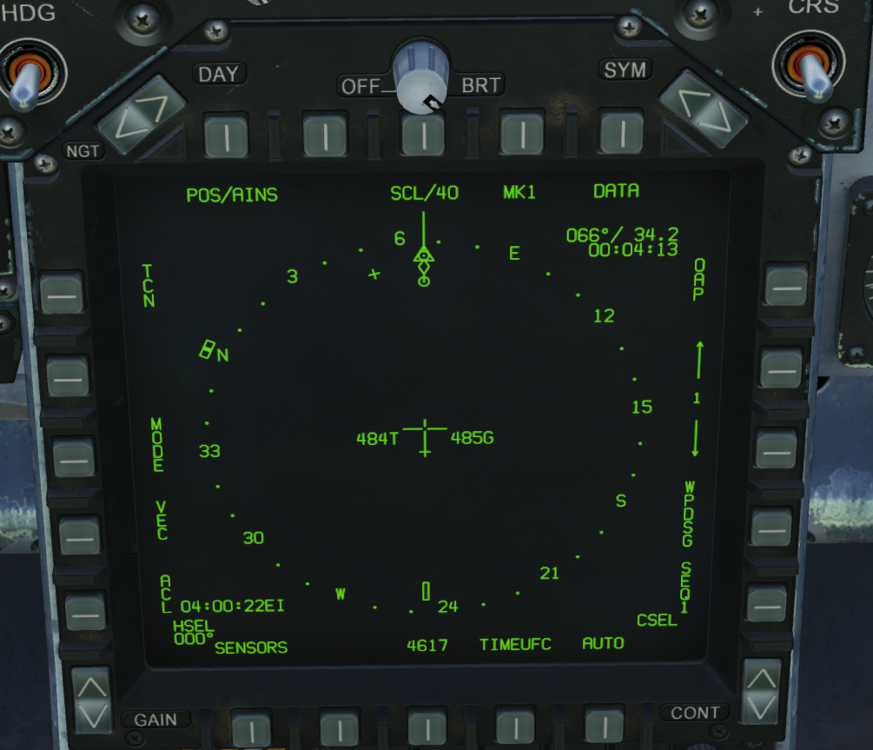

The Offset symbol is orientated differently between the SA and HSI formats.



Offsetsymbol.trk

[Tholozor]

Related:



[BIGNEWY]

posts merged

reported to the team for checking

thanks
