SU-27/SU-33 Flight Control Question

[draconus]

14 hours ago, walt262 said:

What is the difference in the Wheel Break Start & Wheel Break On for the SU-27 & SU-33?

Both apply wheel brakes (check the spelling again), On is standard braking, Start is twice the pressure braking used for take offs when you need to spool the engines to high power before release.

[walt262]

Where are the NAV, Previous Way Point, and Next Way Point buttons located in the SU-27 cockpit?

Edited September 23, 2022 by walt262

[Ironhand]

7 hours ago, walt262 said:

Where are the NAV, Previous Way Point, and Next Way Point buttons located in the SU-27 cockpit?



Esac_mirmidon is the person to ask. He’s translated that part of the manual. I haven’t done that yet. But I do know you won’t find previous and next buttons for the waypoints. There will most likely be several buttons—not certain how many—with programmed waypoints, should you need to manually select one.

[draconus]

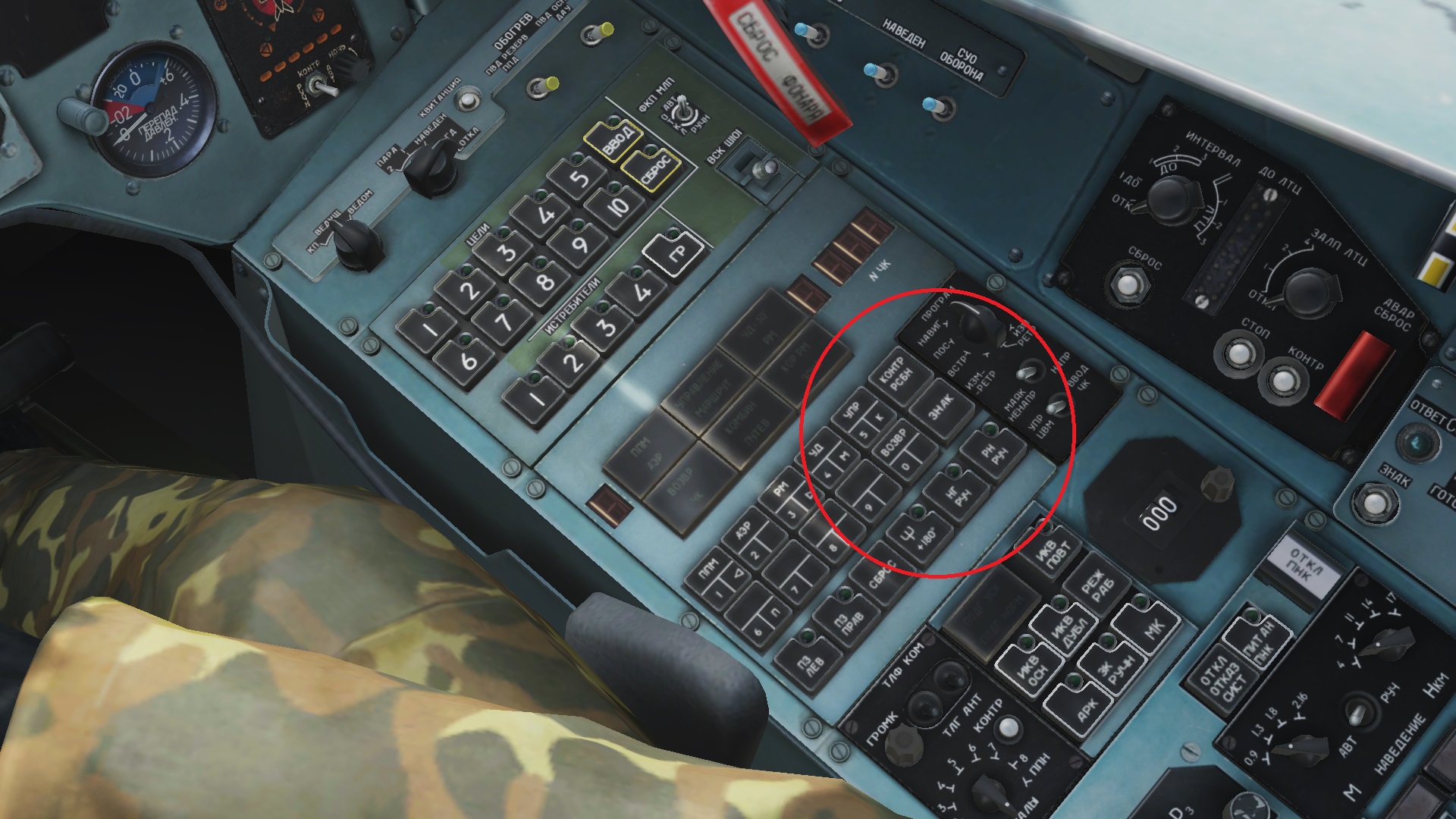

@Esac_mirmidon Wouldn't that be this panel?

Edited September 24, 2022 by draconus

[Esac_mirmidon]

i´ve answered him by PM but anyway there is not a "single" navigation button on the Su-27.

More or less everything is integrated and linked together for navigation. You have the CAY panel for autopilot with a navigation mode option button.

You have the HSI-HUD with navigation information also, but the Short Range Radio Navigation System is what he is looking for. On that panel you can select between different flight modes like ППМ - АЗР -PM, etc ( Waypoints - Airfields - Radio Beacons ), and then select the number for that below. So of you want to navigate manually from Wp 1 to the follwing just press  ППМ and the number and follow the route on your HSI-HUD.

There are also rotary selectors for that both on CAY or the Manual Navigation panel to select the program flight like navigation - take off - landing, etc.

But resuming if you want to manually select a WP just push ППМ and the number on Nav mode on the rotary selector.

Edited September 24, 2022 by Esac_mirmidon
