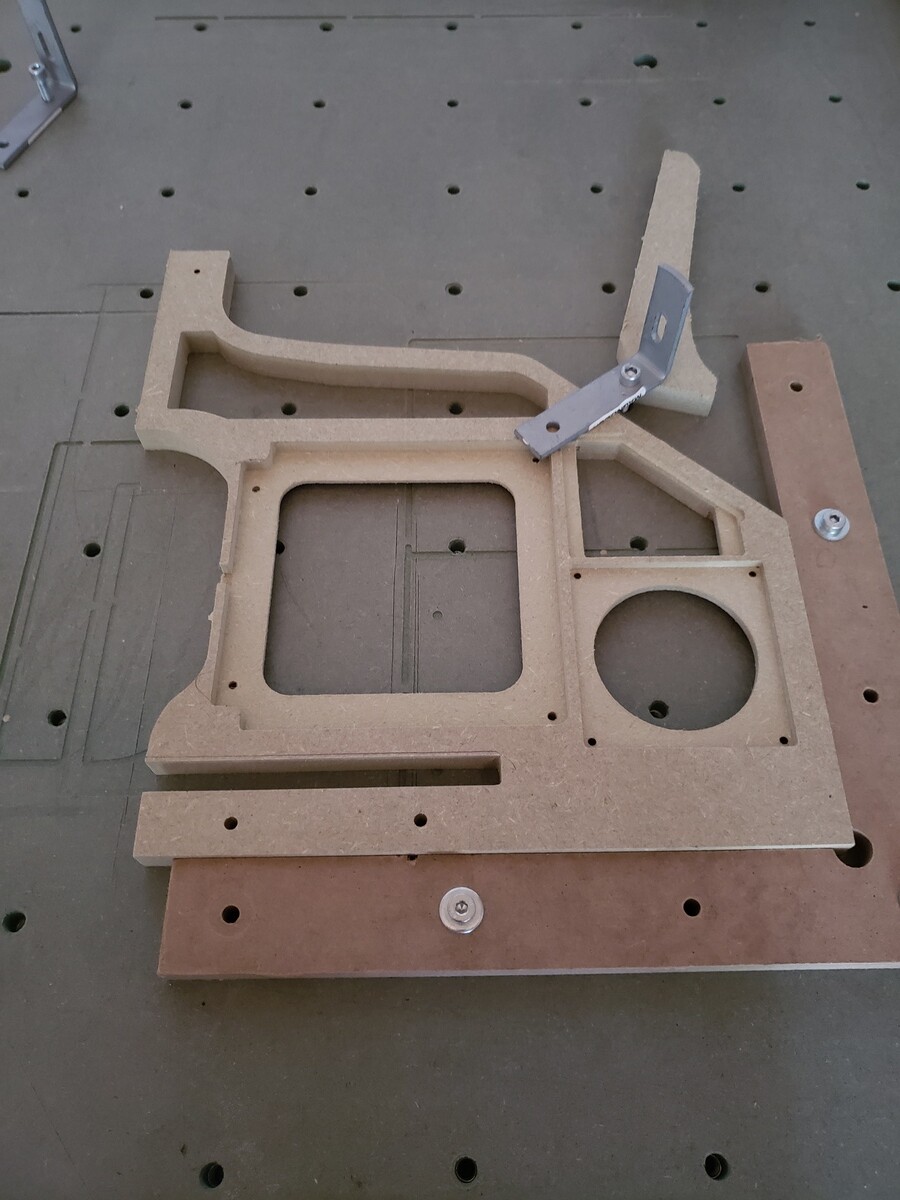

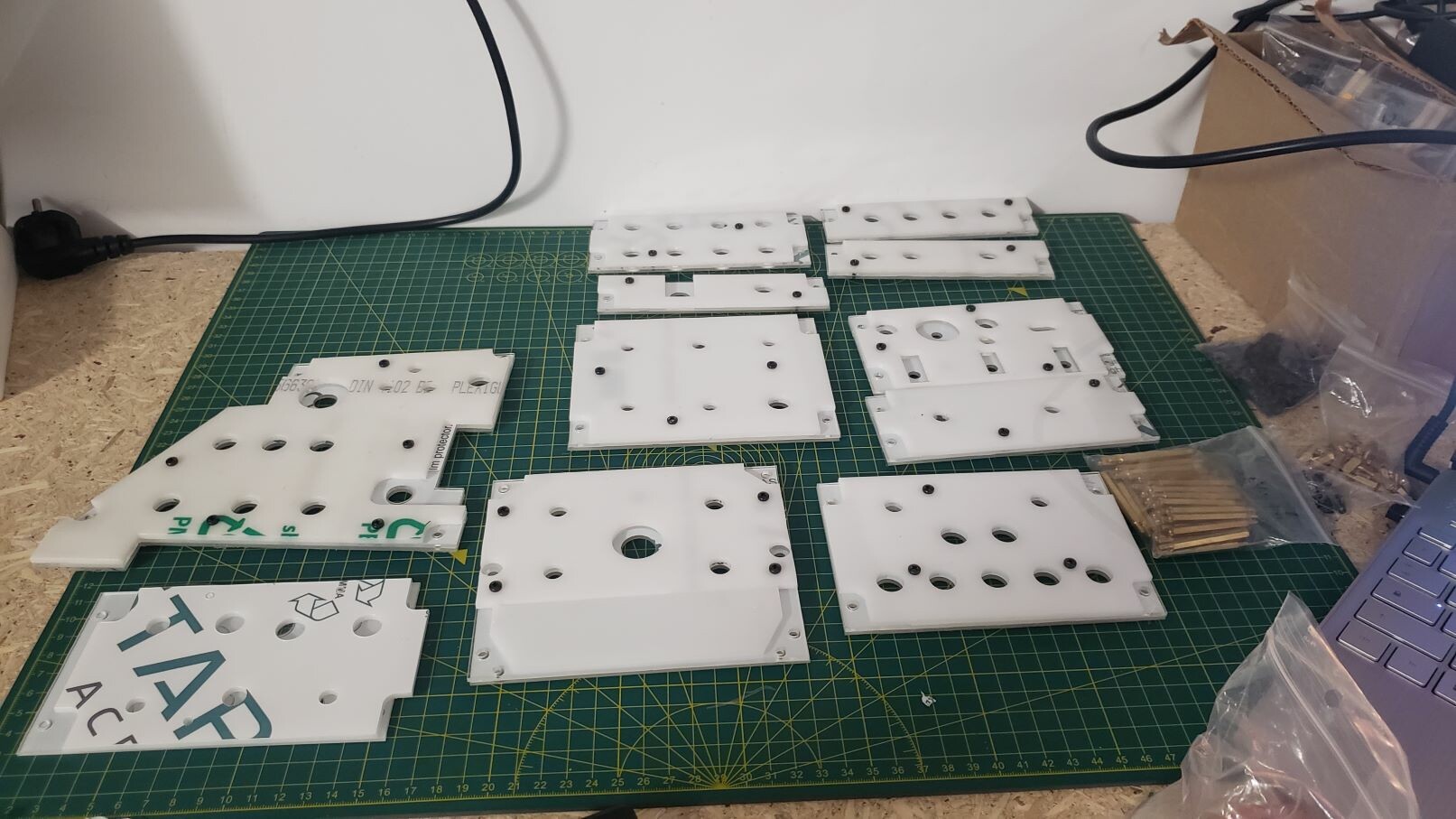

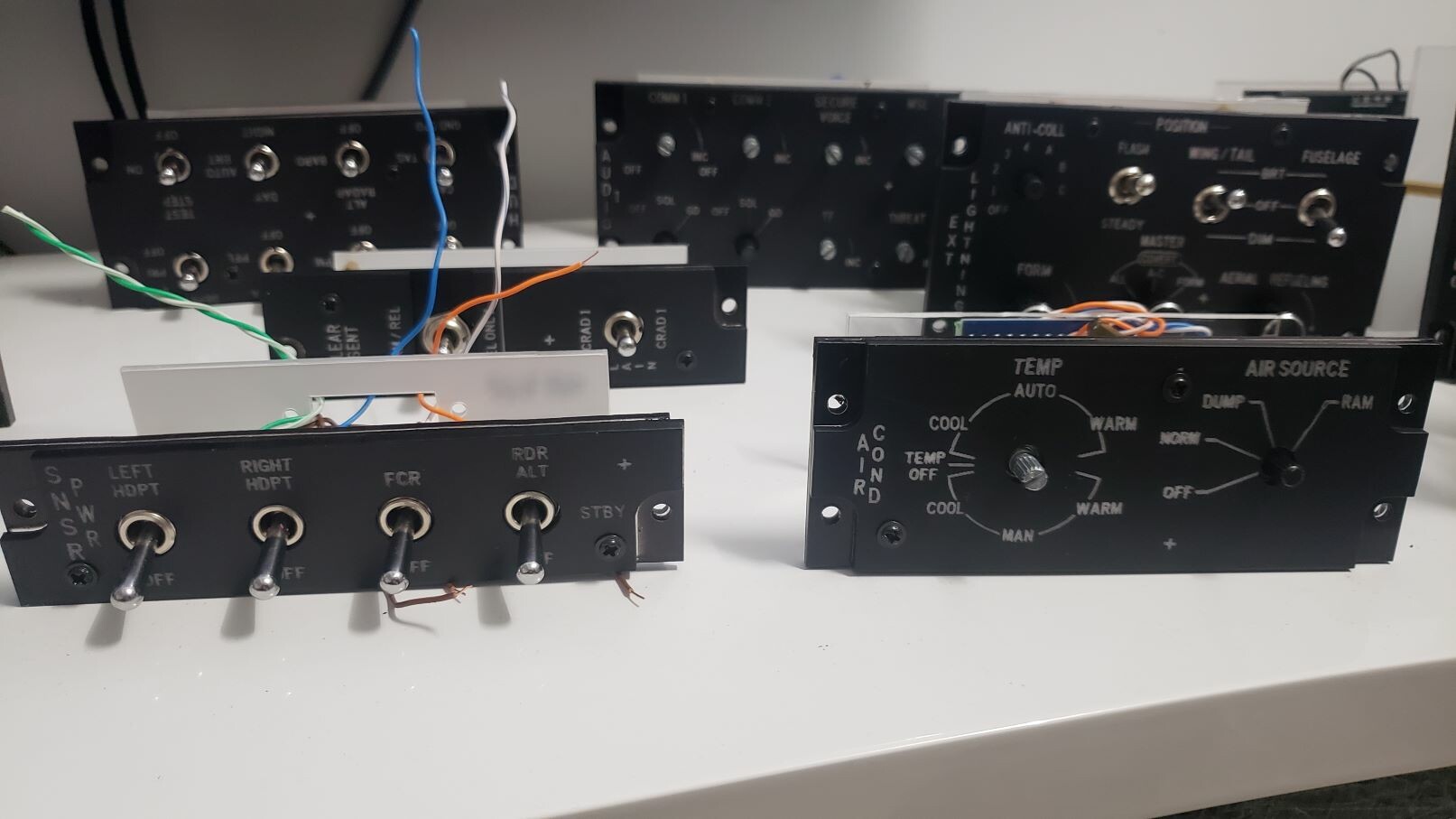

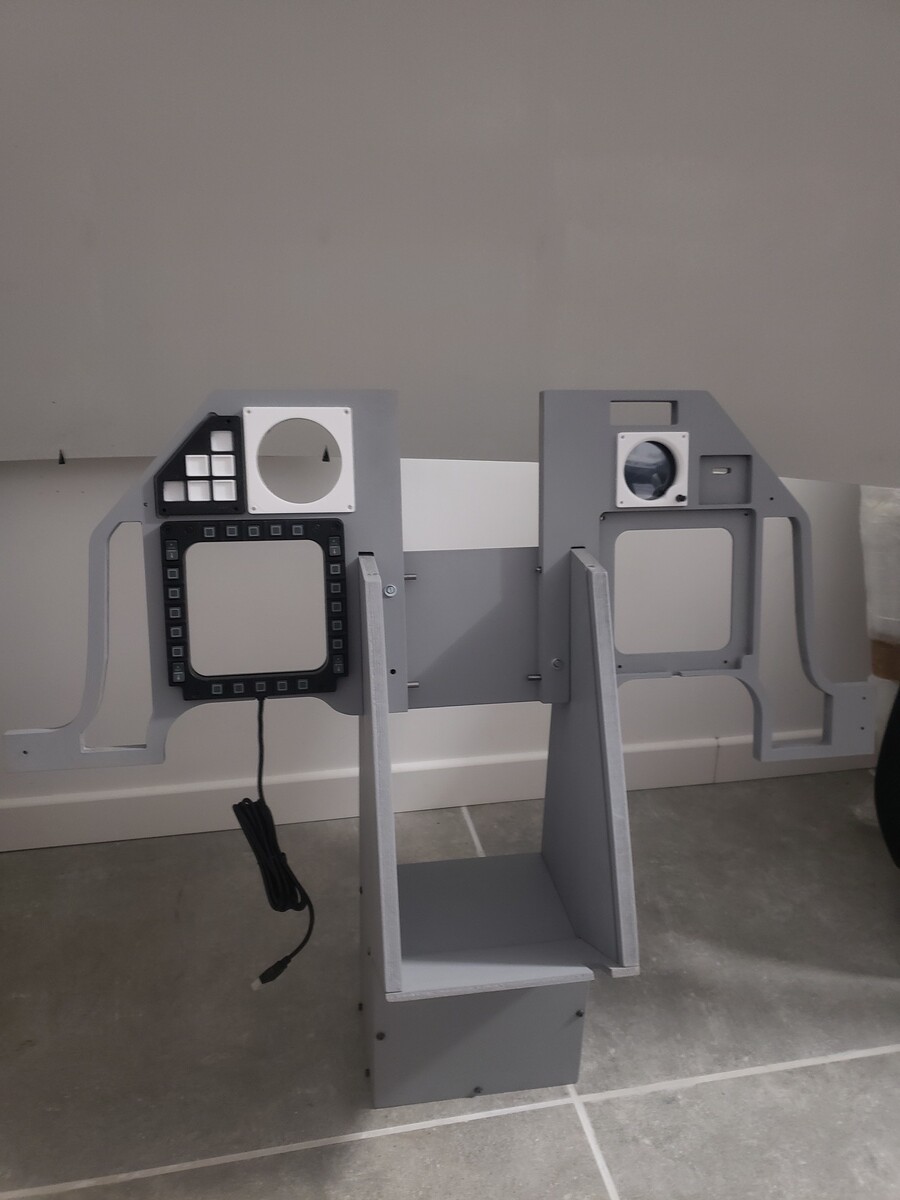

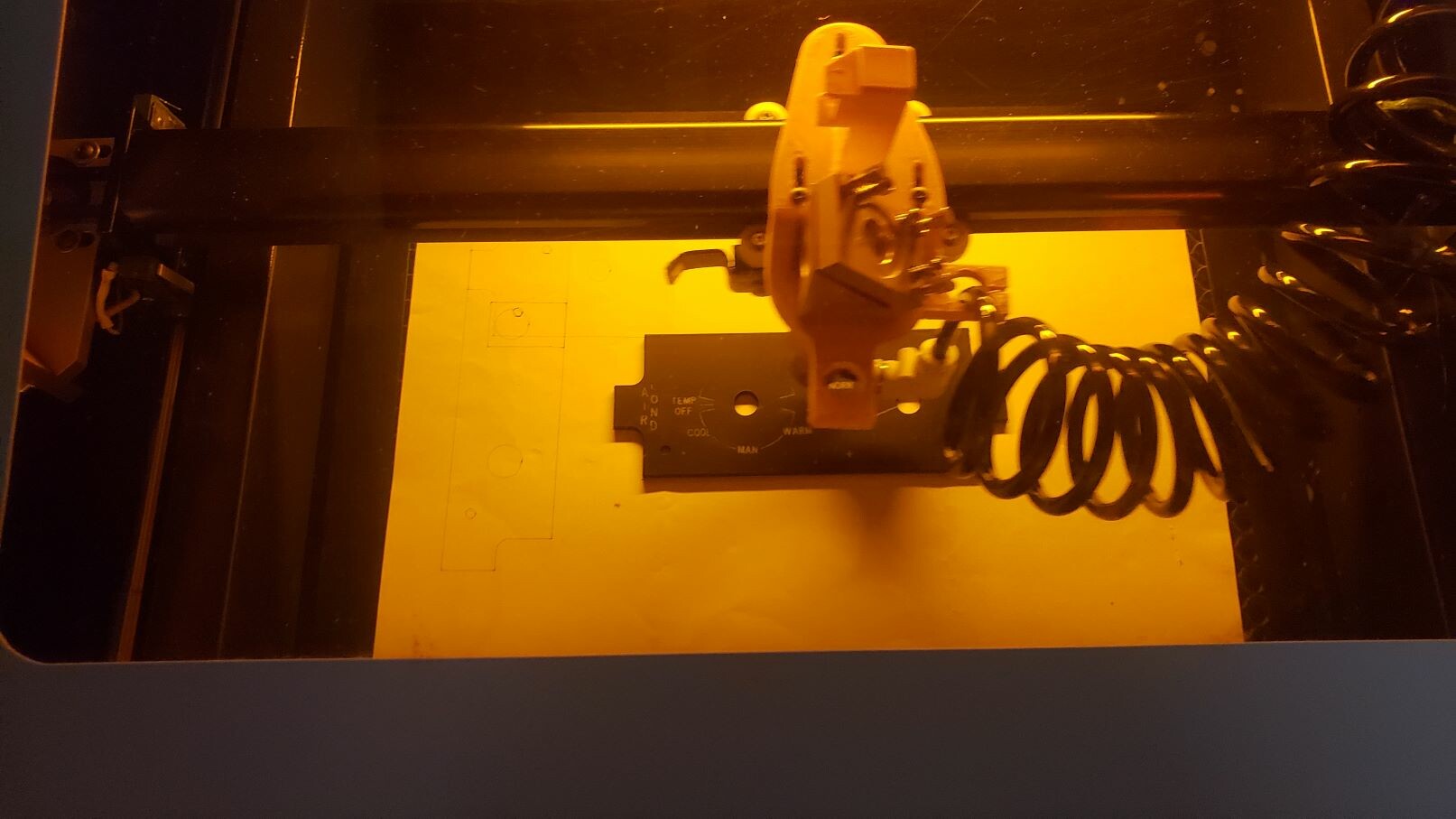

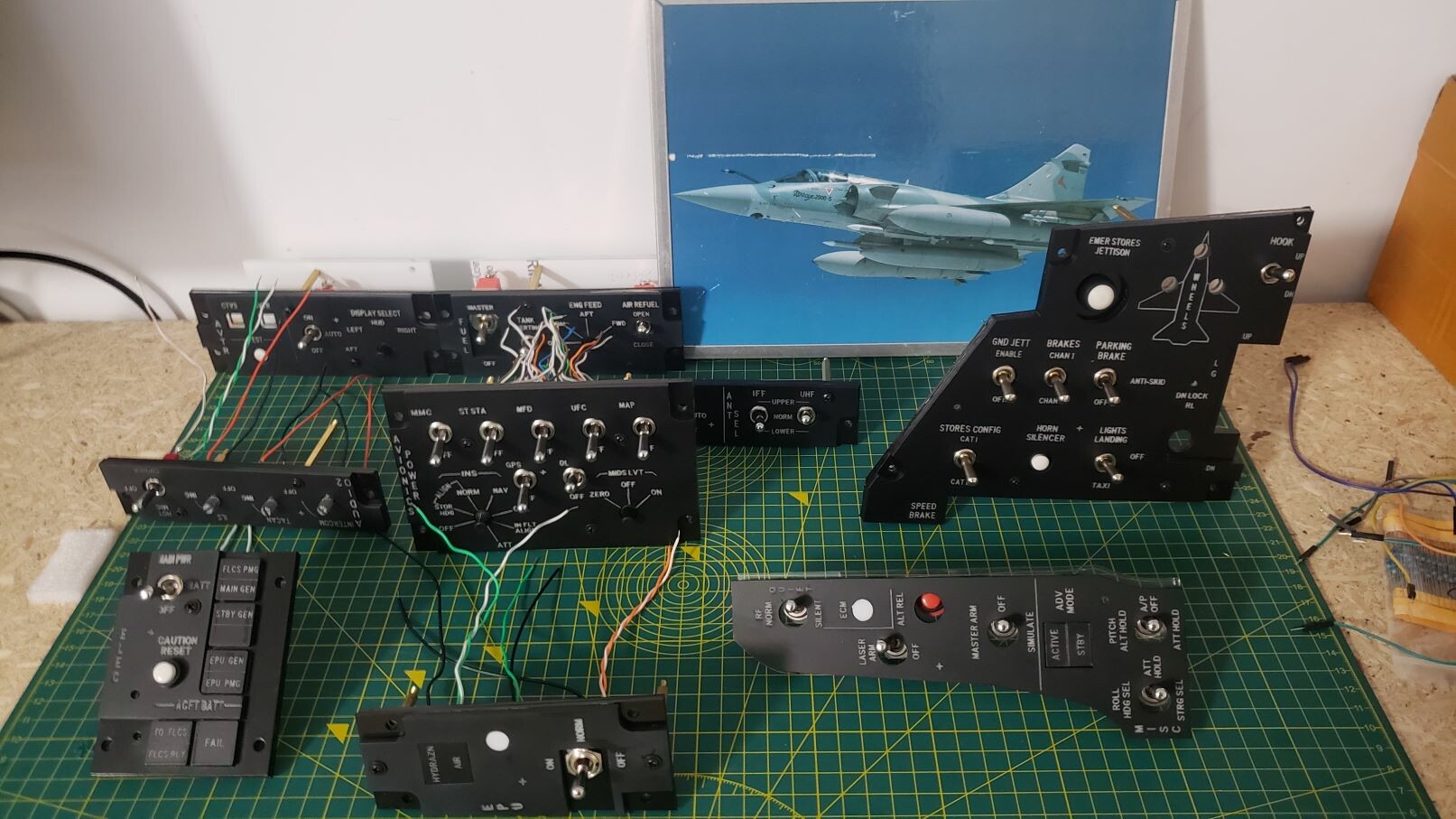

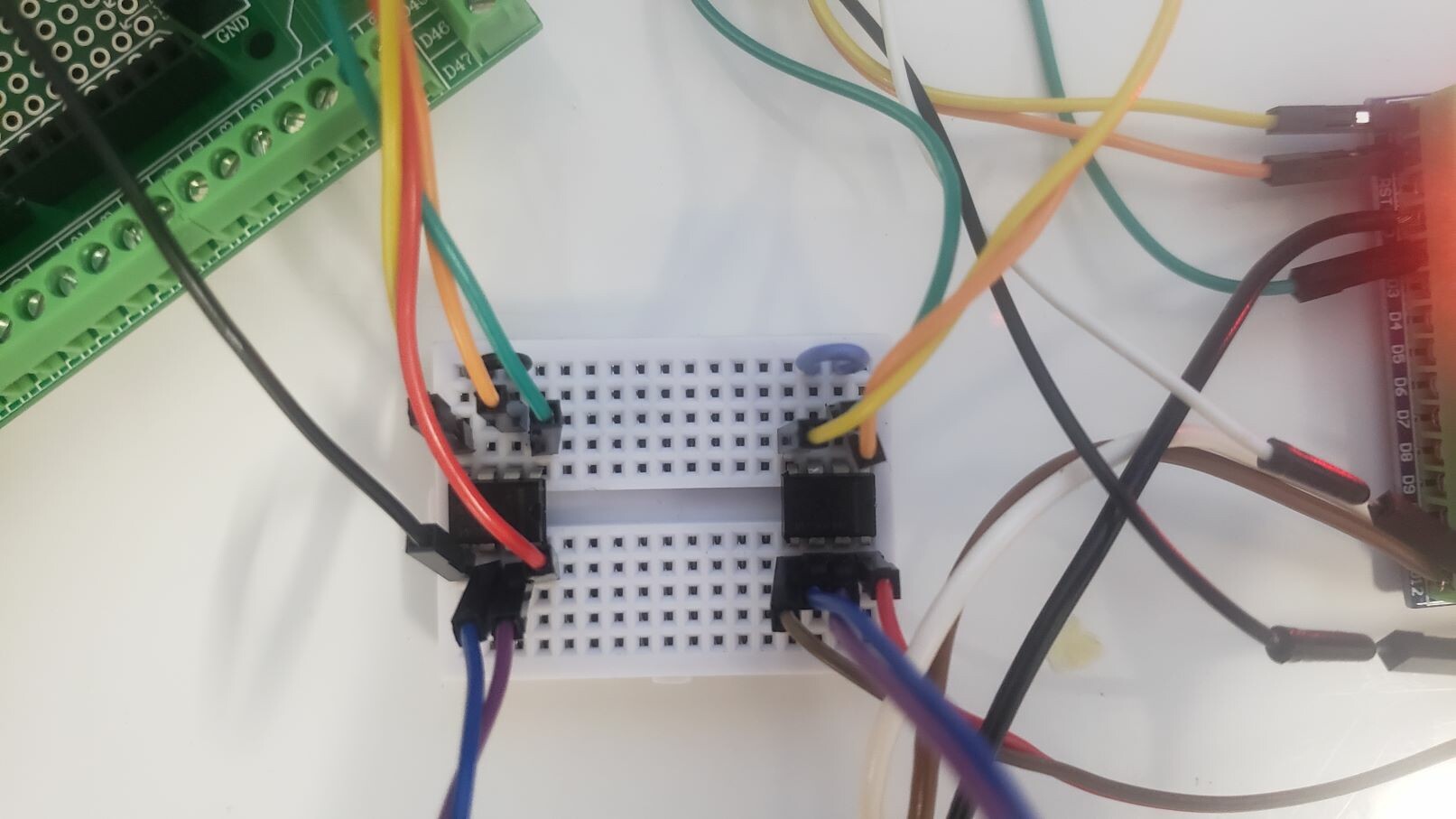

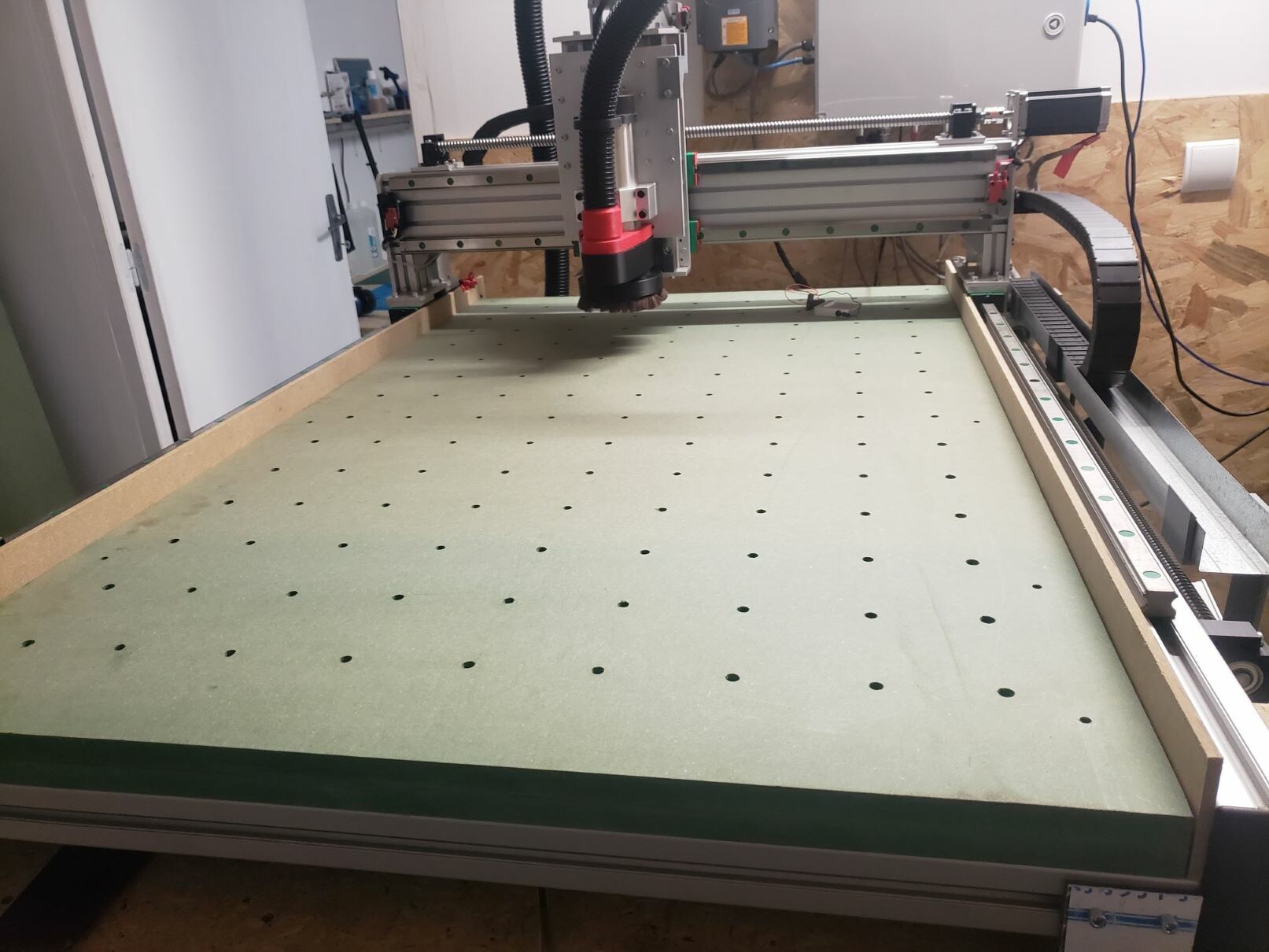

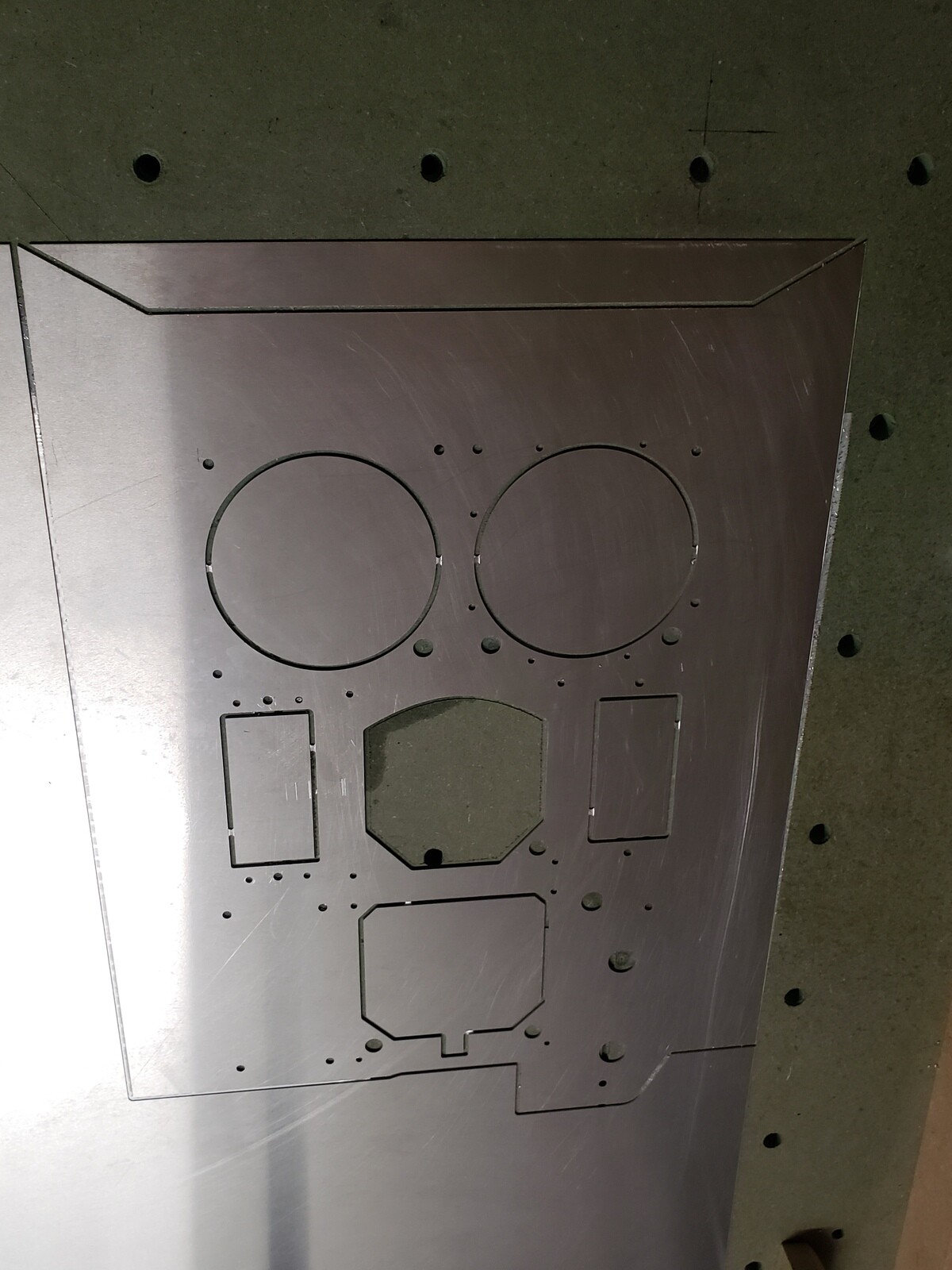

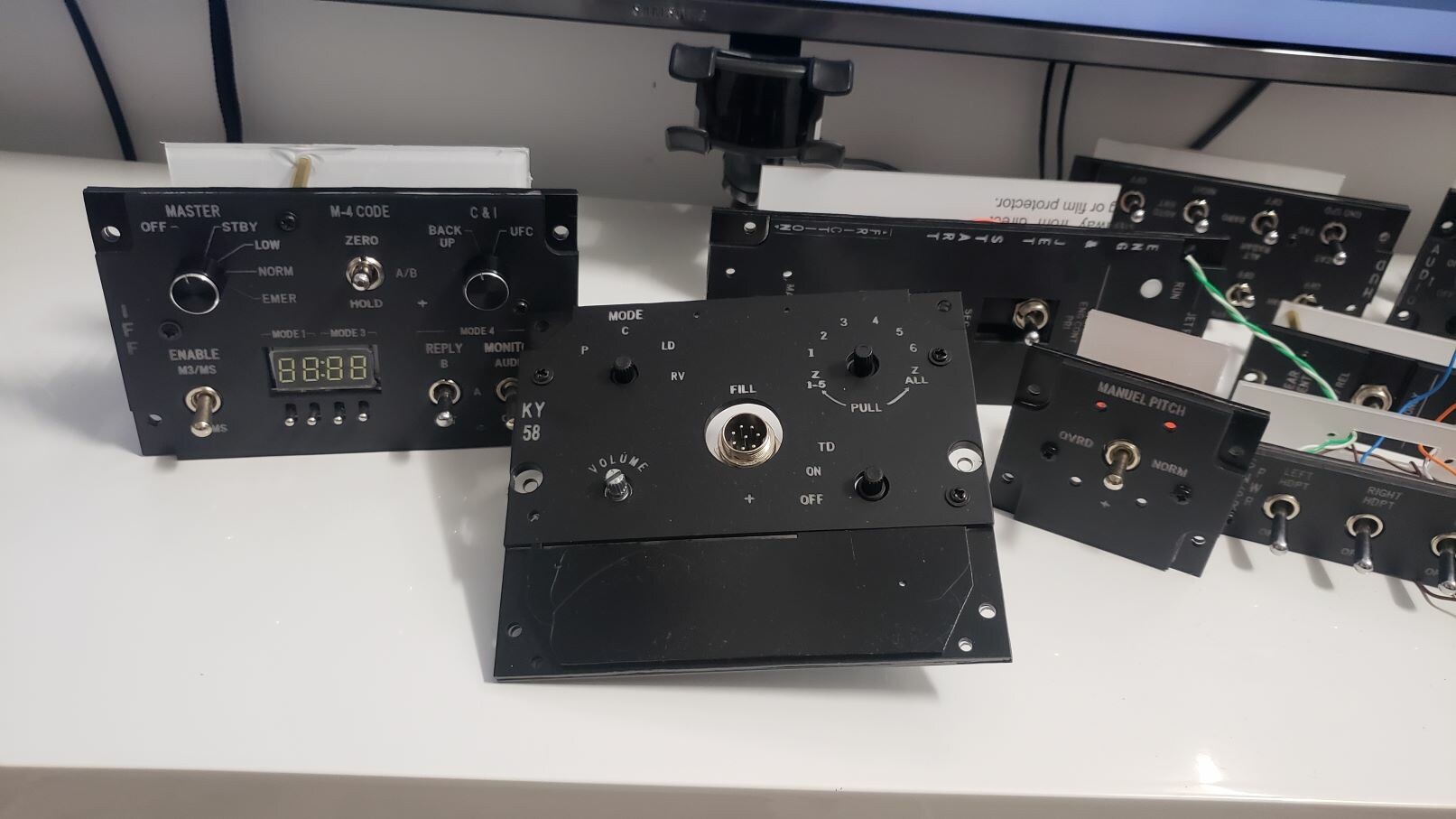

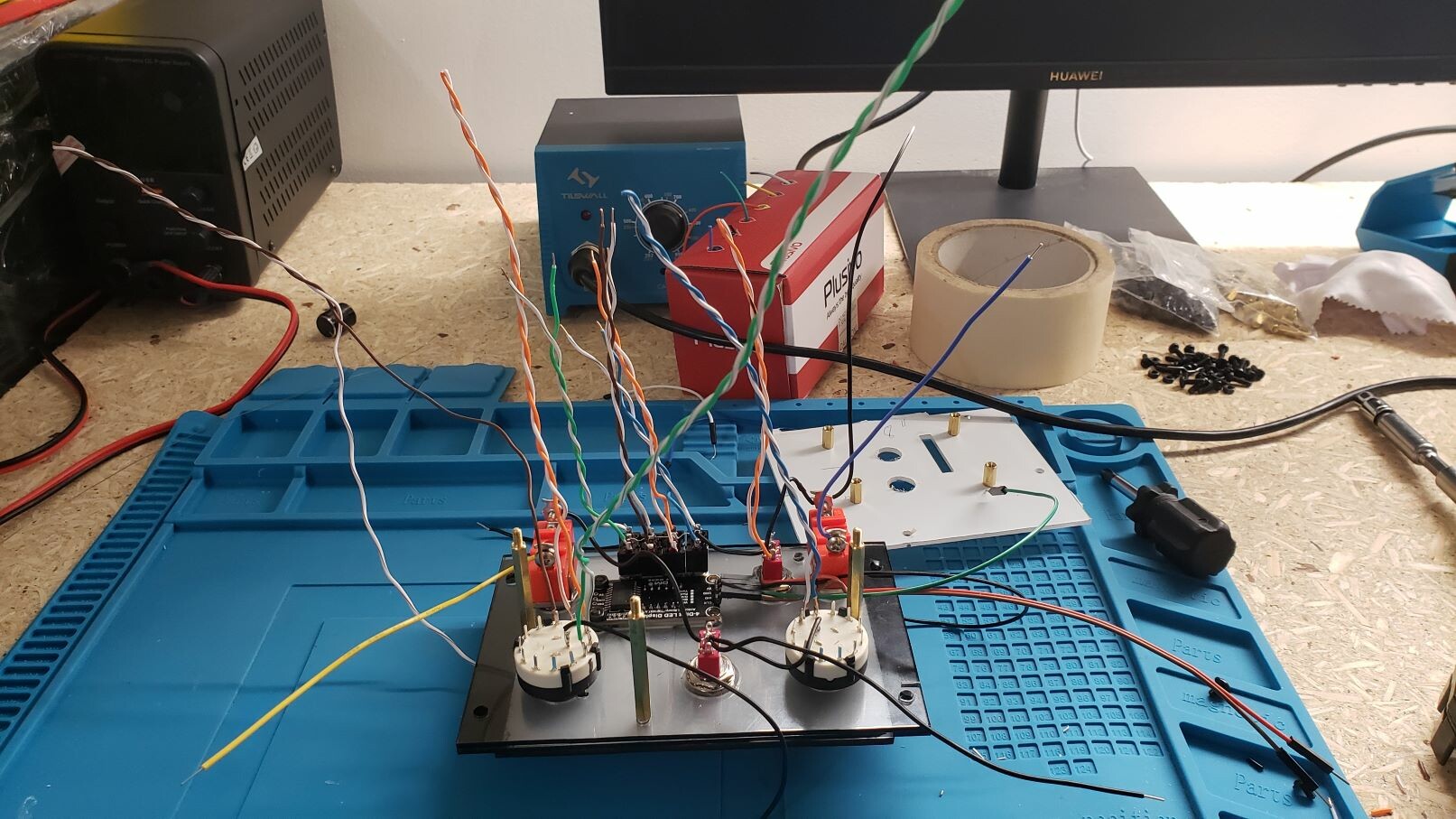

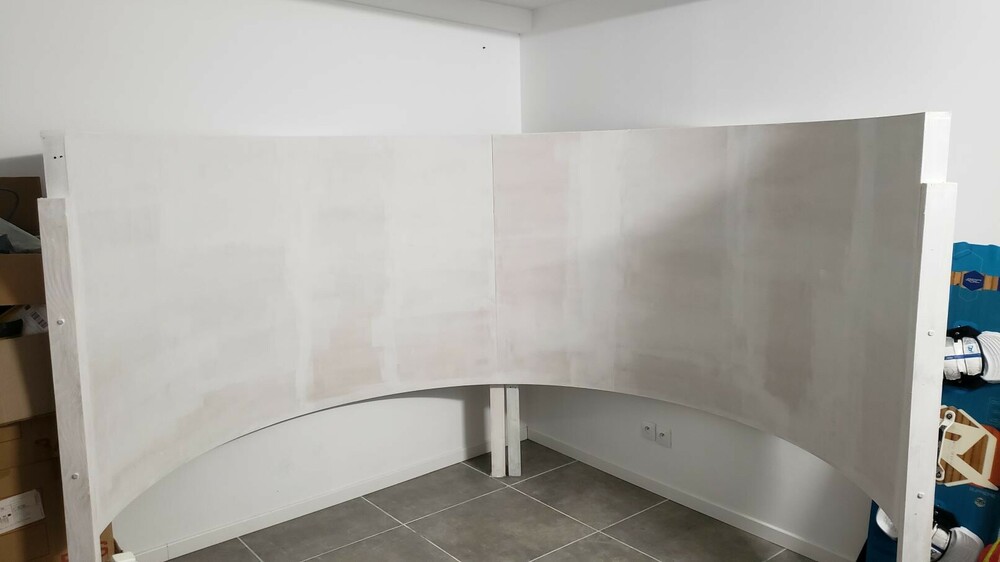

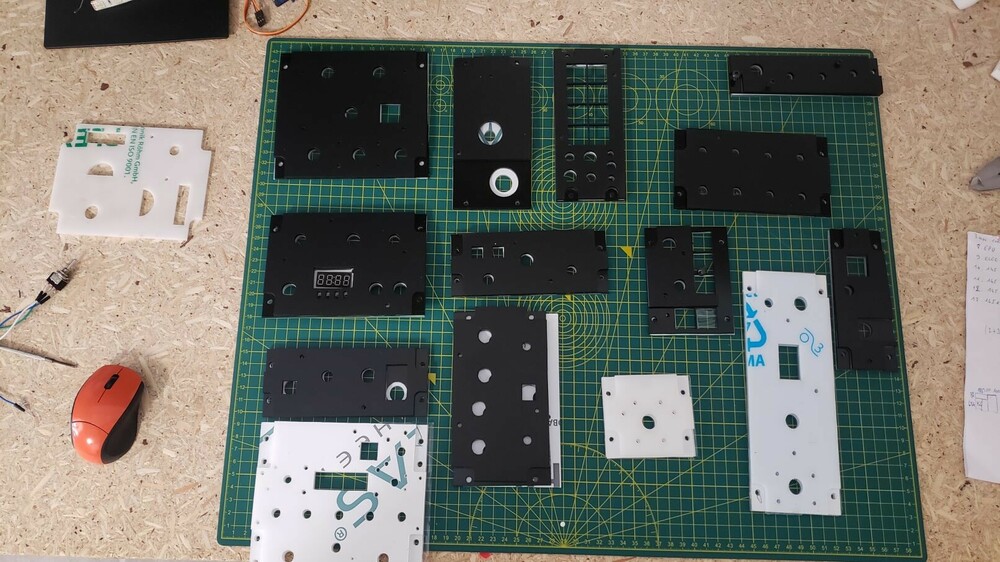

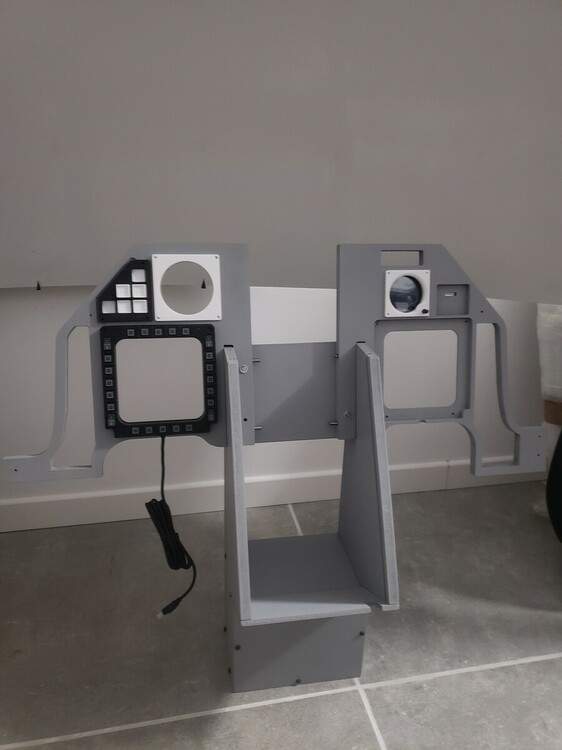

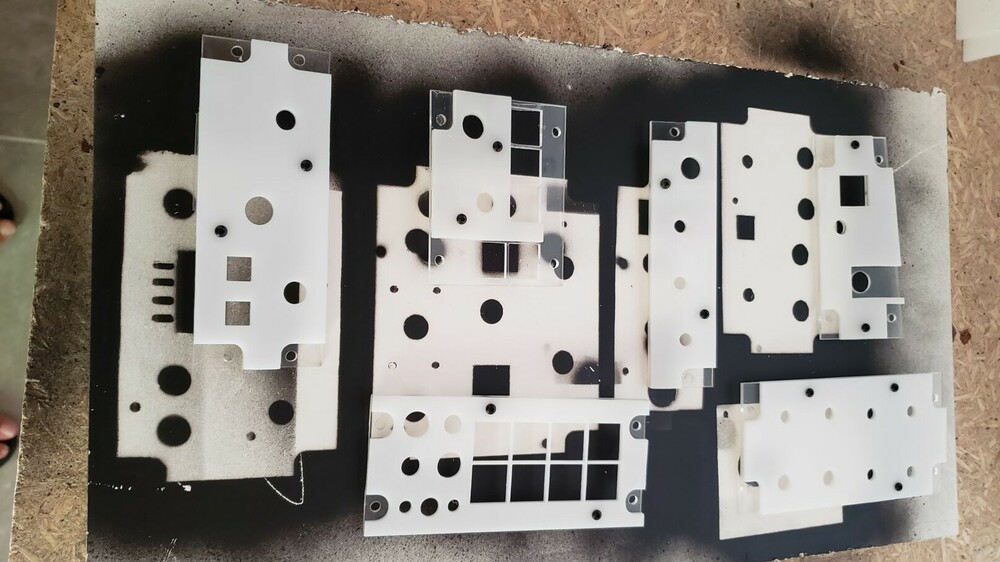

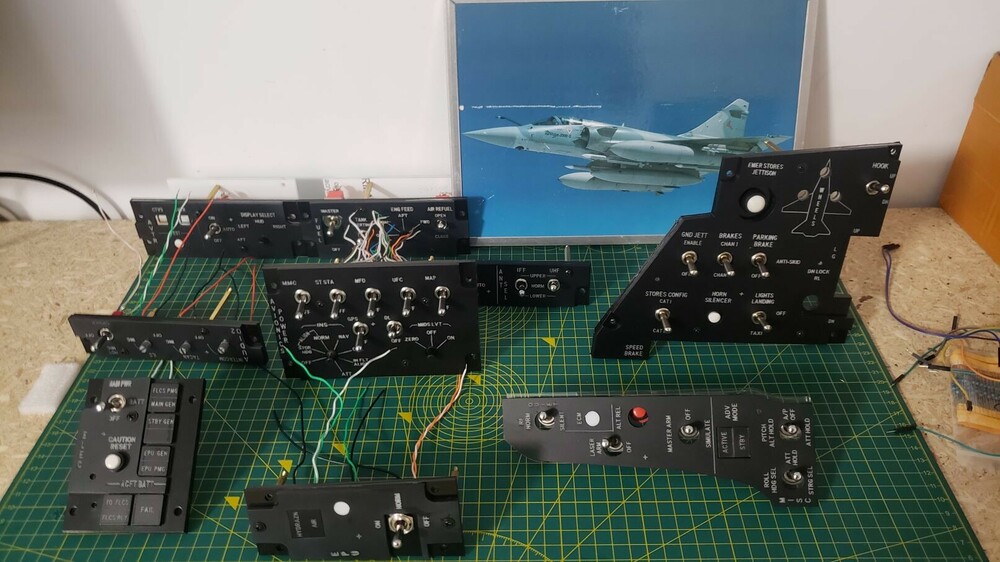

Zorg. Posted October 17, 2023 Posted October 17, 2023 (edited) I'm taking a moment to post some photos of the progress of my project: 1 year of progress on my F16 Sim project. I made the decision to equip myself for the manufacture of panels and possible cuts. This seems like a great adventure to me. That’s a lot of hours of research. Fortunately, many posts sharing their tips. First my material setup : 1. My home cnc : 2. My tropical K40 chip arrived crushed but fortunately the tube remained intact. (The seller did not want to take it back) Progress of the panels : The entire architecture is based on arduino mainly the Nano, pro micro and mega for the MasterUART. (Thanks to the entire Dcsbios community) After cutting the K40 work: Ready to paint: Câblage IFF : RS485 communication test based on MAX487 - Made yesterday, assembly of two large 16/9 screens with 210° view - Looking forward to testing it. Still a lot of work on the horizon - to be continued.... 2023/10/19 - Assembly and painting. ... 01/04/2024 Some progress on the central console : Edited April 1, 2024 by Zorg. 5
agrasyuk Posted October 18, 2023 Posted October 18, 2023 really cool. do you already know which paint you will be using for the screen ? Anton. My pit build thread . Simple and cheap UFC project
Zorg. Posted October 19, 2023 Author Posted October 19, 2023 For painting, I don't have much choice where I am. I will follow the advice found on The Warthog Project channel. I would like to take this opportunity to thank him for his sharing, a very good source of inspiration, and many others. So I took Dulux white for the first coats and a Dulux gray color for the finish with an aluminum airbrush mixture. I hope it goes well
agrasyuk Posted November 10, 2023 Posted November 10, 2023 I tried airbrush metalizer, perhaps it was a skill gap but it didn't work for me. The screen paint formula I used is in the link Anton. My pit build thread . Simple and cheap UFC project

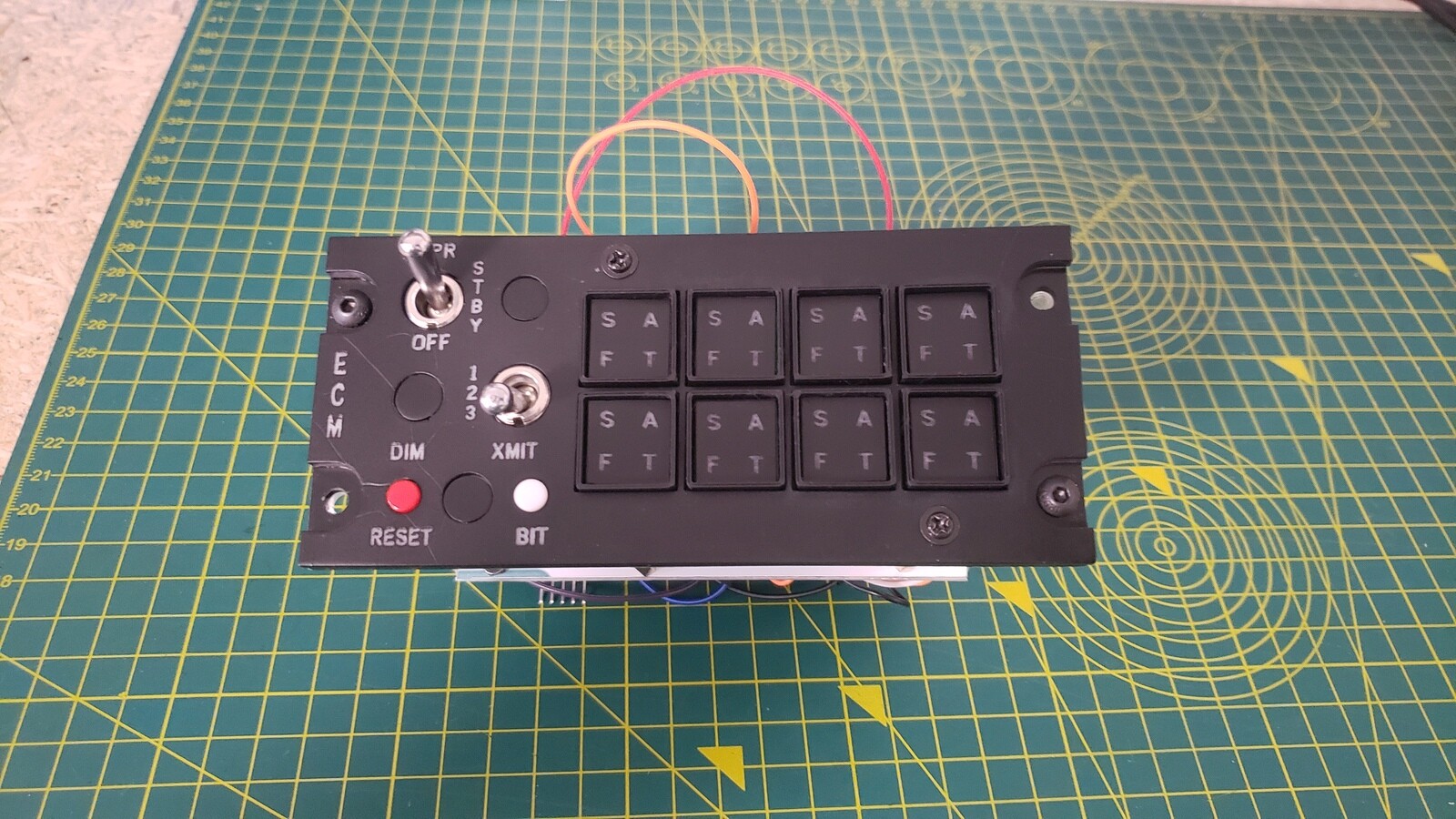

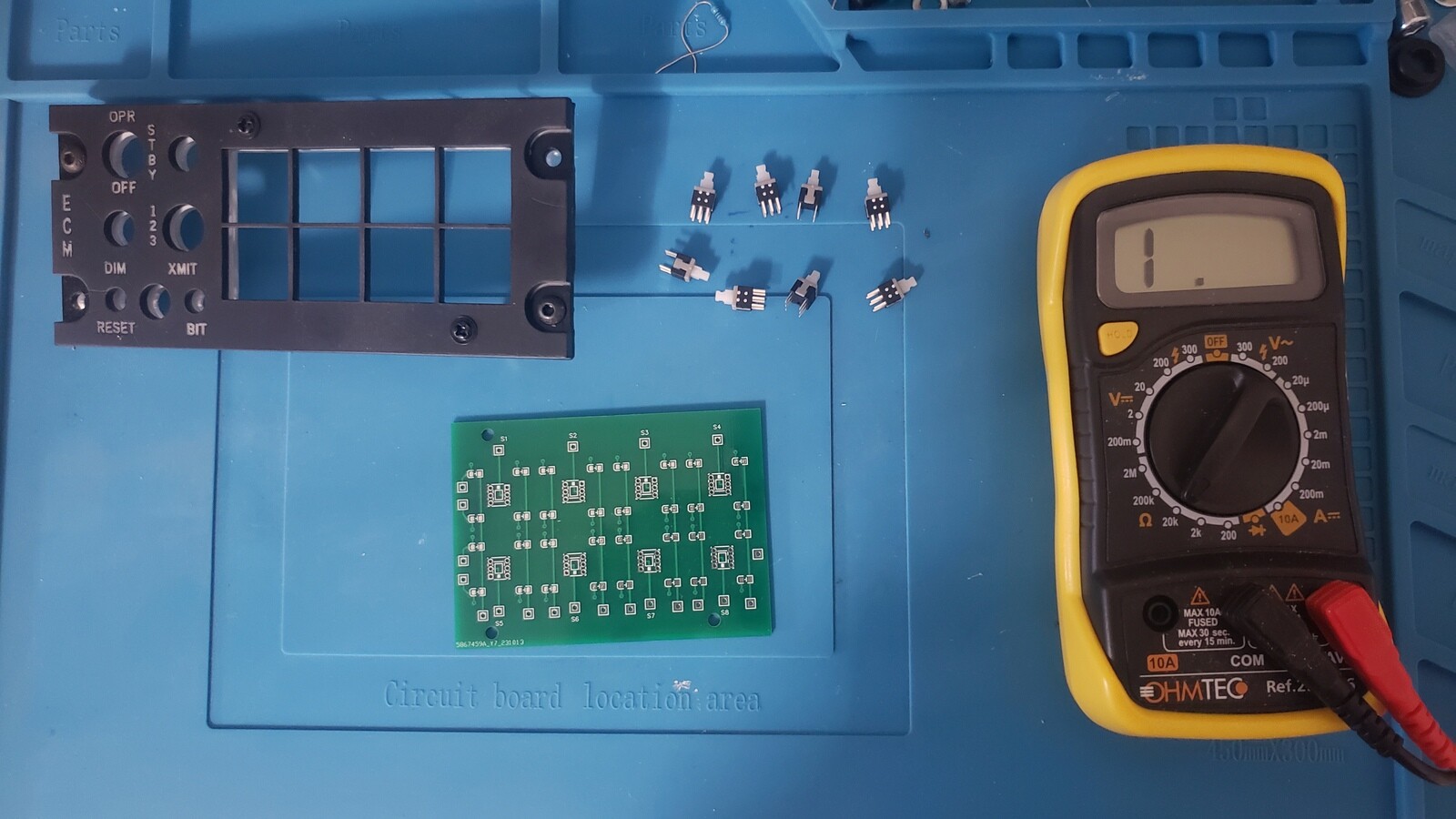

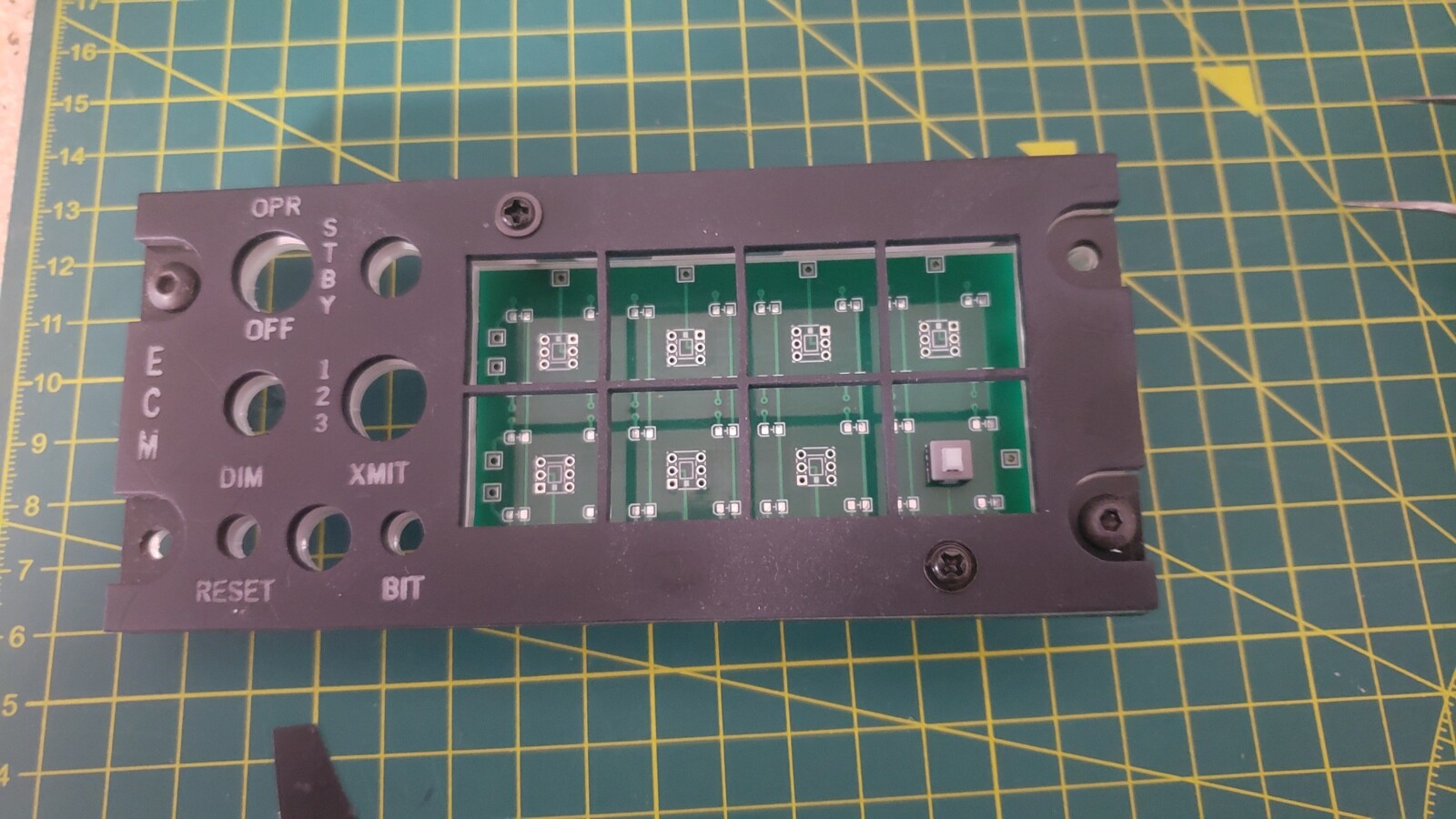

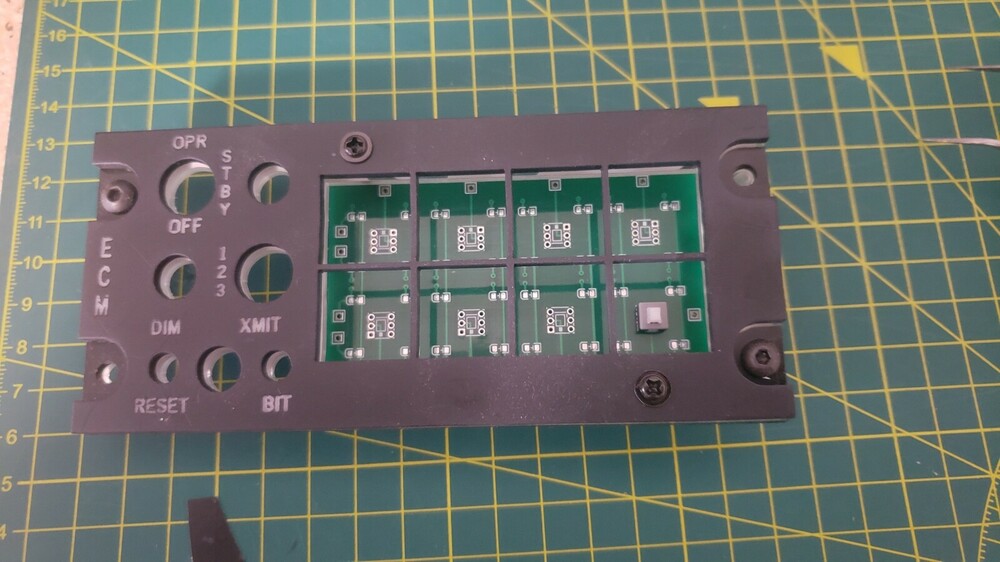

Zorg. Posted November 19, 2023 Author Posted November 19, 2023 (edited) 2023/11/18 Latest panel produced - ECM Panel based on a 4x8 MAX7219 matrix. Edited November 19, 2023 by Zorg. 1
Snakedoc Posted November 22, 2023 Posted November 22, 2023 Really amazing work! Well done! I am building also an F16 pit using a very similar technique to yours! I am still at the early stages, will do a dedicated post in a bit but for now I just wanted to admire your work!! 1 ASUS ROG STRIX Z490 F-GAMING | i7-10700K | RTX3090 TUF OC | 32GB DDR4 3200Mhz | Windows 10 64bit | Acer Predator X34P | TrackIR 5 | TM Warthog | TM T.Flight Rudder Pedals A-10C | A-10C II | F/A-18C | F-16C | FC3 | PG | Syria | SC Home made F-16C simulator Forum Thread: DCS World forum - The Viper Project - Home Cockpits Instagram: The Viper Project YouTube The Viper Project - Youtube channel

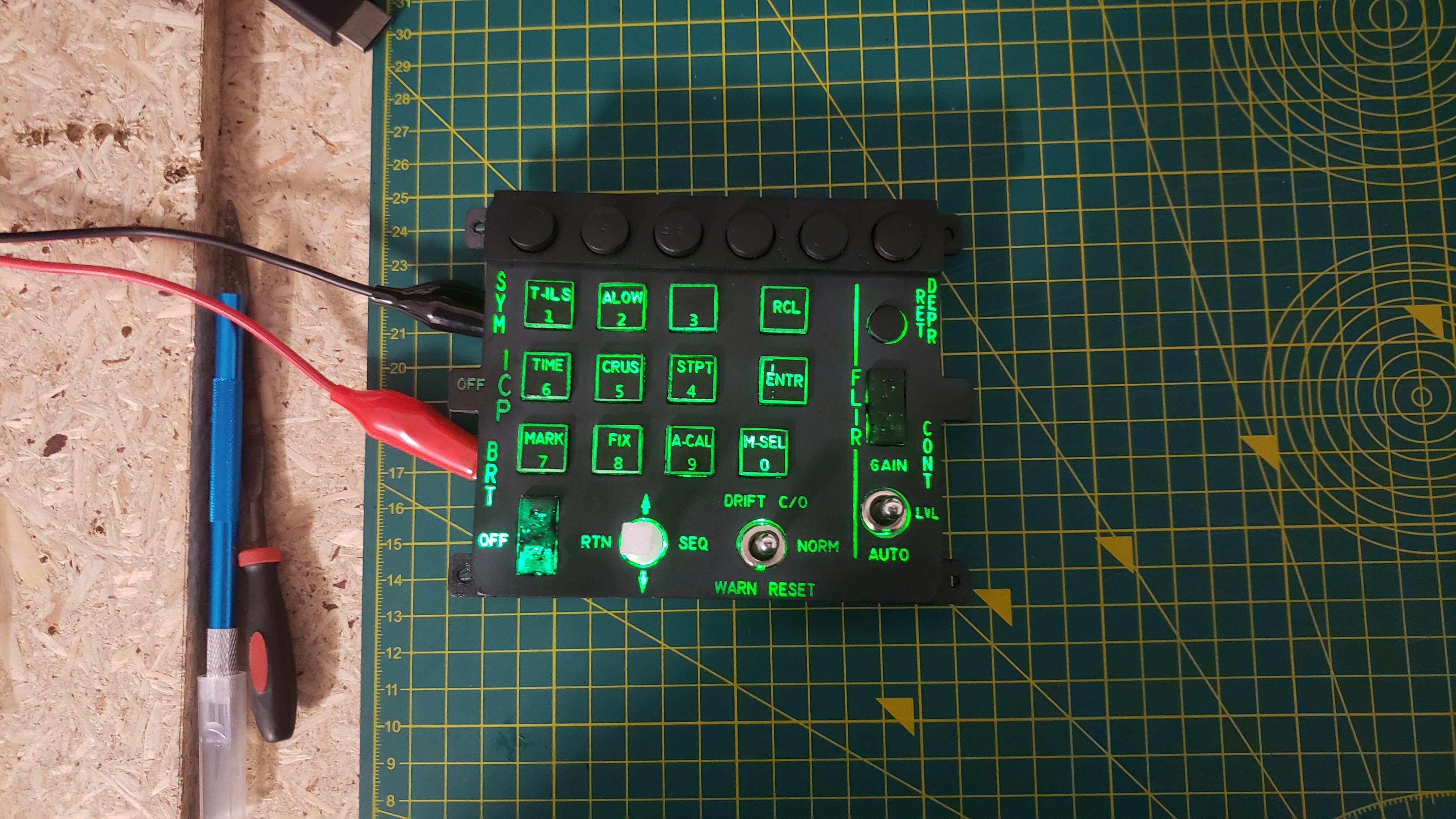

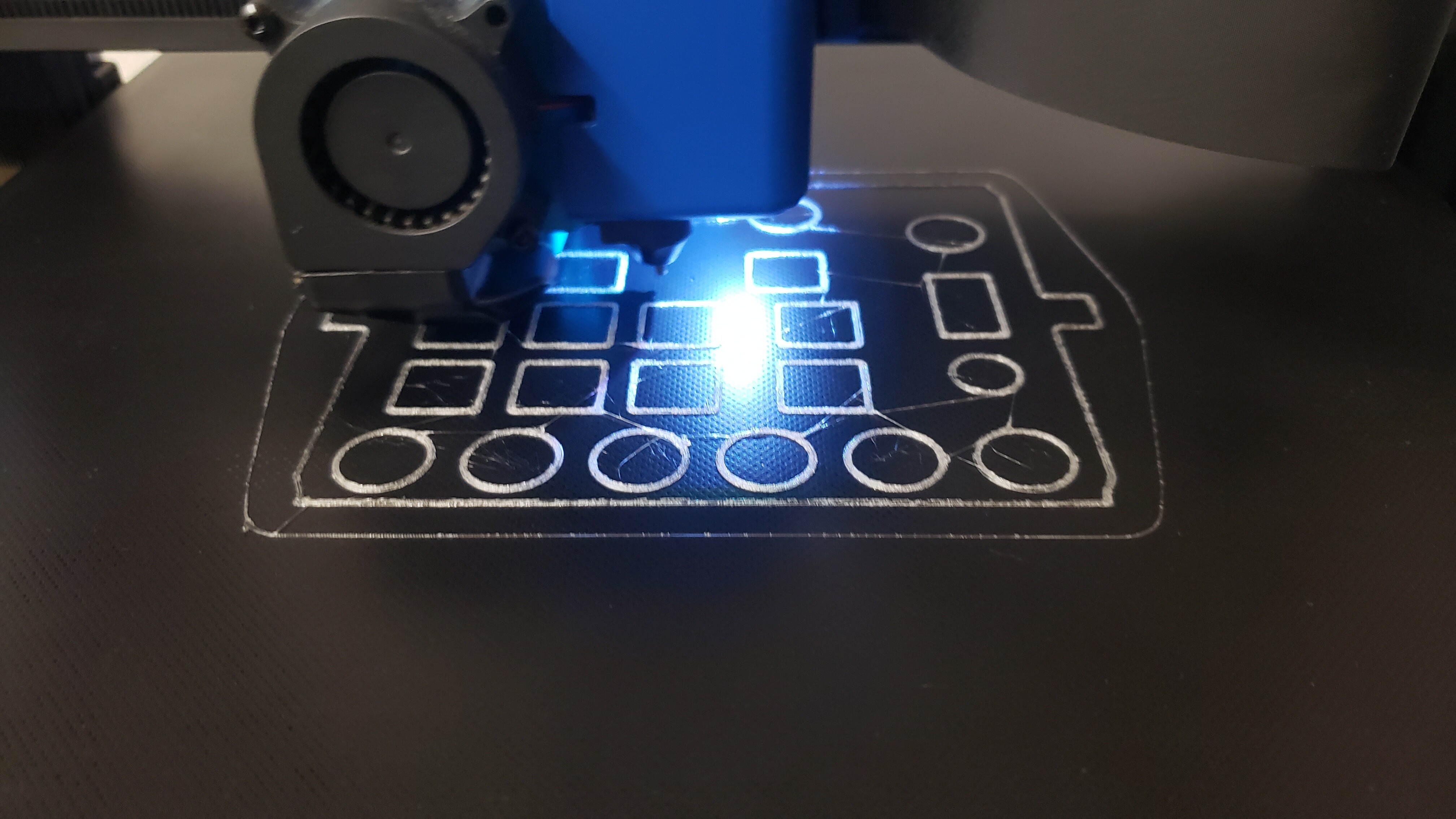

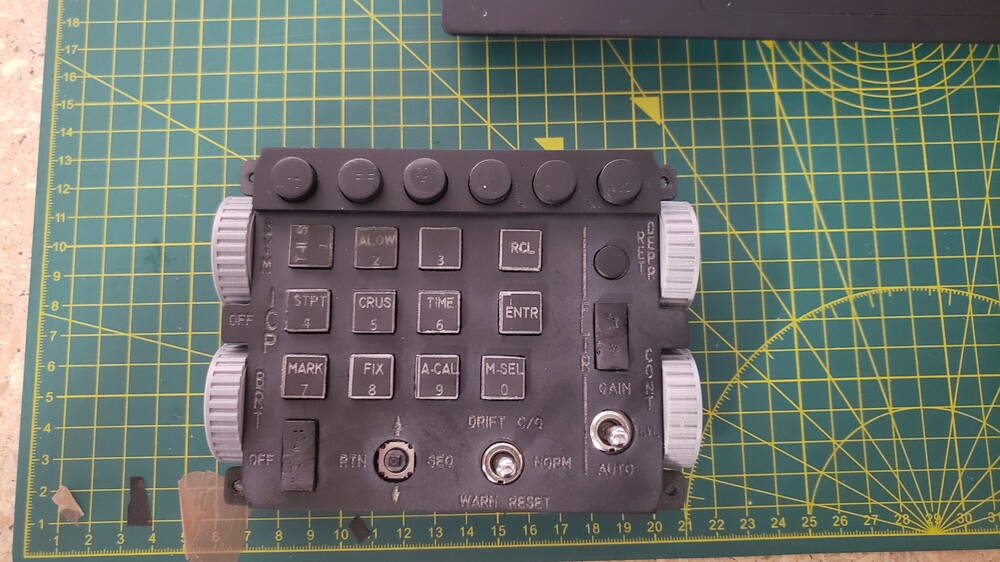

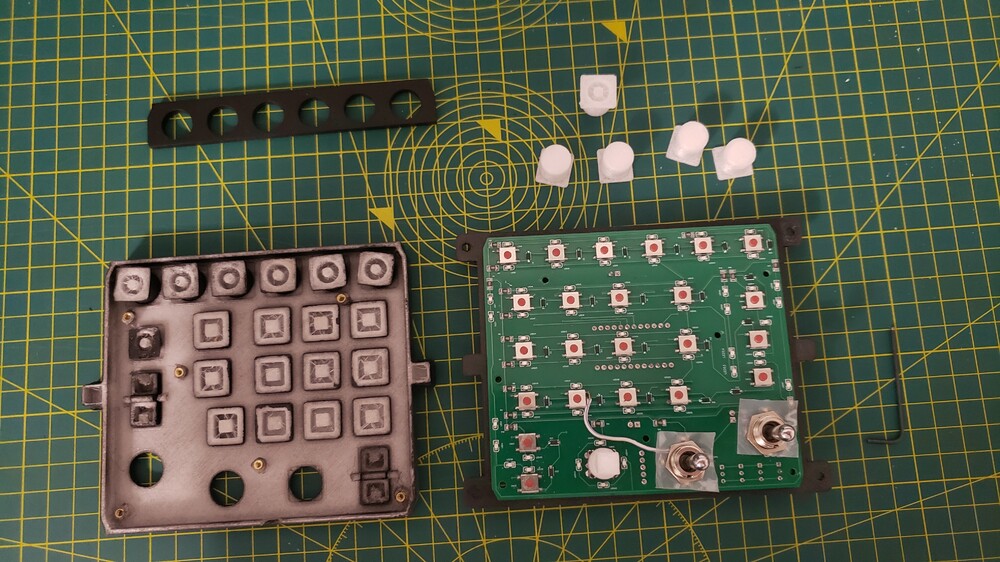

Zorg. Posted December 21, 2023 Author Posted December 21, 2023 2023/12/21 Latest achievement: ICP Some improvements in the quality of the keys and paint. But it is now functional. 1
BaronVonVaderham Posted December 21, 2023 Posted December 21, 2023 Do you make your PCBs yourself? They look very impressive
Zorg. Posted December 22, 2023 Author Posted December 22, 2023 (edited) 16 hours ago, BaronVonVaderham said: Fabriquez-vous vous-même vos PCB ? Ils ont l’air très impressionnants For the PCB, the design and assembly was done by myself, and the production was subcontracted to a specialized company. Edited December 22, 2023 by Zorg.
santinif4 Posted January 16, 2024 Posted January 16, 2024 Very nice work! Are the panel laser files (.svg?) available somewhere for us to use/purchase? Where did you source your switches? Some look like they are the locking lever type. And lastly, are you 3d printing your knobs? - are those files (.stl) available to use/purchase as well? Thanks!
Zorg. Posted April 1, 2024 Author Posted April 1, 2024 sorry for the late response All the parts are the subject of a specific design with CAD software - The switches that I chose are essentially T80 type non-locking toggles. For the buttons, for the moment I print them with a 3D printer
Zorg. Posted May 1, 2024 Author Posted May 1, 2024 Hello guys Still little free time to move forward on this exciting project. this short video on the first calibration of the central console screens. It works pretty well, it's very cool .
BaronVonVaderham Posted May 2, 2024 Posted May 2, 2024 On 11/19/2023 at 7:38 AM, Zorg. said: 2023/11/18 Latest panel produced - ECM Panel based on a 4x8 MAX7219 matrix. Or of curiosity, concerning the ecm panel, isn’t the Center character of the ecm buttons supposed to be backlit as well? I can see how it is significantly easier to not backlight the Center character on the ecm buttons. I heard of Center holed push switches but never been able to find them.
Zorg. Posted May 3, 2024 Author Posted May 3, 2024 This is true ! It is rather complicated to implement the backlighting of the central characters - With the state of my research, I also went to the simplest of modeling. We can hope to improve this in the near future. Using 2x3x4mm square diodes. Have fun!! null 1
Hammer3246 Posted May 12, 2024 Posted May 12, 2024 (edited) - Edited May 15, 2024 by Hammer3246 Figured it out 13900KF NVD4090 32RAM G2

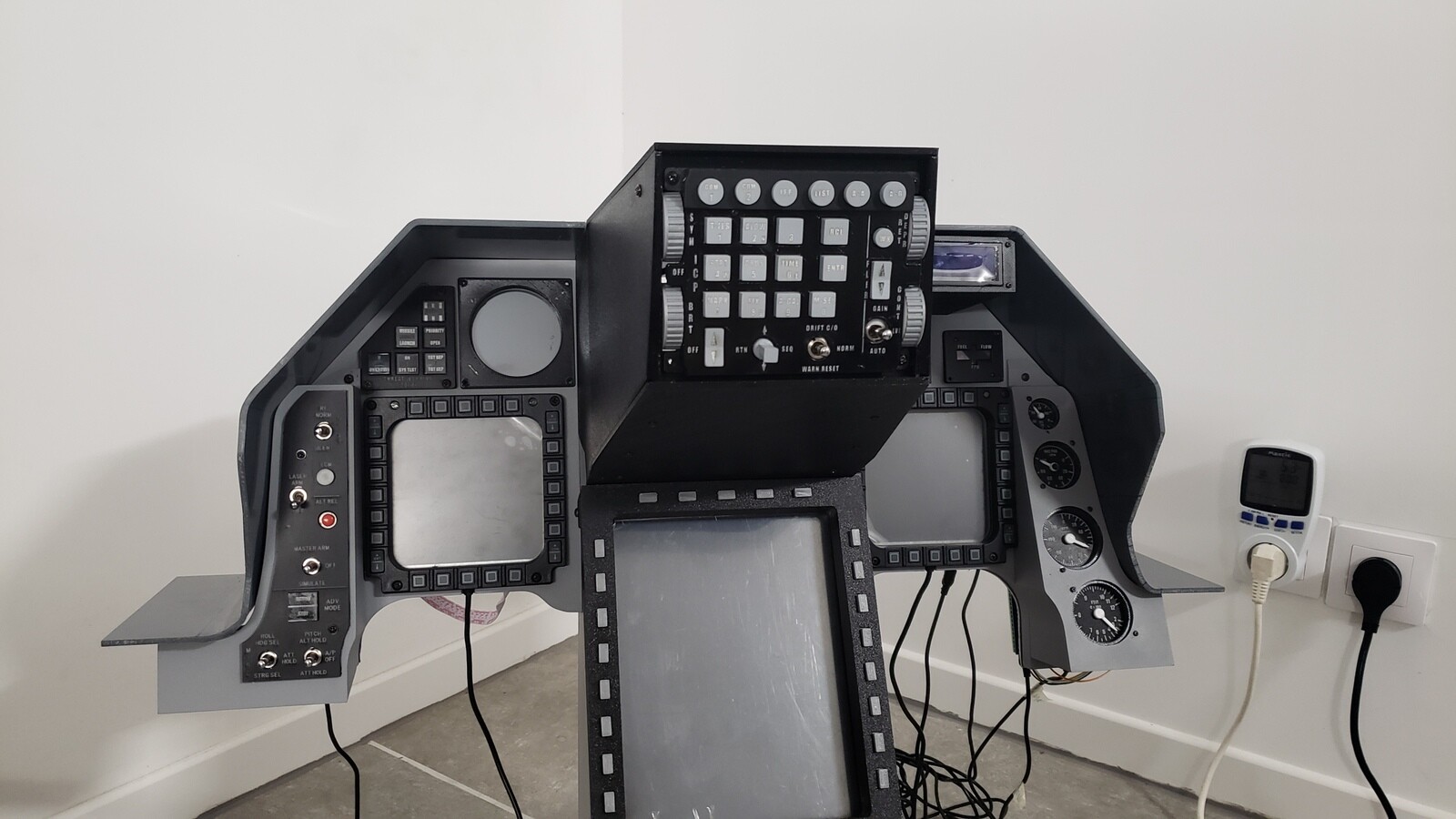

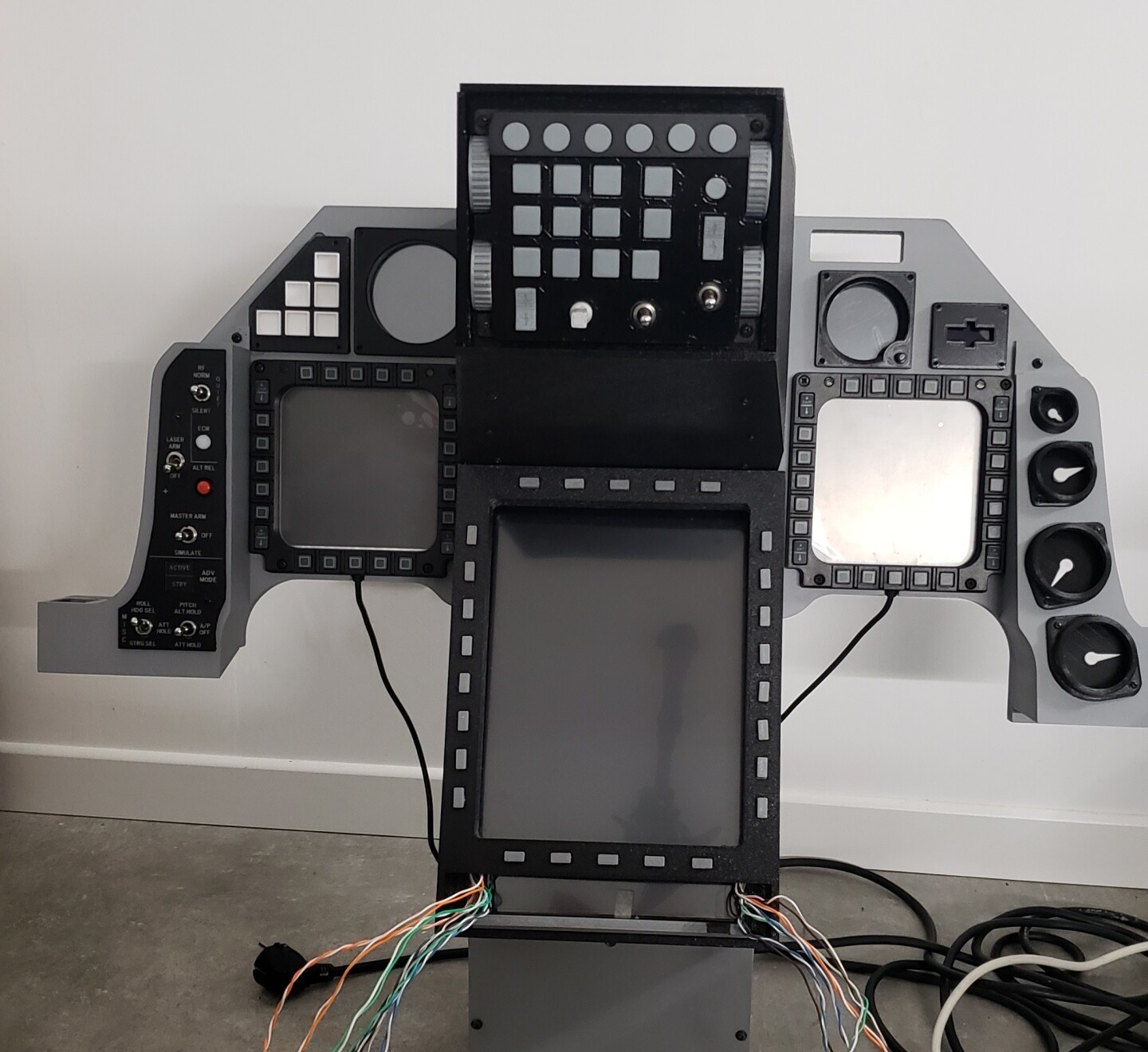

Zorg. Posted May 21, 2024 Author Posted May 21, 2024 (edited) Progress of this weekend: - Printing and assembly of ICP tubes - Printing and mounting of screen controllers. - Mod printing center console. With Master arm panel and motor gauges Edited May 21, 2024 by Zorg. 2

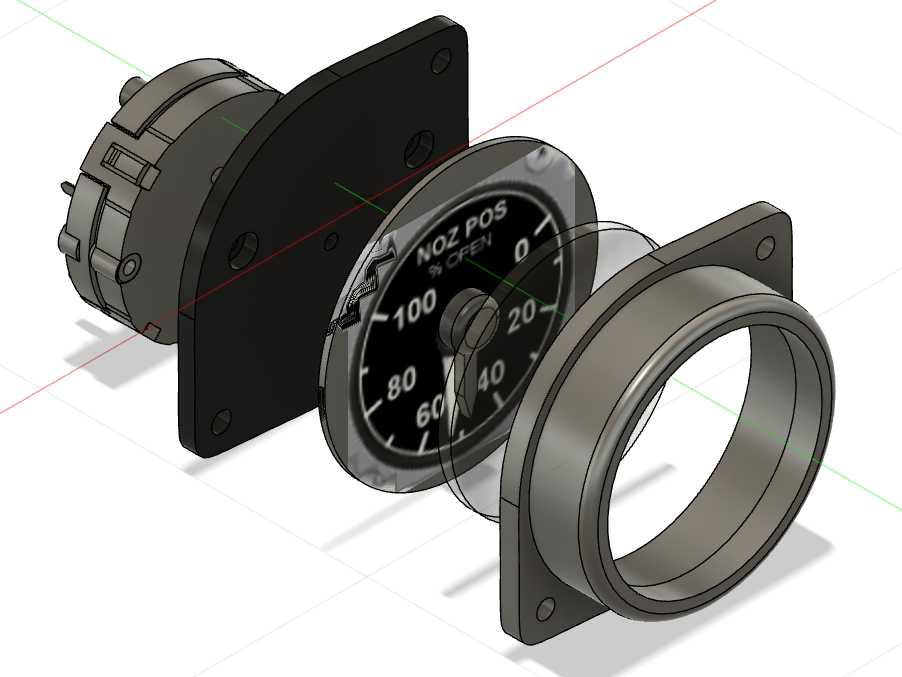

Zorg. Posted June 10, 2024 Author Posted June 10, 2024 My latest work - implementation engine panel from x27 motors, and an SG90 servo motor with nano boards. It works, but not as smooth as I thought it would - to see in use if not too much step loss. 2
BaronVonVaderham Posted June 11, 2024 Posted June 11, 2024 On 6/10/2024 at 8:45 AM, Zorg. said: My latest work - implementation engine panel from x27 motors, and an SG90 servo motor with nano boards. It works, but not as smooth as I thought it would - to see in use if not too much step loss. Would you mind sharing the design for that one? I’ve been trying to figure out how to create the engine gauges.

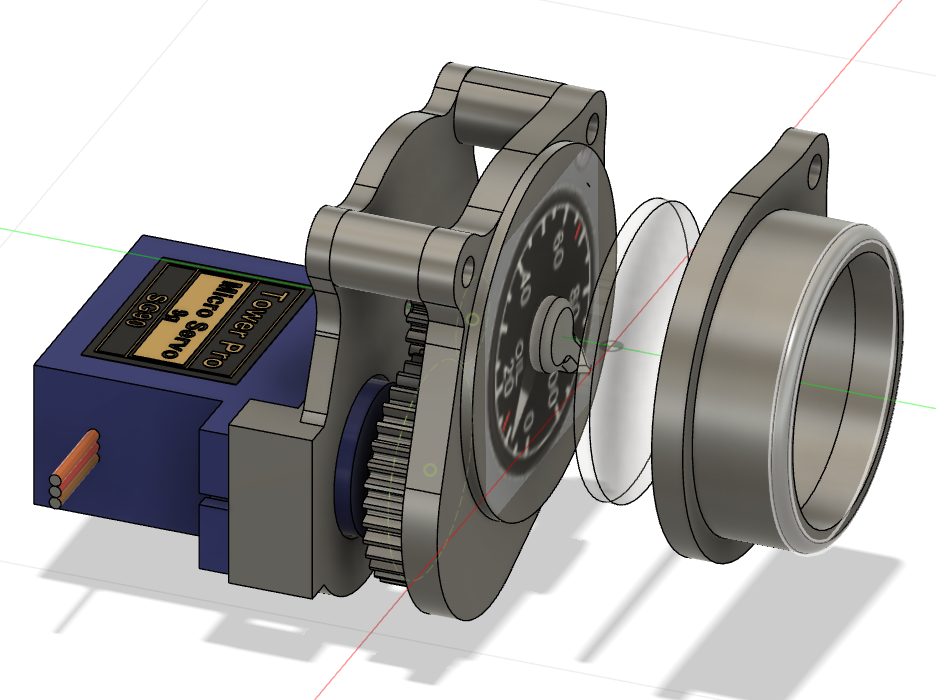

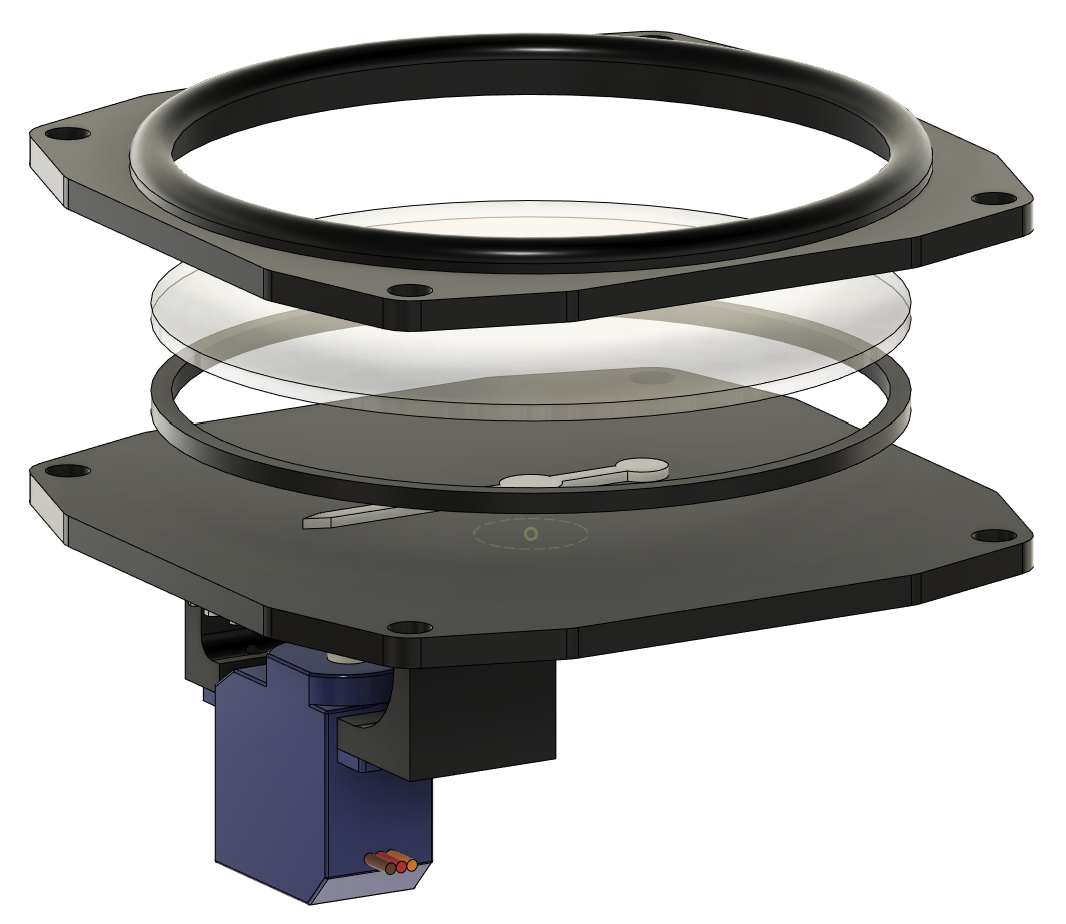

No1sonuk Posted June 12, 2024 Posted June 12, 2024 (edited) Might be worth trying helical gears on the servo unit if you can. I also add a ring to go into the faces behind the glass to retain it. null Edited June 12, 2024 by No1sonuk Image added
Hammer3246 Posted June 21, 2024 Posted June 21, 2024 On 6/12/2024 at 11:07 AM, Zorg. said: null Any interest in selling the files and a how to? I'd love to get my gauges working, but I'm pretty clueless. 13900KF NVD4090 32RAM G2

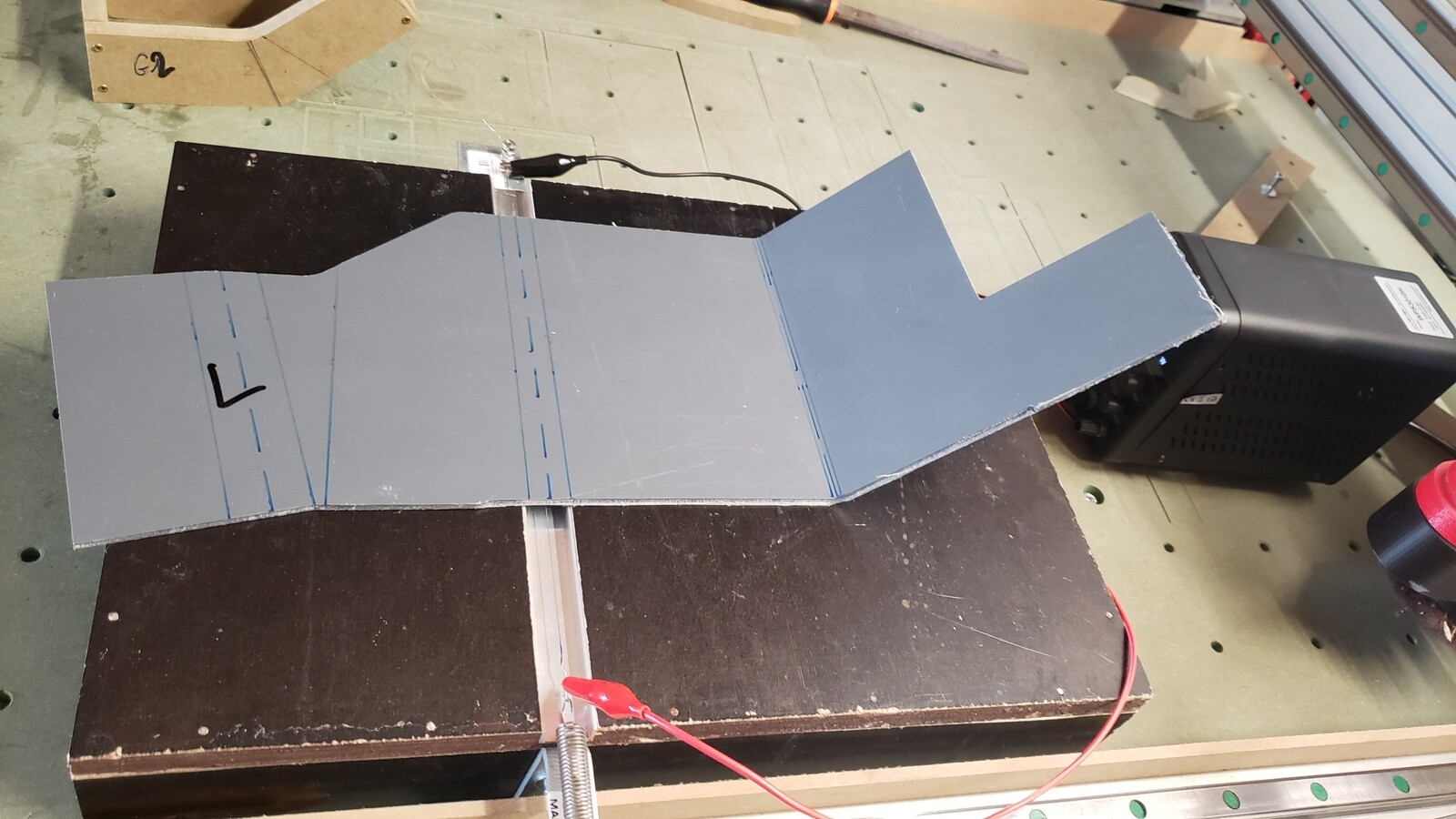

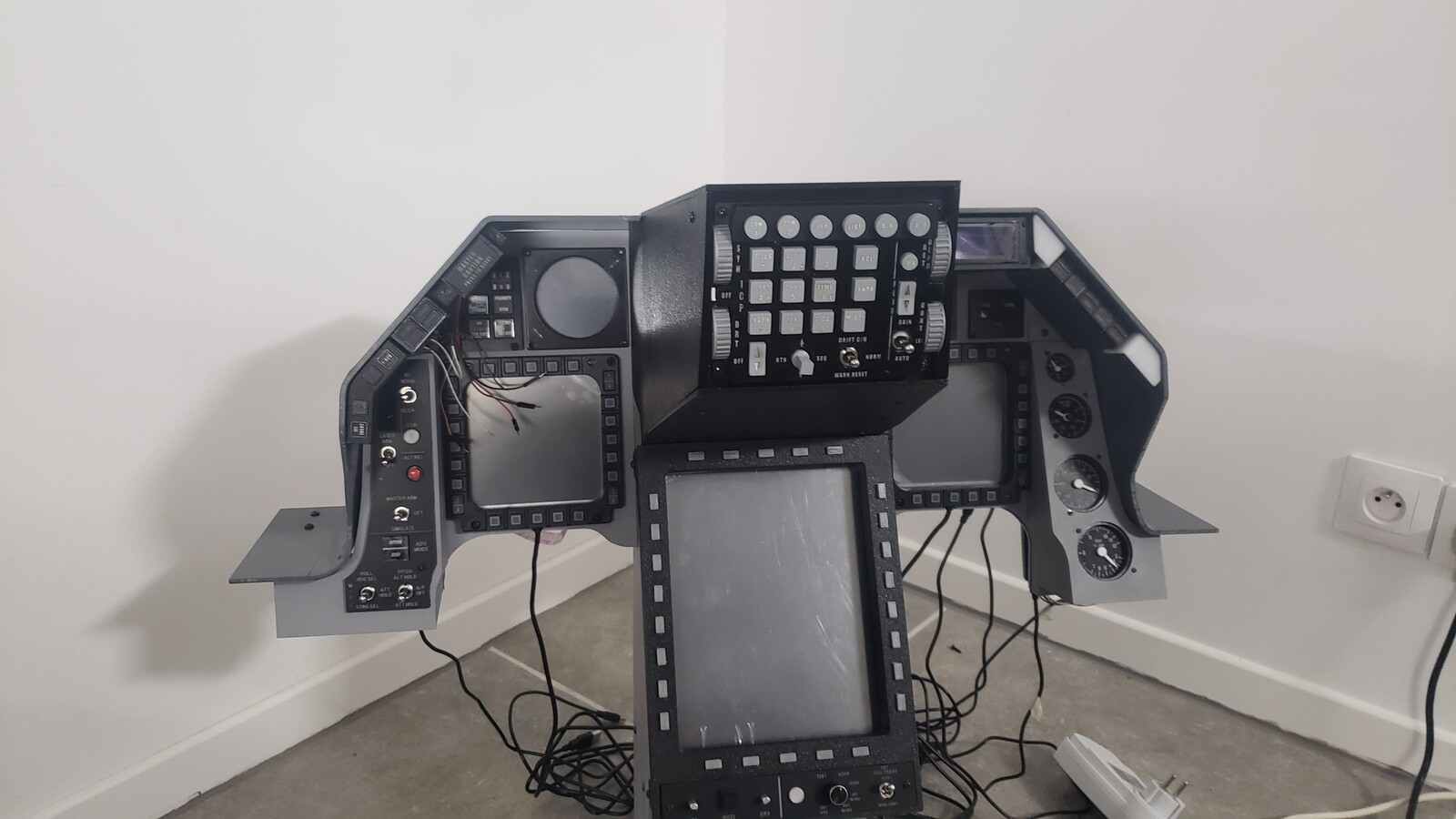

Zorg. Posted September 2, 2024 Author Posted September 2, 2024 (edited) Last update, working with PVC: Cnc cutting. Bending Up Edited September 4, 2024 by Zorg. 2
