Update the DLSS preset used by DCS to remove ghosting

[sleighzy]

37 minutes ago, -Relax- said:

@sleighzy
so i have try follow the instructions now.

1st ut the DLL file in bin and bin mt (42mb file)
2nd installed inspector and edited the lne for J profile.
(i chooses DCS instead of global)

now i am stuck. how i use DLSSTweaks to confirm profil J is activ?
and in DCS graphic options i select DLSS and quaility?


EDIT
DLSS tweaks folder has his own nvngx.dll file (827kb)
do i need to switch this also with the dlss 4 file or something?

You don't need to move anything around with DLSSTweaks. You can run the DLLSTweaksConfig file to open the config. Then at the bottom you'll see a section of global overrides. You can change the hud one to "enable for all dlls" and then save. It'll probably display a message saying to run as admin, click ok, it'll reopen and then make and save that change again. Check profile inspector in case it's updated the preset, in which case change to J again. That DLSSTweaks setting will then display the hud overlay in game so you can confirm the DLSS version and preset. You can then turn it off again using the same process. This is completely optional, I just use it in testing to validate the various defaults used by DCS, and whether or not I'm doing stuff right before posting instructions/information.

Do not put the DLSSTweaks dll in DCS, and definitely do not replace the DCS DLSS dll with that one, they are completely different and for different purposes.

Edited January 24 by sleighzy

[Juuba]

I tried the new preset J.. It didn't pass, F looks and behaves better on my RTX 3070 in 1440P.
The ghosting is really bad in the cockpit MFD:s in J.

Thanks for the tips tho...
Preset F in DLAA remains for me, this is what the hornet looks like from the outside, trailing edges flicker: (1440P, cropped and enlarged 1,5x)
but the plane itself is recognisable:
(ingame screenshot via ReShade - the game's own screenshot does not show the ghosting-flickering edges)



I went thru the different super-scaling options: FSR, DLSS and NIS-something or other...
the FSR was the worst: it breaks the plane (from the outside) ... Also the clouds went into Lego mode:



Edited January 27 by Juuba
fix images

[sleighzy]

4 minutes ago, Juuba said:

I tried the new preset J.. It didn't pass, F looks and behaves better on my RTX 3070 in 1440P.

DLSS + J? Tried with the hud overlay enabled to verify that it's correct? If incorrect then DCS will fall back on the old C preset which is bad.

[-Relax-]

Ok thanks i got it work now.
i also tested preset F and J unfortunatly i have still noticable ghosting wich is not acceptable for me. (1440p)

I play a lot cold war so i test with this mission for anyone who want try.
Not for testing much with MFD´s but you can test for ghosting on plane-shape. Maybe someone find a tweak.

back to msaa 4x for now.

Spottingsyria.miz

[greenhut]

Thanks for this. Is the DLSSTweaks HUD overlay supposed to show in VR (in my case Q3 virtual desktop)? I dont see it, but do on desktop and confirmed driver version and "J".

[wwWolfcom]

Simple image quality comparison.

[sleighzy]

5 hours ago, greenhut said:

Thanks for this. Is the DLSSTweaks HUD overlay supposed to show in VR (in my case Q3 virtual desktop)? I dont see it, but do on desktop and confirmed driver version and "J".

In theory should, does for me, although I think somebody else may have mentioned didn't for them. As long as it shows the expected stuff on the desktop then all good

[GPatricks]

In the DLSS Config too all I can see is Global Force Preset is maxxed out at "G", not J, am I missing something?





[sleighzy]

41 minutes ago, GPatricks said:

In the DLSS Config too all I can see is Global Force Preset is maxxed out at "G", not J, am I missing something?





A couple of folk have mentioned that using G in DLSSTweaks will trigger the new DLSS 4 model. However the current process for setting J preset is in Nvidia Profile Inspector.

https://forum.dcs.world/topic/356743-update-the-dlss-preset-used-by-dcs-to-remove-ghosting/page/5/#findComment-5593380



[Grodin]

Got to testing things now.

It is less blurry and there is less ghosting - so much that i feel like now its usable.

I mean yeah the image quality still does suffer and there absolutely still is ghosting especially with MFD cursors, but not enough to be a dealbreaker anymore. This is great!

[Ready]

Upgrading to DLSS 4.0 with Profile J is a great visual improvement. Thanks @sleighzy for the instructions.

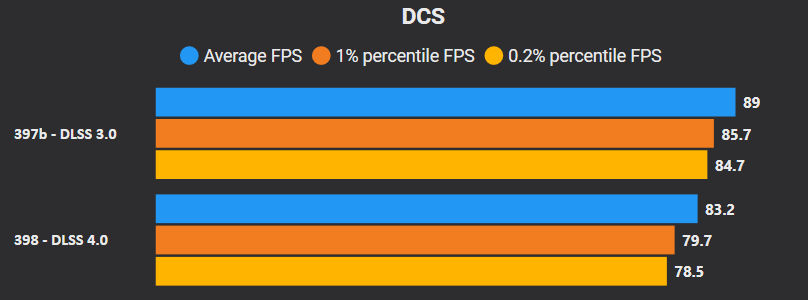

My fps and frametimes took a 7% hit when I went from 3.0 profile G to 4.0 Profile J.  Will see what happens when I now dial down my DLSS and Foveated resolution settings to get back to the frames I was having.

Edited January 26 by Ready

[BlackReef]

Question. When this officially comes out on the 30th, DLSS4, will I still need to manually update DCS with the latest DLL file?

[silverdevil]

47 minutes ago, BlackReef said:

Question. When this officially comes out on the 30th, DLSS4, will I still need to manually update DCS with the latest DLL file?

its up to ED if they use the latest DLSS. they will have to do testing on the change.

[rob10]

1 hour ago, silverdevil said:

its up to ED if they use the latest DLSS. they will have to do testing on the change.

And they've indicated recently that they aren't likely to mess around with never versions of DLSS until they Vulkan finished up.  I think that timing is about resources.

[Juuba]

On 1/24/2025 at 10:45 PM, sleighzy said:

DLSS + J? Tried with the hud overlay enabled to verify that it's correct? If incorrect then DCS will fall back on the old C preset which is bad.

Yes debug said J.

Maybe it wont work properly on 3070.

Here's an album with images with Preset J in the Hornet:
(Reshade pictures - even though now it seems that DCS original shots also have the artifacts..)
https://imgur.com/a/sQJXZ54

Edited January 27 by Juuba

[Grodin]

54 minutes ago, Juuba said:

Yes debug said J.

Maybe it wont work properly on 3070.

Here's an album with images with Preset J in the Hornet:
(Reshade pictures - even though now it seems that DCS original shots also have the artifacts..)
https://imgur.com/a/sQJXZ54

The MFD numbers issue is also very evident in F16 when adjusting radar up/down the numbes next to TDC become unreadable for many seconds.

[Bigity]

J looks pretty good for me for DLAA (no upscaling) for everything except the ADI displays.  That is just a mess, but it probably is on any preset (I don't really use that much).

[Rufuz64]

At first I wondered why everyone thinks DLSS 4 is so great^^

If you use the DLSS swapper to switch to DLSS 4, check the version manually.
In my case, the swapper did not find the nvngx_dlss.dll in the /bin directory, but in the /bin-mt directory and swapped it.

[sleighzy]

7 hours ago, Rufuz64 said:

At first I wondered why everyone thinks DLSS 4 is so great^^

If you use the DLSS swapper to switch to DLSS 4, check the version manually.
In my case, the swapper did not find the nvngx_dlss.dll in the /bin directory, but in the /bin-mt directory and swapped it.

Check to make sure you're using version v1.1.2 released yesterday as this may have been fixed. It's updating the dlls in bin and bin-mt for me. If you haven't already then also make sure that when you added the game to DLSSSwapper that you selected the top level DCS installation folder, and not just the bin-mt folder.

Edited January 29 by sleighzy

[sleighzy]

For those already using DLSSTweaks the latest DLSSTweaks release lets you use presets J and K (can set globally which is what I do) so you don't need to use Nvidia Profile Inspector. Which is handy as you need DLSSTweaks anyway for the debug hud overlay to make sure you're doing stuff right. It also fixes the crash-to-desktop issue if you were previously using the wrapper approach with the dxgi.dll file (which isn't needed if you're just modifying the global preset).

[Ready]

1 hour ago, sleighzy said:

For those already using DLSSTweaks the latest DLSSTweaks release lets you use presets J and K (can set globally which is what I do) so you don't need to use Nvidia Profile Inspector. Which is handy as you need DLSSTweaks anyway for the debug hud overlay to make sure you're doing stuff right. It also fixes the crash-to-desktop issue if you were previously using the wrapper approach with the dxgi.dll file (which isn't needed if you're just modifying the global preset).

Nice one! thanks.

[miguelaco]

FWIW I'm using OvGME to replace the dll, nvidiaProfileInspector to apply preset J only to DCS profile and DLSSTweaks to enable the overlay and check everything works as expected.

I got the dll from the CP2077 installation, is there a newer version of the dll or the one shipped with it is the latest?

[sleighzy]

13 minutes ago, miguelaco said:

FWIW I'm using OvGME to replace the dll, nvidiaProfileInspector to apply preset J only to DCS profile and DLSSTweaks to enable the overlay and check everything works as expected.

I got the dll from the CP2077 installation, is there a newer version of the dll or the one shipped with it is the latest?

There’s a later version now, 310.2.1.0 (required for preset K). Either use DLSS Swapper, or download from here https://easyupload.io/m/0tr422

[gonvise]

1 hour ago, sleighzy said:

There’s a later version now, 310.2.1.0 (required for preset K). Either use DLSS Swapper, or download from here https://easyupload.io/m/0tr422

Is posible use DLSS Swaper for DCS?

[sleighzy]

6 minutes ago, gonvise said:

Is posible use DLSS Swaper for DCS?

Yup, download the latest version. It now supports being able to add other games to it. Just make sure you add the top level DCS game folder so that it can find the dlls in both bin and bin-mt.
