So much cool stuff is unmarked. I'm particularly interested in the SAM sites. I found one 5km north of Allstedt airbase (SA-5?)

Anyone found some others?

Edited Sunday at 10:05 PM by Ian Boys UK

[Rick Mave]

Yeah would be cool to have a miz file with them all marked and identified by type



[Blackbahia]

I've only found this kmz file with the postions of the SAM sites ColdWarIADS10182024.kmz

[Rick Mave]

1 hour ago, Blackbahia said:

I've only found this kmz file with the postions of the SAM sites ColdWarIADS10182024.kmz

Any way we'd be able to port this into the DCS map as IP points?

[Northstar98]

3 hours ago, Ian Boys UK said:

I found one 5km north of Allstedt airbase (SA-5?)

There should be an SA-3 site to the north-west of Allstedt (about 1 km to the north of Allstedt itself), but the nearest SA-5 site IRL is ~40 km to the south (adjacent to Eckolstädt).

See here for real-life satellite imagery of the former and here for real-life satellite imagery of the latter.

[Ian Boys UK]

5 hours ago, Northstar98 said:

There should be an SA-3 site to the north-west of Allstedt (about 1 km to the north of Allstedt itself), but the nearest SA-5 site IRL is ~40 km to the south (adjacent to Eckolstädt).

See here for real-life satellite imagery of the former and here for real-life satellite imagery of the latter.

Thank you!

[Red_Camarada]

hey guys, does anyone managed to find the SAM sites?

For anyone who is searching also I just find this these infos: IMINT & Analysis: DDR Strategic Air Defense: A Cold War Case Study
Despite all being labeled in the study, is not easy to find without proper ME markers

[Ian Boys UK]

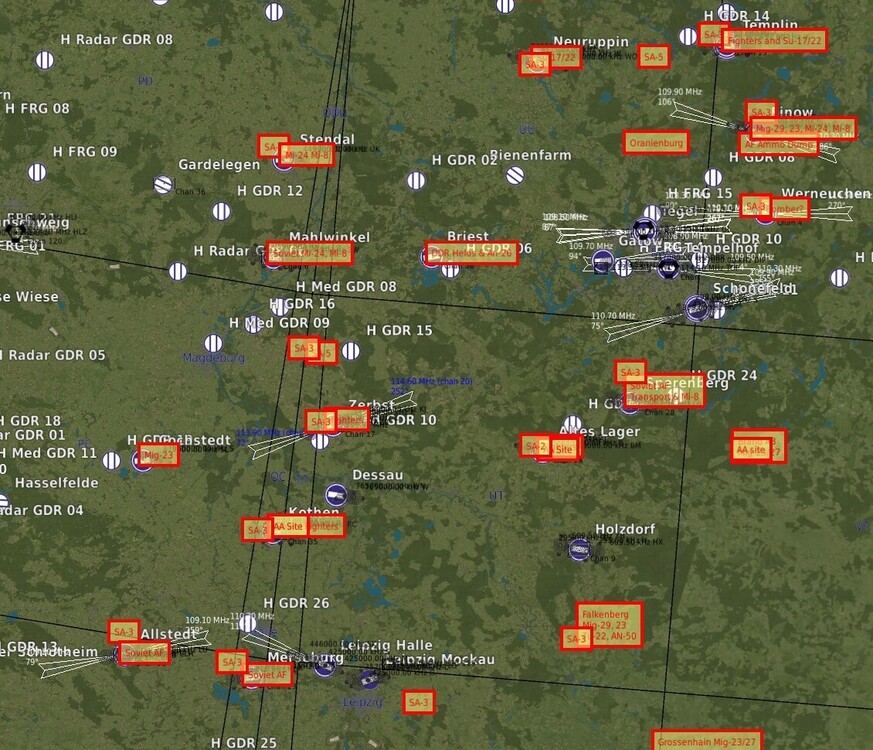

This is an EARLY map. I haven't found all the SAM sites yet. I've also marked some that were there historically but aren't in the game. The screenshot is illustrative - you need the MIZ file to see it properly. In the MIZ file the labels are only visible in the Mission Editor, not the in game F10 map.

Includes US, RAF, LW, DDR and Soviet bases etc.





1985 MARKED.miz

[Keith Briscoe]

I'm not a mission builder (just flyer), but damn this seems cool. Thanks for doing this.

[Nikwax74]

Some of these are almost impossible to find...

[Ian Boys UK]

25 minutes ago, Nikwax74 said:

Some of these are almost impossible to find...

What do you mean? Using my file or without?

[Razorback]

The is also nearly no city and village names on the F10 map.
It could be nice to se these names when zooming on the map.

Thxxxxx

[mmarques]

Very nice, we should crowdsource this, if anybody finds some sites, please keep adding to it.

Also I believe there is a way to find map objects by id but I'm not sure how. It would be much easier to find the sites that way.

[Ian Boys UK]

4 minutes ago, Razorback said:

The is also nearly no city and village names on the F10 map.
It could be nice to se these names when zooming on the map.

Thxxxxx

That has nothing to do with this file?

[mmarques]

No, the file is fine, he's talking about the names of the towns and such that usually appear when you zoom in or out of locations on other maps.

[gunterlund]

awesome work

[silent one]

I was comming here to ask how I find these. Thanks so much    I really hope this updates as we go through the phases





Edited Saturday at 01:18 AM by silent one

[Essah]

the "ammo dump" at Finow airbase is not an ammo dump but a Collectivized farm, as indicated by the tractor parked in the middle.

[Essah]

I've compiled a list of all the SAM sites I've found or other people have found and shared. Ugra have mentioned that there are 40 sites included with phase 1

This list is only for sites that have infrastructure in the Germany map. historical sites that are not present in game are not relevant here. Otherwise please contribute, I'll update the OP with your contributions.
Be careful not to mistake tank ranges or collective farms for SAM sites.

Name - Location description - MGRS grid

HAWK:
HAWK Site Fulda - Forest west of Fulda - NB30
HAWK Site H FRG 51 - Forest west of FRG51 -  LV79
HAWK Site Schwarzenborn – between Fulda and Kassel – NB34
HAWK Site Kassel – North of Kassel – NB39
HAWK Site Hameln - NNW of FRG 16 - NC28

HAWK Site Barsinghausen - 10nm N of FRG 16 - NC39
HAWK Site Wunstorf I - W of Wunstorf - ND11
HAWK Site Wunstorf II - N of Wunstorf - ND22
HAWK Site Bremen - NE of Bremen - ND09
HAWK Site Paderborn - E of FRG 11 - MC93

Patriot: (HAWK site layout in sim)
Patriot site Giessen - east of city of Gießen - MB80
Patriot Site Rinteln - SE Rinteln, West of Hameln - NC17

NATO Radar Site
Fulda Radar Site I - SE corner of NA69 (SE of Fulda)
Fulda Radar Site II - SW corner of NA49 (SW of Fulda)
Vogelberg Radar Site - East of FRG 38 - NA19

Warsaw Pact Radar Site
Varnckevitz Radar Site  - NE Rügen island - UA95


SA-5
Fulda SA-5 - SW of H Med GDR 14 - NB81
Rostock SA-5 - Fields SE of Rostock - UV29
Magdeburg Sa-5 - Field east of Magdeburg - TT98
Erfurt SA-5 - Field north of Erfurt - PB85
Berlin SA-5 - Field north of berlin, west of Templin - UU87

SA-2 (SA-3 site layout in sim)
Quedlinburg SA-2 - south of Quedlinburg - PC43
Haina SA-2  - SE of Haina – PB14

SA-3
Leipzig SA-3 -Field east of Leipzig - US39
Allstedt SA-3 - Field north west of Allestedt - PB69
Merseburg SA-3 - Field West of Merseburg - PB99
Sparenberg SA-3 - Field north of Sparenberg - UT88
Wittstock SA-3 - Field northwest of Wittstock - UV20
Rostock SA3 - West of Rostock, coastline - PF90 - N 54 10.164 E 11 59.099
Stendal SA-3 – NW of Stendal – PD83
Templin SA-3 – between GDR14 and TemplinAB – UU97
Parchim SA3 - West of Parchim Airfield - PE72 - N 53 26.675 E 11 39.872
Wismar SA3 - North East of Wismar, coastline - PF70 - N 54 07.917 E 11 40.369
Rügen SA-3, Northern Rugen - UA85 - N 54 39.254 E 13 15.118
Mahlwinkel SA-3 - west of Mahlwinkel - PD80.
Kothen SA-3 - West of Kothen - PC93
Fehrbellin SA-3 - SE corner UU45
Brandenburg SA-3 - NW corner UU51
Fulda SA-3, South of Fulda SA-5 site (NB81) - NB80

How do I tell what type of SAM sites they are?
from these 2 resources which show the configuration matches the layout of the sites, however i gather that some of the sites that have SA-3 and Hawk layout were historically SA-2 or Patriot sites. I have corrected that *
https://www.ausairpower.net/APA-S-75-Volkhov.html



Edited Monday at 11:59 PM by Essah

[Nikwax74]

Sorry, I was forgot to mention that I also started searching for the "40 SAM sites"before I saw your miz file, so without...

This is how my single player template looks like, after modified by your info:



[Andrew u.k.]

Thanks Ian, that's very kind of you to post your miz





[Goetsch]

Thank you so much for sharing!

[Tarres]

Thanks!

[Ian Boys UK]

6 hours ago, Essah said:

the "ammo dump" at Finow airbase is not an ammo dump but a Collectivized farm, as indicated by the tractor parked in the middle.

I know. In real life that is the ammo dump.

[Blackbahia]

vor 5 Stunden schrieb Essah:

I've compiled a list of all the SAM sites I've found or other people have found and shared. Ugra have mentioned that there are 40 sites included with phase 1, so we're missing a lot
this list is only for sites that have infrastructure in the Germany map. historical sites that are not present in game are not relevant here. Otherwise please contribute, I'll update the OP with your contributions.
Be careful not to mistake tank ranges or collective farms for SAM sites.

Name - Location description - MGRS grid

HAWK:
Fulda Hawk - Forest west of Fulda - NB30
H FRG 51 Hawk -- Forest west of FRG51 -  LV79

SA-5
Fulda SA-5 - SW of H Med GDR 14 - NB81
Rostock SA-5 - Fields SE of Rostock - UV29
Magdeburg Sa-5 - Field east of Magdeburg - TT98
Erfurt SA-5 - Field north of Erfurt - PB85
Berlin SA-5 - Field north of berlin, west of Templin - UU87

SA-3
Leipzig SA-3 -Field east of Leipzig - US39
Allstedt SA-3 - Field north west of Allestedt - PB69
Merseburg SA-3 - Field West of Merseburg - PB99
Sparenberg SA-3 - Field north of Sparenberg - UT88
Wittstock SA-3 - Field north west of Wittstock
Rostock SA-3 - Field west of rostock by the coast - PF00


In addition to your List, i found this sites:

SA-2
Haina SA-2  - SE of Haina – PB14

SA-3
Stendal SA-3 – NW of Stendal – PD83
Templin SA-3 – between GDR14 and TemplinAB – UU97

Hawk
Hawk Schwarzenborn – between Fulda and Kassel – NB34
Hawk Kassel – north of Kassel – NB39
