Flim Posted January 15, 2011 Author Posted January 15, 2011 my dims are all custom based on function and space, so not sure what you looking for...
Gadroc Posted January 15, 2011 Posted January 15, 2011 Hey Ice, The basic dims we reverse engineered from pictures. Take a know dimension like the MFCD screen size. Then use that as the unit of measure and extrapolate other things. We did this using The Modern Hog Guide and then scaled things down to match the scale of the Thrustmaster MFDs.
MudRat02 Posted January 15, 2011 Posted January 15, 2011 That's an awesome first go Flim, can't wait to see the later versions. [sIGPIC][/sIGPIC]
hog_driver111th Posted January 17, 2011 Posted January 17, 2011 Dude Flim, that setup is awesome! I'd be happy with just the seat and front monitor (since I can't make aircores for the instruments). A-10C - FC3 - CA - L-39 - UH1 - P-51 - Hawk - BS2 - F-86 - Gazelle - F-5E - AV8B - F/A-18C i5-4590 - GTX 1060 - Oculus CV1 - TM:Warthog [sIGPIC]http://forums.eagle.ru/signaturepics/sigpic9979_1.gif[/sIGPIC]
Feed Posted January 17, 2011 Posted January 17, 2011 I admit it ... that is truly amazing. Congratulations on a very nice rig, there, Flim. Can't wait to see it with the front dash, and the left-hand consoles! JEALOUS!!!
Flim Posted January 17, 2011 Author Posted January 17, 2011 Thanks guys, I had a little fun with movie maker last night.
celticcoho Posted January 17, 2011 Posted January 17, 2011 Thanks guys, I had a little fun with movie maker last night. WOW FLIM, very nice, if only mine turns out as well!!!:megalol: [sIGPIC][/sIGPIC]Celticcoho (OriginFreedom) WIN 7 64 bit, I7975 at 3.6ghz,X58 Classified 3 Mobo, 6gb Corsair 2000 ram, 2 ea ATI 5870 Eyefinity 6 2gb's , 27" Ultra Sharp,(main view), 3 23"touch screens , Tm Warthog, Saitek Combat Pedals Track IR 5,:D JIM.:book:
jocko417 Posted January 20, 2011 Posted January 20, 2011 (edited) funny, I do it for a job and hobby.. so yep! You and me both FLIM, nice video! I'm jealous! I've logged just over a hundred hours in this one over the past 15 years (it's a rental :)), nice to give the yaw dampered feet a workout after flying jets at work. Just as addictive as heroin but without the health side effects ;) Edited January 20, 2011 by jocko417
MudRat02 Posted January 20, 2011 Posted January 20, 2011 I think you guys need to spend more time in a quiet, elegant bird. Still has the addictive properties! ;) [sIGPIC][/sIGPIC]

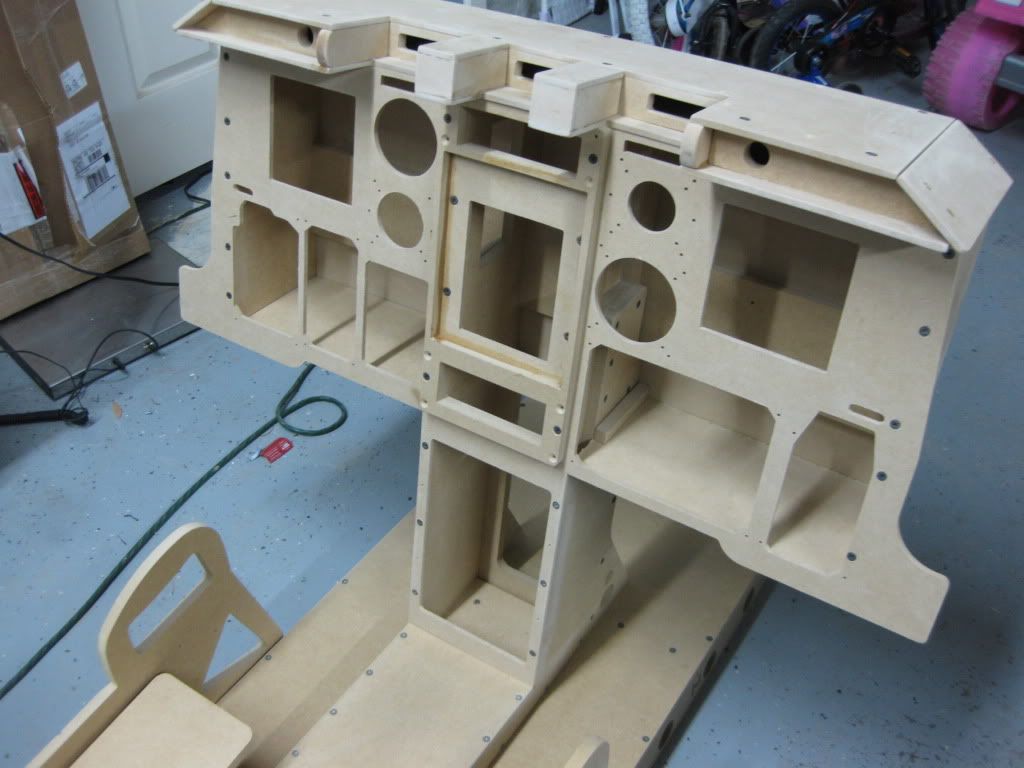

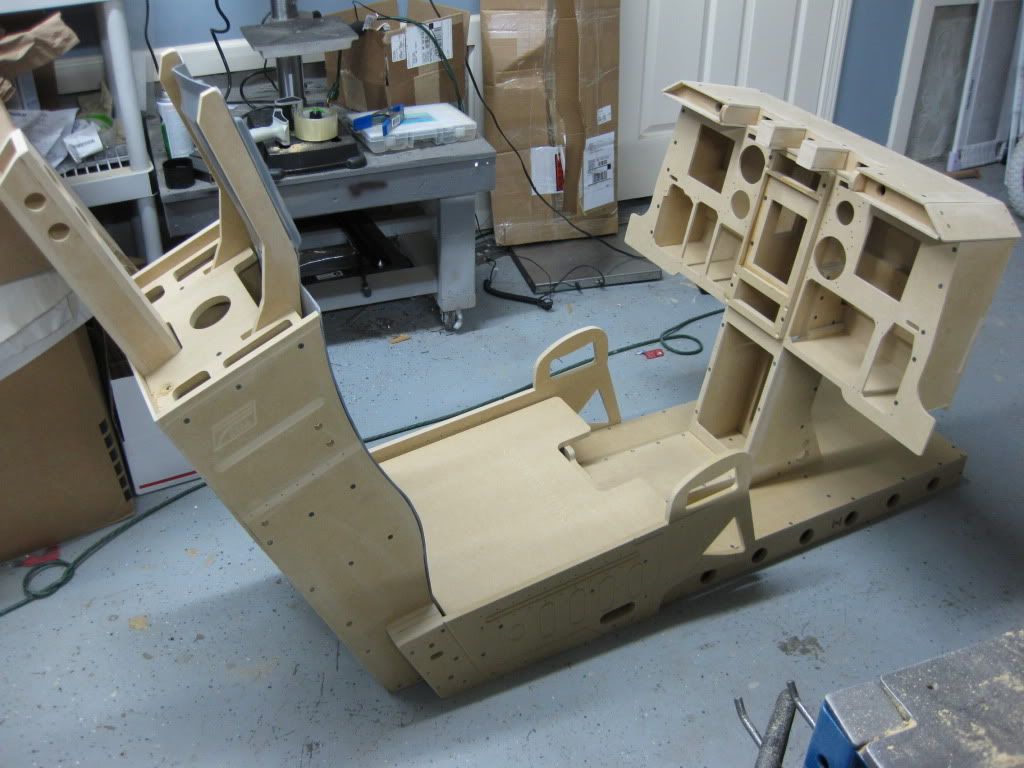

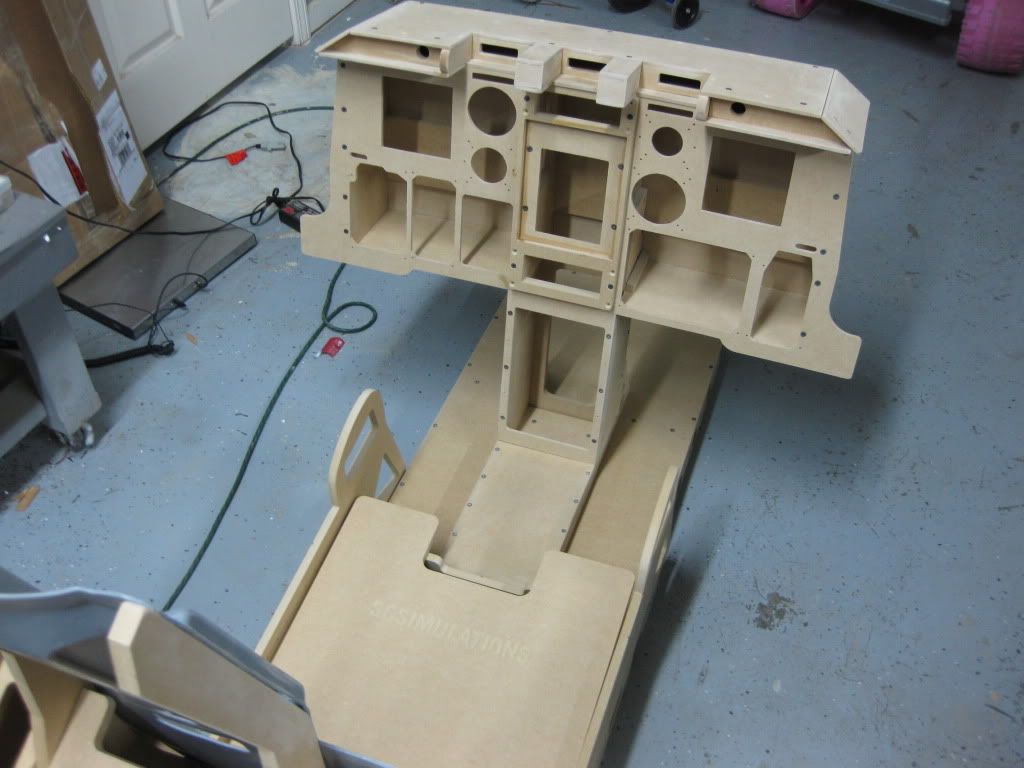

Flim Posted January 30, 2011 Author Posted January 30, 2011 Well, prototyping the A-10 kit... and this is what I have so far. Still need to do the side consoles, but I think I will get the front console finished first... that is build a backlit UFC, Panels, and mount all the gauges( all physical moving except the HSI and ADI)
Feed Posted January 30, 2011 Posted January 30, 2011 Wow that looks cool. Hey Flim - do you guys well just the formed ACES back, without the full seat kit?
Flim Posted January 30, 2011 Author Posted January 30, 2011 No, I only supply my setbacks with kits, but I have a different one from vp that is laying around.

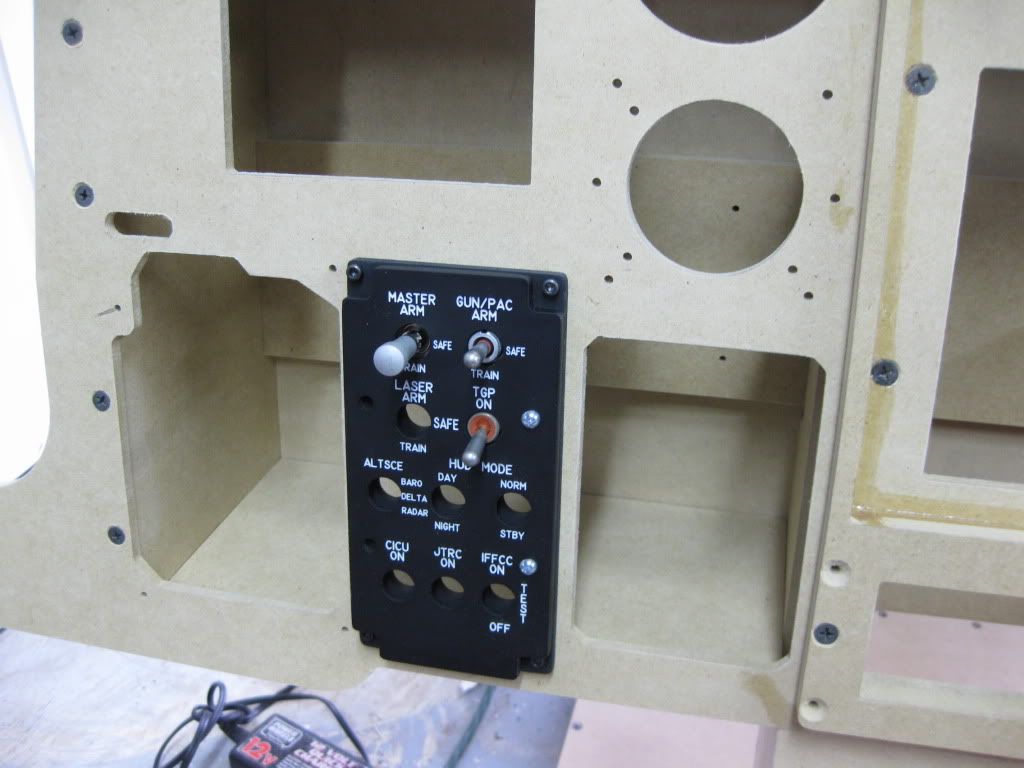

Flim Posted January 30, 2011 Author Posted January 30, 2011 (edited) Here is my First A-10 panel.... lots of fun! I know ... some text are wrong, Edited January 30, 2011 by Flim 2
Scudslaker Posted January 30, 2011 Posted January 30, 2011 stunning..really good looking! cheers on your steps forward SCUD TM HOTAS WH :joystick:, Saitek Pro Pedals, Track IR 4, 2xJoyWarrier, 1x KeyWarrior, i52500k @4600MHz, ASUS P8Z68-V Pro, NV 670GT, SSD+ WD BC+ WD Raptor, 32HD:pilotfly:[sIGPIC][/sIGPIC]
MudRat02 Posted January 30, 2011 Posted January 30, 2011 The panel looks awesome mounted w/switches. Great work! [sIGPIC][/sIGPIC]
pitbldr Posted January 31, 2011 Posted January 31, 2011 Very nice!! :thumbup: Where'd you get that master arm switch? Is that a mil spec locking toggle or something you fabricated yourself?
pitbldr Posted January 31, 2011 Posted January 31, 2011 Also, you planning on selling just the center pedestal? I don't really have the room for the seat, but that pedestal is very tempting! :D
Gadroc Posted January 31, 2011 Posted January 31, 2011 The intent is to sell it in a modular fashion.
redbaron_ict Posted January 31, 2011 Posted January 31, 2011 Do you have a rough guestimate on price???? :music_whistling: [sIGPIC][/sIGPIC] | XPS 730 | Q9450 (12M Cache, 3.6 GHz, 1800 MHz FSB) | | 790i SLI | GTX 570 SC | 8GB (4x2) DDR3 1800MHz | | SoundBlaster XFi | 2x Samsung 1GB HD | 24" Dell ULtrasharp | | TrackIR 5 | Logitech G940 HOTAS |
Gadroc Posted January 31, 2011 Posted January 31, 2011 Not yet we need to get through the first prototypes to understand material and cutting time.
