The AQU 3A normally has just white light.You would want to look for several of the compass types that have green nvis or you could just change the light bulb. IFIRC it is normally T1¾ bulbs. It can be changed to led there is a tutorial on VP

http://www.viperpits.org/smf/index.php?topic=3437.msg46717#msg46717

Edited by Deadman

https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824

CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.

  • 2 weeks later...
  • 2 weeks later...
Posted

It finally went for $203.

ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:

Posted

Are you sure?

This picture (among others) shows an A-10C Pilot with just the female counterparts for the male Koch fittings in the ebay auction. The picture was taken on March 1st 2011 - so it might not represent 2013 but the fittings are definitely correct for the A10C time period.

Actually, I couldn't find any picture of an A-10 pilot with the Frost fittings shown in your picture (however, I don't say they might not exist).



Cheers,

DSP

Posted

There are several different types of fittings for the parachute risers with mail fitting on the rise and on the PCU-15/P Torso Harness i used the frost fitting do to it is the most current as far as i know and it had the clearest picture of the mail fitting



SEA WATER ACTIVATED RELEASE SYSTEM (SEAWARS)http://www.conaxfl.com/products/water-activated-releases/sea-water-activated-release-system.aspx





UNIVERSAL WATER ACTIVATED RELEASE SYSTEM (UWARS)

http://www.conaxfl.com/products/water-activated-releases/universal-water-activated-release-system.aspx



And the Frost fitting

http://www.capewell.com/frost-release



Here is a picture of an A-10 pilot April 16 2010

http://www.dm.af.mil/shared/media/photodb/photos/100416-F-9662S-001.JPG



If you look closely at the gap in the fitting you can see the flat section of the male fitting and not a post as shown in your example.

That more closely resembles a fitting on an MA-2 Torso Harness

http://www.flighthelmet.com/mm5/merchant.mvc?Screen=PROD&Store_Code=FHL&Product_Code=PRTH-MA2&Category_Code=



please see the picture in the second row right side. As far as being 100 percent no I am not. Perhaps Paul may have time to shed some light on the subject

https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824

CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.

Posted (edited)

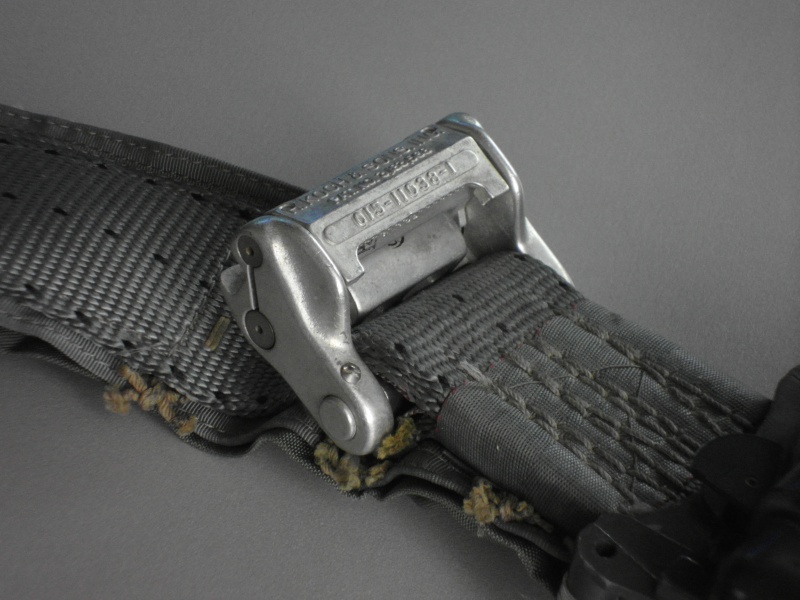

I think you made a good argument here (and some very usefull links :thumbup:), but the construction of the female part of the first generation Kochh fitting is misleading. Have a look at the following picture (I tried to match the angle to the pilot picture you posted):



attachment.php?attachmentid=83882&stc=1&d=1371742864



The male part is not connected, but the flat section is still there.

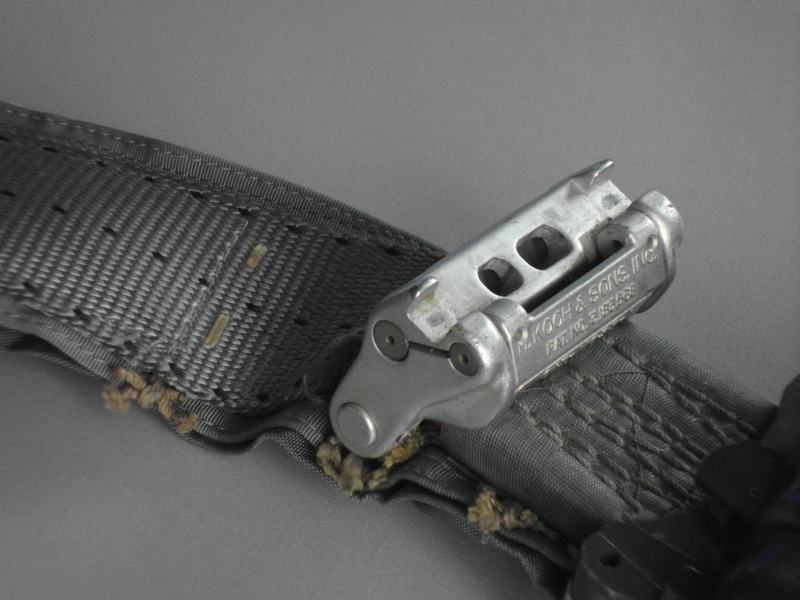

Here another view of the same part showing the holes for the two posts on the male fitting:



attachment.php?attachmentid=83883&stc=1&d=1371742864



So from what I know right now, I'd say that you see in this picture the parachute risers connected to the UWARS which in turn connects to the first generation Koch fitting (as in my ebay link) and finally to the first generation female Koch fitting on the PCU-15.



Cheers,

DSP



Edited by Dropship Pilot
Spelling corrected
Posted (edited)

Check the NSN and part number and you will find that it is an out of date part that refers to an army part not AF. Do and purchase what ever you want I really don't have time to waist on trying to help you ,and just get an argument. I am sure you will be much more satisfied with your own research and assumptions

Edited by Deadman

https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824

CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
