frank Posted April 24, 2013 Author Posted April 24, 2013 SERIOUSLY NO SLOW DOWN - The planning have takeing 5 month before production start - so now i'm all in - more than 12 hours a day working on this..... all can be replicated in series so when finished and testet in a complete setup - i'm ready for orders All the best http://www.dcscockpit.com
Combat2468 Posted April 24, 2013 Posted April 24, 2013 The man is a machine. My Pit Build http://forums.eagle.ru/showthread.php?t=100819
frank Posted April 24, 2013 Author Posted April 24, 2013 hehe - the people that knows me personal call me DOZER ;) http://www.dcscockpit.com
frank Posted April 24, 2013 Author Posted April 24, 2013 "Deadman" I perfer orange on my caution light ;) - i think it's a damage in my head from F16 sim days.... Anyway - you can have it with the color you like ;) http://www.dcscockpit.com
Deadman Posted April 24, 2013 Posted April 24, 2013 I All ready do Dozer but thanks currently I am just missing a real utility light Ground safety over ride panel and the AAP :thumbup: good luck on your sales https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
frank Posted April 24, 2013 Author Posted April 24, 2013 Thx, keep up the flying ;) http://www.dcscockpit.com
Deadman Posted April 24, 2013 Posted April 24, 2013 Ya lost me there Dozer https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.

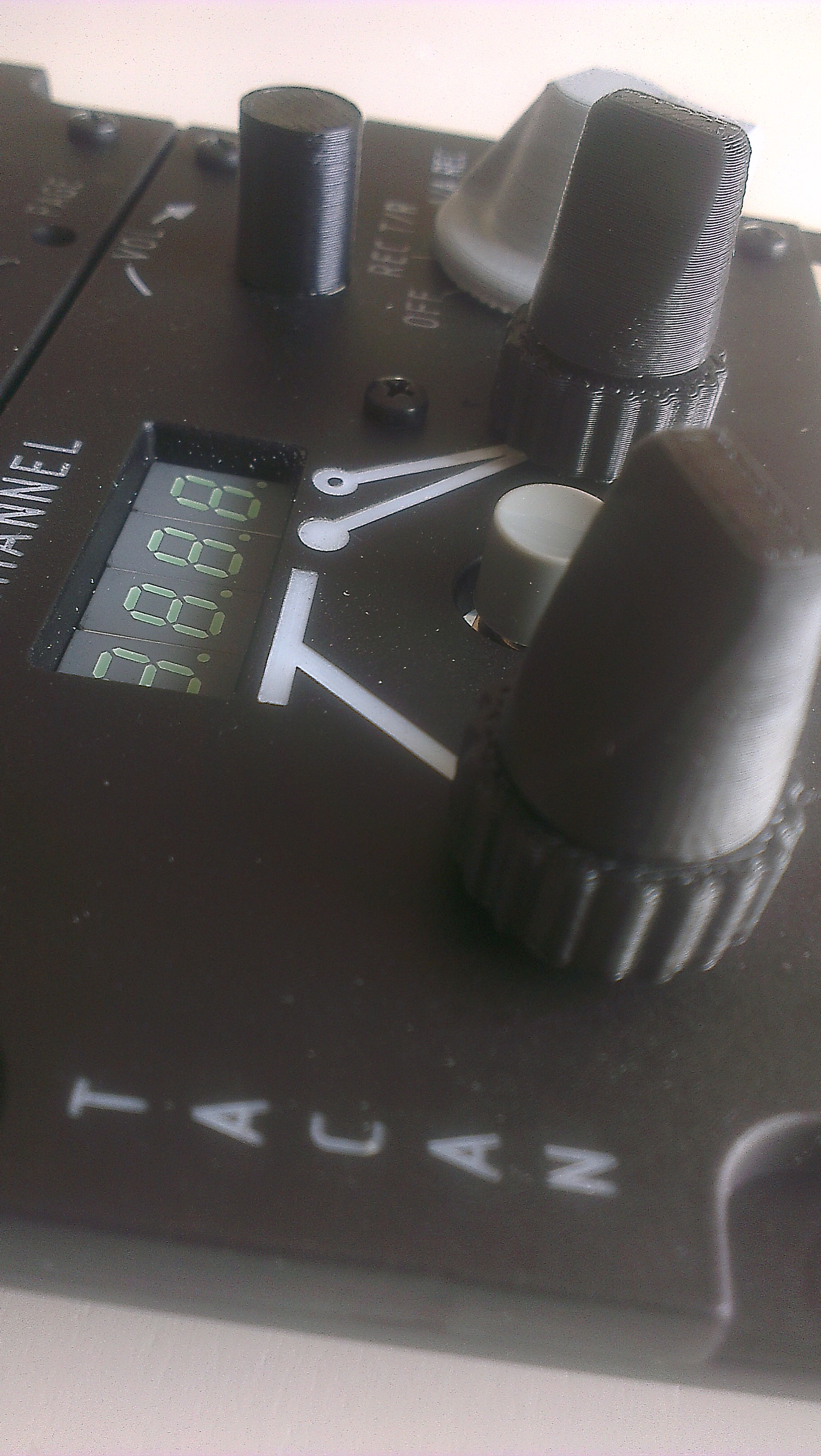

frank Posted April 25, 2013 Author Posted April 25, 2013 (edited) TACAN - Done :pilotfly: AAP, HARS and ILS is following close..... Edited April 25, 2013 by frank http://www.dcscockpit.com
Donglr Posted April 25, 2013 Posted April 25, 2013 what the f***? The buttons are, - the knobs, like, aeh ... - transparent engraving, I ... how do you.. - the cutting BLOODY HELL! I'm dazzled - let me sort my thoughts, calm down... How to you make the transparent inlays for the warning panels, where do you find those rotating knobs and analog gauges and hands for those and the Nav-mode buttons for the EGI and stuff? Do you OWN a goddamn 3d-printer company or what?
metalnwood Posted April 26, 2013 Posted April 26, 2013 what the f***? The buttons are, - the knobs, like, aeh ... - transparent engraving, I ... how do you.. - the cutting BLOODY HELL! I'm dazzled - let me sort my thoughts, calm down... How to you make the transparent inlays for the warning panels, where do you find those rotating knobs and analog gauges and hands for those and the Nav-mode buttons for the EGI and stuff? Do you OWN a goddamn 3d-printer company or what? I am going to take a stab.. :) The buttons are def done on a 3d printer. The engraving a bit deeper than a laser and the edges are chamfered so I say the panels are done on a cnc router. Frank is certainly on a mission and will have a pit in no time, good stuff :)
frank Posted April 26, 2013 Author Posted April 26, 2013 MetalnWood - you are right - i have spend 5 month on mission planning and take off is done - now, stick to the plan and i will succed - i have build simulatores all my life - i have 1000 of hours in my packpack learning the skills - My mission is not only to build the A10C pit - but do it HIGH QUALITY FOR LESS MONEY - then it is possible for alot of people to get a complete PIT setup for small money compared to alot of parts out there... I fly the lead on this mission - you are all welcome to join my wing - over and out http://www.dcscockpit.com

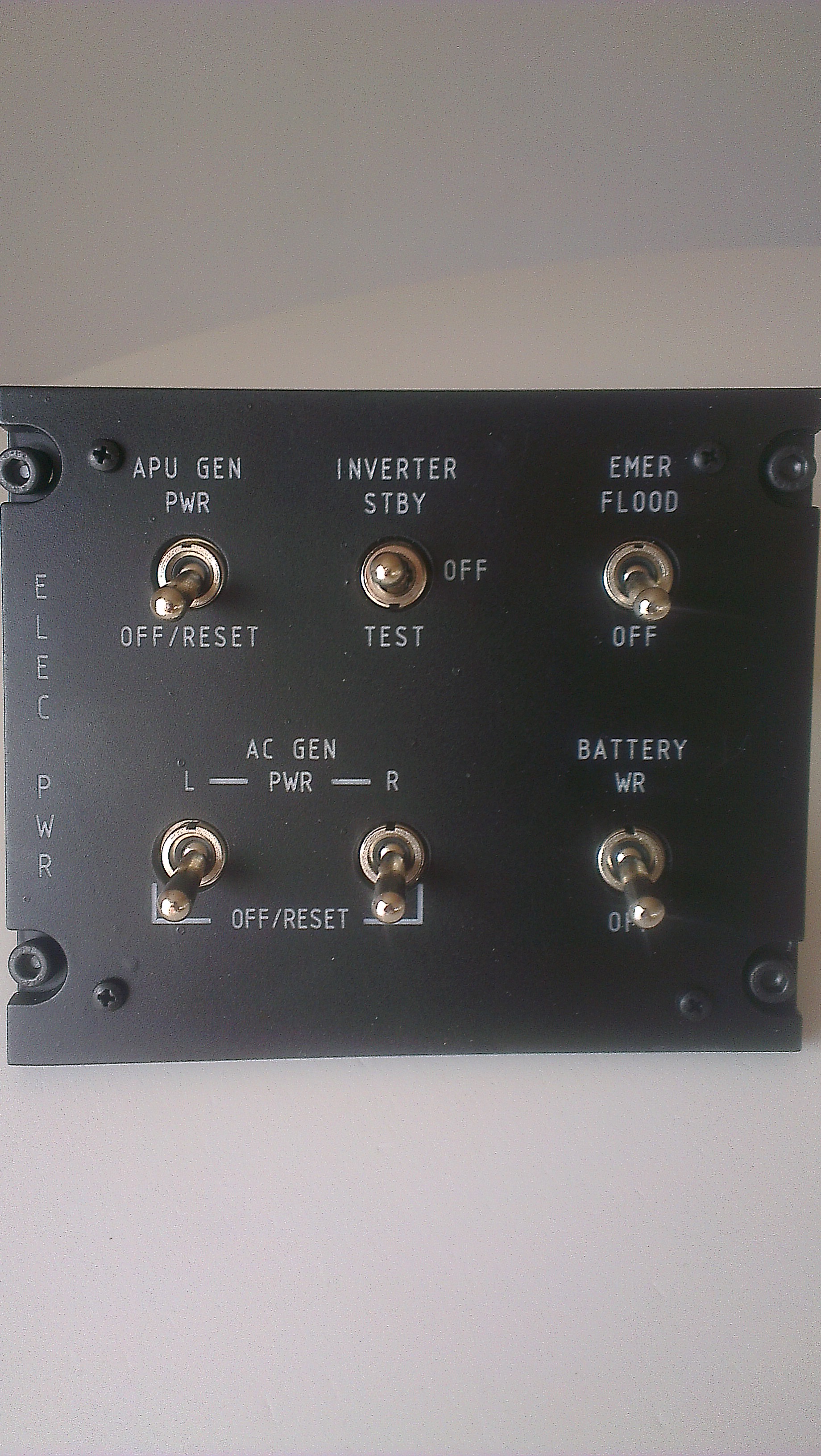

frank Posted April 26, 2013 Author Posted April 26, 2013 ELEC - DONE :music_whistling: http://www.dcscockpit.com
frank Posted April 26, 2013 Author Posted April 26, 2013 Now - a little bite of the panel comeing up tomorrow :smilewink: http://www.dcscockpit.com

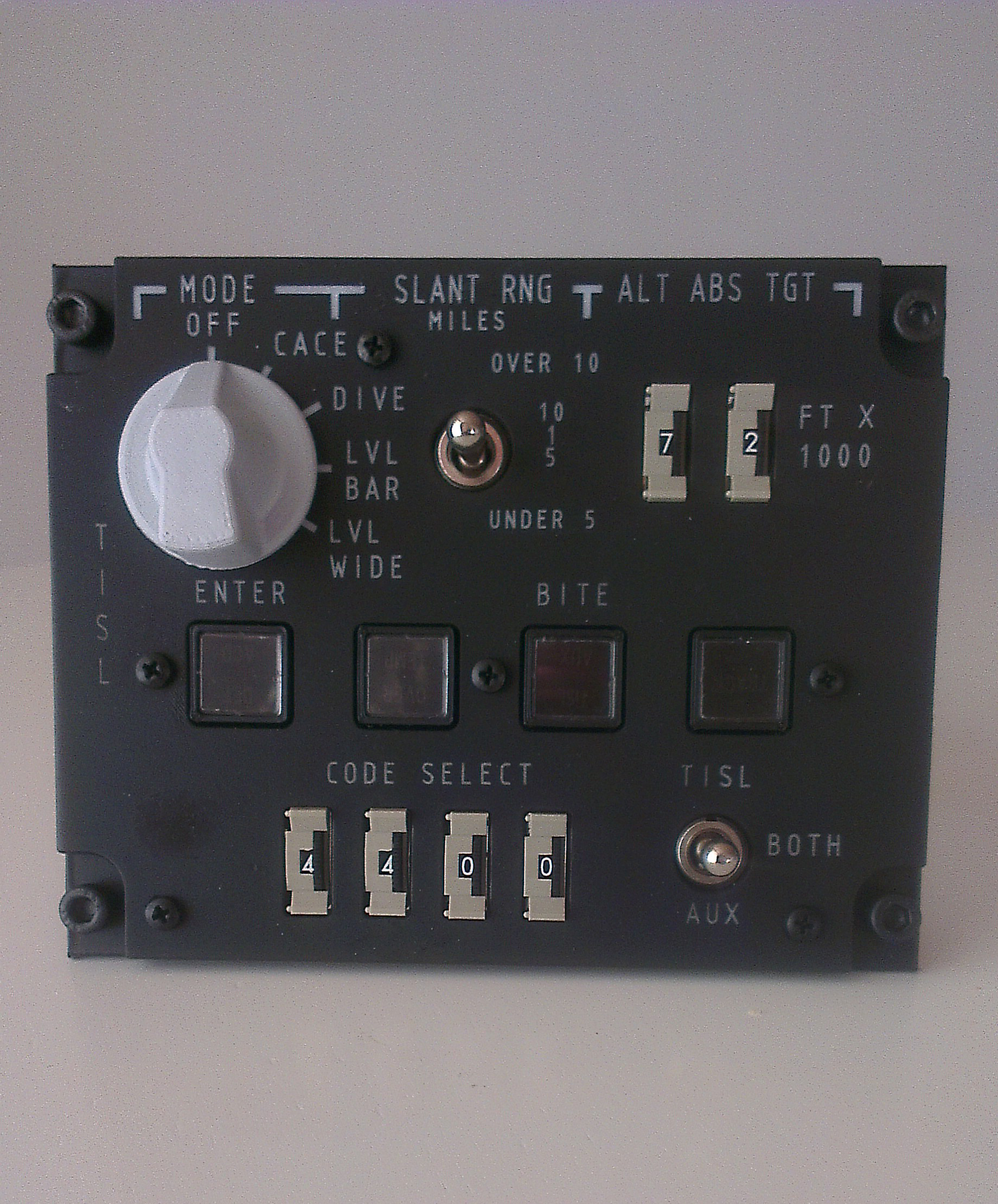

frank Posted April 27, 2013 Author Posted April 27, 2013 TISL - DONE .......... :) http://www.dcscockpit.com
frank Posted April 27, 2013 Author Posted April 27, 2013 AUX LIGHT - DONE :) http://www.dcscockpit.com

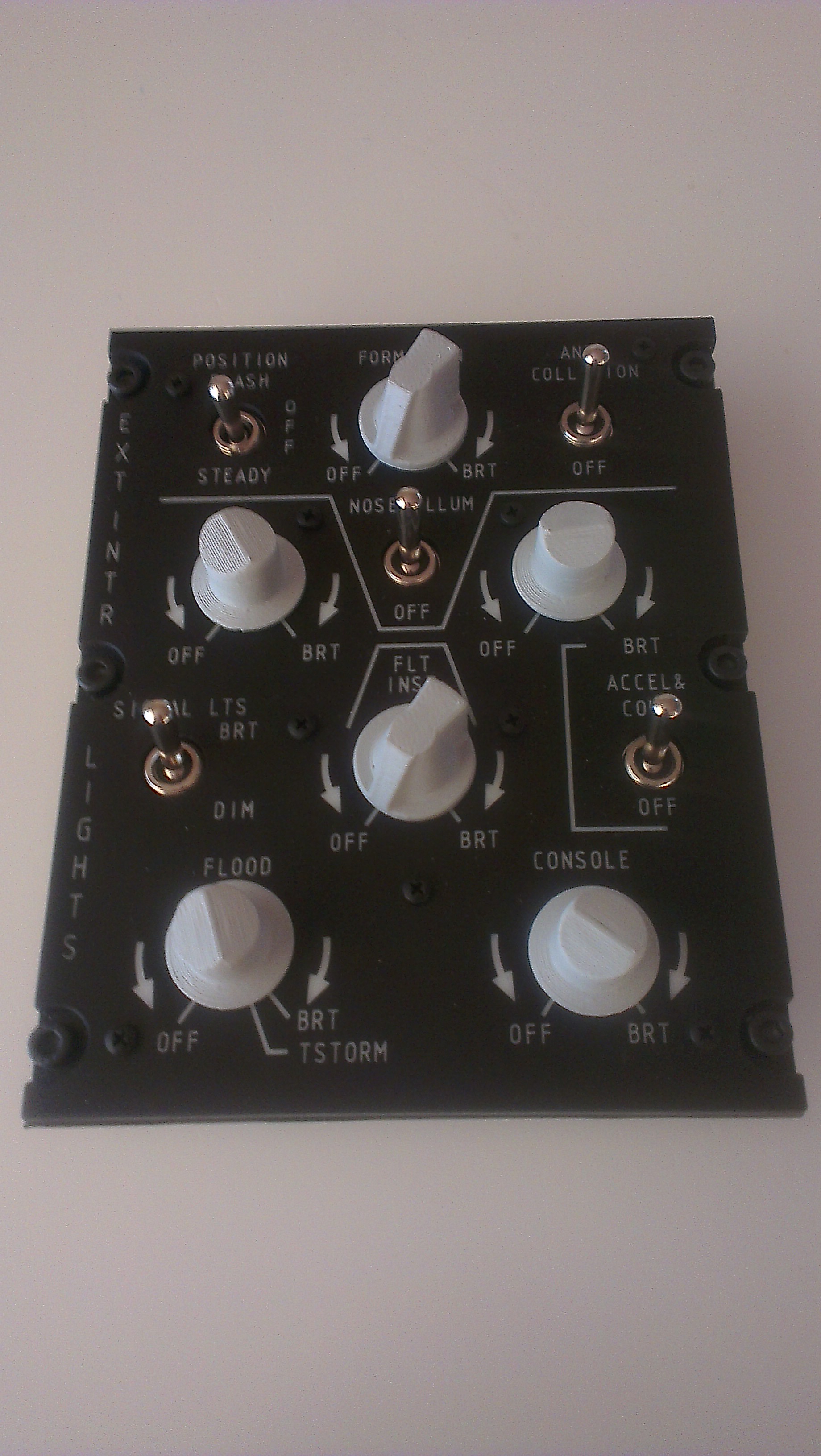

frank Posted April 27, 2013 Author Posted April 27, 2013 LIGHT - DONE :smartass: http://www.dcscockpit.com
Deadman Posted April 27, 2013 Posted April 27, 2013 Frank the panels look very good are they back lit? If they are the knobs look to be solid gray are you planing on being able to back lite your knobs? https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.

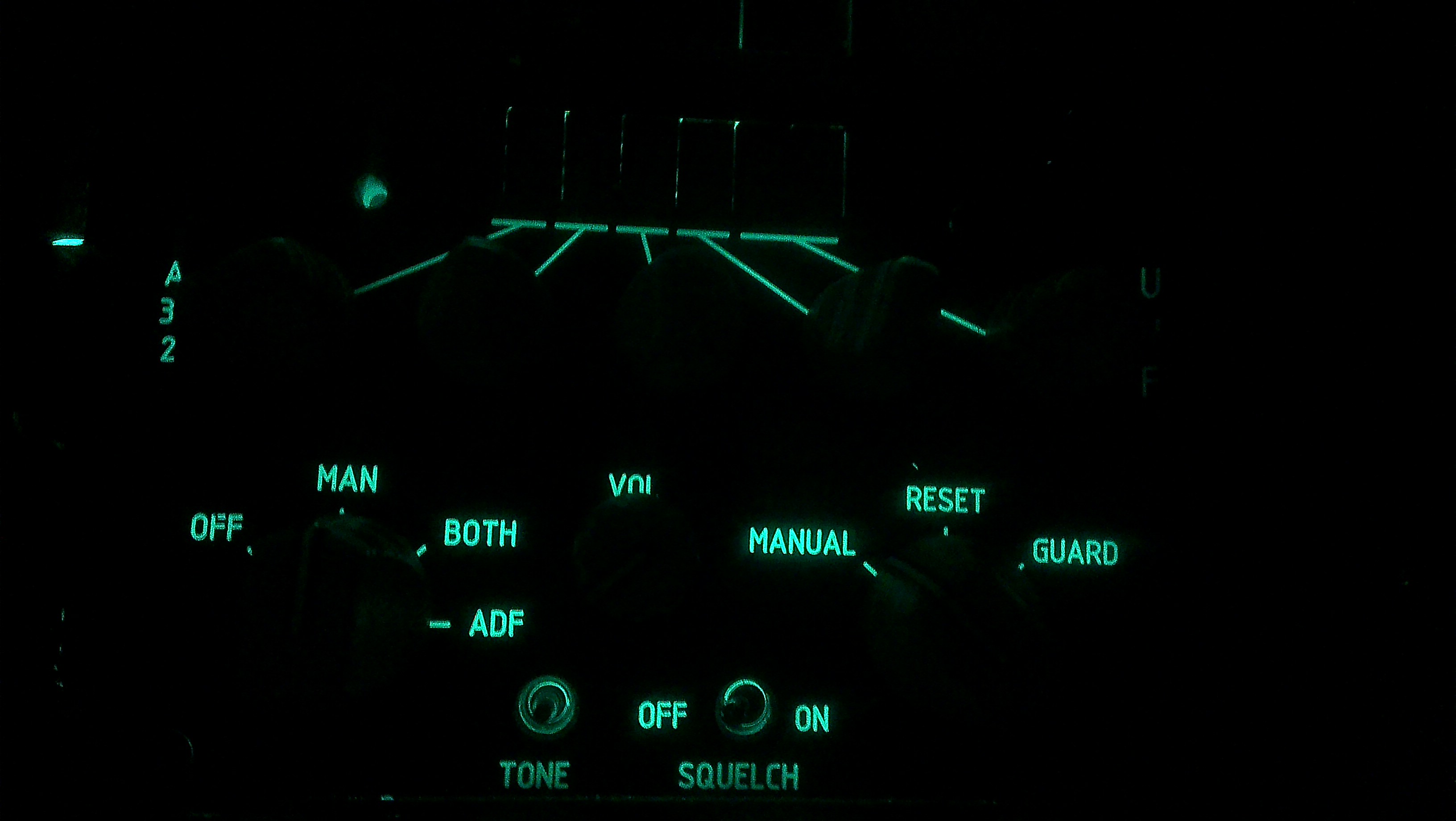

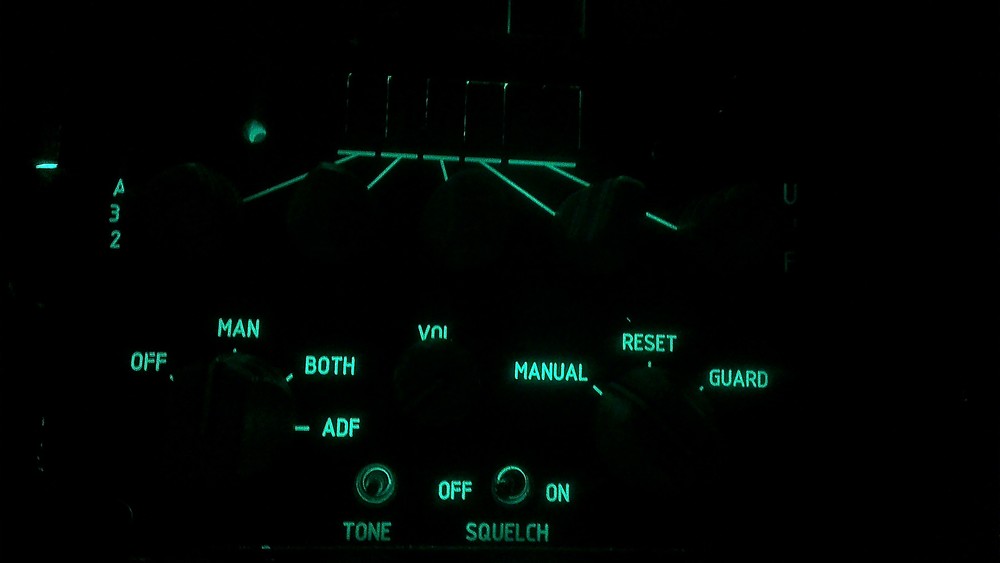

frank Posted April 27, 2013 Author Posted April 27, 2013 (edited) Hi DeadMan Yes the panels are to be backlight... No the Knob are not to be backlight.... perhaps on a later state... it takes a lot more workprogress to make the knobs backlight, and by this more expensive to buy for you guys.... The picture are in total darkness... put on some floodlight and you are rocking ;) Edited April 27, 2013 by frank http://www.dcscockpit.com

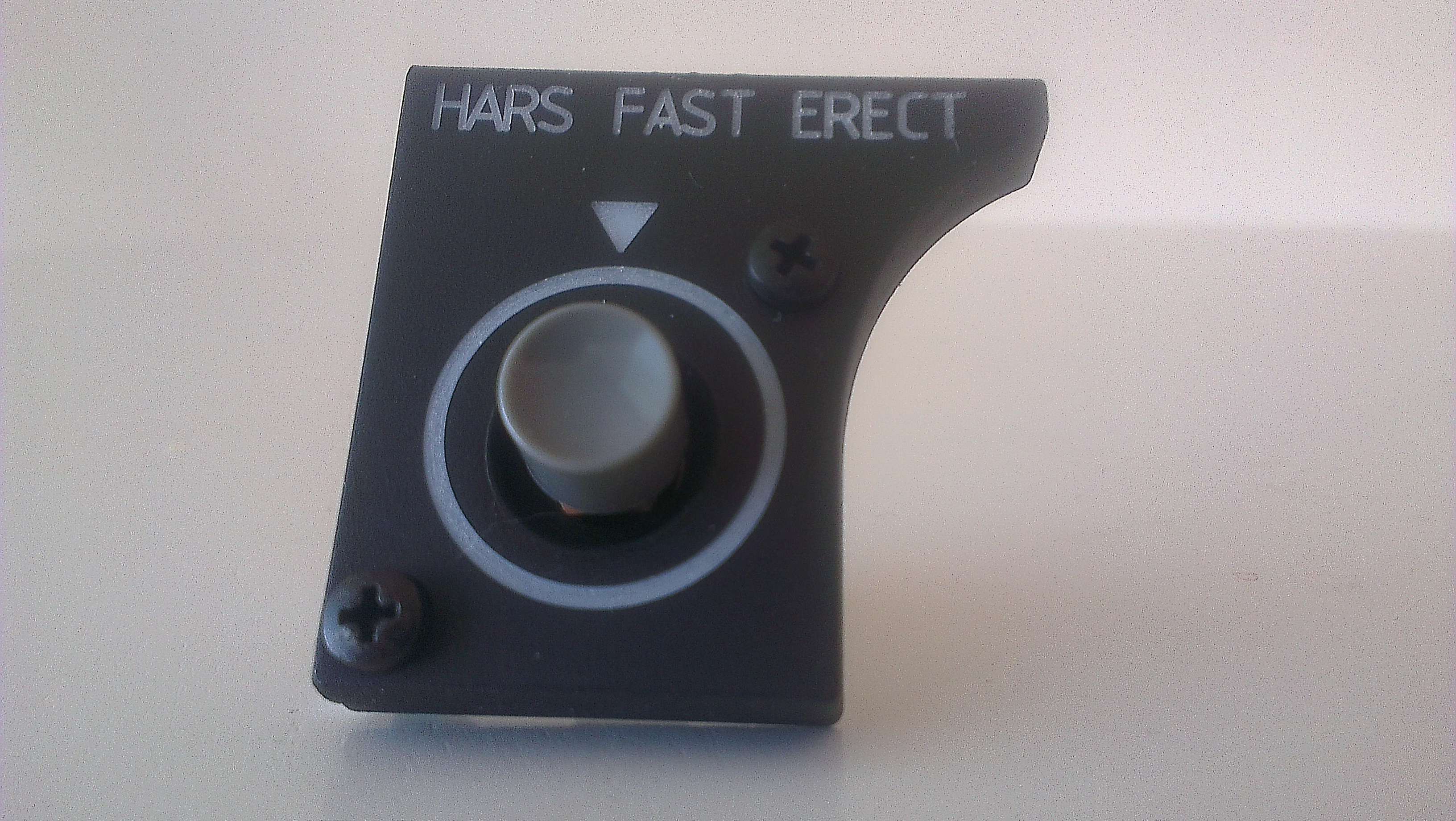

frank Posted April 28, 2013 Author Posted April 28, 2013 HARS FAST ERECT - DONE http://www.dcscockpit.com

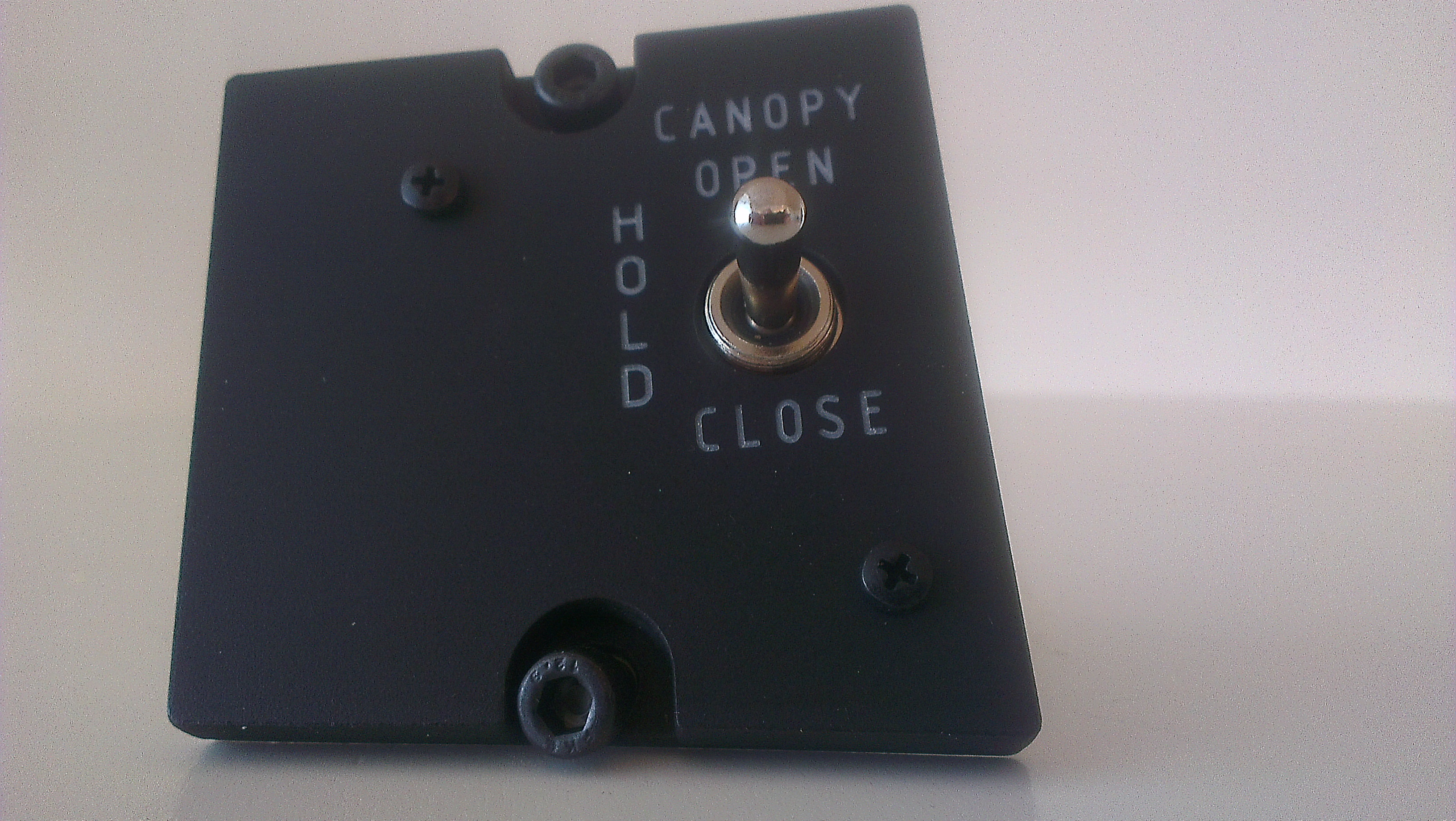

frank Posted April 28, 2013 Author Posted April 28, 2013 CANOPY SWITCH - DONE :joystick: http://www.dcscockpit.com
Duckling Posted April 28, 2013 Posted April 28, 2013 Excellent and impressive, frank :thumbup: - - - -
Panthro Posted April 28, 2013 Posted April 28, 2013 did you find the correct 3 position toggle switch? ie: "momentary-off-on" [sIGPIC]http://forums.eagle.ru/signaturepics/sigpic86362_2.gif[/sIGPIC]
frank Posted April 28, 2013 Author Posted April 28, 2013 The only Switch that is not function like the real aircraft is Magnetic Switch http://www.dcscockpit.com
