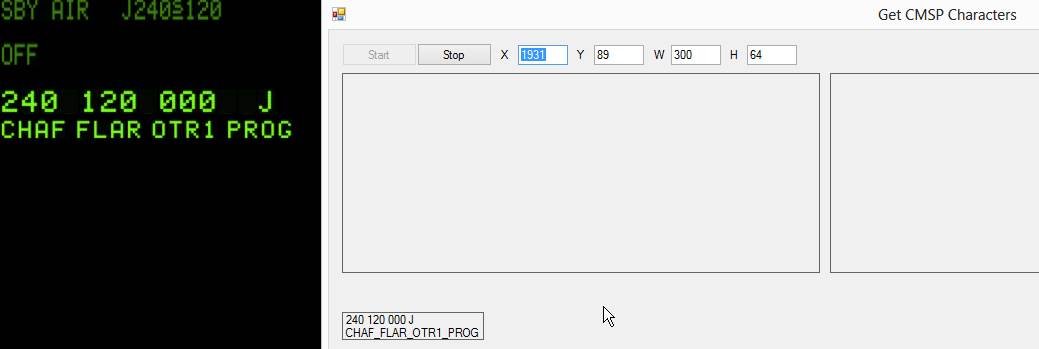

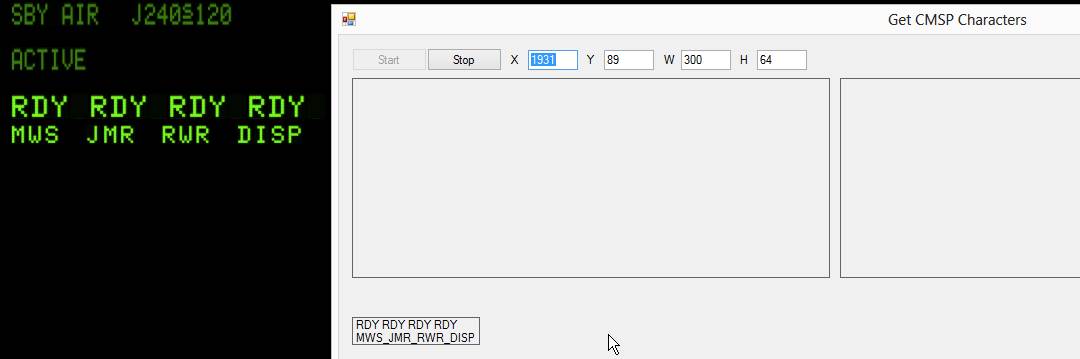

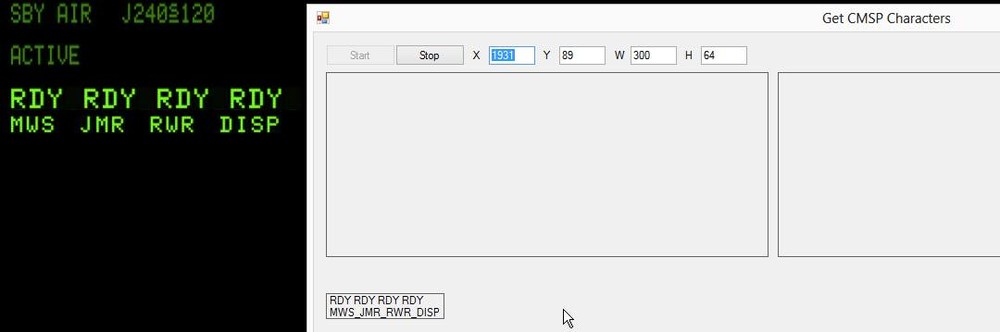

overpro Posted October 4, 2013 Posted October 4, 2013 (edited) license: MIT source code: https://github.com/calltherain/DCSW_GetCMSP usage: 1. compile it under vs.net 2012 pro in RELEASE config and execute it. 2. I'm STRONGLY RECOMMEND use icemaker 's Easy Monitor Configurator set CMSP/CMSC window size and position, don't make it too small or this app will not work as expected, you can use this value( CMSP 343x75, CMSC: 331x98 ) 3. Start this application and set the CMSP/CMSC X,Y, W, H accordingly, IMPORTANT: If the monitor setting for the CMSC Y value is 100 for example, please enter 98 ( decrease 2 pixel ) for CMSC-Y in this application. I haven't figure out why the CMSC export has 2 pixel vertical offset. 4. By default, this app will send the string to specified IP:port through UDP, if you want a serial port implementation please do it by yourself. known issues: please report bug in this thread or at github. the code is not pretty, sorry. side note: First of all, I have no experience on pattern recognition, I thought this is the application that would be very difficult to write. But I do have the interesting on this topic, and after reading some articles I decided to have a try. Attached is the screen shot, not too bad. Because the CMSP characters are very "normalized", there is no need to filter the noise or rotate characters to the normalized form. I used some time to tune the parameters to make the result correct. The CPU utilization is around 5%, RAM utilization 10MB ~ 20MB some limitations: it requires the CMSP screen resolution has at least 300 pixel width, or it will not recognize the character correctly. Okay, this is a test of the whole process: This is a CMSC test, now this tool will use 5% CPU power for both CMSP CMSC character recognition. So ED, please improve your data export API, provide a LUA function so people can get the CDU/CMSP/CMSC screen text more easily. Edited January 11, 2014 by overpro added Video 1 overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
C.V.P064 Posted October 4, 2013 Posted October 4, 2013 Good job,Chairman!keep going! [sIGPIC]http://forums.eagle.ru/signaturepics/sigpic92184_1.gif[/sIGPIC]
nobrot Posted October 4, 2013 Posted October 4, 2013 Looking good, thanks! Real world pilot, budding virtual world hog driver... My Build Thread http://forums.eagle.ru/showthread.php?p=1855253#post1855253
overpro Posted October 18, 2013 Author Posted October 18, 2013 Added a video demo in the top floor. overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
Hansolo Posted October 18, 2013 Posted October 18, 2013 Looks like a neat solution with almost no lagging. How are you exporting it to the LCD? Via Arduino or? Cheers Hans 132nd Virtual Wing homepage & 132nd Virtual Wing YouTube channel My DCS-BIOS sketches & Cockpit Album
overpro Posted October 19, 2013 Author Posted October 19, 2013 Looks like a neat solution with almost no lagging. How are you exporting it to the LCD? Via Arduino or? Cheers Hans Yes, I'm using arduino with an ethernet shield, through UDP. overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
Hansolo Posted October 19, 2013 Posted October 19, 2013 Yes, I'm using arduino with an ethernet shield, through UDP. :thumbup: Cheers Hans 132nd Virtual Wing homepage & 132nd Virtual Wing YouTube channel My DCS-BIOS sketches & Cockpit Album
Duckling Posted October 23, 2013 Posted October 23, 2013 (edited) Very impressive work overpro. (edit:Just reread your first post I found the answer to my quiz, times getting late here, please disregard my earlier post here). Looking forward to have a possibility to get the CMSP working in my rig ;-) Cheers Gus Edited October 23, 2013 by Duckling - - - -
Deadman Posted October 23, 2013 Posted October 23, 2013 Looks very good https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
tacno Posted October 24, 2013 Posted October 24, 2013 Good job :thumbup: UniversRadio for DCS : http://universradio.fr Homepit on eagle.ru forum :http://forums.eagle.ru/showpost.php?p=1547848&postcount=1 (more details : http://www.tacnoworld.fr) 3rd-Wing.net/75th vFighter "Tiger Sharks"/S-01 Tacno (squadron commander)
overpro Posted January 11, 2014 Author Posted January 11, 2014 Let me make some code cleaning and put it to github. overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
Devon Custard Posted January 11, 2014 Posted January 11, 2014 Very nice. Wondering if i can amend this to get the Radio channel data that isnt exported....... Anyway very cool, thanks for sharing.
overpro Posted January 12, 2014 Author Posted January 12, 2014 Very nice. Wondering if i can amend this to get the Radio channel data that isnt exported....... Anyway very cool, thanks for sharing. Hi devon, i think the radio freq can be exported by using export. lua. http://en.wiki.eagle.ru/wiki/Export_1_0_1 overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
bnepethomas Posted January 12, 2014 Posted January 12, 2014 Thanks for sharing the source via GIT, I'd like to drive some DED displays, so this will be a great start. cheers Peter
bnepethomas Posted January 12, 2014 Posted January 12, 2014 Hi devon, i think the radio freq can be exported by using export. lua. http://en.wiki.eagle.ru/wiki/Export_1_0_1 Yes siree- here's the details http://forums.eagle.ru/showthread.php?t=107808&page=6
Devon Custard Posted January 12, 2014 Posted January 12, 2014 Yes siree- here's the details http://forums.eagle.ru/showthread.php?t=107808&page=6 Yup, I managed to work that out last night. Was so focused on getting the frequencies that i missed the point that what i actually wanted to show was the dial position instead. Once i worked that out it was simple enough to link it all up. Planning on running my own export app alongside helios for the 7 segment/alphanumeric displays.
bnepethomas Posted January 12, 2014 Posted January 12, 2014 Yup, I managed to work that out last night. Was so focused on getting the frequencies that i missed the point that what i actually wanted to show was the dial position instead. Once i worked that out it was simple enough to link it all up. Planning on running my own export app alongside helios for the 7 segment/alphanumeric displays. Have you got the value for the Preset dial? Its something I"m interested in?
overpro Posted January 12, 2014 Author Posted January 12, 2014 Have you got the value for the Preset dial? Its something I"m interested in? vhfam preset value: GetDevice(0):get_argument_value(137) FM: get_argument_value(151) UHF: get_argument_value(161) Is it what you are looking for? overpro = I'm not good at Nintendo Mario and always get "Game over" pretty fast, so over~~pro
Devon Custard Posted January 12, 2014 Posted January 12, 2014 I found all my stuff (thanks to a welter of posts from various peeps on here) in C:\Program Files\Eagle Dynamics\DCS World\Mods\aircrafts\A-10C\Cockpit\Scripts\mainpanel_init.lua. What caught me out was that some of these arguments are ONLY exported when the device is triggered ie. dial/wheel is jogged or switch is toggled. Find the dial/switch/gauge you want and then look for the argument number. As overpro posted above just do a get_argument_value on device 0.
bnepethomas Posted March 4, 2014 Posted March 4, 2014 vhfam preset value: GetDevice(0):get_argument_value(137) FM: get_argument_value(151) UHF: get_argument_value(161) Is it what you are looking for? I missed this reply, thanks for that, will test tomorrow night. cheers Peter
bnepethomas Posted March 4, 2014 Posted March 4, 2014 And a slightly silly question - is there are a we can export the screens without using up another monitor port? I'm really struggling for spare video ports in the pit. cheers Peter
donbinator Posted March 4, 2014 Posted March 4, 2014 And a slightly silly question - is there are a we can export the screens without using up another monitor port? I'm really struggling for spare video ports in the pit. cheers Peter I'm using a USB Video adapter (in my case USB to VGA for an old 5" LCD I had laying around). Works like a charm so far. You can hook quite a few of them up if the resolution remains relatively low. Mine is set to 800x600. You can find them on ebay for around $30. My plan was to use it for the CDU. Something like this: http://www.ebay.com/itm/USB-3-0-to-VGA-Video-Card-Multi-Display-Cable-Adapter-for-Windows-7-8-Perfect-/351015277398?pt=US_Video_Cables_Adapters&hash=item51ba241356
Duckling Posted March 4, 2014 Posted March 4, 2014 Hi Overpro. Thanks for sharing your code :thumbsup: Only downloaded it currently. A new Mega and Ethershield arrived together with an I2C OLED (thanks Pete for the link posted). Possibility to get the CMSC to work is dream comming true. Can anyone share a working Arduino scetch to use for the Overpros code, for a Ethershield connected Mega as example ? (or point it out to a half blind delerious fellow builder ;-) ) Cheers Gus - - - -
