Mirage 2000C - how to export radar and rwr to second monitor

[hreich]

Hi...i just spent 2 hours reading through forums and topics about exporting data to second monitor. But for the love of God i can't figure how to export radar and rwr for mirage 2000c ,and i don't have so much time and my kids wouldn't allow me to spend another hour trying to figure this out...I am using these JGSME files to export data for A-10C and Ka--50 to my second monitor (pad2). Then i use touch server ipad app - so i can get some sort of working abris/shkval display cockpit for ka-50 and working MFCDs and CDU for a-10.

These files i am using with JGSME are here for you to check:

https://app.box.com/s/uzv3btt6266u6iej9znh0402h9e0sxs9



How can I add another section in those files so i can have export from mirage 2000c to my second monitor. Configuration i use is:

main screen 1920*1080 - on the left and extraction monitor on the right - same resolution.

Edited December 26, 2015 by hreich

[FSFIan]

This post describes how to export additional indicators to external monitors.



For the Mirage, the files you want are Mods\aircraft\M-2000C\Cockpit\VTB\VTB_init.lua for the radar and Mods\aircraft\M-2000C\Cockpit\RWR\RWR_init.lua for the RWR.

[Deezle]

Ian;2616583']This post describes how to export additional indicators to external monitors.



For the Mirage, the files you want are Mods\aircraft\M-2000C\Cockpit\VTB\VTB_init.lua for the radar and Mods\aircraft\M-2000C\Cockpit\RWR\RWR_init.lua for the RWR.

Thanks, works great :thumbup:

[Mr_Burns]

I cant get it to display following the intructions above:



dofile(LockOn_Options.common_script_path.."devices_defs.lua")



indicator_type = indicator_types.COMMON

--purposes = {render_purpose.GENERAL,render_purpose.HUD_ONLY_VIEW}

try_find_assigned_viewport("Mirage_Radar")



I tried putting thr try_find prompt at the top and here in the middle - this stops the Radar working in the cockpit. I tried putting it at the end and that leaves the Radar in the cockpit working.



I then have this:



_ = function(p) return p; end;

name = _('Mirage2000C');

Description = 'Setup for Mirage Virtual Cockpit Radar Exports.'

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 2048;

height = 1152;

viewDx = 0;

viewDy = 0;

aspect = 1.7;

}

}



Mirage_Radar =

{

x = 600;

y = 1305;

width = 800;

height = 800;

}



UIMainView = Viewports.Center



And my cockpit resolution in game as 2048x2304 but it will not display.



Any other ideas?



Thanks

[Deezle]

Seems like the line you added has some extra stuff.



Try this at the very end of the file.

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")

try_find_assigned_viewport("Mirage_Radar")

Edited December 27, 2015 by Deezle

[Mr_Burns]

Thank you, that did it - rep inbound good man!!

[hreich]

Thank you ..it worked for me but i had to change this line





dofile(LockOn_Options.common_script_path.."Viewpor tHandling.lua")

try_find_assigned_viewport("Mirage_Radar")



to

dofile(LockOn_Options.common_script_path.."Viewporthandling.lua")

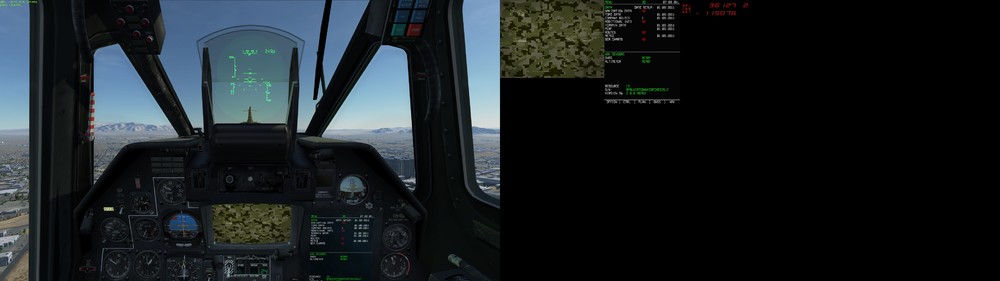

But now i have problem with shkval screen - it looks like in this picture

Edited December 27, 2015 by hreich

[shaz56]

Seems like the line you added has some extra stuff.



Try this at the very end of the file.



being a bit of a noob i'm confused, i presume when you say put at the end of the file you mean the "lua" file. exactly where in the file, any chance someone can show the complete file\files. thanks.

Edited December 27, 2015 by shaz56

[hreich]

You have to put for example - this in file for Radar - in mirage that is



dofile(LockOn_Options.common_script_path.."Viewpor tHandling.lua")

try_find_assigned_viewport("Mirage_Radar")



the files you want are Mods\aircraft\M-2000C\Cockpit\VTB\VTB_init.lua



And after that you need to have modified monitor.lua file (in folder config/MonitorSetup in dcs world) and add the part for exporting radar:



--//////////////////////////////////////

-- Mirage 2000 =

--//////////////////////////////////////

Mirage_Radar =

{

x = 1921;

y = 0;

width = 800;

height = 800;

}

[SirBunker]

Thanks guys for the scripts, I now have working viewports too. One problem though, I use these on a single screen as PiP views, is there any way to script a dark background for the radar screen?

[shaz56]

thanks hreich, I understand you have to insert the new lines, but I need to know where exactly to insert and does the original 'dofile' line stay or go in the lua file. Sorry but us older nubs can be a bit slow, LOL. This is why I asked for the whole picture not just a snapshot. I have the A10C MFCD's and the F15C's radar working on a fourth screen but Bazram seem to have done it differently, thanks again.

[tempusmurphy]

cheers Hreich .. worked a treat..

[Greekbull]

Going to work on exporting today...does anyone know the labels of the other digital displays on the main cockpit and if those are exportable? Was thinking of taking a Hi Res screen shot of the main panel and cutting out holes for the radar, RWR and stores management to run on my helios monitor for the time being until someone who knows a lot more about helios than me actually builds a profile :D

[hreich]

thanks hreich, I understand you have to insert the new lines, but I need to know where exactly to insert and does the original 'dofile' line stay or go in the lua file. Sorry but us older nubs can be a bit slow, LOL. This is why I asked for the whole picture not just a snapshot. I have the A10C MFCD's and the F15C's radar working on a fourth screen but Bazram seem to have done it differently, thanks again.



I am also new in this export thing myself..I just managed to get my export working today by following this post http://forums.eagle.ru/showpost.php?p=2133064&postcount=2

but i edited files for mirage - file you need to edit for radar is



Mods\aircraft\M-2000C\Cockpit\VTB\VTB_init.lua - in there i added 2 lines at the end of file



dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")

try_find_assigned_viewport("Mirage_Radar")



and edited my monitor profile file which is here DCS WORLD\Config\MonitorSetup

and added these lines at the end



--//////////////////////////////////////

-- Mirage 2000 =

--//////////////////////////////////////

Mirage_Radar =

{

x = 1921;

y = 0;

width = 800;

height = 800;

}

Mirage_RWR =

{

x = 2721;

y = 0;

width = 200;

height = 200;

}



UIMainView = Viewports.Center



-------------------------------------------------------------------------------------------------------

These is the whole file:

"_ = function(p) return p; end;

name = _('All Aircraft Export HR');

Description = 'A-10, Ka-50, M-2000C';

Viewports =

-- Put your values in , and delete all exports that you don't want to use !

--[[

List of Exports:



----------------------

Eagle Dynamics A-10C =

----------------------



MFCD_init.lua

ED_A10C_LEFT_MFCD

ED_A10C_RIGHT_MFCD



CDU_init.lua

ED_A10C_CDU







----------------------

Eagle Dynamics Ka-50 =

----------------------



ABRIS_init.lua

ED_KA50_ABRIS



SHKVAL_init.lua

ED_KA50_Shkval



UV_26_init.lua

ED_KA50_UV26



PVI_init.lua

ED_KA50_PVI



--]]





{

Center =

{

x = 0;

y = 0;

width = 1920;

height = 1080;

viewDx = 0;

viewDy = 0;

aspect = 1.7777777777777777777777777778;

}

}



GUI=

{

x = 0;

y = 0;

width = 1920;

height = 1080;

}



UIMainView = GUI



--//////////////////////////////////////

-- Eagle Dynamics A-10C =

--//////////////////////////////////////



ED_A10C_LEFT_MFCD =

{

x = 1921;

y = 0;

width = 300;

height = 300;

}



ED_A10C_RIGHT_MFCD =

{

x = 2221;

y = 0;

width = 300;

height = 300;

}





CDU_EXPORT =

{

x = 2520;

y = 0;

width = 280;

height = 180;

}

ED_A10C_CDU =

{

x = 2523;

y = 0;

width = 280;

height = 180;

}



--//////////////////////////////////////

-- Eagle Dynamics Ka-50 =

--//////////////////////////////////////



ED_KA50_Shkval =

{

x = 1921;

y = 0;

width = 400;

height = 300;

}



ED_KA50_ABRIS =

{

x = 2321;

y = 0;

width = 290;

height = 400;

}



ED_KA50_UV26 =

{

x = 2611;

y = 0;

width = 50;

height = 60;

}



ED_KA50_PVI =

{

x = 2661;

y = 0;

width = 220;

height = 75;

}



--//////////////////////////////////////

-- Eagle Dynamics UH-1H =

--//////////////////////////////////////



ED_Kneeboard =

{

x = 1921;

y = 0;

width = 500;

height = 800;

}



--//////////////////////////////////////

-- Mirage 2000 =

--//////////////////////////////////////

Mirage_Radar =

{

x = 1921;

y = 0;

width = 800;

height = 800;

}

Mirage_RWR =

{

x = 2721;

y = 0;

width = 200;

height = 200;

}



UIMainView = Viewports.Center

"

----------------------------------------------------------------



Third file is here:

DCSWORLD\Scripts\Aircrafts\_Common\Cockpit ---> ViewportHandling.lua which is



"

-- positioning on screen in HUD Only view

function update_screenspace_diplacement(aspect,is_left,zoom_value)

local aspect = aspect or 1

local zoom_value = zoom_value or 0

local default_width = 0.5 * LockOn_Options.screen.height + (64 * zoom_value)

if default_width > LockOn_Options.screen.height then

default_width = LockOn_Options.screen.height

end



if default_width > 0.5 * LockOn_Options.screen.width then

default_width = 0.5 * LockOn_Options.screen.width

end



local default_height = default_width / aspect

local default_y = LockOn_Options.screen.height - default_height

local default_x = LockOn_Options.screen.width - default_width

if is_left then

default_x = 0

end

dedicated_viewport = {default_x,default_y,default_width,default_height}

dedicated_viewport_arcade = {default_x, 0 ,default_width,default_height}

end



function set_full_viewport_coverage(viewport)

dedicated_viewport = {viewport.x,

viewport.y,

viewport.width,

viewport.height}

dedicated_viewport_arcade = dedicated_viewport

purposes = {render_purpose.GENERAL,

render_purpose.HUD_ONLY_VIEW,

render_purpose.SCREENSPACE_OUTSIDE_COCKPIT,

render_purpose.SCREENSPACE_INSIDE_COCKPIT} -- set purposes to draw it always

render_target_always = true

end



-- try to find assigned viewport

function try_find_assigned_viewport(exactly_name,abstract_name)

local multimonitor_setup_name = "Config/MonitorSetup/"..get_multimonitor_preset_name()..".lua"

local f = loadfile(multimonitor_setup_name)

if f then

local env = {screen = LockOn_Options.screen}

setfenv(f,env)

pcall(f)

local target_env = env[exactly_name]

if not target_env and abstract_name then

target_env = env[abstract_name]

end

if target_env then

set_full_viewport_coverage(target_env)

end

end

end"

Edited December 27, 2015 by hreich

[Greekbull]

Ok I'm having issues...I'm really green with this but have been able to get it working with the A-10C and F-15C in helios...



When I go to the DCSWORLD\Scripts\Aircrafts\_Common\Cockpit ---> ViewportHandling.lua I'm not seeing any file named Viewport handling in 2.0 or 1.5. Do I need to make it?



I'm using a 3840x2160 main monitor and a 1920x1080 touchscreen for my instruments. Here's what I have for the files...



Monitor setup specific to the M-2000:



_ = function(p) return p; end;

name = _('M-2000 working night');

Description = 'Right MFCD on the right and camera on the center'



--TOTAL DEL VIEWPORT

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 3840;

height = 2160;

viewDx = 0;

viewDy = 0;

aspect = 16/9;

}

}

--//////////////////////////////////////

-- Mirage 2000 =

--//////////////////////////////////////

Mirage_Radar =

{

x = 1690;

y = 2626;

width = 430 ;

height = 430;

}

Mirage_RWR =

{

x = 2215;

y = 2211 ;

width = 250;

height = 250;

}



UIMainView = Viewports.Center



My VTB_init.lau file:



dofile(LockOn_Options.common_script_path.."devices_defs.lua")



indicator_type = indicator_types.COMMON

--purposes = {render_purpose.GENERAL,render_purpose.HUD_ONLY_VIEW}



VTB_PAGE_0 = 0

VTB_PAGE_1 = 1

VTB_PAGE_2 = 2



SRC_VTB_BASE = 0

SRC_VTB_0 = 1

SRC_VTB_1 = 2

SRC_VTB_2 = 3





local my_path = LockOn_Options.script_path.."VTB/"



page_subsets = {

[sRC_VTB_BASE] = my_path.."VTB_base.lua",

[sRC_VTB_0] = my_path.."VTB_page_0.lua",

[sRC_VTB_1] = my_path.."VTB_page_1.lua",

[sRC_VTB_2] = my_path.."VTB_page_2.lua",

}



----------------------

pages = {

[VTB_PAGE_0] = {SRC_VTB_BASE,SRC_VTB_0},

[VTB_PAGE_1] = {SRC_VTB_BASE,SRC_VTB_1},

[VTB_PAGE_2] = {SRC_VTB_BASE,SRC_VTB_2},

}



init_pageID = VTB_PAGE_0



used_render_mask = "interleave2.bmp" --default mask for TV



dofile(LockOn_Options.common_script_path.."Viewpor tHandling.lua")

try_find_assigned_viewport("Mirage_Radar")



My RWR_init.lua file:



dofile(LockOn_Options.common_script_path.."devices_defs.lua")

local my_path = LockOn_Options.script_path.."RWR/"



indicator_type = indicator_types.COMMON



PAGE_0 = 0



SRC_RWR_BASE = 0

SRC_RWR_0 = 1



page_subsets = {

[sRC_RWR_BASE] = my_path.."RWR_base.lua",

[sRC_RWR_0] = my_path.."RWR_page.lua",

}



----------------------

pages = {

[PAGE_0] = {SRC_RWR_BASE,SRC_RWR_0},

}

init_pageID = PAGE_0



used_render_mask = "interleave2.bmp" --default mask for TV



dofile(LockOn_Options.common_script_path.."Viewpor tHandling.lua")

try_find_assigned_viewport("Mirage_RWR")





Anything you guys see me missing? Is that third file needing to be created? Any help will be hugely appreciated!!! Thanks!

[Mr_Burns]

You made the same mistake I did, remove the space ViewportHandling.lua is all one word.







No need for a third file.

Edited December 28, 2015 by Mr_Burns

[Greekbull]

You made the same mistake I did, remove the space ViewportHandling.lua is all one word.







No need for a third file.



Thank You very much!!! That solved all of my problems. I was able to get a lot more stuff extracted. Here's a link to the thread: http://forums.eagle.ru/showthread.php?t=156943



Hopefully some more of you are Helios users and would like to pitch in to get a good profile going. Right now mine will just display all of the exports. But no switches or side panels.

[Cougar133]

i'm working on exports views ...



love it ! :p



[hreich]

Guys now i have problem exporting F-15c radar and rwr...I don't see needen files in FC3 folder - like i did for mirage:



Mods\aircraft\M-2000C\Cockpit\VTB\VTB_init.lua - in there i added 2 lines at the end of file



dofile(LockOn_Options.common_script_path.."Viewpor tHandling.lua")

try_find_assigned_viewport("Mirage_Radar")



Where are needed files for F-15c?

[FSFIan]

The F-15C is a FC3 aircraft, so you won't find separate indicator files.

Try exporting LEFT_MFCD and RIGHT_MFCD and see what you get.

[hreich]

Ian;2645941']The F-15C is a FC3 aircraft, so you won't find separate indicator files.

Try exporting LEFT_MFCD and RIGHT_MFCD and see what you get.

h



Ok i got radar working with left right mfd....is it possible to get rwr and weapon selection mfd exported

[Lobinjaevel]

i'm working on exports views ...



Cougar, would you mind sharing your .lua?



Cheers!

Robin

[Cougar133]

Yup !!



_ = function(p) return p; end;

name = _('m2000C');

Description = 'VTB Export'

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 1920;

height = 1080;

viewDx = 0;

viewDy = 0;

aspect = 1.77777;

}

}



M2000_VTB =

{

x = 2000;

y = 0;

width = 800;

height = 768;

}



M2000_RWR =

{

x = 590;

y = 1550;

width = 230;

height = 230;

}



M2000_COM =

{

x = 1290;

y = 1500;

width = 65;

height = 50;

}



M2000_PCA =

{

x = 50;

y = 1500;

width = 320;

height = 35;

}



M2000_PCAUR =

{

x = 50;

y = 1500;

width = 320;

height = 35;

}



M2000_FUEL =

{

x = 1320;

y = 1210;

width = 40;

height = 35;

}



M2000_FLR =

{

x = 50;

y = 1200;

width = 40;

height = 30;

}



M2000_CHF =

{

x = 50;

y = 1240;

width = 40;

height = 30;

}



M2000_PCNBR =

{

x = 560;

y = 1790;

width = 280;

height = 30;

}



M2000_PCNUR =

{

x = 560;

y = 1815;

width = 300;

height = 30;

}



M2000_PPA =

{

x = 320;

y = 1210;

width = 60;

height = 60;

}







UIMainView = Viewports.Center

[Lobinjaevel]

Thanks mate!



Regards

Robin

[CHRISXTR3M3]

i'm working on exports views ...



love it ! :p





Is this the M2k-5?
