DX11 Renderer-Error with SSAA

[Codawa]

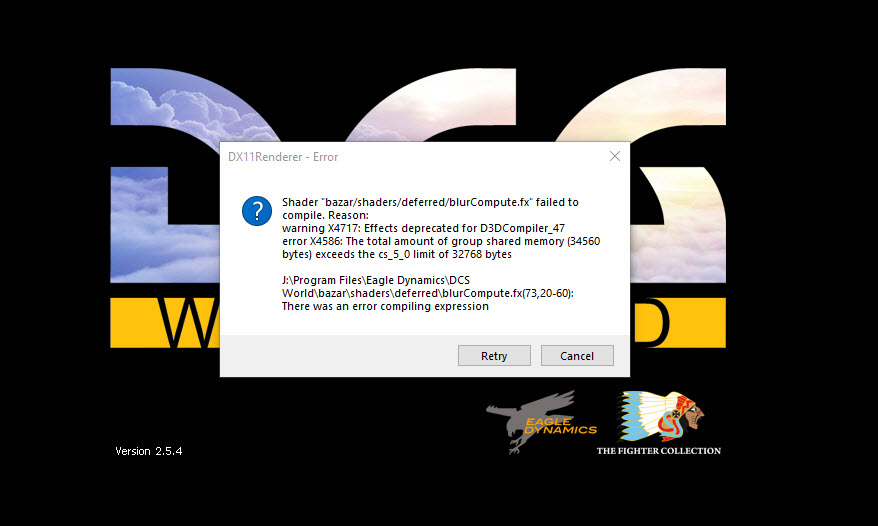

If I activate SSAA ingame DCS aborts with the following message:

What could that be?





2018-05-24 22:01:27.992 ERROR   DX11BACKEND: Can't find precompiled shader deferred/blurcompute.fx:DIRECTX11=true;FILTER_KERNEL0= 0.00333, 0.02382, 0.09719, 0.22598, 0.29937, 0.22598, 0.09719,;FILTER_KERNEL1= 0.02382, 0.00333;FILTER_KERNEL2;FILTER_KERNEL3;FILTER_KERNEL4;FILTER_SIZE=9;PIXELS_PER_THREAD_X=3;PIXELS_PER_THREAD_Y=1;SIZE_X=736;SIZE_Y=405;USE_DCS_DEFERRED=1;.
2018-05-24 22:01:27.992 INFO    DX11BACKEND: Compile shader: deferred/blurcompute.fx:DIRECTX11=true;FILTER_KERNEL0= 0.00333, 0.02382, 0.09719, 0.22598, 0.29937, 0.22598, 0.09719,;FILTER_KERNEL1= 0.02382, 0.00333;FILTER_KERNEL2;FILTER_KERNEL3;FILTER_KERNEL4;FILTER_SIZE=9;PIXELS_PER_THREAD_X=3;PIXELS_PER_THREAD_Y=1;SIZE_X=736;SIZE_Y=405;USE_DCS_DEFERRED=1;

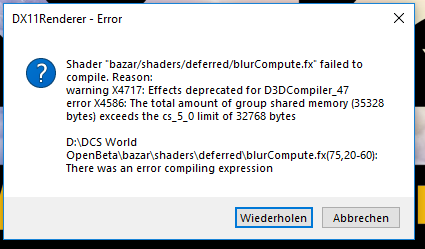

2018-05-24 22:01:28.555 ERROR   DX11BACKEND: Shader "bazar/shaders/deferred/blurCompute.fx" failed to compile. Reason:
warning X4717: Effects deprecated for D3DCompiler_47
error X4586: The total amount of group shared memory (35328 bytes) exceeds the cs_5_0 limit of 32768 bytes

D:\DCS World OpenBeta\bazar\shaders\deferred\blurCompute.fx(75,20-60): There was an error compiling expression

Edited May 24, 2018 by Codawa

[caponi]

i have the same problem !



i use 3 monitors a 1920 * 1080 ...

the resolution is too big.



if i use a single monitor in full HD then it works ...



not usable for multi monitor setups ...

[SkateZilla]

SSAA Shouldnt be used above 1080P



SSAA = Super Sampling



As the SSAA Resolution is above the DirectX 11 Limit Per display (8000 px?), Not to even mention the GPU's Capability.





ie 4K:

SSAA = 1.5x = 5760x3240

SSAA = 2.0x = 7860x4320



ie 1080p Surround/Eyefinity:

SSAA = 1.5x = 8640x1620

SSAA = 2.0x = 11520x2160



5760x1080 x 1.5 = 8640x1620

Edited May 26, 2018 by SkateZilla

[Wolf8312]

Does it work with VR? Seems like its all zoomed in though I dont know what SSAA is or if its supposed to work like that!

[caponi]

hi,



i used an old blurCompute.fx from 2.5.0 OB and it works with 3 monitors ...

is it possible to rework that feature ?

[Zola254]

Hi



I have the same problem but with the twist that the game now produces this error during boot up of DCS World, so I cannot change the settings and turn off SSAA as I do not even get to the start up menu.



Is there a way to change the settings without actually booting up the game, config file etc?



Any help appreciated



Thanks

[Eclipse]

Hi



I have the same problem but with the twist that the game now produces this error during boot up of DCS World, so I cannot change the settings and turn off SSAA as I do not even get to the start up menu.



Is there a way to change the settings without actually booting up the game, config file etc?



Any help appreciated



Thanks



The same thing happened to me, I wanted to see what it would look like all maxed out, not that my PC would be able to play it that way!



Here is how to fix it:



1. Navigate to C:\Users\YOURUSERNAME\Saved Games\DCS\Config\options.lua

2. Open the file with administrator privileges in the text editor of your choice (I use Notepad++)

3. Find the line that contains SSAA (line 48 in my options.lua file)

4. Change ["SSAA"] = 2, to ["SSAA"] = 0,

5. Save the file




Happy flying!

[specialksl]

The same thing happened to me, I wanted to see what it would look like all maxed out, not that my PC would be able to play it that way!



Here is how to fix it:

1. Navigate to C:\Users\YOURUSERNAME\Saved Games\DCS\Config\options.lua

2. Open the file with administrator privileges in the text editor of your choice (I use Notepad++)

3. Find the line that contains SSAA (line 48 in my options.lua file)

4. Change ["SSAA"] = 2, to ["SSAA"] = 0,

5. Save the file


Happy flying!





I tried this and it didn't work. Any other suggestions?

[thomasp335]

Hi



I have the same problem but with the twist that the game now produces this error during boot up of DCS World, so I cannot change the settings and turn off SSAA as I do not even get to the start up menu.



Is there a way to change the settings without actually booting up the game, config file etc?



Any help appreciated



Thanks

I am now having the same problem. Were you able to find a solution?



Tom

[aarenas52]

A fix that worked for me.



So a fix that worked for me:



1. Navigate to C:\Users\YOURUSERNAME\Saved Games\DCS\Config\options.lua

2. Open the file with administrator privileges in the text editor of your choice (I use Notepad++)

3. Find the line that contains Width (line 83 if you are using notepad ++, this is the with of your screen.)

4. Change what ever number that may be to the screen width of the screen you own. So if your main screen is 1920x1080p, set that number to 1920

5. Save the file




this fixed it for me hope it helps others!

[EvilBert VR]

Hi all,



hope this is the right place to post.





Yesterday I received the same Error message when trying to start DCS from the Pimax-Tool. I have succesfully imported DCS into the Pimax menu but no success in starting DCS from there. NOT VIA STEAM-VR!!

The message keeps showing.



The proposed solutions didn't work.



Any ideas?





THX, EB

[PhilTheBeat]

Hello,



same problem here, even changing the values in line 51 or 83 in the options.lua



I run a 5760x1080

[ctguy1955]

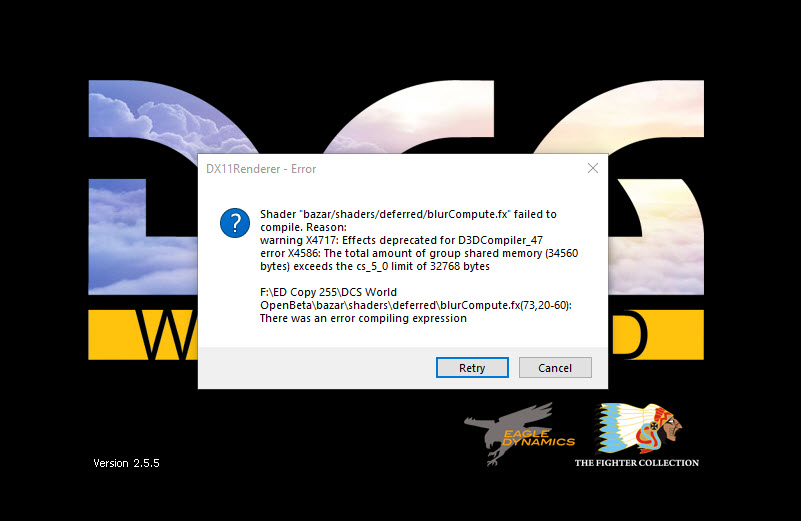

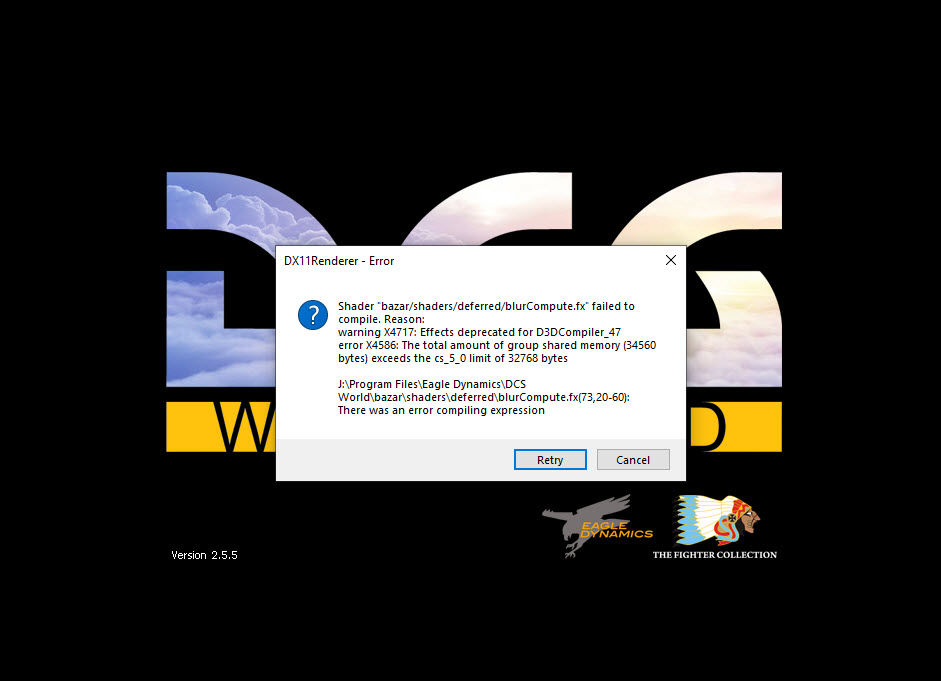

2.5.5 error and cant get Open beta to work



2016, and this is happening to me in June 2019.



Version 2.5.5 and they did come out with a small update.



Release Version works fine but not the update.



I have used a brand new 500 gig hd and installed open beta and

I get the same error.



I have tried torrent and HTTP and nothing helps and I just bought the Dora A8 and can only use it in the Open Beta.



I have a ticket with ED and they want Me to send logs, which I did.

Edited June 18, 2019 by ctguy1955

[PhilTheBeat]

The same thing happened to me, I wanted to see what it would look like all maxed out, not that my PC would be able to play it that way!



Here is how to fix it:



1. Navigate to C:\Users\YOURUSERNAME\Saved Games\DCS\Config\options.lua

2. Open the file with administrator privileges in the text editor of your choice (I use Notepad++)

3. Find the line that contains SSAA (line 48 in my options.lua file)

4. Change ["SSAA"] = 2, to ["SSAA"] = 0,

5. Save the file




Happy flying!





Thanks !! Fixed...

[Maddogs]

Delete the options.lua file and restart worked for me guys.
