Exporting thrustmaster MFD's



Hi guys Need a little help on exporting MFD's to the Thrustmaster 5" displays. The thread says the DDI's are exportable now but when I go in to game Systems (in game) I see the following in the dropdown list for monitors





SYSTEM





Monitors----------------- 1 screen (selected)



(choice)------------------3 screen (not selected)



camera + LMFCD --------(on right side)



camera + LMFCD



camera + LMFCD automatic placement



camera + RMFCD _______(on left side)



camera + RMFCD



camera + RMFCD automatic placement



MFCD



Stereo

________________________________________________



Resolution ______________1920x1080



Aspect Ratio-------------------16:9



Cockpit Displays---------------1024







So to get the MFD's to display in the F 18 sim which program do I need to select? And is there any thing else, that I have to do to get the screens to display the in cockpit DDI's.



I'm not a computer nerd so a little help would be great help. Been searching on the forum and found a post that " stated monitor set up make sure script is using Left_MFCD and Right_MFCD viewport labels" but that is not listed in the dropdown list, so I need a little help, hell I need a lot of help!!!

[coldViPer]

Have you read this thread?



https://forums.eagle.ru/showpost.php?p=2616874&postcount=799



It's quite old but hope it helps.

[WeakLink]

coldViper thanks for the reminder, read it long ago and had forgotten about it. I read that Wags had resolved the export problem or it was on the way and with the change in the System page I assume he had activated that change. The last time I tried to activate my 2 MFD's with the A-10C model I got 1/3 screen missing and could not access the EXIT button to get out of it and that was crazy. Had to write the developers to get out of it so I could even play DCS. So I was hoping that Wags had solved the export problem. I guess I will have to take another look at that post and see what I can do with it. Thanks for the reminder.

[mikemadmax20]

Finally got Left and Right MFD's (DDI's) working on my 2nd monitor and placed just where I want them. However, I can't export The AMPCD within my 3rd TMMFD. I've read a ton of posts but, nothing seems to work. I'm trying to export the AMPCD outside of Helios as I've done with the L & R DDI's using JSGME. Also want to follow with IFEI and RWR placements on 2nd monitor - outside of Helios. I plan to populate the rest of the instrument panels using Capt. Zeen's Helios profile as soon as I crack the AMPCD/IFEI/RWR export issue. Could use some clear guidance here. Thanks in advance for your help Guys. You're the best.

[feefifofum]

TEWS init file located at DCS World OpenBeta\Mods\aircraft\FA-18C\Cockpit\Scripts\TEWS\indicator

Add the following lines using Notepad++ or other programming-related text editor

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")
try_find_assigned_viewport("F18TEWS")



Create the F18TEWS viewport in your monitor config .lua at the desired position. NOTE: by default, the lines are not clearly visible in both the cockpit and export. Default settings are fine in the pit, but don't show well on the export screen. Setting line thickness to 7 works well for my export screen, but becomes illegible in the cockpit. This was a non-issue for me as I reference my export screen exclusively for these instruments but just something to keep in mind.



AMPCD init file located at DCS World OpenBeta\Mods\aircraft\FA-18C\Cockpit\Scripts\Multipurpose_Display_Group\AMPCD\indicator

Add the following lines using Notepad++

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")
try_find_assigned_viewport("F18CENTER")

Add the F18CENTER viewport to your monitor config lua at the desired position.



IFIE init file found at F:\Games\DCS World OpenBeta\Mods\aircraft\FA-18C\Cockpit\Scripts\IFEI\indicator



Add the following lines using Notepad++

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")
try_find_assigned_viewport("F18IFEI")



Add the F18IFEI viewport to your monitor config lua at the desired position.

[mikemadmax20]

Thanks for the quick response FeeFiFoFum. Now that's what I call a clear, definitive, detailed and, unambiguous "HOW TO" directions. However, a couple of quick questions:



On which line do I insert the "dofile" ?



Please take a look at my AMPCD lua below:



dofile(LockOn_Options.common_script_path.."devices_defs.lua")

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/MDG_materials.lua")

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua") try_find_assigned_viewport("F18_AMPCD")



opacity_sensitive_materials =

{

MDG_font_name(MDG_SELF_IDS.HI),

MDG_material_name(MDG_SELF_IDS.HI),

"MPD_DMC_OUTLINE",

"font_MPD_DMC_outline",

"font_MPD_DMC_main",

}



-- Parameters handling functions

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/InitParams.lua")



indicator_type = indicator_types.COMMON



-- for test purposes HUD only added

purposes = {render_purpose.GENERAL, render_purpose.HUD_ONLY_VIEW}

shaderLineParamsUpdatable = true

shaderLineDefaultThickness = 0.8

shaderLineDefaultFuzziness = 0.5

shaderLineDrawAsWire = false

shaderLineUseSpecularPass = true



-- Parameters to customize common symbology properties

writeParameter("MDG_init_specifics", LockOn_Options.script_path.."Multipurpose_Display_Group/AMPCD/indicator/AMPCD_specifics.lua")

writeParameter("MDG_init_DEFAULT_LEVEL", 8)



-- page specific for the indicator, implements indicator border/FOV

BasePage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_base.lua"

-- Cautions/Advisories and MENU label

IndicatorSpecificPage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/CautAdvAndMenuPage.lua"

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_AdvisoriesDefs.lua")

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Common_init.lua")



------------------------ added by Capt Zeen



dofile(LockOn_Options.common_script_path.."ViewportHandling.lua") try_find_assigned_viewport("F18_AMPCD")



------------------------------------- end of added by Capt Zeen





-- for test purposes HUD only added

--ViewportHandling

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")

----------------------------------------------------------------------

local w = LockOn_Options.screen.width;

local h = LockOn_Options.screen.height;



if LockOn_Options.screen.oculus_rift then

local ui_x,ui_y,ui_w,ui_h = get_UIMainView()

w = ui_w;

h = ui_h;

end



local size = 0.5 * h

if size > h then

size = h

end

if size > 0.5 * w then

size = 0.5 * w

end



dedicated_viewport = {0.5 * w - 0.5 * size,h - size,size,size}

dedicated_viewport_arcade = dedicated_viewport

----------------------------------------------------------------------

try_find_assigned_viewport("CENTER_MFCD")

[mikemadmax20]

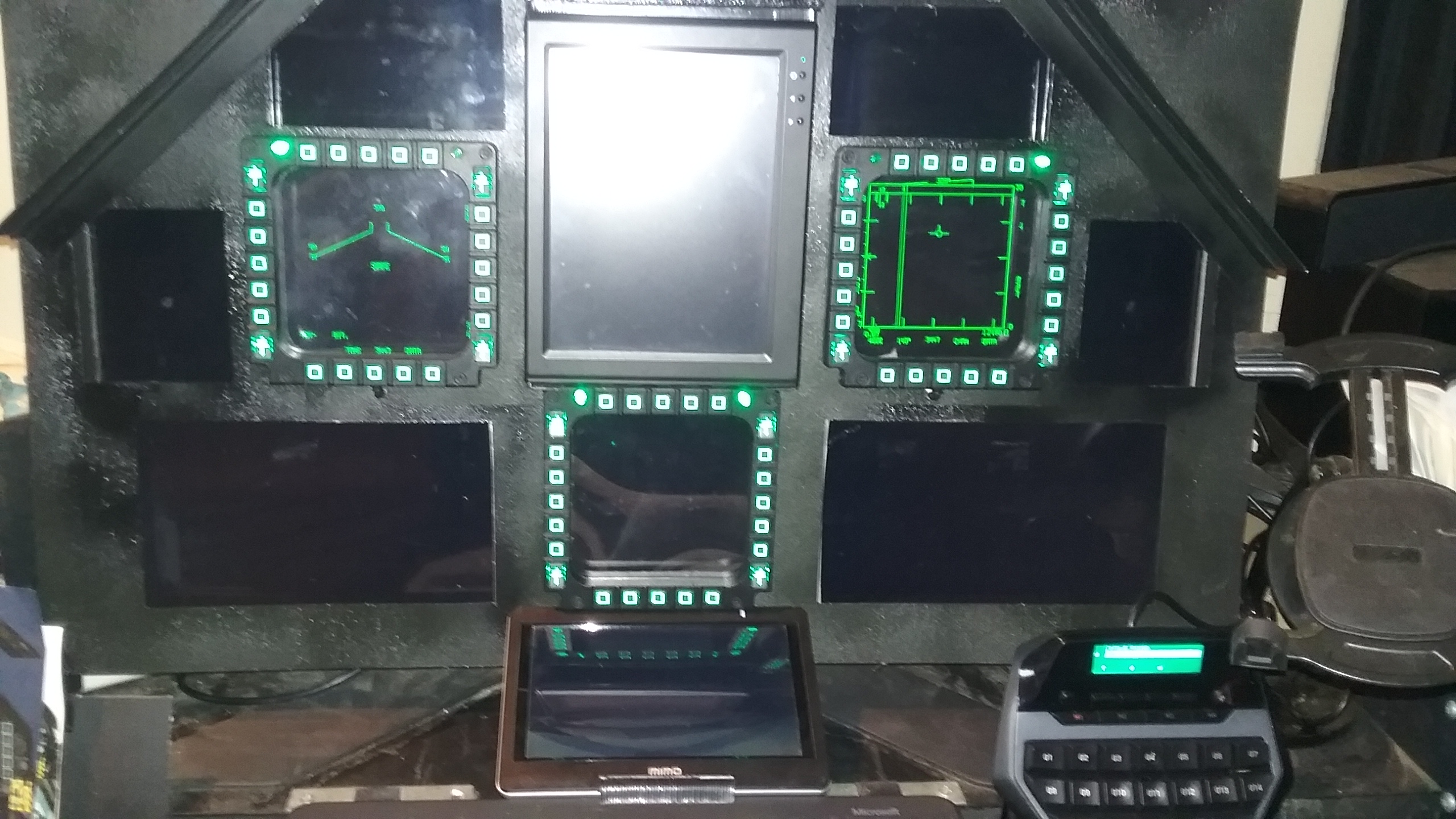

BTW, here's my setup.

[feefifofum]

The issue you are having is likely due to repeated calls to viewporthandling and multiple viewport names.

At the top you have:

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua") try_find_assigned_viewport("F18_AMPCD")

Halfway down you have

------------------------ added by Capt Zeen

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua") try_find_assigned_viewport("F18_AMPCD")

------------------------------------- end of added by Capt Zeen



And at the bottom you have

try_find_assigned_viewport("CENTER_MFCD")







Basically looks like you used a workaround from before display exports were officially supported, plus ED's official inclusion of exports, plus maybe something you tried to add yourself.

Edited December 16, 2018 by feefifofum

[mikemadmax20]

Yep. You got that right. Now what.

[mikemadmax20]

What should I cut and replace with a working script?

[mikemadmax20]

Once I have a workable convention for the AMPCD script, I'm confident I'll get the RWR and IFEI as well. I just need a correct base point to work from.

[mikemadmax20]

Also, it seems that you're suggesting that viewport("F18CENTER") callback is the way to go as opposed to viewport("F18_AMPCD) in my script above.

[mikemadmax20]

And again, thanks a bunch for helping me work this out. I realize that your time must be at a premium. But extending your expertise is really appreciated. As soon as I get this under my belt my belt, I'll pay it forward as well. A band of brothers we are. Marine Vet here.

[feefifofum]

(1) call to viewport handling

(1) viewport name is all you need. You can call it "poop" if you want as long as you define the "poop" viewport in your monitor setup .lua ;)



dofile(LockOn_Options.common_script_path.."devices_defs.lua")
dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/MDG_materials.lua")




opacity_sensitive_materials =
{
MDG_font_name(MDG_SELF_IDS.HI),
MDG_material_name(MDG_SELF_IDS.HI),
"MPD_DMC_OUTLINE",
"font_MPD_DMC_outline",
"font_MPD_DMC_main",
}

-- Parameters handling functions
dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/InitParams.lua")

indicator_type = indicator_types.COMMON

-- for test purposes HUD only added
purposes	= {render_purpose.GENERAL, render_purpose.HUD_ONLY_VIEW}
shaderLineParamsUpdatable = true
shaderLineDefaultThickness = 0.8
shaderLineDefaultFuzziness = 0.5
shaderLineDrawAsWire = false
shaderLineUseSpecularPass = true

-- Parameters to customize common symbology properties
writeParameter("MDG_init_specifics", LockOn_Options.script_path.."Multipurpose_Display_Group/AMPCD/indicator/AMPCD_specifics.lua")
writeParameter("MDG_init_DEFAULT_LEVEL",

-- page specific for the indicator, implements indicator border/FOV
BasePage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_base.lua"
-- Cautions/Advisories and MENU label
IndicatorSpecificPage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/CautAdvAndMenuPage.lua"
dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_AdvisoriesDefs.lua")
dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Common_init.lua")



-- for test purposes HUD only added
--ViewportHandling
dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")
----------------------------------------------------------------------
local w = LockOn_Options.screen.width;
local h = LockOn_Options.screen.height;

if LockOn_Options.screen.oculus_rift then
local ui_x,ui_y,ui_w,ui_h = get_UIMainView()
w = ui_w;
h = ui_h;
end

local size = 0.5 * h
if size > h then
size = h
end
if size > 0.5 * w then
size = 0.5 * w
end

dedicated_viewport = {0.5 * w - 0.5 * size,h - size,size,size}
dedicated_viewport_arcade = dedicated_viewport
----------------------------------------------------------------------
try_find_assigned_viewport("whatever")

Edited December 16, 2018 by feefifofum

[mikemadmax20]

OK, here's my AMPCD lua:



dofile(LockOn_Options.common_script_path.."devices_defs.lua")

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/MDG_materials.lua")

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua") try_find_assigned_viewport("CENTER_MFCD")



opacity_sensitive_materials =

{

MDG_font_name(MDG_SELF_IDS.HI),

MDG_material_name(MDG_SELF_IDS.HI),

"MPD_DMC_OUTLINE",

"font_MPD_DMC_outline",

"font_MPD_DMC_main",

}



-- Parameters handling functions

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/InitParams.lua")



indicator_type = indicator_types.COMMON



-- for test purposes HUD only added

purposes = {render_purpose.GENERAL, render_purpose.HUD_ONLY_VIEW}

shaderLineParamsUpdatable = true

shaderLineDefaultThickness = 0.8

shaderLineDefaultFuzziness = 0.5

shaderLineDrawAsWire = false

shaderLineUseSpecularPass = true



-- Parameters to customize common symbology properties

writeParameter("MDG_init_specifics", LockOn_Options.script_path.."Multipurpose_Display_Group/AMPCD/indicator/AMPCD_specifics.lua")

writeParameter("MDG_init_DEFAULT_LEVEL", 8)



-- page specific for the indicator, implements indicator border/FOV

BasePage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_base.lua"

-- Cautions/Advisories and MENU label

IndicatorSpecificPage = LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/CautAdvAndMenuPage.lua"

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Pages/MPD/MPD_AdvisoriesDefs.lua")

dofile(LockOn_Options.script_path.."Multipurpose_Display_Group/Common/indicator/Common_init.lua")



-- for test purposes HUD only added

--ViewportHandling

dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")

----------------------------------------------------------------------

local w = LockOn_Options.screen.width;

local h = LockOn_Options.screen.height;



if LockOn_Options.screen.oculus_rift then

local ui_x,ui_y,ui_w,ui_h = get_UIMainView()

w = ui_w;

h = ui_h;

end



local size = 0.5 * h

if size > h then

size = h

end

if size > 0.5 * w then

size = 0.5 * w

end



dedicated_viewport = {0.5 * w - 0.5 * size,h - size,size,size}

dedicated_viewport_arcade = dedicated_viewport

----------------------------------------------------------------------

try_find_assigned_viewport("CENTER_MFCD")

[mikemadmax20]

And here's my Monitor Setup lua:



--***DO NOT MODIFY THESE COMMENT LINES***

--A10CVirtualCockpitServer v0.0.0.0

--LOCATION Config\MonitorSetup

--HOOKTO

--Monitor lua



_ = function(p) return p; end;

name = _('FA18C Virtual Cockpit Server');

Description = 'Setup for FA18C Virtual Cockpit Server MFCD and AMPCD Exports.'

Viewports =

{

Center =

{

x = 0;

y = 1;

width = 3440;

height = 1440;

viewDx = 0;

viewDy = 0;

aspect = 2.9;

}

}



LEFT_MFCD =

{

x = 1257;

y = 1758;

width = 312;

height = 312;

}



RIGHT_MFCD =

{

x = 2177;

y = 1730;

width = 312;

height = 312;

}



--AMPCD

CENTER_MFCD =

{

x = 1405;

y = 1770;

width = 315;

height = 312;

}



UIMainView = Viewports.Center

[mikemadmax20]

In AMPCD lua I've changed line 29 to reflect:



writeParameter("MDG_init_DEFAULT_LEVEL")



I don't know where that emoji came from.

[Sarge55]

Looks like you have "commented out" your AMPCD CENTER_MFCD in your monitor setup. It shows two -- infront of AMPCD CENTER_MFCD=

[mikemadmax20]

Hi Sarge55:

I believe you've peg it for me. After I made the change in my Monitor Setup, I not only didn't get the AMPCD exported to me second monitor, I lost the in-game cockpit AMPCD render as well. To be frank, I'm throwing sh.t on to wall and hoping it sticks. So, if I may put the beg on you - would you kindly advise exactly what changes I should make. And equally as important - where the changes should be made (both in my AMPCD lua and Monitor Setup lua). FeeFiFoFum has been a tremendous help but, I'd appreciate your further input as well. The more eyes on this the better.

Thanks in advance. Keep em Fly'n.

[Sarge55]

Hi Mike,



I'm not a programmer, just picked up a few things along the way after many years playing with DCS.



Here is the monitor setup file I use for my Hornet and Harrier export. DCS will ignore the Harrier settings so you can leave them in or delete if you wish.



You will have to modify the x,y locations to match your setup.



I have a 4240x1080 setup, monitor one is 2560x1080 and monitor 2 (exported to) is 1680x1050. I have 4 Cougar MFD's afixed to my lower monitor so the exports are located to display inside them hence the odd size and placement.





_ = function(p) return p; end;

name = _('Harrier Hornet');

Description = 'Harrier,F-18C';

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 2560;

height = 1080;

viewDx = 0;

viewDy = 0;

aspect = 2.3703703703704;

}

}



-- Harrier



LEFT_MFCD =

{

x = 2560;

y = 12;

width = 380;

height = 380;

}



RIGHT_MFCD =



{

x = 3850;

y = 3;

width = 380;

height = 380;

}



-- F-18C



F18_LEFT =

{

x = 2555;

y = 0;

width = 400;

height = 400;

}



F18_RIGHT =

{

x = 3840;

y = 0;

width = 400;

height = 400;

}



F18_RWR =

{

x = 3850;

y = 420;

width = 200;

height = 200;

}



F18_AMPCD =

{

x = 3200;

y = 280;

width = 410;

height = 380;

}



F18_IFEI =

{

x = 3110;

y = 0;

width = 450;

height = 200;

}



UIMainView = Viewports.Center





I've attached the .init file for the AMPCD. I've also attached the IFEI .init I find it handy having it more visible. Eyes are starting to go being on the wrong side of 60...



I should say just in case you're not aware, use Notepad++ to make changes to your files. You'll have to ask a programmer what the difference is between Windows Notepad and Notepad++ but apparently it can screw up the modifications.



BTW I use OvJME to uninstall and re-install my mods when there is an update. Makes it a lot easier.



If you have any questions I'll check back again or PM me.

Harrier Hornet.lua

AMPCD_init.lua

IFEI_init.lua

[mikemadmax20]

Hi again Sarge:



Thanks a bunch for working on this with me. You're providing me with a clearer understanding of the mod process. Its really appreciated.



I've implemented your AMPCD lua, along with your monitor setup lua (minius Harrier). Still no joy on AMPCD placement on second monitor.



Quick question though. Do I have to pass these lua's through JSGME or OvJME first?



Because even though I've changed the scripts to mirror your's, my F18C saved lua is not showing up in my in game options monitor setup pulldown. BTW, I'm also using Notepad ++. And we've got something else in common. I'm also north of sixty, kissing 68.



Note:

My primary is a Dell Curved 34" @ 3440x1440 and, secondary



AMPCD_init.lua

FA18C.lua



Thanks again, and hope to chat soon.

[mikemadmax20]

Secondary is a LG 32" @ 1920x1080

[Peaches]

Has anyone figured out how to get a legible RWR export to work? Just using a viewpoint results in thin, spidery lines/symbols.
