question after launch of a sparrow

[sobe]

After you shoot a sparrow, do you have to keep the steering dot inside the ASE? What about the TD box-does it have to be kept inside the ASE?

Does anything have to be kept within the ASE?





I ask this because I understand that the Sparrow does not have its own radar.

[IvanK]

No to either just keep the Tgt inside the radar Gimbal limits ... i.e. on scope

[Silversmith]

As long as the radar maintains its lock until the target is hit (or not!) the steering dot/TD box do not need to be kept in the ASE. All the Dot/ASE is for is to give the missile an adequate lead on the target at the point of firing and to assist steering the plane to the best release point.

[sobe]

Thanks to all for the responses.

[Papa Spardy]

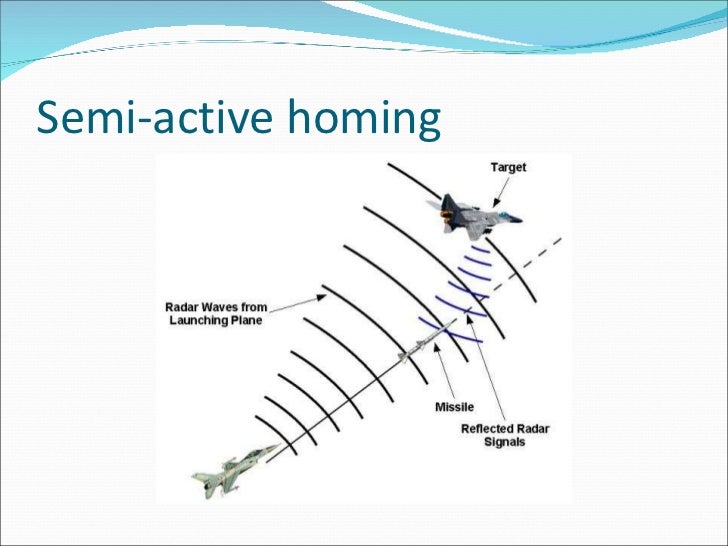

This is the image the help me understand semi active homing the best





[Alphamale]

I think an argument can be made for keeping the steering dot inside your circle...doing so, helps you to get a better angle on the target if we have to go to guns, at least it does for me :)

[Sandman1330]

An argument can also be made for the opposite:
