Joystick curves settings

[Aries101]

Hello.





At the moment I am trying to learn avoiding too fast aproach to runway on landing :lol: , and as part of that process I wanted to ask what is curvature settings you can recomend me (I guess i wan't ones that would make my life easier while flying and landing)





At the moment, both of my cyclics are at 20 and rotor at 30 .

I wonder if there is any better settings for it. I have Thrustmaster Hotas X.





Thank you

[thrustvector]

I don't use any, but its personal preference really.

they wont really help you slow down just possibly make your controls slower/longer.

just practise coming in then trimming up to slow down and take care of collective, you will get it in the end

[Aries101]

Took down curves on collective to 0 and left rudder to 15 to have more precise control and it works nicely.





Also new approach to landing is never let plane go below 5 M/S (think it is righ measure) and it worked. as soon ad my VS deops below 1 I know I am doomed.





Now I need to fly more and practise. (I hope they will fix crashing bug son) I love flying with huey.:(

[FragBum]

I would suggest you use saturation on X and Y for cyclic to reduce sensitivity, curvature would give you odd rate of change over centre which you do not want.



Keep in mind the position of the cyclic changes as center of gravity changes and the balance point will not be in the center. Saturation on the other hand reduces (or increases) the sensitivity of the control in a linear fashion over the full travel.



Ditch the center detent it's not something thats there in real life.



Collective you can run some curvature set the input type to "slider" then you can taylor the transfer curve to suit. Especially helpful to give some fine adjustment at the lower end of travel on those little sliders used on joysticks.



Torque pedals about the only thing you can do is apply curvature to give the sense of more authority from pedal input.



Pick your landing spot keep your IAS at about 60Kts and VSI at no more than 500 FT/minute aim for 60Kts and 500Ft/min when your about 20 Ft above the ground loose speed and transition in to a hover. Start with the full runway and practice till you arrive at a hover over the piano keys. As you descend keep an eye on rotor RPM you just need to balance descent rate speed and rotor RPM as you slow through about 40Kts you will need to put in some left torque pedal in to keep it straight.



What you do not want to do is find your self at height and no IAS at any height above 20ft, well initially as it is way to easy to drop the bird and get into VRS.



Happy trails. :thumbup:



If your new to helicopters practice hover to move and moving to hover.

[DonH]

FragBum



This helped me a lot to reduce oversensitivity to Cyclic response in the Huey.



Thanks!

Cheers!

[Chump]

DonH, I'm curious as to what settings you found most effective?

[Sparks]

DonH, I'm curious as to what settings you found most effective?



Me too.



Regards

Al

[Tanuki44]

Hello,



Here are my settings, I have a slight curvature for the ROLL and PITCH but the best would probably be to leave it at 0 because the center is constantly changing.



ROLL and PITCH

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 70

-Curvature : 0



RUDDER

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 100

-Curvature : 14



COLLECTIVE

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 100

-Curvature : 19

Cursor checked



With my homemade equipment (near-reality reproduction), I have adjusted the saturation Y (70) with respect to the real course of the cyclic (-163.8 to 163.8 mm) see manual page 40



and lots and lots of free flight training and reading to understand flight dynamics

Edited May 19, 2021 by Tanuki44

[Raisuli]

I went from no curve to y sat 70 and 21 curve on roll and pitch. Made almost as much difference holding a (relatively) stable hover as switching from a WH stick to a Virple Warbird with light springs and light center (I do fly fast movers more than egg beaters).





I say relatively; I wouldn't want to stand next to me loading a stretcher at a hover, even with one skid on the ground. Something I've done for real with a much, much, much (much) better pilot in the right hand seat.





Some day I'll be good enough to stand next to my own helo. In the mean time I'm getting landings down to a CEP of about 5 meters, which is also a dramatic improvement.

[RazorbackNL]

Hello,



Here are my settings, I have a slight curvature for the ROLL and PITCH but the best would probably be to leave it at 0 because the center is constantly changing.



ROLL and PITCH

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 70

-Curvature : 10



RUDDER

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 100

-Curvature : 14



COLLECTIVE

-Dead Zone : 0

-Saturation X : 100

-Saturation Y : 100

-Curvature : 19

Cursor checked



With my homemade equipment (near-reality reproduction), I have adjusted the saturation Y (70) with respect to the real course of the cyclic (-163.8 to 163.8 mm) see manual page 40



and lots and lots of free flight training and reading to understand flight dynamics :smilewink:



I would love to see a picture of your setup, sir.

Thanks.

[jnr4817]

I'd love a pic too.

[Zap921]

I would recommend a negative curve on the Collective, this gives you more sensitivity in the upper spectrum of the curve which is where you'll spend most of your time.  Check this out as it applies to the Huey also.

DCS Gazelle

[Tanuki44]

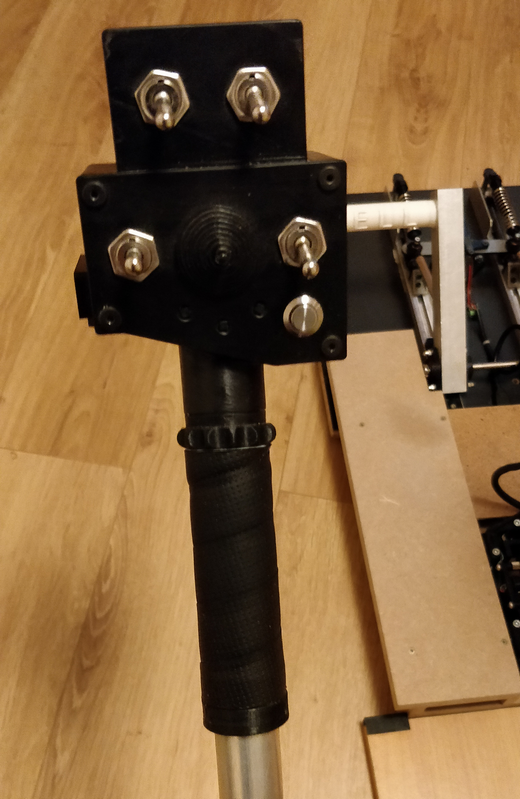

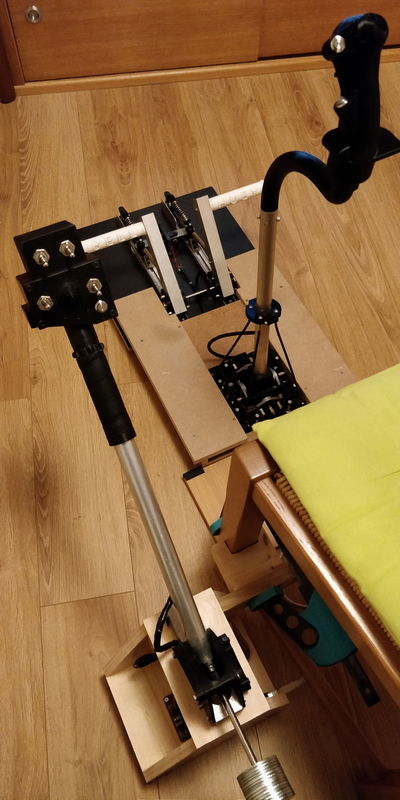

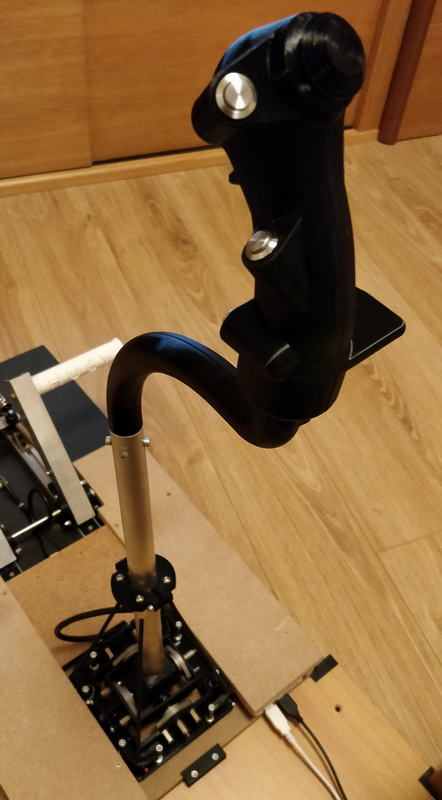

Sorry, I hadn't seen RazorbackNL's request, now the handle of the cyclic is interchangeable, I am finishing the handle of the Gazelle.



I also changed the settings, no curve, just saturation adjustment for the sensitivity following the advice of FragBum.





[jnr4817]

Whats the full travel of the collective. I am trying to set mine up now. I have the k-51, it has 55* of travel. I am trying to adjust so its as close to 1:1. right my saturation is set to 60%.

[Tanuki44]

This is my curve for 35° of travel and I use sensors HALL for better precision and stability.



I reproduced this, but on the 35°, I never use the maximum.





Edited April 4, 2021 by Tanuki44
