Posted (edited)

Very simple...
The procedure proposed by Hollywood 315 ....
If I have to do it in addition to the Mig28 also for the mig45
How can I do it at the same time?





Il 5/12/2020 at 09:16, Hollywood_315 ha scritto:

Step 1



Edit the TX2 Press and Release command in the profile (which are mapped to a throttle button)
Create a conditional block around the plugin call using the exposed variable for the active module name:



- Go to command edit menu Other -> Advanced -> Begin a Conditional (If statement) block -> Single condition -> Text
- Variable/Token {TXT:vaicompro.playerdata.currentmodule.name} Does Not Equal Mig28 Or Mig45 <--Right?!?!
- Move the 'execute external plugin 'VAICOM PRO 2.5' line down to sit between Begin and End so result looks like this



Begin Text Compare {TXT:vaicompro.playerdata.currentmodule.name} Does Not Equal ' Mig28' ?? presume (I still have to try) -> 'Mig28' Or 'Mig45'
    'execute external plugin 'VAICOM PRO 2.5'
End



In particular..
I want to use the stick trigger for the PTT of the Huey and Mi-24.





UPDATE

Solved thanks to all

Edited by fabio.dangelo
  • Like 1
Posted
Very simple...
The procedure proposed by Hollywood 315 ....
If I have to do it in addition to the Mig28 also for the mig45
How can I do it at the same time?



In particular..
I want to use the stick trigger for the PTT of the Huey and Mi-24.
Hold on, I'll post instructions. I think I see where it went wrong.
I'll just read up on exactly what Hollywood wrote, because I think I do it a little different.

Sent from my MAR-LX1A using Tapatalk

Posted (edited)

Okay, I try again.



Open and edit your VAICOM VoiceAttack profile.

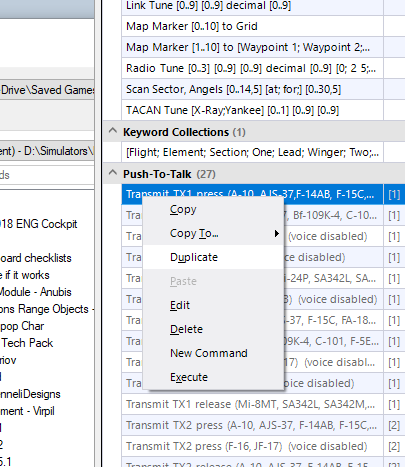

Rightclick your "TX1 press" and duplicate.






Check "When I say" And change it to "Transmit TX1 press (whateveryouwant)"

You can see how I do it, you might want to use "Helicopters" if they're all gonna be the same.

Uncheck "When I say"



Now click

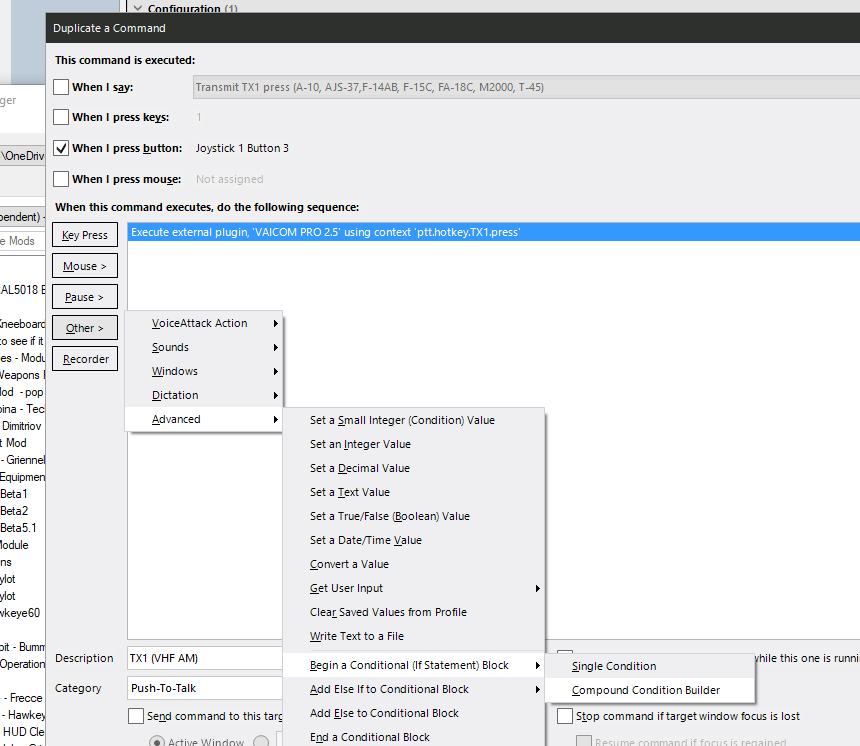

"Other -> Advanced -> Begin a conditional (If Statement) Block-> Compound Condition Builder"

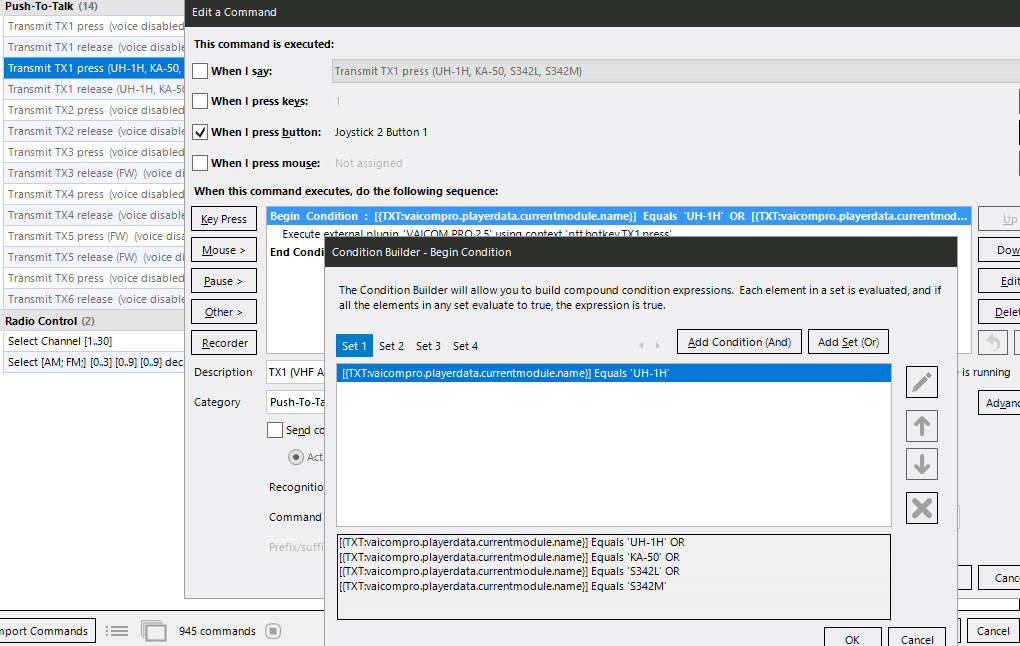

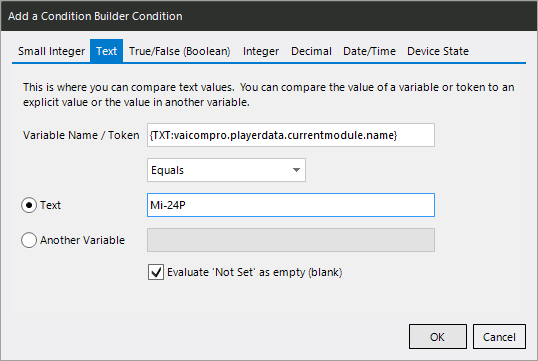

Fill in the fields as required, you can copy strings below.



{TXT:vaicompro.playerdata.currentmodule.name}

Mi-24P (or Helicopters if you want all helicopters)

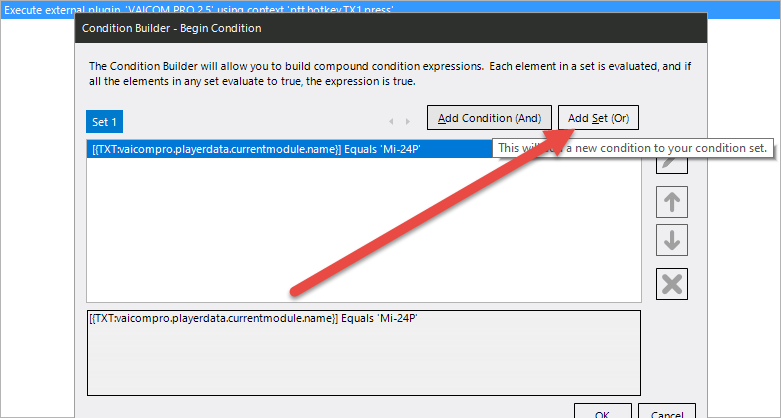

If you don't want to use it for all helicopters, click "Add Set (Or)"








And add the Huey

UH-1H






Now select the line and click up

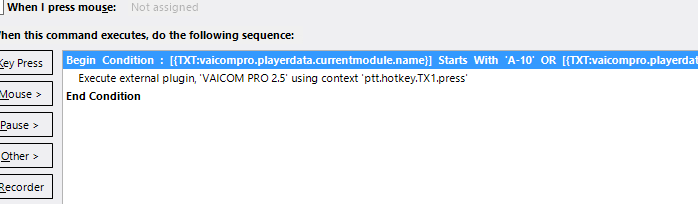

So it looks like this, and "OK"

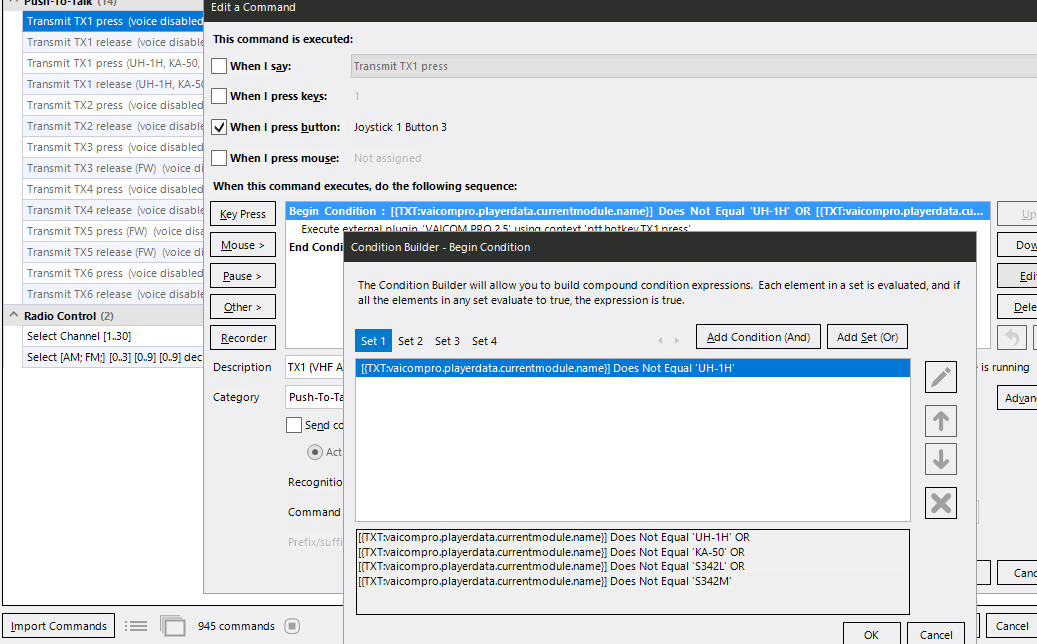

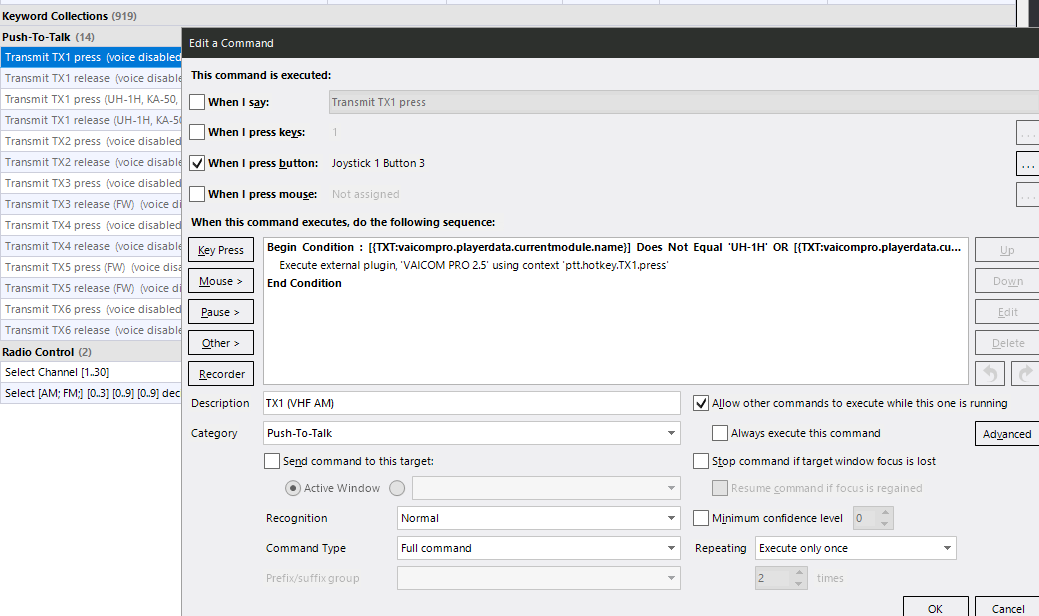

Now, do the same with your original "TX1 press" and use the "Does Not Equal" and fill in accordingly, by either using "Helicopters" or making two statements for the Mi-24P and UH-1H.

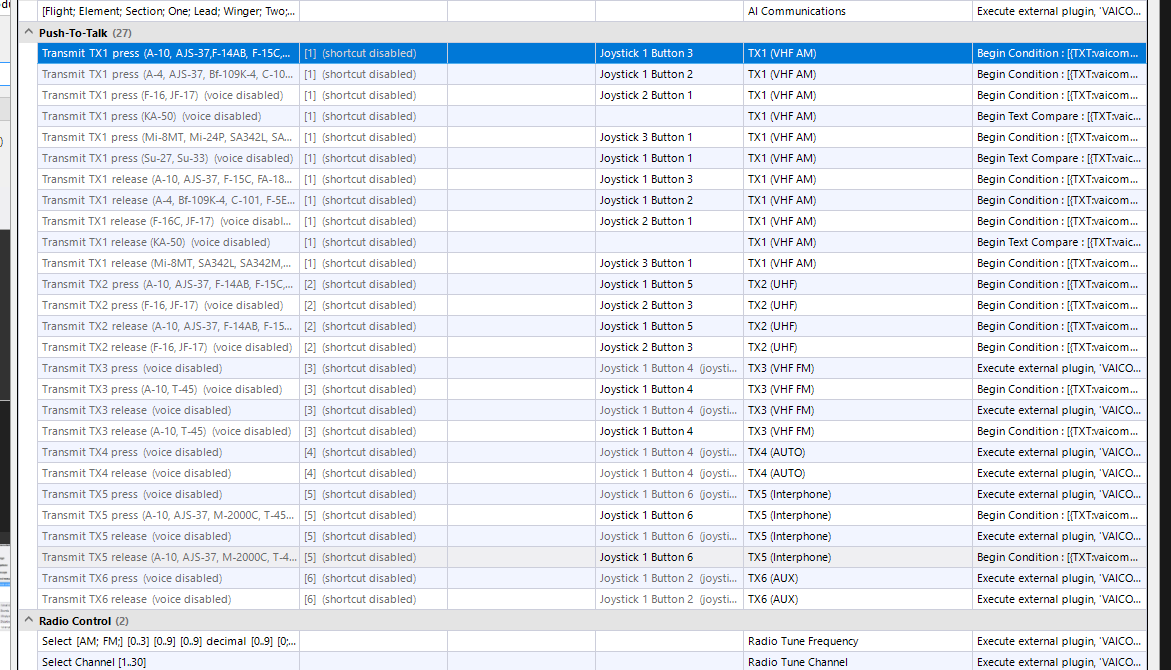

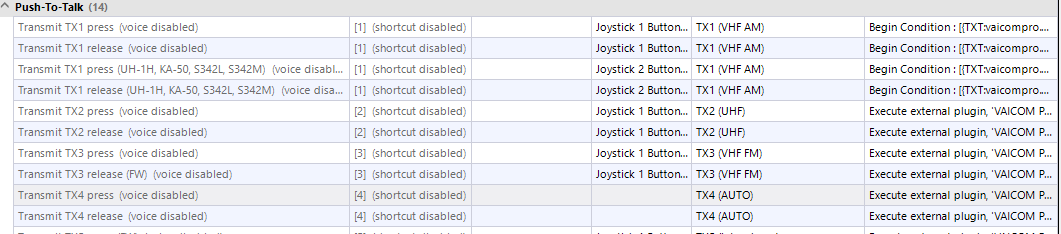

And you'll end up with a list like this.






If anything is unclear, just ask.

Hope this helps!

Cheers!









Edited by MAXsenna
  • Thanks 2
Posted
2 hours ago, fabio.dangelo said:

Very simple...
The procedure proposed by Hollywood 315 ....
If I have to do it in addition to the Mig28 also for the mig45
How can I do it at the same time?







In particular..
I want to use the stick trigger for the PTT of the Huey and Mi-24.





UPDATE

Solved thanks to all



LOL!!! Didn't see that while I made my long post. HAHA

Glad you got it working! 😊

Posted

I made the "per aircraft PTT" work for the HIND and HIP.

So far, so good.

Now for my favorite ride, the F-14. Is there a way to discriminate between RIO and Pilot.



For the pilot, everything is set, but I would like to change PTT in the RIO Pit to the Pedal switches and leave the PTT on the HOTAS alone. As far as I found out, Vaicom just detects the F-14 as a whole, or are there ways to do the differential setup?

  • 3 weeks later...
Posted (edited)
On 6/30/2021 at 2:07 PM, MAXsenna said:

Okay, I try again.



Open and edit your VAICOM VoiceAttack profile.

Rightclick your "TX1 press" and duplicate.






Check "When I say" And change it to "Transmit TX1 press (whateveryouwant)"

You can see how I do it, you might want to use "Helicopters" if they're all gonna be the same.

Uncheck "When I say"



Now click

"Other -> Advanced -> Begin a conditional (If Statement) Block-> Compound Condition Builder"








Fill in the fields as required, you can copy strings below.



{TXT:vaicompro.playerdata.currentmodule.name}

Mi-24P (or Helicopters if you want all helicopters)






If you don't want to use it for all helicopters, click "Add Set (Or)"








And add the Huey

UH-1H






Now select the line and click up








So it looks like this, and "OK"








Now, do the same with your original "TX1 press" and use the "Does Not Equal" and fill in accordingly, by either using "Helicopters" or making two statements for the Mi-24P and UH-1H.








And you'll end up with a list like this.






If anything is unclear, just ask.

Hope this helps!

Cheers!



hi @MAXsenna , again thanks a lot for the write-up ! couple of questions:

- where can i find an index of the modules syntax to be used in the conditional part: {TXT:vaicompro.playerdata.currentmodule.name} equals <module>

- why is the "{TXT:vaicompro.playerdata.currentmodule.name} DOES NOT EQUAL ..." statement needed? in other words, if every other TX node has a proper condition assigned to it, do i need the DOES NOT EQUAL ?



thanks!

Edited by HILOK
Posted

hi @MAXsenna , again thanks a lot for the write-up ! couple of questions:
- where can i find an index of the modules syntax to be used in the conditional part: {TXT:vaicompro.playerdata.currentmodule.name} equals module>
- why is the "{TXT:vaicompro.playerdata.currentmodule.name} DOES NOT EQUAL ..." statement needed? in other words, if every other TX node has a proper condition assigned to it, do i need the DOES NOT EQUAL ?

thanks!
Have a look at post #20 in this thread for module names.
I might update it after the weekend.
Correct, The "does not equal" is not needed, except for special cases, like if there is only one module that's different from all the others. Like in the example.
A better use will probably be like the MiG-21 uses different kneeboard keypresses compared to every other module to my knowledge.
But that's for ordinary VoiceAttack commands, and not VAICOM.
Cheers!

Sent from my MAR-LX1A using Tapatalk


hi @MAXsenna , again thanks a lot for the write-up ! couple of questions:
- where can i find an index of the modules syntax to be used in the conditional part: {TXT:vaicompro.playerdata.currentmodule.name} equals module>
- why is the "{TXT:vaicompro.playerdata.currentmodule.name} DOES NOT EQUAL ..." statement needed? in other words, if every other TX node has a proper condition assigned to it, do i need the DOES NOT EQUAL ?

thanks!
Have a look at post #20 in this thread for module names.
I might update it after the weekend.
Correct, The "does not equal" is not needed, except for special cases, like if there is only one module that's different from all the others. Like in the example.
A better use will probably be like the MiG-21 uses different kneeboard keypresses compared to every other module to my knowledge.
But that's for ordinary VoiceAttack commands, and not VAICOM.
Cheers!

Sent from my MAR-LX1A using Tapatalk

  • Like 1
Posted
On 7/23/2021 at 12:41 PM, MAXsenna said:

Have a look at post #20 in this thread for module names.
I might update it after the weekend.

ooops must have overlooked that, thanks 😊

  • Like 1
  • 3 weeks later...
Posted

This thread is gold. Save me from headache to assign the Tx. Thank you all. Cheers

  • Like 1

Mastering others is strength. Mastering yourself is true power. - Lao Tze

  • 1 month later...
Posted
On 12/5/2020 at 10:16 AM, Hollywood_315 said:

Step 1



Edit the TX2 Press and Release command in the profile (which are mapped to a throttle button)
Create a conditional block around the plugin call using the exposed variable for the active module name:



- Go to command edit menu Other -> Advanced -> Begin a Conditional (If statement) block -> Single condition -> Text
- Variable/Token {TXT:vaicompro.playerdata.currentmodule.name} Does Not Equal Mig28
- Move the 'execute external plugin 'VAICOM PRO 2.5' line down to sit between Begin and End so result looks like this



Begin Text Compare {TXT:vaicompro.playerdata.currentmodule.name} Does Not Equal ' Mig28'
    'execute external plugin 'VAICOM PRO 2.5'
End



Do this for both the Press and Release command.
The effect is that the default TX2 Press/Release combo is now no longer used with this module.



This bit doesn't seem to take effect for me. Step 2 adds the new PTT as desired, but the original PTT is still functional as in the Step 1 does absolutely nothing.


Posted

This bit doesn't seem to take effect for me. Step 2 adds the new PTT as desired, but the original PTT is still functional as in the Step 1 does absolutely nothing.

Post your code, and we'll sort it.
Cheers!

Sent from my MAR-LX1A using Tapatalk

Posted

Codes below in Spoilers.



I should mention that I tried adding the helis separately with the Helicopters keyword as you said, but that did not function at all.


Spoiler






Posted
7 hours ago, adirtynurse said:

Codes below in Spoilers.



I should mention that I tried adding the helis separately with the Helicopters keyword as you said, but that did not function at all.


  Hide contents








Okay. Had a look.

I suggest for simplicity, that you have one TX1 press/release that equals airplanes, and one the equals helicopters. Because in your first one, it seems to me, that you exclude the individual helicopters, but don't include any airplanes.

So if you do it that way, there is actually no reason to do any excluding. Quite sure I ran into the same issue, when I started fiddling with this. 😊

Anyway, I have attached my profile in a zip so you can have a look, and just copy over whatever you need.

The profile is not done in anyway. I usually just change it when I need to add something.

Hope this helps!

Cheers!

VAICOM PRO for DCS World (MAXsenna v1.0)-Profile.zip

Posted

That did. The "Does not equal" function doesn't seem to do anything at all.



Side question in your tutorial above you say to use "Helicopters" as the module name. It doesn't work for me. Is it supposed to? I mean is there another way of doing the PTTs other than just going through the whole list of modules?

Posted
That did. The "Does not equal" function doesn't seem to do anything at all.

Side question in your tutorial above you say to use "Helicopters" as the module name. It doesn't work for me. Is it supposed to? I mean is there another way of doing the PTTs other than just going through the whole list of modules?
Hmmm
That's strange, helicopters and airplanes should work, (on my cell, check manual), because it worked for me, until I decided to split them as I wanted different setup for some helicopters.
If I remember, I might test again, even with the "does not equal".
BTW. This is, (you probably know it anyway), all VoiceAttack stuff, it only passes it to VAICOM, which does the comparison with DCS. Hence the importance of casing and spelling.

EDIT: I might be incorrect about case. I will check it again, because "begins with" works for all A-10s with "Begins with A-10", but I'm not sure if "begins with su" works for all SUs.

Sent from my MAR-LX1A using Tapatalk


Posted

Okay. I looked into it and it seems for Helicopters and Airplanes to work the string is different.
Instead of {TXT:vaicompro.playerdata.currentmodule.name} we have to use {TXT:vaicompro.playerdata.currentmodule.cat}

Posted
Okay. I looked into it and it seems for Helicopters and Airplanes to work the string is different.
Instead of {TXT:vaicompro.playerdata.currentmodule.name} we have to use {TXT:vaicompro.playerdata.currentmodule.cat}
Ahhhh!!! Sorry for not getting back to you, and yes, I remember now. You're spot on.

Sent from my MAR-LX1A using Tapatalk

  • 9 months later...
  • 8 months later...
  • 1 year later...
Posted

@BIGNEWY @NineLine

I'll try again. Could you guys please pin this thread? The reason is that it so cumbersome to always have to find it when pointing to it for helping others. It includes a tutorial I have written and some files.

Cheers!
