Landing Gear Handle after Landing

[Cruizzzzer]

The F/A-18 manual states to put the “landing gear handle to the MECHANICAL STOP” after landing.

Unfortunately, I cannot find any reference of how to do that.



Is it the same 90 degree turn and pull as in the “emergency landing gear extension” procedure?



Does anyone know?



Thanks and greets…



Edited February 28, 2022 by NineLine
Removed 1.16 image

[TimRobertsen]

I'm guessing here: there is probably a mechanical lock (on the L/G handle) which activates once the Weight-on-wheels switch is activated, this ensures that the landing gear can't retracted on ground. (this is most preferable for obvious reasons :p)



So, in the case of this procedure-point: Most likely, the pilot is to check that the landing gear handle is completely down, and then (not sure on this one) try to put the handle on up-position: the handle should be locked. Thus, you have ensured that the Landing gear handle mechanical stop is fully engaged.



Could be wrong on this



Addition:

On some aircrafts there is a “trigger” around the index-finger-position on the L/G handle. The L/G handle can’t be moved if the trigger isn’t pulled, and held.

I’m not sure if the F/A-18 has this, but it might be that the “mechanical stop” ensures that the trigger can’t be pulled.

This makes it so that the pilot doesn’t have to try to put the L/G handle in the up-position, he (or she) only have to ensure that the trigger is locked: the L/G handle is locked.



So, in DCS-terms: once you have landed, all you have to do is to press "G"

Edited February 8, 2021 by TimRobertsen

[Cruizzzzer]

think I found it and you are right:

there seems to be a mechanical lock which extends when the a/c senses WOW on any of the three landing gears, that prevents the landing gear handle from being placed from DN to UP.

as it looks it is not simulated in DCS. tried to find a proper photo of the real f/a-18 gear handle, but couldn't find one...



but it doesn't really matter... now we know



thanks!

[Mo410]

If you can find a clear picture, you will see a white rectangle/square looking piece of metal that is just above the top part of the gear handle.  This is the mechanical lock that drops down when WOW occurs, no need to pull up on the handle to check.

[gunnie101]

guys on the classic hornet the wow switch is only on the starboard landing gear, when doing end to end testing (firing pulses at the bomb racks) we needed to stick a screwdriver under the switch (wow wedge)- note that for our testing that we needed to make the aircraft think it was flying by moving the switch on the nose wheel DDI(digital display indicator)



[HammerUK9]

5 hours ago, Mo410 said:

If you can find a clear picture, you will see a white rectangle/square looking piece of metal that is just above the top part of the gear handle.  This is the mechanical lock that drops down when WOW occurs, no need to pull up on the handle to check.



Thanks an awful lot for that - been trying to confirm in the Home Cockpits section what the white part was, I'd thought it was possibly part of an uplock control. Much appreciated!

[Cruizzzzer]

@Hammer

didnt you post a picture of the landing gear handle including the MECH STOP?! think I saw it in one of the threads where you posted a reply. afraid I cannot find the post anymore. could you post the picture once more?

thanks!

[mongo52]

The white tab at the 12oclock position is the lockout.

[Cruizzzzer]

PERFECT!



thanks!

[HammerUK9]

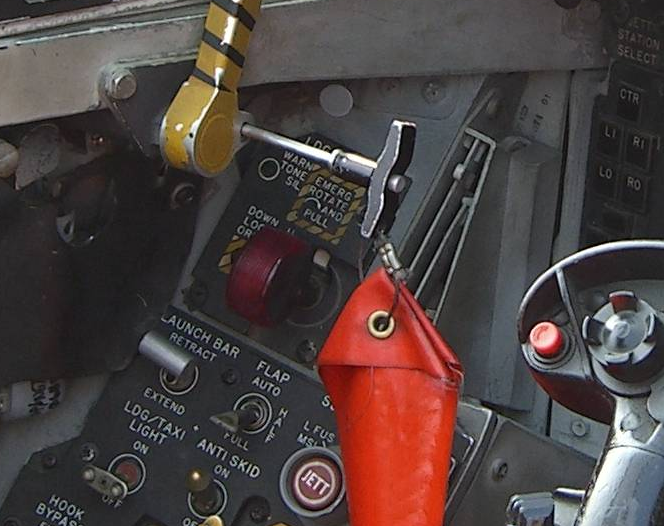

That's considerably better than any of the pictures I'd have come back with!

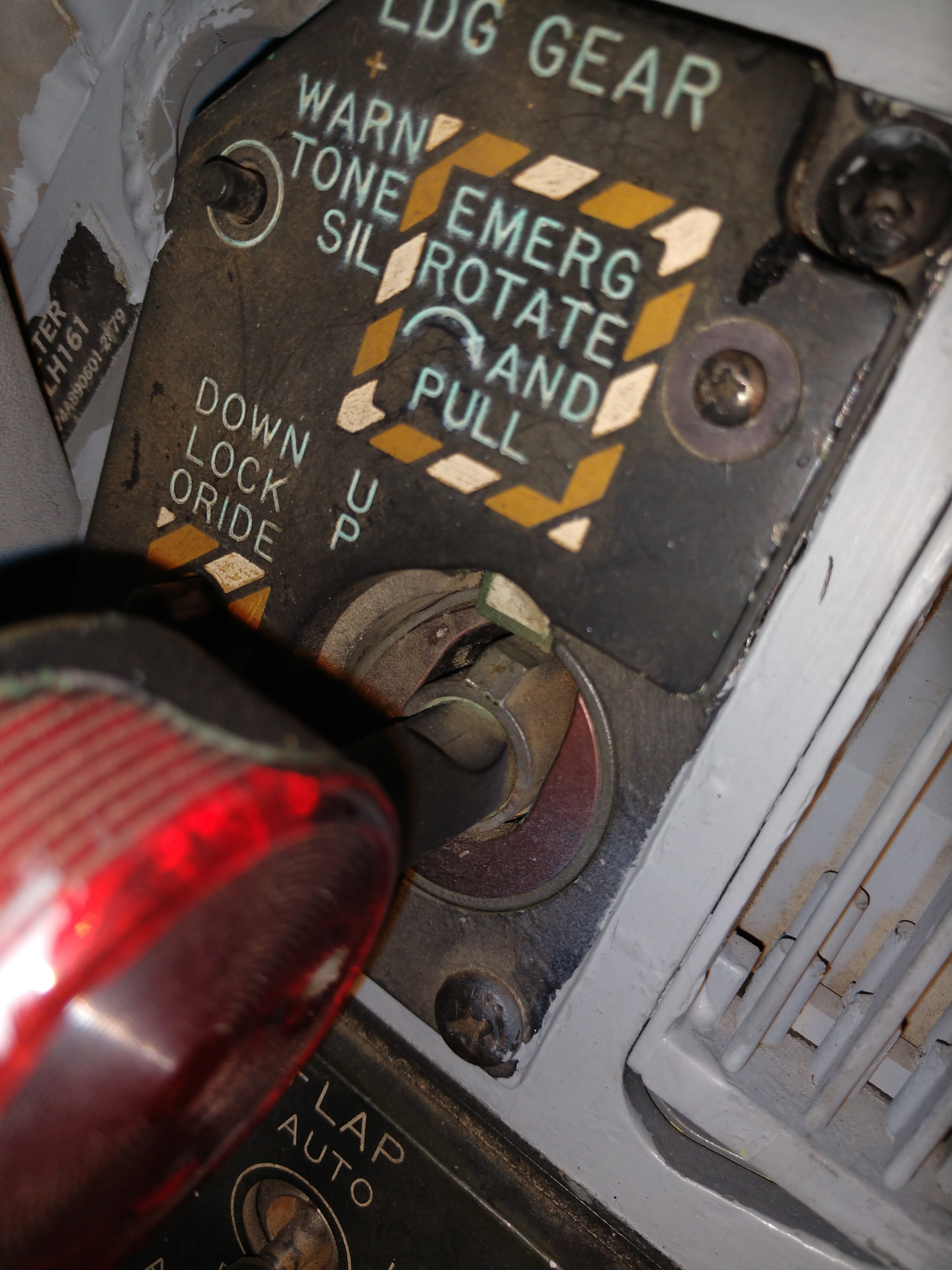

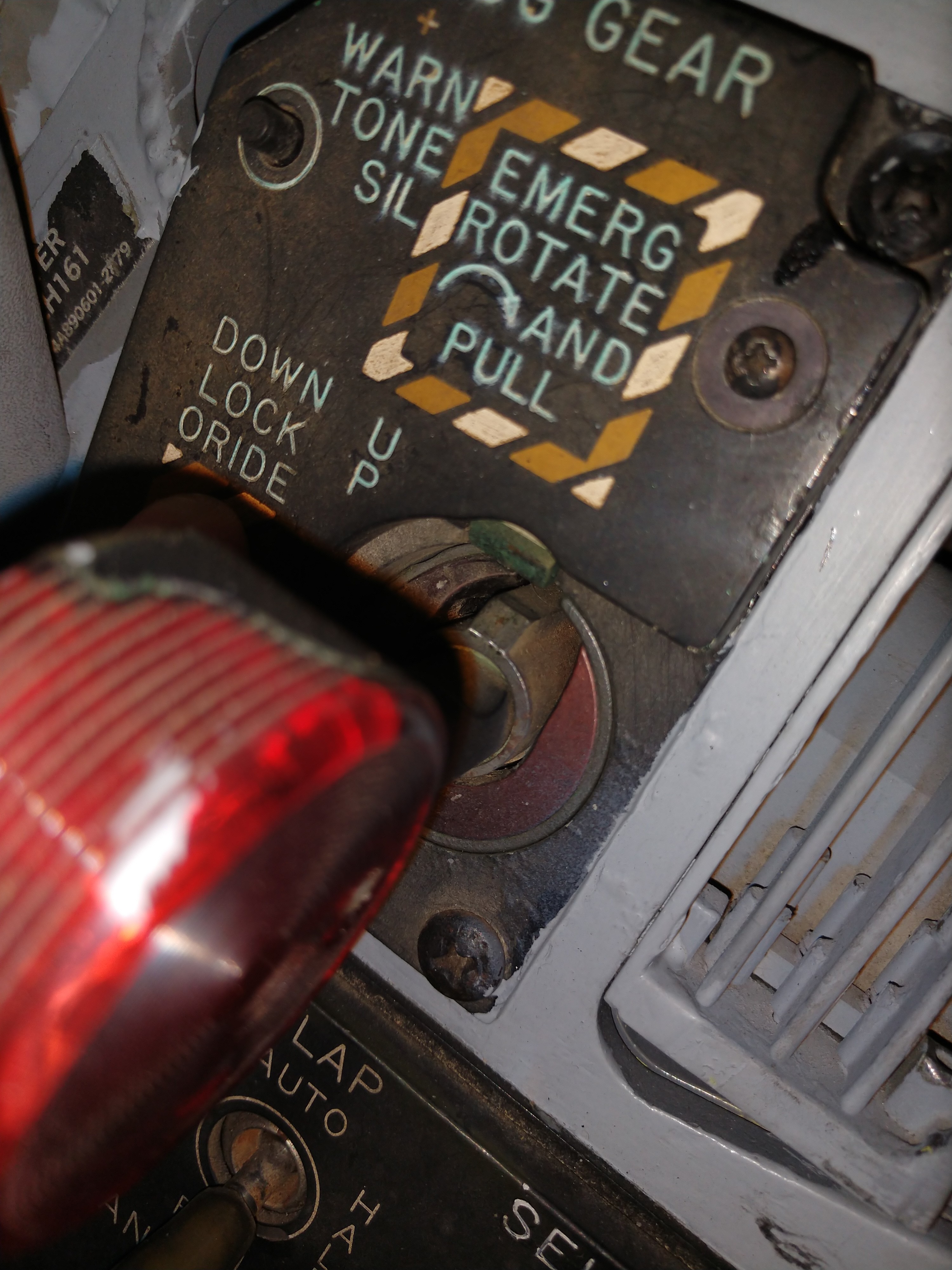

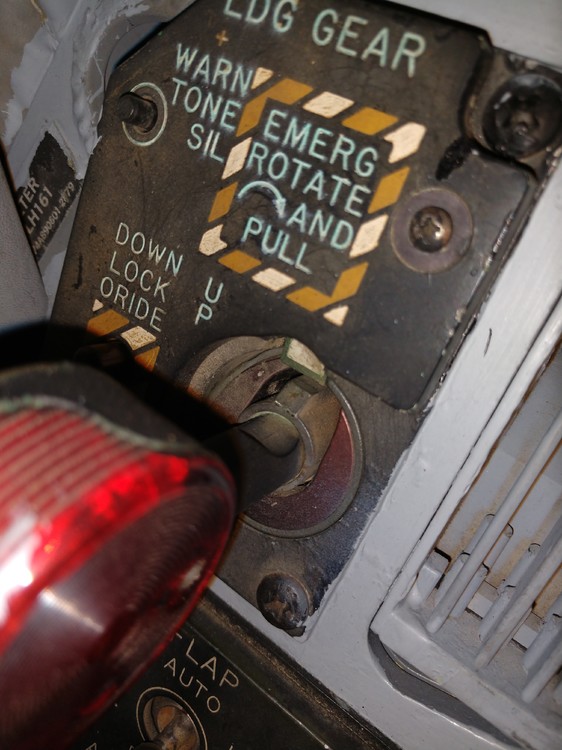

I've attached the ones I used - although Mongo, do you have many more interior shots you're in a position to upload?

[mongo52]

What are you looking for specifically and I'll see what i can do while at work.

[obious]

Any chance you were able to get any more pics?
