correct as is HMD problem

[JZF]

Good morning,

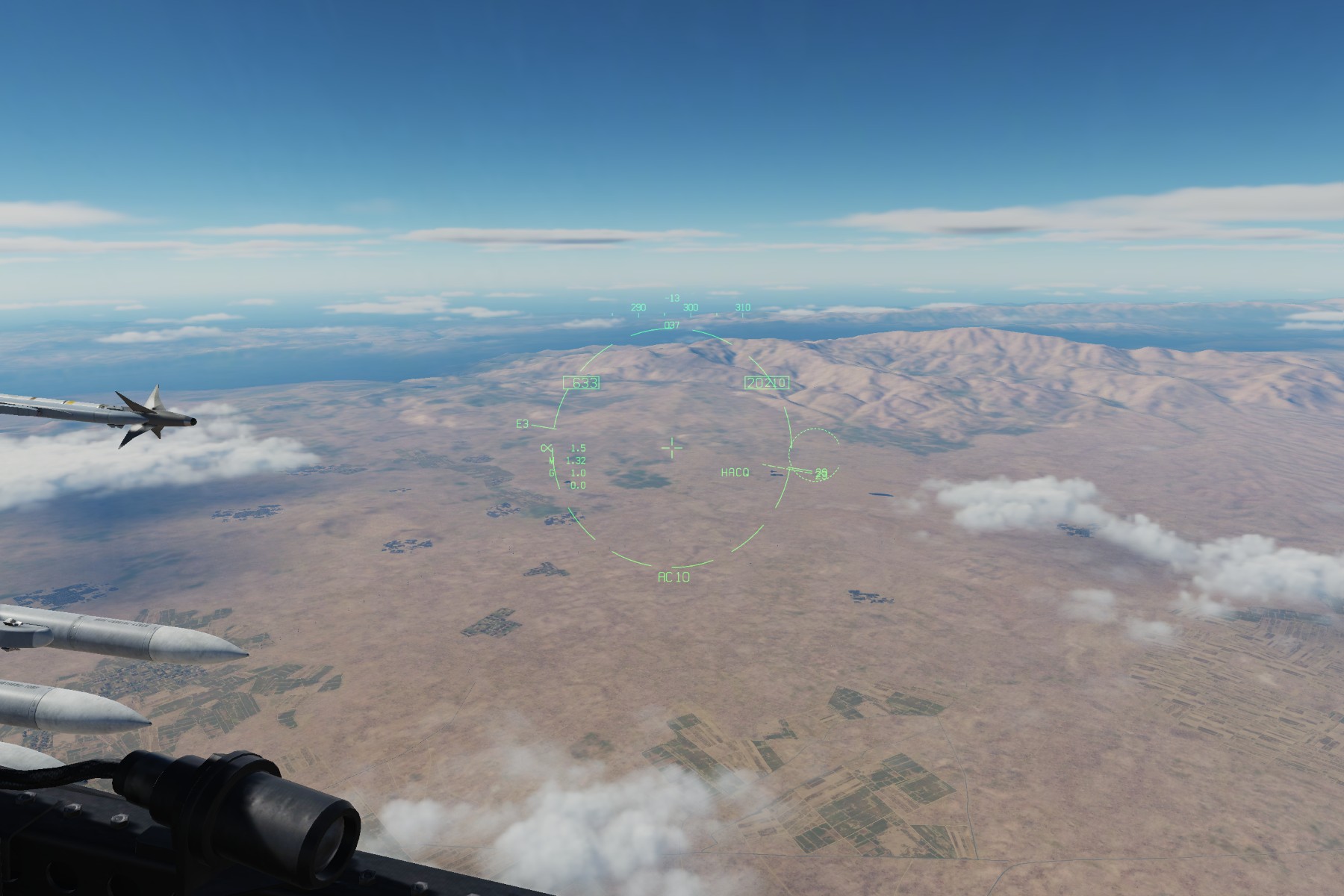

Why are the smaller circle and the larger circle not concentric?

Thanks



[BIGNEWY]

Hi, it is always good to include a track replay when making a report.

But from the looks of it you are exceeding the gimbal limits

[JZF]

Hi, please see attached the track and look to this video

It seems there is no gimbal limit problem in this video



Thanks



F18_HMD.trk

Hi, please see attached the track and look to this video

It seems there is no gimbal limit problem in this video



Thanks



[Tholozor]

@JZF That video is 4 years old, a lot has changed since then.

Edited February 28, 2023 by Tholozor

[Foka]

On 2/27/2023 at 3:39 PM, JZF said:

Why are the smaller circle and the larger circle not concentric?

Because smaller one is limited to the angel radar antenna is able to shift to the side.

[Dragon1-1]

The big circle moves with your LOS, the small one moves with the radar antenna. That's the way it's supposed to work, the radar will hit a mechanical stop at some point and wouldn't be able to follow your LOS. It worked wrong at some point, but it's been fixed.

[BIGNEWY]

Hi,

correct, the small circle has reached its limit, its a visualisation of the limit of the radar antenna.

It is correct as it is.
