Another Black Shark Pit project

[JozMk.II]

:surprise: Can I come to your house, please?

[BaD CrC]

Sure. Head to Toulouse city, south west of France.

[BaD CrC]

Just found this overview picture of a ka 50 cockpit. It shows a very unusual cockpit for us (Datalink below weapon management panel, APU temp on the overhead, position light switch in the middle of the overhead,...) and also that my pit right panel is way too long.



KA 50 real cockpit overview

[acemark]

Hello BaD CrC

Can you please explane how you set up rotary switchs? or pots?or what?, for example the shkval brightness knob, in your pit?

Does your Abris selector knob have the push function working?

I am building a KA 50 pit and need some help please, thanks Mark.

[Succellus]

Just amazingly impressive.

[PeterP]

Hi BaD CrC - please check pm! :)

[Sceptre]

This is bloody epic..... what I wouldn't do to have this in my house!!!!

[fredd3039]

Anyone have a link to triggerhappys blueprints???

[BaD CrC]

Hello BaD CrC

Can you please explane how you set up rotary switchs? or pots?or what?, for example the shkval brightness knob, in your pit?

Does your Abris selector knob have the push function working?

I am building a KA 50 pit and need some help please, thanks Mark.



Hello Acemark.



Sorry I missed your post. Yes, all the rotaries are working, including the push function of the ABRIS one, assuming there's a shortcut associated with CW and CCW rotation in game. I am actually using encoders that you can find along with Leo Bodnard BU0836X USB card here:

http://Http://www.leobodnard.com/products/BU0836X/

I am using rotary encoder CTS288 model 288T232R161A2 and the 288V232R161B2 for the one with integrated push switch.

Those encoders are connectected on a BU0836X card. They generate 16 detents per rotation (like pressing a button 16 times for each rotation). Depending on wether you are turning CW or CCW, the "button" push is different. So you can easily tells to the game which shortcut shall be associated with a given detent.

It's a straitforward implementation and it works very well (you can check for example when I am playing with SHKVAL light and contrast on some of my videos on youtube). There are some drawbacks though: first the game cannot tell which initial state the encoder is when you launch it. So you have to set them in the correct initial position before un-pausing BS. Second drawback is that some of the functions activated by a rotary in BS have only a CW shortcut and no CCW shortcut.

If you want something better, you have to go through software like SIOC and rotary switches. It's just a bit more complicated.

[BaD CrC]

@fredd3039: If you can't find the Triggerhappy's stuff, I can zip a package and send it to you by email. Let me know.

[MTFDarkEagle]

BaD_CrC: Following your cockpit with great interest! Question: you said you assigned all the switches with xpadder. Does xpadder allow to assign a keypress if a button is pressed and assign a different keypress if released?



Thanks!

[BaD CrC]

Yes, and that's exactly why I chose XPadder. Otherwise, everything should have been made with momentary switches, and that's not what we want. Xpadder accepts conditions such as 'on key pressed' and 'on key release' hence is capable of generating whatever complex shortcuts (you know the type of shortcuts like LSHIFT+RALT+RCTRL+&) with these conditions. Absolutely vital when you want flipping up switch to turn ON something, then flipping down the same switch to turn OFF something.

Too bad these conditions are not available in game.

[BaD CrC]

Just a quick word about a new video I just uploaded.

Hope you like it. Next one will focus on the build process as described in this thread as I get a lot of questions on my youtube channel.



Z1IiRnUAWh8

[showtime817th]

Hi Bad

Awesome video! I like the part of the video where it looks like you have a LCD on the right outside view. Can’t wait for the next video.

Showtime

[BaD CrC]

Thanks Showtime!

[Suchacz]

I really love your work! :thumbup:

Imho your SharkPit deserves some big screen projection, which should add a much more immersion. Have you thought about that?

[BaD CrC]

Thanks suchacz. Yes, would be great but I am badly lacking space in my office and this would probably stretch my wife's patience a bit too far.

[TimeKilla]

Smart really smart.

[dgraviett]

Your sharkpit is awesome!! I'm planning on building me one only i'm down scaling it. Don't have the room. I read through this whole forum and you answered alot of questions I had. Thank you for sharing your build. I'm building the right panel and was wondering how you got the screen to work on the PVI-800?

[BaD CrC]

Thanks!

You can only export the pvi800 display graphically (like the abris or shkval). You cannot export pvi 800 data. So I am using a small USB screen to do so.

[Tnt Snipes]

Hi Bad CrC, could you and anyone else please direct me to a post that describes how to do the following.



I am trying to use a physical led push button work for the Altitude hold push button in black shark. I have attached the button with Leo Bodnar BUX0836X board. The button itself is working, but I dont know how to make the LED work as well. The push button has four poles at the back, two are for +5v and GND, the other seem to be for the led light. The first two are attached with the board, thus working, I do not know where to attach the wiring for the LED poles - & +.



Please advise.

[BaD CrC]

Hi Snipes,



The cards I was using for the LEDs are discontinued. You need to go through an Arduino card and make it work in DCS with DCS BIOS.

I see you are becoming more ambitious than at the beginning with just your push buttons box. Welcome to pit building.

[MarcT-NL]

OMG ! You did this ! I was just thinking about doing the ABRIS and PVI-800 in one box, and just the buttons. I fly in VR so it would be great to have those buttons available "on the feel" and I don't have use for the displays.



So I might have a lot of questions for you shortly ! :)

[carlosfly74]

Hi all!

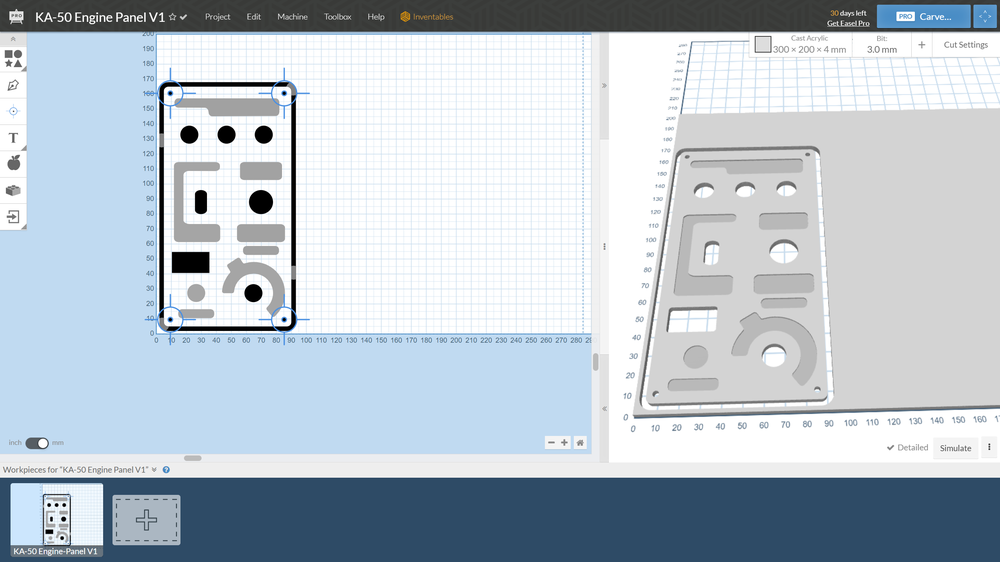

I started building a couple of modules for KA-50. Bad Crc Inspired!
Very nice work BaD! I may be asking for your help with a few things. Sorry for my English.

Edited April 23, 2022 by carlosfly74
