user resolved Pilot model kneeboard no longer working

[Nealius]

[fagulha]

7 hours ago, Nealius said:

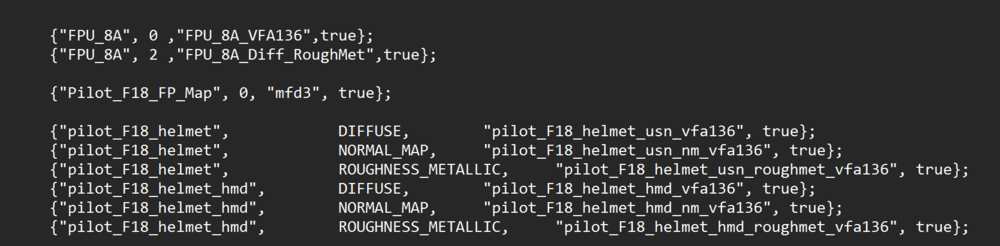

Add this line to the .lua file of the liverie of your choice:    {"Pilot_F18_FP_Map", 0, "mfd3", true};



[Nealius]

Was this a recent change? Previously the kneeboard worked without needing this line.

[fagulha]

11 hours ago, Nealius said:

Was this a recent change? Previously the kneeboard worked without needing this line.

Since the new 3D pilot model with the kneeboard came out.

Some default liveries already had included this line but somehow between updates some didn´t have the line. I only use user custom liveries so i had this issue in the first day that the new pilot was patched out.

[Nealius]

On 12/27/2024 at 6:41 PM, fagulha said:

{"Pilot_F18_FP_Map", 0, "mfd3", true};

This line is in the module's cockpit liveries folder, thus it should be applied universally. None of the default liveries in the CoreMods folder have this line yet the kneeboard works for those. Something's not right.

[fagulha]

4 hours ago, Nealius said:

This line is in the module's cockpit liveries folder, thus it should be applied universally. None of the default liveries in the CoreMods folder have this line yet the kneeboard works for those. Something's not right.

I came here to help you and ended you helping me. Thank you for the heads up.

Going to apply it to my custom cockpit liveries from now on and see if it works that way with the custom cockpits. If not i revert to my previous way of adding to the custom airframe liveries. Yes it should work, as you said something´s not right,

Edited January 11 by fagulha

[YoYo]

I see that screenshot was taken in VR, no any issue for me in VR. Conflict of mods?

[Nealius]

No Hornet-related mods installed at the time of the screenshot. Possibly related (and already posted another thread), the MFD reflections are also visible despite having MFD reflections set off. Both items became broken after the 2.9.11.4686 update.

Edit: it seems the MFD reflections are a known issue. I wouldn't be surprised if the kneeboard issue is also related.

Edited January 12 by Nealius

[GarrettJMorgan]

On 12/27/2024 at 6:41 PM, fagulha said:

Add this line to the .lua file of the liverie of your choice:    {"Pilot_F18_FP_Map", 0, "mfd3", true};



Old but worth a shot does this work for the 16 also if I just change it from Pilot_F18 to 16?

[fagulha]

9 hours ago, GarrettJMorgan said:

Old but worth a shot does this work for the 16 also if I just change it from Pilot_F18 to 16?

Yes, i use in both airframes, really useful. Enjoy!

[Nealius]

Still seems to be an issue with many default Hornet liveries. VFA-87, for example, is still blank.
