No glide slope on ILS

[grim_reaper68]

Hi

Just made a flight in the Southwest of the map, and none of the ILS had a glide slope. Tested with Mirage F1, M2000 and F-16 to be sure.

Tested on Spangdahlem, Ramstein, Zweibrücken, Frankfurt.

[Dallatorre]

Hi! Tested on Hamburg with the F-4E, the glideslope needle was present but totally wrong

[Tarres]

Same as other nav problems, bad data coded in the beacons.lua

[IvanK]

Tegal 26L 109.3 GS ok.

[grim_reaper68]

In fact, I just took a look at Spangdahlem and found 3 Localiser , one called 'SPA' 109.9 direction -75.032 , 'ISPA' 108.1 direction 55.64  and 'ISPE' 109.15 direction -124.38. 2 Glideslope: 'ISPA' 108.1 direction 143.55 'ISPE' 109.15 direction -35.75. If I compare with Batumi, Localiser and Glideslope have the same direction. That explains why they're not working.

[IvanK]

Interesting grim_reaper68 might explain why you get a momentary GS alive as you pass abeam the GS antenna on landing.

[grim_reaper68]

In fact, I noticed that too. While flying next to the runway, the GS reacted for a couple of seconds. I managed to make Spangdahlem work by pasting the same direction as those from the LOC on the GS.



[YoYo]

Tested Ramstein, it works.

Edited April 28 by YoYo

[YoYo]

What I noticed is that the descriptions are mixed up. An example from Rammstein:

111.5 for 277 runway, but it isnt true:

111.5 is for 95, for 277 runway is 111.75.

Perhaps there are similar errors in the description at other airports.

[grim_reaper68]

In fact IREL (111.50) is on the runway 9, and i found another error in the rwy 27 as the ILS should be called IRWR (110.75) and not OGNID who seems to be a marker. Do you know where to find the descrition file? Or maybe it's encrypted.

@YoYo did you test it on runway 9 (111.50) on my side i had the localiser who didn't work. runway 27 is ok.



Edited May 3 by grim_reaper68

[grim_reaper68]

Finally I managed to make Ramstein ILS work correctly. And to have the correct information.

I just changed the order in the lua file to have this, I grouped both LOC and Glideslope together

{

        display_name = _('Ramstein');

        beaconId = 'airfield165_0';

        type = BEACON_TYPE_ILS_LOCALIZER;

        callsign = 'IRWR';

        frequency = 110750000.000000;

        position = { -498508.187500, 245.303041, -936275.500000 };

        direction = 96.579995;

        positionGeo = { latitude = 49.435961, longitude = 7.577700 };

        sceneObjects = {'t:67627740'};

        chartOffsetX = 3104.000000;

    };

    {

        display_name = _('Ramstein');

        beaconId = 'airfield165_1';

        type = BEACON_TYPE_ILS_GLIDESLOPE;

        callsign = 'IRWR';

        frequency = 110750000.000000;

        position = { -498729.625000, 245.303041, -933698.187500 };

        direction = 97.482673;

        positionGeo = { latitude = 49.438106, longitude = 7.612817 };

        sceneObjects = {'t:187581164'};

    };

    {

        display_name = _('Ramstein');

        beaconId = 'airfield165_2';

        type = BEACON_TYPE_ILS_LOCALIZER;

        callsign = 'IREL';

        frequency = 111500000.000000;

        position = { -498893.093750, 244.777131, -932940.937500 };

        direction = -83.419990;

        positionGeo = { latitude = 49.437874, longitude = 7.623375 };

        sceneObjects = {'t:67634644'};

        chartOffsetX = 3104.000000;

    };

    {

        display_name = _('Ramstein');

        beaconId = 'airfield165_3';

        type = BEACON_TYPE_ILS_GLIDESLOPE;

        callsign = 'IREL';

        frequency = 111500000.000000;

        position = { -498511.750000, 245.303041, -935470.250000 };

        direction = -82.517339;

        positionGeo = { latitude = 49.437206, longitude = 7.588512 };

        sceneObjects = {'t:187573484'};

    };

    {

        display_name = _('Ramstein');

        beaconId = 'airfield165_4';

        type = BEACON_TYPE_TACAN;

        callsign = 'RMS';

        frequency = 0.000000;

        channel = 81;

        position = { -498853.218750, 245.303041, -935310.937500 };

        direction = -173.171209;

        positionGeo = { latitude = 49.434471, longitude = 7.591479 };

        sceneObjects = {'t:67626958'};



[Volator]

Tested ILS at Bueckeburg in the Huey today, also no glidepaths both runways (in reality Bueckeburg only has an ILS for RWY25 btw).

[grim_reaper68]

Hi

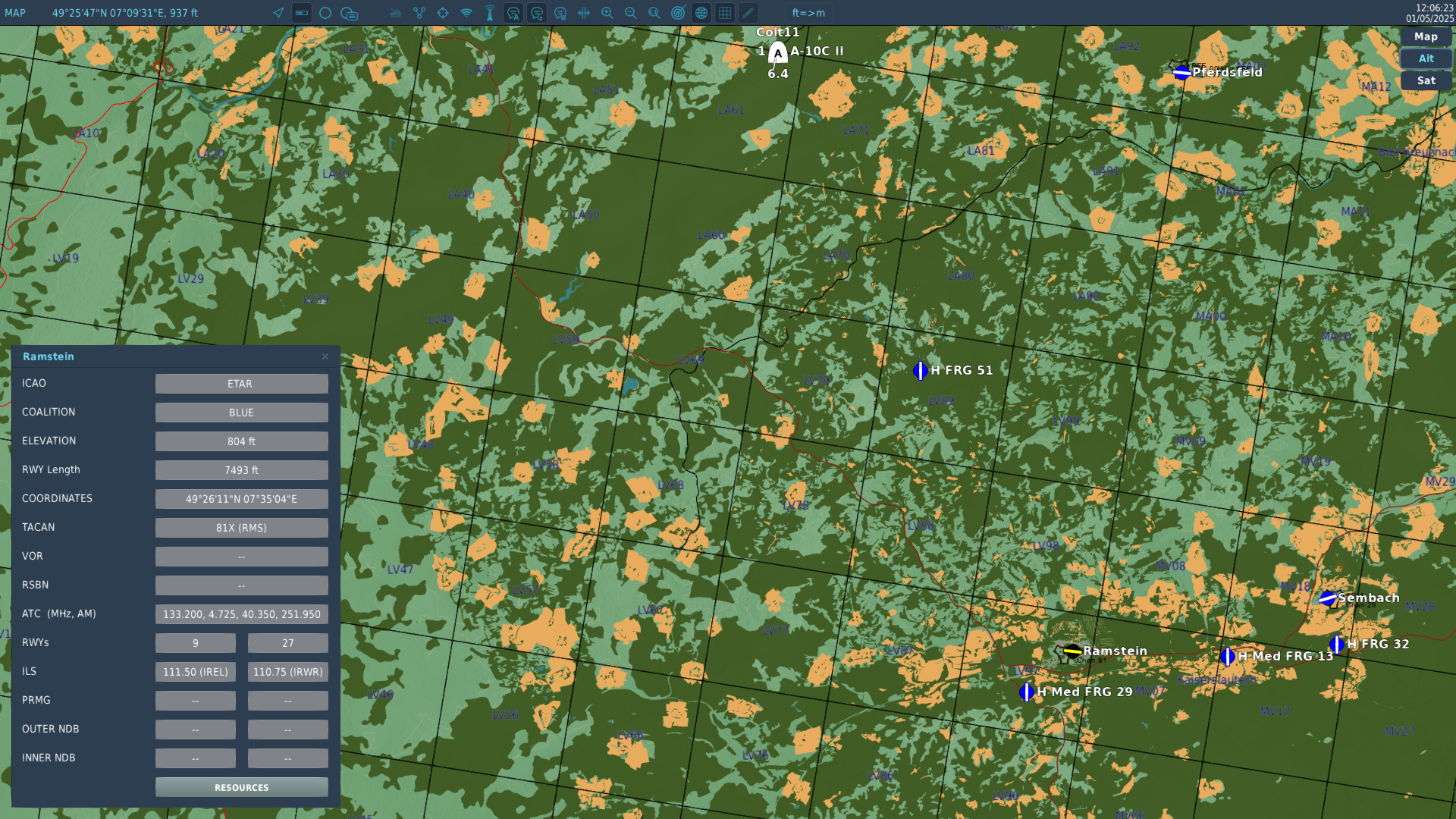

If you haven't done it yet, you can find my work here, any feedback of lack or mistakes welcome. For complete ILS frequencies, a look on the Beacon information in the Mission Editor, will give you all frequencies, as on airfields with 2 runways, only the marked one (blue circle with white bar) ILS frequencies will appear on the F10 map.

Don't forget to backup your original file, if you want to try it.
