@Gunfreak as well. Correct the E2 was able to handle some closer in stuff with mods to the radar (flood mode). for close in work. It was most effective for tail chase outside of the AIM-9E/J range which were pretty short legged compared to the later L/M's. One of the famous Mig-17 shoot down gunsight film from Vietnam is from a dogfight Sparrow tail shot. @Gunfreak as well. Correct the E2 was able to handle some closer in stuff with mods to the radar (flood mode). for close in work. It was most effective for tail chase outside of the AIM-9E/J range which were pretty short legged compared to the later L/M's. One of the famous Mig-17 shoot down gunsight film from Vietnam is from a dogfight Sparrow tail shot. @Gunfreak as well. Correct the E2 was able to handle some closer in stuff with mods to the radar (flood mode). for close in work. It was most effective for tail chase outside of the AIM-9E/J range which were pretty short legged compared to the later L/M's. One of the famous Mig-17 shoot down gunsight film from Vietnam is from a dogfight Sparrow tail shot.

The F model weasel is completely doable. The only system on the G model that might be tough is the QRC-160 jammer, not that they used it, but jamming is typically pretty closely held stuff. The rest of the system is pretty much out there and could be done.

Indeed, I have a copy of it. Quite notably there are things left off of the line drawings that are at the station. I’ve sat at that station, and the equipment has classification markings on it. FWIW, when I flew BUFF’s we discovered that a NATO TPS student did a quail eval flight without the station being hidden by a curtain which resulted in a major pain in the @$$ security investigation. That was 15 years ago so things may have changed…

ISTR that several years ago there were B-52 AMI manuals posted, some were even -34’s, but those were taken down, so they likely weren’t supposed to be out there. There’s also the problem of the EW station, which had classification markings as of the last time I flew the jet. Then there’s also the strat radar, which while old school is still THE strat radar on the most numerous SIOP platform. Who knows after they get the new radar and engines maybe they could do a 2005ish BUFF except for the upper two rear stations.

Thanks, please PM me where I can find the 95 light gray. Looks like you weren’t too bad after all as we got the same values from the ‘93 dash one.

@GGTharos This is not intended as a quibble, but I am genuinely interested to know what the revision date, data date, data basis is for the -1’s of the charts you used. I don’t have light gray charts for -220/220E only for the old -100 light grays. Anyhow, I think we’re in violent agreement here because a F-15E with the same -220 engines is 4 sec slower than the light gray and 3.5 sec faster than the -100 equipped light gray at 102% trim. Statement of due diligence: all charts posted were taken from manuals purchased from reputable sites such as Aircraft Reports or eFlight Manuals and are still available for purchase and comply with forum rules. That said, please check my math. F-15A/C Clean, F100-100 @ 102% trim 41 - 8.5 = 32.5 sec (Flight test) F-15A/C Clean, F100-100 @ 95% trim 67 - 9.5 = 57.5 sec (Flight test) F-15A/C CFT, F100-100 @ 102% trim 78 - 22 = 56 sec (Flight test) F-15E Clean, F100-220 43 - 14 = 29 sec (Flight test) F-15E Clean, F100-229 29 - 13 = 16 sec (?) F-15E -5 CFT, F100-229 43 - 21 = 22 sec (Estimate) It is pretty funny that the charts many people seem to believe more are the only ones that don’t say flight test on them (-229 charts). The less than optimal engine trim for the light gray illustrates just how much thrust and compressible flow terms dominate in this flight regime, 7% off trim results in 25 sec slower acceleration. Here’s the gouge from the 1986 Performance Block of the USAF TPS manual Note that both thrust and drag are functions of velocity which are in the numerator and will be at least a function of V^2. Also, just in case anyone asks, this manual is public domain.

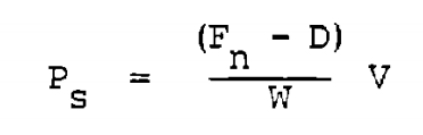

Those I have as well. Edit: Some kind soul provided me the Specific Excess Power (Ps) charts for the -402 equipped C which can actually do 1.3 M at 10,000 ft with 2 heaters and 2 radars.

I think what @GGTharos takes issue with, and he can correct me if I’m mistaken, is how the heavier -220 equipped Mud Hen can have the same acceleration as a light gray -100 equipped Eagle. Now a big part of the problem is the most commonly quoted thrust numbers are static thrust, which by that metric a -100 produces slightly more thrust than the -220. The problem is that acceleration isn’t a static equilibrium situation, it’s dynamic and transient. The modifications to the -220, especially the DEEC produce more dynamic thrust so the thrust curve as a function of Mach number is greater, which is why the -220/220E equipped light gray’s accelerate faster than the -100 equipped birds. As mentioned above the -229’s are absolute beasts. The ability to run hotter, DEEC’s and lower bypass ratio create way more dynamic thrust which shows in the level accelerations. Lower bypass ratio engines tend to perform better in the trans/supersonic flight regimes as well.

The strike numbers are from the T.O. The drag at trans/supersonic definitely are the dominating terms. The difference between -100 and -220 are hydro mechanical controls vs digital so I completely believe that digital out performs hydro mechanical every day of the week and twice on Sundays. The -229 is a completely different, digital engine with a completely different thrust profile (and core, and fan) so I can buy that as well. IIRC the -229 charts are derived from flight test data so take it up with the test pilots/FTE’s…. The governing equations here are not linear, not even linear differential equations, so flight test data is king. This is the biggest reason I differ to the data since nonlinear differential equations behave differently from what we learn in high school algebra. This is complex stuff and an accurate gut feel comes from actually doing things up and away over years….

Alright, turns out my handy 1F-111(B)A-1-1 is accessible so I ran the numbers. The Vark in question is either the FB-111A or F-111G with -P7 engines that put out 20,000 lbs of thrust, the T.O. uses the old 1975 flight test data. So, not quite an F model with -P100’s, 25,000 lbs of thrust and off course the FB weighs more with longer wings. Also, the level acceleration charts recommend an “optimal” profile, which translates into the charts start at 25 degrees sweep/mil power, advance to min AB intermediate sweeps then finally go full AB 72 degrees sweep. Since those charts are set up that way, the drag race changes to 0.9M to 1.2M so there’s an apples to apples comparison (both at full AB the whole time). The weights chosen for the Vark are 60,000 lbs and 70,000 lbs which roughly gives 10,000 lbs of gas and 20,000 lbs of gas respectively (49,000 lbs empty weight and 1,000 lbs of instant sunshine in the bay). All altitudes are at 10,000 ft with a standard day. FB-111A @ 60,000 lbs, clean Time - 24 sec Fuel Used - 1,030 lbs Dist - 6.5 nm FB-111A @ 70,000 lbs, clean Time - 30 sec Fuel Used - 1,200 lbs Dist - 6.5 nm F-15C @ 38,000 lbs, clean, -100 (102% trim) Time - 24 sec F-15E @ 42,800 lbs, clean, -220 Time - 24 sec F-15E @ 43,000 lbs, clean, -229 Time - 10 sec F-15E @ 55,600 lbs, -5 CFT, -229 Time - 22 sec F-15E @ 59,600 lbs, -5 CFT, 8 AAM, -229 Time - 30 sec F-15E @ 60,700 lbs, -5 CFT, 8 AAM, LANTIRN, -229. Time - 65 sec (It pretty much maxes out at 1.2M in this config) Conclusion, even the SAC Vark will out accelerate a -220 Mud Hen with CFT’s, it’s not that much slower than the -229 Mud Hen (-5 CFT’s) with 2/3rds of the thrust. It’s pretty likely the F model Vark with the -P100 motors will out accelerate the -229 Mud Hen with CFT’s. The CFT’s really mess with the compressible flow, the only way a heavier airframe with less thrust does that is with lower compressible flow drag components. Enough with the off topic, gut feel here is that any Bug will have trouble with this drag race down low .

The F-15 variable ramps may well be more advanced, but it’s debatable if this translates into a more efficient propulsion system than the Vark’s inlets for level flight since the Eagle’s advances may well be to handle higher AOA turning (FWIW in engineering school I did have to work an F-15 inlet problem for a propulsion class). That said, both are 1960’s designs with a different requirement set. Trans/supersonic the compressible flow drags start to dominate, which area rule becomes a big thing (Mud Hens with CFT’s aren’t good here). FWIW the Zero-lift drag coefficient area for the F-111F is 9.36 sq ft (Zero-lift drag coefficient is 0.0186, as a comparison the values for the F-105 were 6.65 sq ft/0.0173 respectively), I couldn’t find the same value for the Eagle (light gray or Mud Hen) so I’d be interested to see what that value is before definitively stating one is greater than the other, but both Eagles are big airplanes. After 7 years of engineering school (BS, MS) I did become acquainted with that old, deceased, Englishman’s three laws. When I took the equations of motion course from USAF TPS we started with the sum of the forces as well as conservation of angular momentum to derive the 6 DOF EOM’s. The mass the forces act on matter, but compressible forces start to take over for trans/supersonic accelerations. Again no statement here one way or the other since I don’t have my F-111 data (derived from flight test data which as a former flight test engineer I tend to prefer) Now for some reason I do have the gray Eagle and Mud Hen manuals on my OneDrive (why didn’t I put the -1-1 for the Vark on it also). So here’s a comparison of 0.5M to 1.2M at 10,000 ft since those are the charts I have available. F-15C, clean, F100-100, 38,000 lb GW 37 seconds (102% trim on the engines) F-15E, clean, F100-220, 42,800 lb GW 41 seconds F-15E, -4 CFT, 4 AIM-9, 4 AIM-7, F100-220, 58,100 lb GW can’t accelerate to 1.2M at 10,000 ft, it tops out at 1.1M F-15E, clean, F100-229, 43,600 lb GW. 26 seconds F-15E, -5 CFT, F100-229, 55,600 lb GW 40 seconds F-15E, -5 CFT, 4 AIM-9, 4 AIM-7, F100-229, 59,800 lb GW 52 seconds So, two observations the compressible drag of the CFT’s is rather significant and the -229 motors are a big improvement over the -100/220. Now, while I couldn’t find the performance charts for a Vark (without spending $56 on a document I already own), I did find the requirements for the nuclear delivery profile for the Vark which was to approach at sea level at 0.5M, with a can of instant sunshine in the bomb bay, otherwise clean, accelerate to 1.2M in 18 seconds, and fly 400 nm at 1.2M (200 in, 200 out). Now I’m pretty sure the Vark never met that, but hopefully it’s understandable why I want to look at a Vark level accel chart before stating one way or another its relative performance to the Mud Hen.

Just checked the 1F-111F-1 limits section, the max Mach at SL is 1.2, up and away the limit is total temperature of 418 degrees F or 2.5 which ever is less. There’s also a 300 second limit above 308 degrees F total temperature as well as a note that above M2.2 the paint will blister. Carriage limits vary by wing sweep, but max for any loading of Mk82’s is 0.9 from 45-72 degrees of sweep. Mk84 airs go up to 1.4 or 700 kts and Mk84’s with conicals only go to 1.3 and 650 kts. So, the limits very much look to be weapons limitations not drag limitations. My 1F-111(B)A-1-1 is not accessible at the moment so I can’t get the performance charts at this time. That said, the F was well known for the capability to exceed limits for Mach and speed at all altitudes. As for the Vark/Mud Hen drag comparison it isn’t as simple as the Vark weighs more and has slightly less thrust. The Vark has a much better profile for wave drag than the Mud Hen and the wing loading is much higher, so I wouldn’t be surprised to see it have lower trans/supersonic drag. Furthermore, as we’ve seen with the Tomcat the TF30’s create more thrust than the F110’s supersonic, given the variable inlets (on both aircraft) and difference of pressure ratios of the TF30 and F100 (higher than the TF30) those trans/supersonic thrust numbers need to come from the -1-1’s not from SL, uninstalled static thrust. It’s a bit counter intuitive but lower pressure ratio engines with a variable inlets/exhausts will often outperform higher pressure ratio engines. This BTW is one of the reasons the French went with the lower (compared to the F100) pressure ratio M53 which does pretty good supersonic.

That’s exactly the problem with the XL. The demonstrators had early C model avionics, one had a Pratt engine, the other had the GE, later upgraded to the -129. The jet needed the higher thrust engine to make up for the higher weight. Both originally had analog FLCS, the GE bird later got the digital FLCS with NASA. The control laws were intentionally conservative as the requisite analysis was never performed to fully exploit the capability. The flight test report still characterized unacceptable handling qualities that were never analyzed/fixed. The XL’s role was primarily A/G interdiction with a late 80’s/early 90’s entry to service so Block 40/50 avionics was likely, although I haven’t seen anything definitive that says that. The problem is there never was an XL built with Block 40/50 avionics, much less updated to the CCIP configuration which we have from ED. While NASA detailed the aerodynamic performance characteristics like no other teen series fighter, the handling characteristics were never fully explored or fixed. There’s a ton of data, really good data, but the XL is very much WIP. That’s why I use marginal to describe it.

The XL’s are very marginal as a module compared to say an F-20 which was a far more complete project. The biggest issue of course is that both XL’s were maybe prototypes if not more demonstrators. The airframes were re-worked A/B models, the avionics were analog C, later NASA equipped the GE engined XL with the digital FLCS, but programmed the code very conservatively as the structural analysis wasn’t done to see if the new control laws would overstress the airframe (like what happened to the F-14D). There were also unresolved handling quality issues, oscillations in the transonic regime that drove some pretty bad Cooper-Harper ratings. Had the XL been developed its timeline would have overlapped the block 40’s and 50’s. So that’s likely what the avionics would have been. An argument for the XL would be that the aerodynamics of the platform are among the most measured and understood since NASA used it as a research platform for the High Speed Civil Transport and now uses the data to validate CFD code (Google search it, lots of technical papers). The downside is the avionics were never developed on those two aircraft and there were unresolved handling qualities. Personally, I like the sandbox quality of DCS and think it would be an interesting “what if”, but it’s questionable if there’s enough of that market to justify the expense of development. My $0.02

The Mirage IV would be difficult since it’s French, never exported, and primarily nuclear/rece. Documentation would be difficult to find.

Of course they provided him with it, he was their test pilot on the program. Later he was a test pilot on F-22 EMD, so no YF-22 as he never flew it...

The short tails were all out of the factory before VN started, the last H’s were 61 tails. The BUFF’s didn’t go up North in Rolling Thunder. The D’s and F’s did most of the early work. When Linebacker II kicked off it was big belly D’s and G models. The H models were all on nuc alert duty and didn’t participate. The best book about the BUFF’s in Linebacker II is The Elven Days of Christmas. Well worth reading. FWIW I read the book on Balls 50 (an H model) when we flew from Edwards to Eglin to shoot a MALD, nice way to spend an 11 hour flight.

The performance annex is available on the interwebs. So are some of the flight test reports from AFFTC. The full set of control laws for the stab augmentation might be tough to find. there's a NASA report with the block diagrams but not all of the logic for the gains are given.

There's a lot to unpack here, so warning long post! Any F-16 aficionado, especially those of the XL variety should download and read Elegance in Flight, Albert C. Piccirillo. It's the official NASA history of the F-16XL, written by a retired AF O-6 pilot type. The PDF is free and it's the best plain English history of the subject. Link below: Elegance in Flight The book answer most of the typical topics that arise in the the XL wish list threads, or at least why things can't be done. The difference in type and nature of speculation with the F-22 example is that the F-22 is a finished product. There are control laws written, new flight computers, new engines, a functioning weapons system, multitudes of changes aerodynamic and structural from the YF-22 demonstrators to the F-22. The XL's are a slightly more refined demonstrators than the YF-22. The point is there was major development work needed to make a functional weapons system, which would take money away from other priorities (ATF) so the AF chose not to spend the money, it made sense at the time, the Cold War was about to end, the extra capability wasn't worth the cost/threatened to encroach on the ATF's level of performance and the Med Hen/Block 40/50 was good enough. Never seen TTWR, we always use T/W, been a aero engineer since the 90's, minor nit to pick. What isn't minor is the difference between static and dynamic, and transient versus steady state. Thrust, drag, weight, lift coefficients, drag polars all tend towards static equilibrium states, which is fine since most aircraft spend most of their time in such conditions, level flight, constant climb/descents, boring airliner stuff . So the really good aero data set NASA captured was generally aimed for HSCT (High Speed Civil Transport), airliner stuff, static equilibrium stuff. Still important, still needed, but not enough for a proper flight model. Fighters are all about handling/flight qualities which are dynamic and transient in nature. That stuff is a bit harder to come by, it requires knowledge of actuator properties, moments and products of inertia, aerodynamic derivatives (C dot coefficients). It's a lot harder to measure and the folks who do it usually attend a test pilot school for a year to learn the basics. I flew for 5 years at one of those locations (Edwards), did some projects in P&FQ and attended the Equations of Motion block for the school house, which involved deriving the full up 6 DOF EOM's from sum of forces and conservation of angular momentum and all of the fun transformation to go from body fixed coordinates systems to Earth inertial. All that to say, the one program that did flight control law work was a one off demonstration that had some well documented deficiencies with indeterminate root cause. That of course could be simulated, but the amount of complaints it would generate would kill the module. Of course it would be really cool to get an XL from a alternate history Cold War didn't end/the KGB coup happened in 1987 instead of 1991 and succeeded...

The XL's were pieced together demonstrators, early model jets rebuilt with some C model avionics. Both started with the analog FLCS, one later got the digital FLCS for NASA, but was a bit limited since they weren't sure if they'd overstress the airframe with the added control authority. There's a NASA report that describes all this in detail on the technical server. The nice thing about the XL's is that their aerodynamics are one of the best understood, measured and documented of any recent supersonic aircraft. NASA collected a lot of data for HSCT that was later made public and is often used as the gold standard to verify CFD code for technical papers. The bad news is that the P&FQ were never fully developed/completed as the two aircraft were never more than demonstrators. The above mentioned NASA report discusses one of the pitch instabilities which led to very bad Cooper-Harper scores for gun tracking, since there was no development program, no root cause was determined and no corrective action taken. While the aero model is very well understood, there is never were any operationally accepted flight control laws that met acceptable P&FQ Mil Stds. It's a great idea, Block 50 avionics would fit the time frame they would have been delivered, but the flight/handling qualities would be pure speculation as they were never completed in real life.

Why do you expect more? The current engines are already powerful enough to cause Vmc problems at heavy weights. Keep in mind the plane was originally built with J57's, the last of which had 13,750 lbs. with the water injection. The TF33's already overpower the small tail if you lose an outboard pod, we briefed that EP every time we were over that weight. More or less the pilots told us they would hold it level as long as they could with no directional control to give us a chance to get out. If you where on the lower deck or in a jump seat below 250 ft. and 500 ft. respectively, then you were dead. With much better fuel economy, the jets will carry less gas for shorter missions. At partial fuel loads the BUFF can accelerate surprisingly fast, ISTR one 70 knot call time of 7 seconds lightly loaded. The other thing to keep in mind is that up and away the thrust effects pitch moment and fuel slosh. Even if the engines are thermodynamically capable of higher thrust, they'll be flat rated, which isn't all bad as the aircraft will have a bit better thrust curve at altitude (big if).

Ah, the source of confusion is now in focus. The dash 36 you posted is a Non-Destructive Inspection maintenance technical order. The dash 34 series are operations technical orders for the weapons systems and weapons cleared for use on the airframe. So the -34 replacement in the list is the T.O. 1F-105B-36S-34. The weapons manuals are always T.O. 1F-105B-34, 1F-105B-34-1, or 1F-105B-34-1-1. This is an example for the F-111: nullnull

Where did you see the dash 34-1-1?

Dash one's will give you a description of every system, procedures, EP's, limits and some Stan Eval stuff. The performance annex will give you a lot of the info you can use to build a flight model if you know what to do. Still need at least a dash 34, and more likely at least one of its annexes. The Thud also had a pretty good stab aug system and none of the documents discussed have anything about the control laws for that. The Thud is pretty tricky because so much of the Republic documentation was destroyed decades ago and is lost to history.

Specificity greatly increases the probability of success with FOIA. If you know the title and that the document exists it makes the likely hood much greater that you will receive it. The bibliographies from the technical papers on NASA’s technical server and DTIC are also fabulous resources.
