propeler

I think no :) Because of warranty void. But what do you want to see? I can describe construction without tearing it down. I am 99% sure it is based on their direct drive actuators. With either direct stick connection like in active stick controls or utilizes A320-like gimbal. There are not so much options for such device.

It actually wears really slowly on roads where bearings are rolling. Mine stay around 8 month to notice some smoothness changes. But you can always print spare CAMs and replace only them ;)

You can also find Solidworks Project of it at https://github.com/o-devices/o-joystick-hdk in case you would like to modify it to your needs.

What CockpitLocalPoint and EyePoint stands for in view.lua? Which one I need to edit to change camera position correctly?

It is all about combination of behaviour and force. To simulate behaviour correctly you need behaviour description. To simulate force correctly we need enough power (Nm) from actuators.... and information about forces on stick in reality. It is key of success. But everything is implementable :)

It means that it produces torque 4.2N (0.42 Kg force) per 1 meter of stick length. For example having stick length 0.3 meter you will have 0.42/0.3 = 1.4kg at maximum deflection. As about real forces. NATOPS manual for F-18 says that stick force is sum of pitch rate force(no concrete numbers but for MiG 29 it is up to to 5kg at maximum deflection) plus force dependant on G ( near 1.5 kg per G). So, max force at 9G at max deflection can easily reach 15Kg. For 0.3 m stick it requires 50Nm. BUT!!!! Do you really need such real force for home cockpit?

Place receiver at either right or left side of you, rotate your clip to face receiver and offset rotations to 90 degrees :)

Do not remove it at all. New PS3 Eye camera works well with 800nm IR LEDs. Simply adjust brightness/contrast and enjoy.

Is it possible to export any airplane shaking data via export.lua?

Кто сталкивался с сим багом сетки радара(толстае линии)? Как решить?

ну у некоторых нет возможности использовать войсатак по разным причинам. Дети шумят, жена телевизор смотрит... или наоборот, все спят и нужна тишина :)

Не знаю писали ли по меню радиообмена. В эру мониторов 4k и vr меню радиообмена в том виде котором оно сейчас - анахронизм, и требует переработки. Текст такого размера в углу уже плохо читаем. Очень хотелось бы если бы радиообмен был сделан по аналогии с тем как сейчас показан в видео F-14 для общения с напарником. 8 сегментов в которые можно тыкать 8 позиционной хаткой или мышкой. И какие то символьные обозначения элементов. Реально вымораживает вслепую выискивать нужную клавишу F1-F12.

I'm pleased that my gimbal project was useful :)

KMA200 is not. KMA210 is. It is different sensor with simple ratiometric analog output.

Hi. I use KMA210 in my projects. Datasheet states max angle resolution as 0.04. So, on 180 degree range it gives you 4500 steps. If you plan to use DIY arduino based controller you can simply read output with good ADC and restrict output in software. If you plan to replace ordinary potentiometer in some joystick from the market you will probably need to program KMA210 to emulate full output on smaller angles. I have developed Arduino sketch for this purpose, but it is not stable and works from time to time.

Correct ansver. None of helmets have perfect FOV matching FOV of camera in game. If real FOV of lense in helmet is less than game camera FOV(in most cases real helmet's FOV is lower than mentioned in product description, unfortunately) all objects will look smaler than they are. Neither IPD changing or world scale will not help. Only adjusting game camera FOV to helmet's one. The higher diffence the smaller objects are in HMD. Because angular size is smaller.

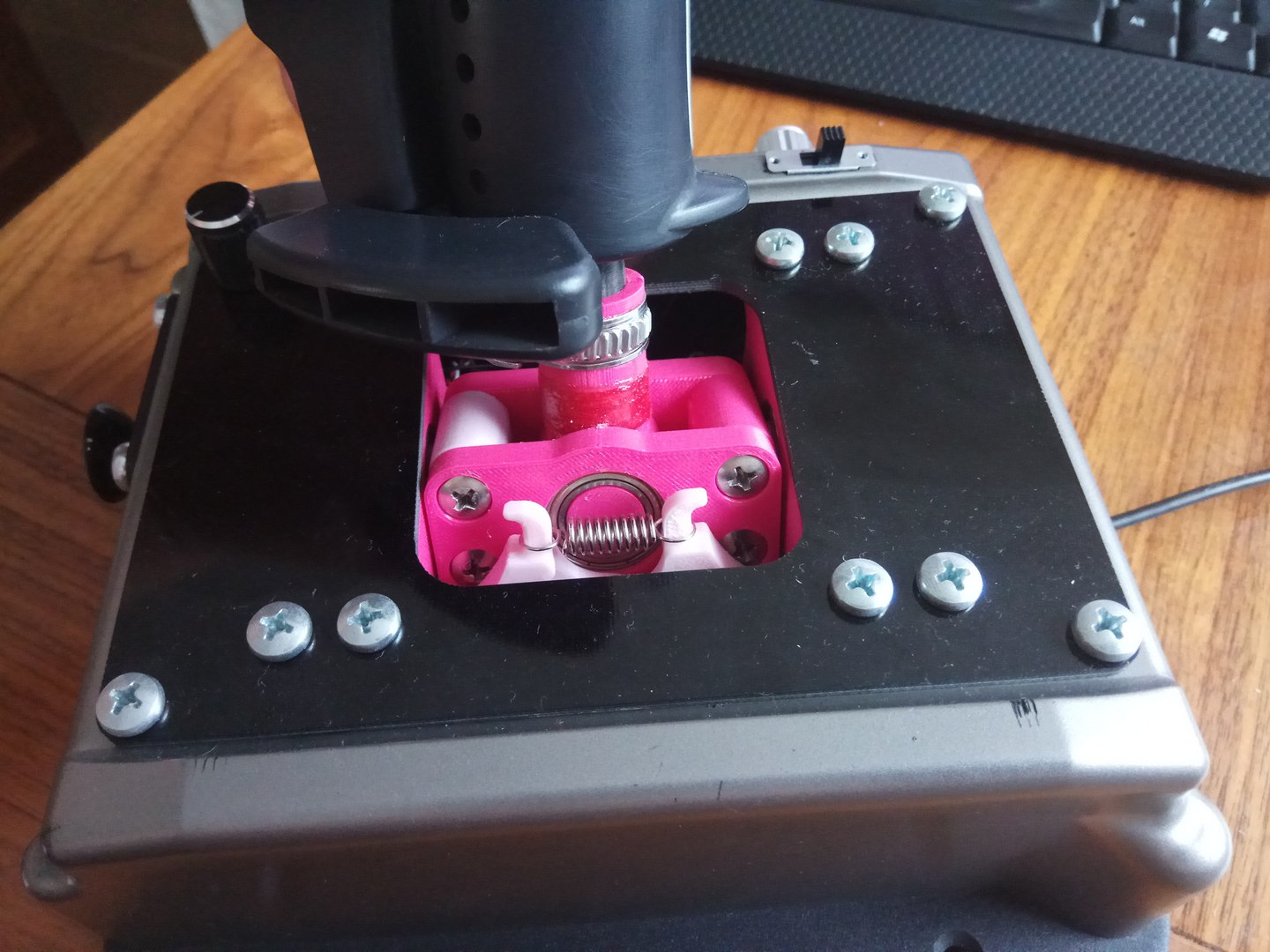

Hi guys :) I do not know if CAMs are strong anough for WARTHOG stick and strong springs, but printed from PETG plastick with realy low infill they are more than strong for use with Saitek stick and standarsd Cobra M5 springs. Latest CAM profile with Cobra springs create load on stick comparable to Cobra M5 but without strong center. I think that PETG with high infill can accept even WARTHOG stick.... Or... You can adapt size and form for CNC milling etc. Project is free for use and modification, and sources available in Solidworks format :) Use 3dhubs.com :) Here are comparable prices for WHOLE set of parts in your location.
