I have had alot of questions, if i am going to make A-10C sized MFCD bezels.



And yes, i am :) heres the first prototype drawing made.






Sry for the delayed posts i promised... but i have had alot going on lately.... Hope you understand :)



Hopefully i will soon have more time, and then more things will happen in this thread :)



If I might make a suggestion, I would try and find a suitable display for the size of frame your planning. Then design and build this frame based on that display. That way you can accurately scribe the line work on the sides of the frame so it lines up with the text on the display.



I have had considerable difficulty finding a display for this size frame and it would be a shame to offer this only to find that it's only use is taped on to a full size monitor like most people do with the TM frames. The problem is because no one offers 4:3 ratio displays anymore and when you do find a display that has the appropriate vertical dimension, the horizontal dimension is so long that 2" of the display sticks out the side of the dashboard.



It might be worth exploring before you get to far ahead on this.

Regards

John W

aka WarHog.



My Cockpit Build Pictures...



John Wall



My Arduino Sketches ... https://drive.google.com/drive/folders/1-Dc0Wd9C5l3uY-cPj1iQD3iAEHY6EuHg?usp=sharing





WIN 10 Pro, i8-8700k @ 5.0ghz, ASUS Maximus x Code, 16GB Corsair Dominator Platinum Ram,



AIO Water Cooler, M.2 512GB NVMe,

500gb SSD, EVGA GTX 1080 ti (11gb), Sony 65” 4K Display

VPC MongoosT-50, TM Warthog Throttle, TRK IR 5.0, Slaw Viper Pedals

  • Replies 353
  • Created
  • Last Reply

Top Posters In This Topic

Posted (edited)

Hey Warhog.



You are 100% correct, it is a big problem to find a monitor that fits, and i dont really think there is any, unless they get specially manufactored.



And even the 4:3 sized one i have found, have problems because they either sticks out the side as you also mention, or they are ruining the view of the instruments beside it.



So the solution as you mention, to design these for the available screens might end up as the best way to do this.



I have a 27" behind mine, and i can see allready that its not wide enough either, it will miss 6mm of the outer edge of each MFCD.



And if you choose a 28" you have the problem with it sticking too far out the sides of the MIP, and im not even sure it even fits in the height, i mean, if its so high that you cant have your legs moving freely.



However, there might be one solution, which is to accept that the screen stick out the side, and i know its ugly. But take a look at these 2 pictures, this show that both the A-10C and the A version also had to make room for the Displays installed.









BUT off course its behind the MIP, and they dont stick out the side so they are visible. But it might just be to make a nice cover, that at least could give it a more "finished" look, like its ment to be.



I know other people use a number of different screen behind their MIP, and there might be a solution to fix this that way, i just havent seen it yet.



So yes... this is not a finished sized project, it might need a little change in dimensions.



Personally i also plan on installing a "bag" on top of my Glareshield, like this a-10C have:






That can also hide a little of that screen sticking out the back.

Edited by LynxDK

Regards.

LynxDK



[sIGPIC][/sIGPIC]

Instagram

Posted (edited)
If I might make a suggestion, I would try and find a suitable display for the size of frame your planning. Then design and build this frame based on that display. That way you can accurately scribe the line work on the sides of the frame so it lines up with the text on the display.



I have had considerable difficulty finding a display for this size frame and it would be a shame to offer this only to find that it's only use is taped on to a full size monitor like most people do with the TM frames. The problem is because no one offers 4:3 ratio displays anymore and when you do find a display that has the appropriate vertical dimension, the horizontal dimension is so long that 2" of the display sticks out the side of the dashboard.



It might be worth exploring before you get to far ahead on this.



John, 4:3 is still very much available. Take a look at this:

http://m.ebay.com/itm/161449181251?_trksid=p2141725.m3641.l6368

8" LCD with 6.4" with 4.8" viewable area, so vertically it is only 0.2" short of the real unit. Horizontally the buttons will go over it and it is still will be possible to fit onto or at least close to the 6.75" footprint of real device. (Obviously we ripping out the LCD itself out of factory enclosure)

It can be found for much less too (can't perform in depth ebay search ATM). I picked pair of similar screens for my MFCD attempt for bit below 30$ . but at the end I think I will be building my MIP around 27incher LCD with Linx's bezels whenever available (unless I manage to pull off my own)

Edited by agrasyuk

Anton.



My pit build thread .

Simple and cheap UFC project

Posted (edited)
I'd suggest to use the LB084S02 8.4" display - it is high enough to cover the whole display area and narrow enough to be covered by the display frame.



Cheers,

DSP



Yea those displays would work it seems..... i need to get a few of those.



Here is a couple of files regarding the MIP Center Piece.

Dimensions and Mounting Templates, both in 1:1 printable PDF and in DXF.



http://lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece%20Dimensions.pdf





http://lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece%20Printable.pdf





And here is the DXF: lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece.dxf

Edited by LynxDK

Regards.

LynxDK



[sIGPIC][/sIGPIC]

Instagram

Posted

Again, nicely done! And the dxf is really over the top! Thank you for your contributions. Of course, I already got one. It mounts and looks fabulous. It holds real instruments very well and very solid. Honestly, I was a tad, just a tad mind you, worried with the whole 3-D printing thing and how well it would hold up.



I know you mentioned somewhere you could use an aluminum backing on the back-side if you were worried. Well I'm telling you, it was totally unfounded and works great without it. Top notch design and production!

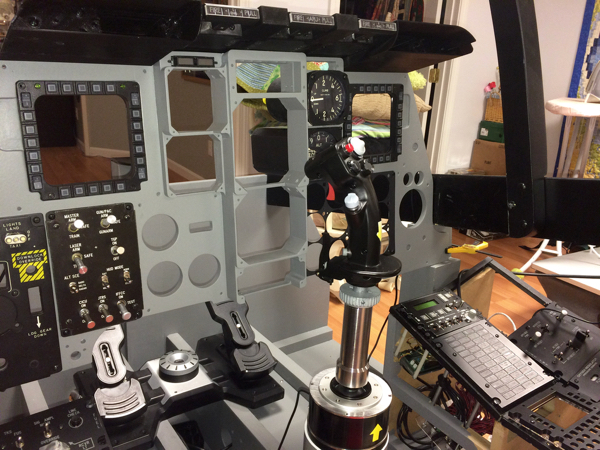

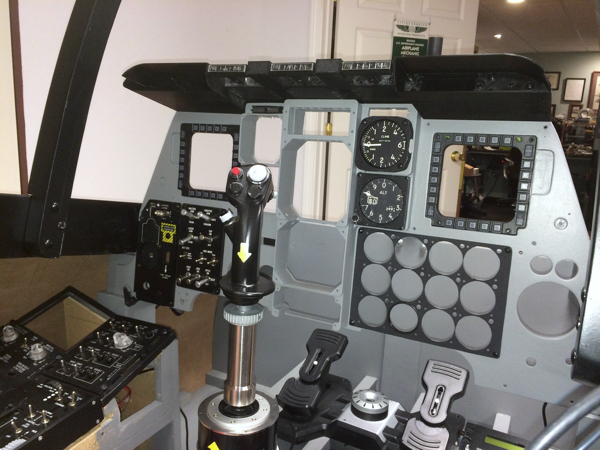

For those with any aesthetic concern, it is easy to sand down the 3-D printed "grain" and use a filling primer to make it totally flat. Especially if you want to paint it to match the rest. Here's a couple of pics from mine. (Sorry for the disarray. Flood in basement meant quick disconnect and hurriedly moved to avoid damage. Priorities! ;) )



You've really made me a believer when it comes to using 3-D printed parts, in some cases, in production as well as making mock-ups. I was heavily warned by some against any printed parts saying that they are only to be used in the design phase. I guess I can see that with certain products. But with what I've seen you do in your work, first hand I should say, I can now say that, again with certain application—not all maybe, (until I see them,) that perhaps it really will work in the real world. Can't wait to see what more you can make! Thanks!



Buttons aren't toys! :smilewink:



My new Version 2 Pit: MacFevre A-10C SimPit V2

My first pit thread: A-10C Simulator Pit "The TARDIS."

Dzus Fastener tutorial, on the inexpensive side: DIY Dzus Fastener

Posted

That MIP piece would be used with a monitor and Helios, right? Or only with real instruments?









Yea those displays would work it seems..... i need to get a few of those.



Here is a couple of files regarding the MIP Center Piece.

Dimensions and Mounting Templates, both in 1:1 printable PDF and in DXF.



http://lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece%20Dimensions.pdf





http://lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece%20Printable.pdf





And here is the DXF: http://lynx.dk/blueprints/A-10C%20MIP%20Center%20Piece.dxf

Kaby Lake @ 4.6Ghz - Gigabyte Z170-D3H - 16Gb DDR4 - Gigabyte GTX 1080 G1 OC - Samsung EVO 250Gb SSD - Seagate 1 Tb HDD - HTC Vive - Rift CV1

Posted (edited)
That MIP piece would be used with a monitor and Helios, right? Or only with real instruments?



Your right, it can be used with a monitor running Helios.

But it will also be able to hold real instruments, as you can see in Mac's pictures, i believe the Altimeter and the VVI are real instruments. When i get my MIP finished i will post pictures of the thing with a monitor behind it. But the pictures Mac posted really shows it, hes just missing the instrument bezels and the monitor :)



Its looking really good Mac, your paint job really looks like its one big piece. And the installed Glareshield just make it stand out :)



Looking forward to see the rest of your MIP when you recieve the Bezels im making for you :)

Edited by LynxDK

Regards.

LynxDK



[sIGPIC][/sIGPIC]

Instagram

Posted (edited)

Here is my Main Instrument Panel Drawings.



These drawings are for both people who want to install Real Instruments, Instruments Replicas and for those who want a Glass cockpit, with a monitor behind all instruments.

But i will upload a version only for Glass Cockpits, as those MIP dont need to have as much Material removed.



This is also Version 1.0, so you can keep track if it happens that i add, or make changes.



Dimensions and Cutting Templates, both in 1:1 printable PDF and in DXF.



http://lynx.dk/blueprints/A-10C%20MIP%20Real%20Instruments%20Dimensions%20v.1.0.pdf





http://lynx.dk/blueprints/A-10C%20MIP%20Real%20Instruments%20Printable%20v.1.0.pdf





And here is the DXF: lynx.dk/blueprints/A-10C%20MIP%20Real%20Instruments%20v.1.0.dxf



The Dimensions and mounting template for the Glareshield is next. :)

Edited by LynxDK

Regards.

LynxDK



[sIGPIC][/sIGPIC]

Instagram

Posted (edited)

Lynx congratulations on releasing your first version of your Main Instrument Panel (MIP) and Glare Shield plans.

I know first hand the countless hours of working on them the time that these have cost you.

I could say how great they look! We know that looks on this kind of work is secondary it all comes down to how it all fits together. The precision of the plans I hope you have achieved this !! You have had a very difficult time gathering your information and your being very gracious in sharing the plans with the limited community here.

Once again congratulations on your accomplishment.

Edited by Deadman
Clairity

https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824

CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.

Posted

Excellent work Lynx, really fantastic to share this with the community.

[sIGPIC][/sIGPIC]

_____________Semper paratus, In hoc signo vinces________________



PC: Intel i7-8700K (4.9 GHz), Aorus Ultra Gaming Z370 MB, Gigabyte RTX 3080, 32 GB DDR3 (3,2 GHz), Samsung EVO 860 M.2 500 GB SSD + Samsung 960 M.2 250 GB SSD Gaming: Virpil T-50 CM2, TM WH Throttle, Crosswind pedals, HP Reverb

Posted

Really Neat stuff Lynx...

Excellent attention to detail ... Keep it up Bro ... :thumbup:

Check Six!!!_:gun_sniper:_:pilotfly:

||AMD R7-2700X||ASUS ROG STRIX-X470F Gaming||SAPPHIRE RX 7900 XTX 24GB OC||GSKILL-TridentZRGB 16GBDDR4 3200C14||WARTHOG HOTAS||CORSAIR RM 1000X||:gun_smilie:

  • 4 weeks later...
Posted (edited)

Hello.



A little bit late, but as promised i can here show you the prototypes of the ADI and HSI bezels.

They still need frontglass, screws and knobs, but they are as shown.









I can also show a little bezel for the F-16 People, which is still in development, since the dials inside the bezel off course wont be there when installed in front of a LCD. But it will in the future real instrument.









Now i would like to tell you why it has been so long since my last post here.



My partner and i have had alot of things going on, and we have finally been approved for exporting outside EU.



What that means for those of you who are interested in our products, is that you will be able to purchase from us, ex. Danish VAT Which is the 25%. Instead we can export, and then you only pay whatever import VAT is required in your country, if there is any.



Sadly this only counts for costumers outside EU, for those of you who order form inside EU, still have to pay the Danish VAT rate.



We are also working on a Webshop, where all of our product will be available.

Edited by LynxDK

Regards.

LynxDK



[sIGPIC][/sIGPIC]

Instagram

Posted
Excellent news! I, for one, wouldn't mind paying 25% less! :D



It's "only" 20% less - The 25% is when adding the tax. Congratulations on getting the export stuff worked out.
