couple of months ago,I hear there's a Duplicate F15E joystick were made before the year of 2000.



and, i'm a huge fan of F15, so I make my move.get the stuff at Amazon.





but problem is,this thing can't be used in USB



So ,I have to make some change.



now i'm gonna show you guys what I made :)





and finally,i get what I want......:thumbup:





at last ,if any one were interested of my work,please make connect with me



here's my email address:qepwq7@gmail.com

Edited May 2, 2016 by CDDCS_26

[Bourrinopathe]

Congratulations! It looks really great! :thumbsup:



Was it rather easy to use the Warthog adapter on the F-15 grip (no more than five wires?) and does it feel solid enough to endure many flight hours?



What controller did you use for the throttle (NJoy32?)?

Edited May 2, 2016 by Bourrinopathe

[Stratos]

I don't like the F-15 as I'm more of an attack/multirole guy (Vipers and Hornets for me), but the job you have done on that stick is just amazing, so my congratulations!!

[rrohde]

Stunning work!

[Flame]

Looks nice man, well done.



I can tell that you some effort in that :)

[feefifofum]

Beautiful work!

Really inspiring to see so many awesome projects here.

[streakeagle]

I don't like the F-15 as I'm more of an attack/multirole guy (Vipers and Hornets for me), but the job you have done on that stick is just amazing, so my congratulations!!



This is an F-15E stick, which is kind of the ultimate attack/multirole aside from very late F-14Ds.



Back on topic:

Great job on the stick!

[Brewnix]

WOW! good job! Curious I currently have the same Flight stick tore apart to build my own. In the planning stages. But how did you wire the hat switches in the grip did you pull the pcb apart or just solder wire on top of the switches... Thanks!

[Kayos]

Great job. I wish I could do something like that.

[pepin1234]

Outstanding work.



Sale to the community?

[CDDCS_26]

Outstanding work.



Sale to the community?



No, it is showing off the earth only F15 joystick:megalol:

[CDDCS_26]

WOW! good job! Curious I currently have the same Flight stick tore apart to build my own. In the planning stages. But how did you wire the hat switches in the grip did you pull the pcb apart or just solder wire on top of the switches... Thanks!

I'll show more pictures, I explain the production process, please wait

[Baz000]

I have the same HOTAS, but without you modifications... I used the realsimulator.com FUSBA conversion kit and after a bit of tinkering it works like a charm...



Really enjoying flying an F-15C with a F-15 stick, quite immersive.

[pepin1234]

I explain the production process, please wait



This is really appreciated

[Brewnix]

I'll show more pictures, I explain the production process, please wait





Thanks!

[debolestis]

Very nice work!

Did you used shift registers from eagle grip or you made your own?

[BitMaster]

Excellent !



Nice work indeed





Gesendet von iPhone mit Tapatalk

[CDDCS_26]

http://forums.eagle.ru/attachment.php?attachmentid=140043&stc=1&d=1462451523

Delivery time to you is the same as the



http://forums.eagle.ru/attachment.php?attachmentid=140044&stc=1&d=1462451928

But we need a USB device, more buttons. So only one handle is available, plus with the potentiometer



http://forums.eagle.ru/attachment.php?attachmentid=140046&stc=1&d=1462452214

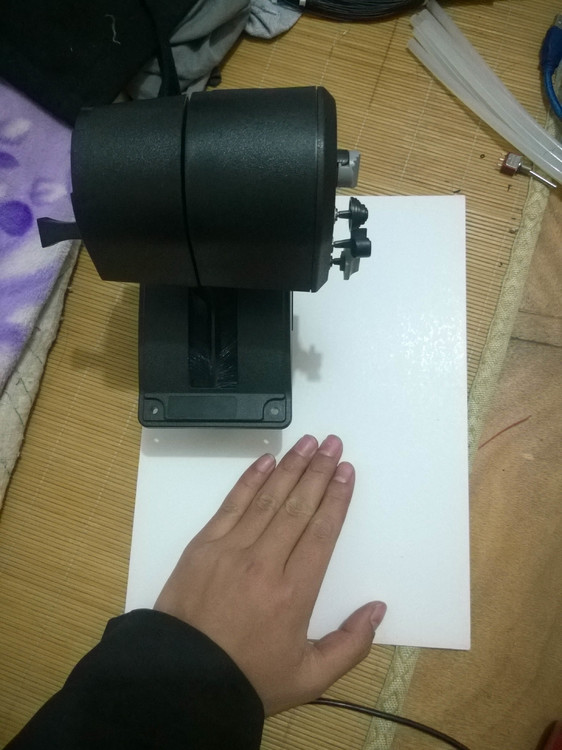

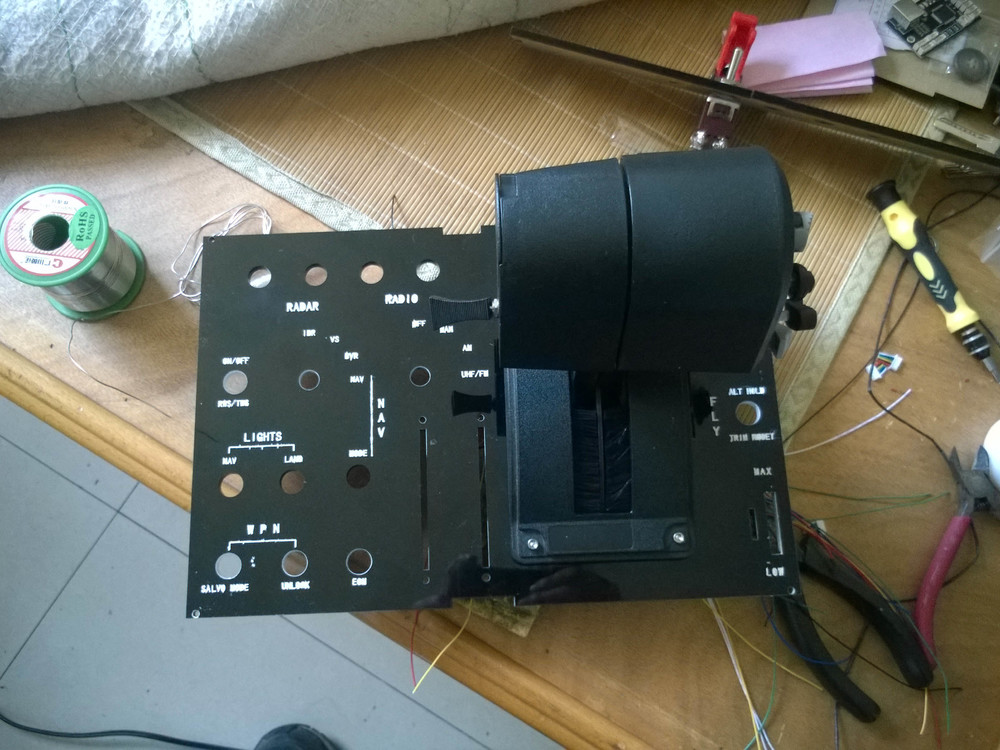

Remove the handle, base has no value anymore,An A4 sheet, comparing size, I'm satisfied. Just do

[CDDCS_26]

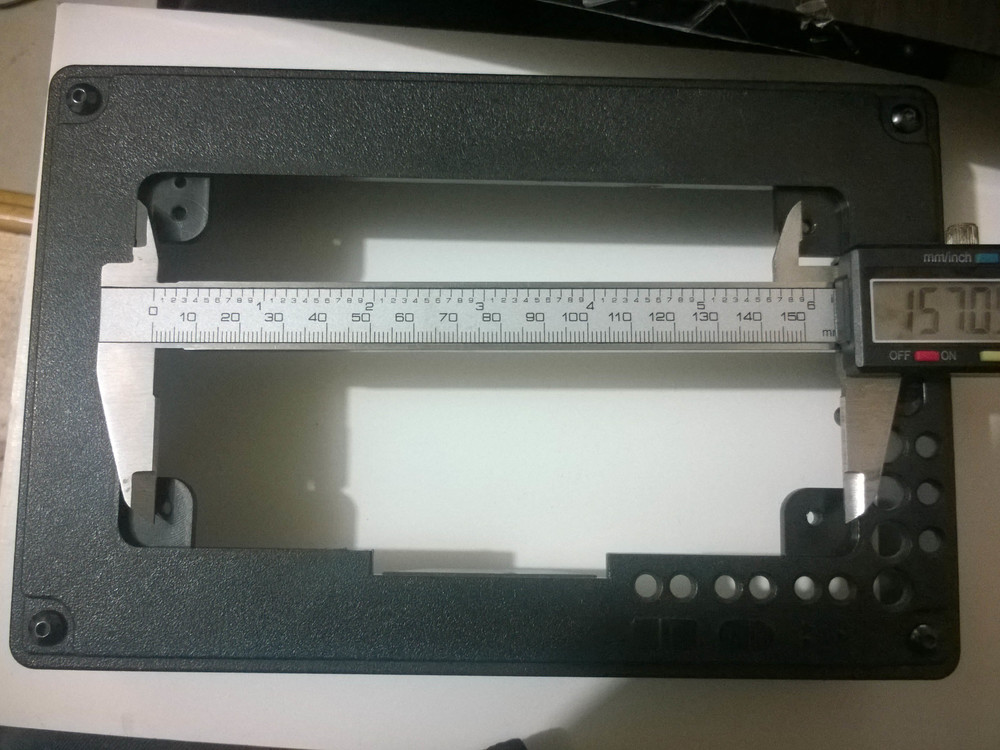

Only need is to handle the installation dimensions, measurements,





Marked on the right side, you may use

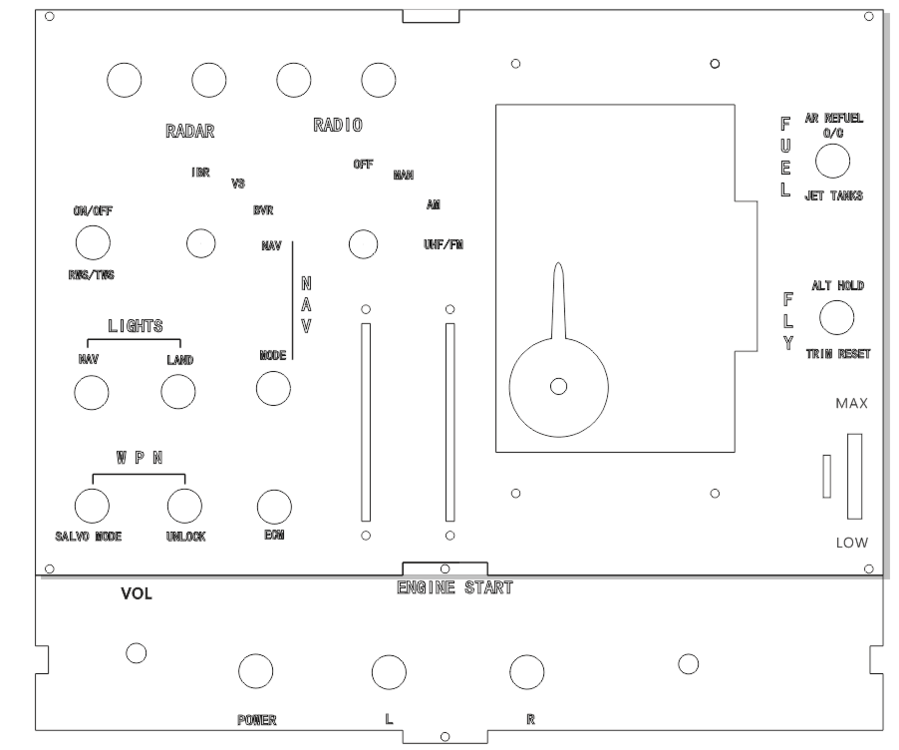

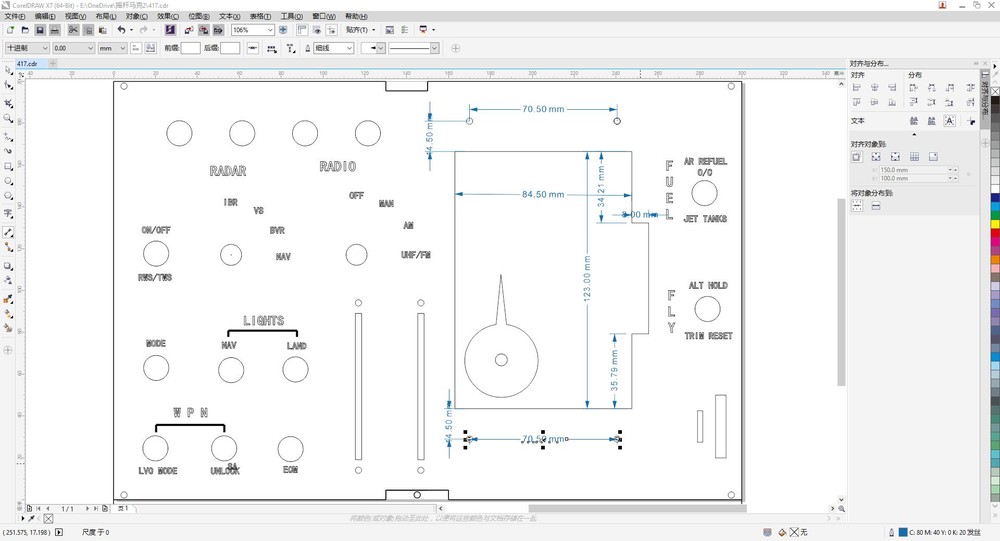

CDR DWG files can be sent directly to Taobao sellers, such as processing,

Laser cutting acrylic,

Diagram of font vendors will you carve shallow surface, rather than straight through.

[CDDCS_26]

Weekend went to the electronic market, Wow, Outlook on life, value Outlook，Have been refreshed

So, I bought one of these

[CDDCS_26]

This is the first proof, unfortunately errors



The figure means, sprayed white paint on engraving fonts in yellow wrappers not torn off when you want to do











Soon, the correct second edition coming

Edited May 6, 2016 by CDDCS_26

[CDDCS_26]

Put switch on front and back

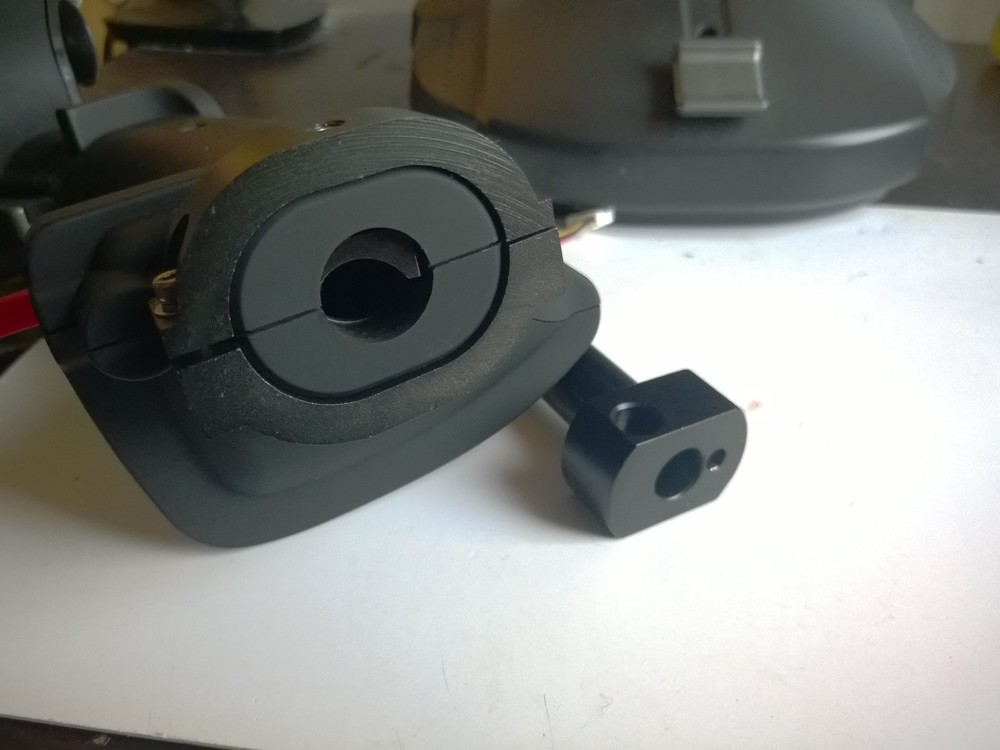

Don't ask me the thread of the handle where it came from,Apart the handle is some switch, you can connect the

Edited May 6, 2016 by CDDCS_26

[debolestis]

you didn't upload the photos in last 3 posts.

[CDDCS_26]

Oh, sorry, method not used to using this forum tomorrow, and then repair, sleep, good night

[CDDCS_26]

MMJOY2 I used to do, which is 4021







Has been a bit of a mess traces,
