How is wind speed calculated?


asp22
 Share

Recommended Posts

Does anyone know how wind speed at a given altitude is calculated?



In an attempt to discover this, I created 3 wind profiles in the mission editor and took readings at various heights using an A-10C.



all directions set to 0

Profile 1, ft - kts

33 - 10

1600 - 21 (automatically set)

6600 - 0

26000 - 0



Profile 2,

33 - 0

1600 - 0

6600 - 20

26000 - 0



Profile 3,

33 - 0

1600 - 0

6600 - 0

26000 - 20



I've attached a plot showing the speeds at various alt for the three profiles. I've discovered that between 33ft and 1600 ft a power law with a coefficient of 0.194 seems to be used, The rest looks like some sin/cos flavour but i can't quite get them to fit. If anyone has looked into this and knows the magical formulas i'd be interested.





Thanks,



-------------------------------------------------------------------------------------

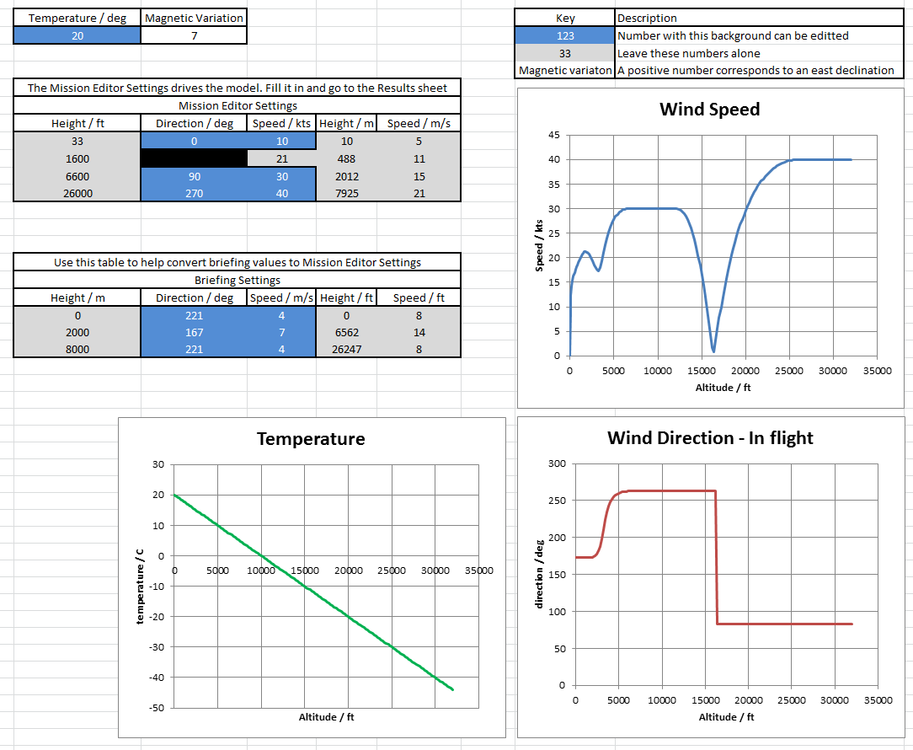

Update: I have managed to produce a reasonable model and have stuffed it into an excel sheet I've also added a screen capture to give you an idea of what to expect should you choose to download it.



I hope that the use is straight forward. You use the sheet 'Settings' to plug in values and 'Results' has the calculated values provided in a table. The sheet 'Maths' has, well, the maths.... apologies if you take a peek inside here; my excel skills need a bit of work.


wind and temperature estimation tool.zip


Edited by asp22
fix broken attachment
  • Like 1
  • Thanks 1
Link to comment
Share on other sites

razo+r. I think there is a misunderstanding. I understand that it is possible to change wind speeds at certain altitudes. I'm interested in the model that DCS World uses to create a wind profile from the 3 values specified in the mission editor.

Link to comment
Share on other sites

Good question, I'd be interested as well.

A warrior's mission is to foster the success of others.

i9-9900K | MSI RTX 3080Ti Suprim X | 32 GB Ram 3200 MHz DDR-4 | Asus Maximus Hero X | Samung EVO 980 Pro SSD | Virpil Stick, Throttle and Collective | MFG Crosswind | HP Reverb G2

RAT - On the Range - Rescue Helo - Recovery Tanker - Warehouse - Airboss

Link to comment
Share on other sites

wind direction is always where it is coming from. the ATC just takes what it is set at and reads it back.

My Setup:

HOTAS Warthog, Saitek Combat Pro Rudders, Trackir 5, i Control w/ipad, powered by Alienware Aurora ALX i7 3930k oc 4.2, dual 980s, 16gb Ram.

Link to comment
Share on other sites

Does the mission editor indicate air speed direction from where it's coming or where it's going?

Also how does ATC indicate air speed direction?

Mission editor and briefing shows the direction the wind is blowing to.



ATC on final gives the direction the wind is blowing from.

Link to comment
Share on other sites

What about the 'briefing screen' I take it that it and all other indicators in the sim are where the wind is blowing from.

The briefing screen also shows direction to. AFAIK the only thing that gives the direction the wind is blowing from is ATC during the landing clearance.



You can check it by placing a windsock. :)

Link to comment
Share on other sites

Looks like this thread has gone on a bit of a tangent. :)



What grunf has said is true;

mission editor: direction the wind is blowing towards (eg. 0)

briefing: direction the wind is blowing towards. (0)

In flight: direction the wind is coming from. so it is coming from 180 and trying to push you towards 0.



Regarding the wind profile, I think that sin/cos wave bits are modelled by Bezier curves. I've had a quick play and i can get a reasonable fit. I'll test it out to see if it can predict other profiles and report back.

Link to comment
Share on other sites

Bezier curves seem to work. I used a cubic variant which gives a reasonable estimate; I wonder if a higher order improves things

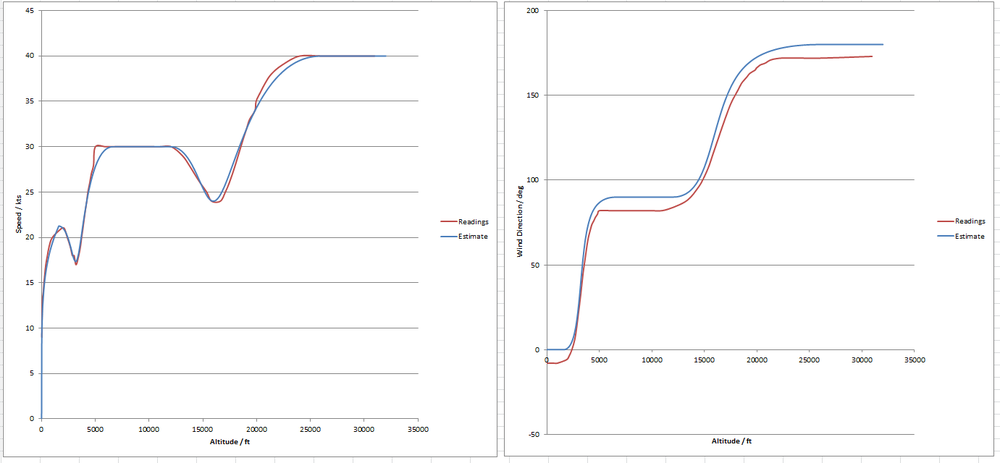

I created the following wind profile and took readings from 20 to 30000 ft
