OpenHornet F/A-18C 1:1 SimPit (WIP)

[robump]

We decided the 0603 components were going to be just too small for most people to comfortably hand solder, so we are redesigning with larger components.



Sent from my SM-G960U using Tapatalk

That sounds very sensible! I would have been chasing round my poor Solder joints for ages!



Great work as always... Thanks!

[aniron]

We decided the 0603 components were going to be just too small for most people to comfortably hand solder, so we are redesigning with larger components.



Sent from my SM-G960U using Tapatalk



Was it 0603 metric or imperial? What are you currently going for?

Any pictures of the soldered boards you'd like to share?

Edited October 10, 2018 by aniron

[jrsteensen]

Unfortunately, no pictures at this point. Didnt make it that far.



I've been working on the system architecture for this a little to illustrate the electronics stack. Feel free to comment with any questions on it!



On the structures side, left and right consoles are virtually done, lower instrument panel is 95% and about to start work on the upper instrument panel and the seat. None will be build ready yet, as waiting until I get a few odds and ends (component-wise) 100% so I can fit check everything in CAD.



Sent from my SM-G960U using Tapatalk

[Dropship Pilot]

Hmm, interesting! :book:



I would have suspected that the main display (HDMI) as well as the AMPCD and the left and right DDI (3x Display Port) would be powered directly by the main graphics card (assuming a 1080ti).



What software are you going to use to get the graphics to the Rasberry Pis?





Cheers

DSP

[jrsteensen]

Hmm, interesting! :book:



I would have suspected that the main display (HDMI) as well as the AMPCD and the left and right DDI (3x Display Port) would be powered directly by the main graphics card (assuming a 1080ti).



What software are you going to use to get the graphics to the Rasberry Pis?





Cheers

DSP





Primary display will be directly powered by the GPU. Our recent software engineer addition to the OH team (Damien22) has been coding up something to stream the outputs to the DDIs, AMPCD, RWR/SARI, and IFEI. It shows real promise and will only require creating a single virtual display adapter on the host PC. Preliminary testing shows almost no stutter, and only a tiny CPU overhead on the host PC.

[Dropship Pilot]

Ah! Cool! :thumbup:





Cheers

DSP

[jrsteensen]

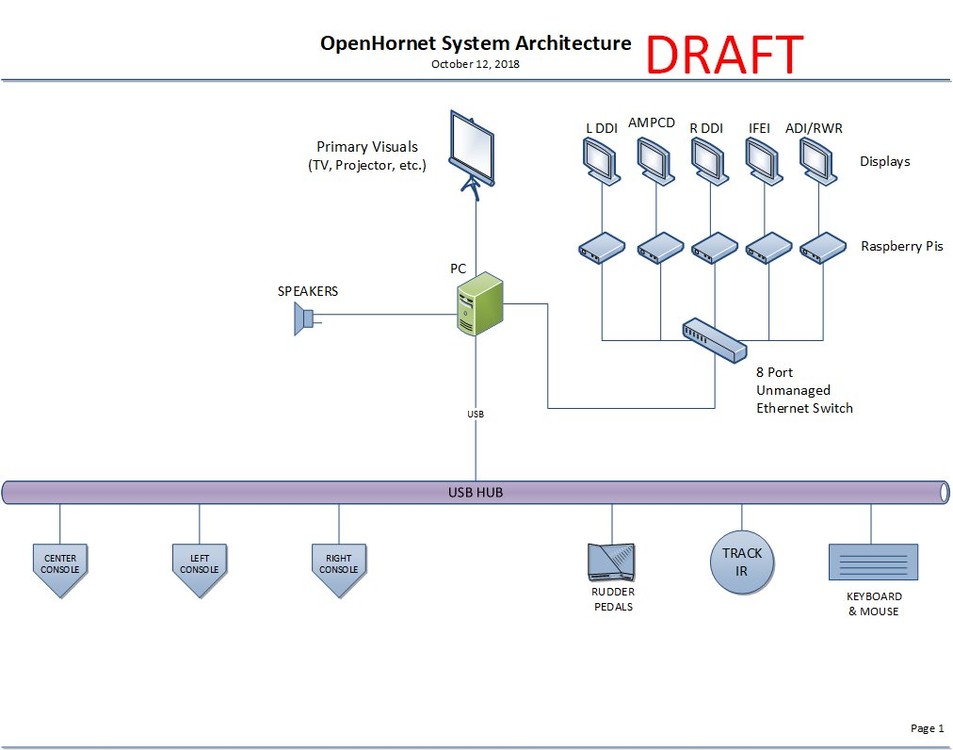

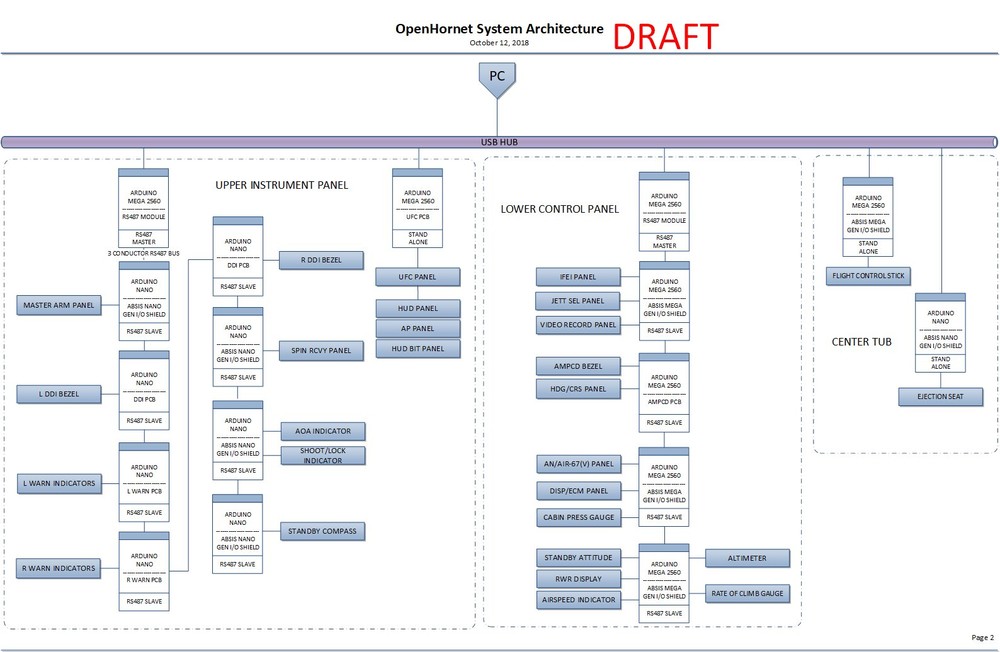

Okay, so this should be much closer to what ends up in the build. Hopefully it answers some questions.

System Architecture.pdf

Edited October 13, 2018 by jrsteensen

[ward8124]

Primary display will be directly powered by the GPU. Our recent software engineer addition to the OH team (Damien22) has been coding up something to stream the outputs to the DDIs, AMPCD, RWR/SARI, and IFEI. It shows real promise and will only require creating a single virtual display adapter on the host PC. Preliminary testing shows almost no stutter, and only a tiny CPU overhead on the host PC.





This I'd really love to see working! Please put a Youtube vid up of it if you can!:thumbup:

[jrsteensen]

This I'd really love to see working! Please put a Youtube vid up of it if you can!:thumbup:





I've invited Damien to post up here on it, as he can speak way more intelligently on it than I can. He is away from home for the next couple days, but will post here once he gets home and settled.

[bloop]

I've invited Damien to post up here on it, as he can speak way more intelligently on it than I can. He is away from home for the next couple days, but will post here once he gets home and settled.



Hi everyone! Damien here! (with a different login here)

I have looked at the hogkey Iris https://code.google.com/archive/p/hogkeys/downloads

Which I have adapted to work with the Raspberry Pi (running mono)

This means that you can export screens to a raspberry pi. There is no compression which lightens up the load on the host PC but means it is taking a bit more bandwidth. Streaming this 600x600 export only takes about 2.5mbs on the network which is no problem, and should also work on wifi (although I would not recommend it)

a quick demo. streaming the left DDI at what I think was 10fps

[Mr_Burns]

What does the Nano Gen I/O shield do?

[aniron]

Hi everyone! Damien here! (with a different login here)

I have looked at the hogkey Iris https://code.google.com/archive/p/hogkeys/downloads

Which I have adapted to work with the Raspberry Pi (running mono)

This means that you can export screens to a raspberry pi. There is no compression which lightens up the load on the host PC but means it is taking a bit more bandwidth. Streaming this 600x600 export only takes about 2.5mbs on the network which is no problem, and should also work on wifi (although I would not recommend it)

a quick demo. streaming the left DDI at what I think was 10fps



Is this a DCS-specific implementation or does the raspberry screen show up as a directly connected screen would?

[jrsteensen]

What does the Nano Gen I/O shield do?





The ABSIS (Arduino Based Simulator Interface System) General I/O PCBs are basically a shield for a Arduino Nano/Mega that provides a convinent mounting, easy breakouts for wiring panels, an RS-487 bus, and converts three of the PWM pins to allow the user to select them between 5V and 12V.

[aniron]

The ABSIS (Arduino Based Simulator Interface System) General I/O PCBs are basically a shield for a Arduino Nano/Mega that provides a convinent mounting, easy breakouts for wiring panels, an RS-487 bus, and converts three of the PWM pins to allow the user to select them between 5V and 12V.



Could you post this kind of description for all the ABSIS variants?

Would be convenient to know exactly how they differ from e.g. tekkx's boards.

[jrsteensen]

Could you post this kind of description for all the ABSIS variants?

Would be convenient to know exactly how they differ from e.g. tekkx's boards.



There's only two. The Mega and the Nano. I'll write up some datasheets eventually, but its really rather low on my priority list right now.



See attached for what I've been working on the past couple weeks. It's coming along nicely. :music_whistling:



[rel4y]

Been following this project for a while. Awesome stuff, keep it up guys!



Why dont you have a look at the Hempstick firmware? It is open source and perfectly suited I think. It runs on FreeRTOS and is much superior to the usual ATmel Arduino loop based stuff. :)



http://hempstick.org/The_Official_Hempstick_Site/Welcome.html



Cheers

[jrsteensen]

Thanks! We'll certainly look into it, but its gonna take a whole lot to sway me away from being able to utilize DCS-BIOS for the project.



Sent from my SM-G960U using Tapatalk

[AJ.eightFive]

Been a while since I've stopped by. That latest render looks amazing, keep up the good work!

[jrsteensen]

So been doing a ton of general cleanup and structural work. Still have quite a list on the mechanical side, but definitely progressing. Decided to do some high-res renders today.





Ready to start work on the seat in earnest, but really lacking solid reference materials. I can extrapolate the major dimensions and control placement, but the rest of the seat may end up having to be fairly cosmetic.

[robump]

So been doing a ton of general cleanup and structural work. Still have quite a list on the mechanical side, but definitely progressing. Decided to do some high-res renders today.





Ready to start work on the seat in earnest, but really lacking solid reference materials. I can extrapolate the major dimensions and control placement, but the rest of the seat may end up having to be fairly cosmetic.



Those renders look fantastic - keep up the good work!

[Spitty]

Absolutely beautiful work..The wood also would make beautiful formers to do hammerforming with aluminium.

[316HornetBall]

Hi everyone! Damien here! (with a different login here)

I have looked at the hogkey Iris https://code.google.com/archive/p/hogkeys/downloads

Which I have adapted to work with the Raspberry Pi (running mono)

This means that you can export screens to a raspberry pi. There is no compression which lightens up the load on the host PC but means it is taking a bit more bandwidth. Streaming this 600x600 export only takes about 2.5mbs on the network which is no problem, and should also work on wifi (although I would not recommend it)

a quick demo. streaming the left DDI at what I think was 10fps





What would happen if you moved your virtual view? From the IRIS docs it seems like it grabs a section of the screen and streams it out so what would be streamed if you were looking around outside for example?

[jrsteensen]

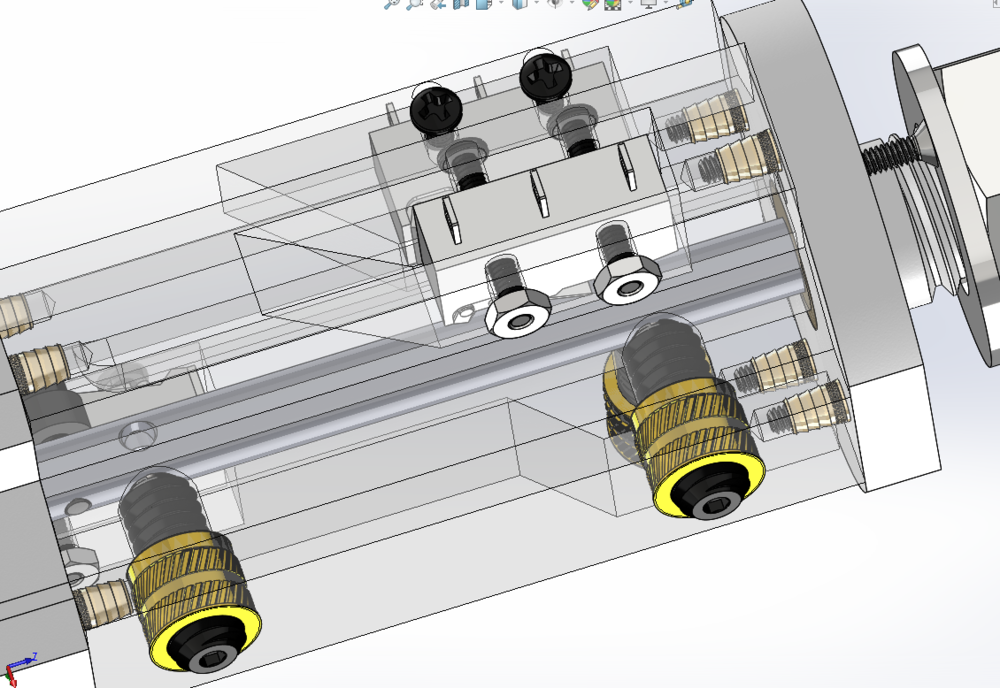

Finished the Brake/Emergency Handle mechanism and the brake pressure gauge yesterday. Left console is component complete (minus throttle). Going to start working on modeling the PCBs and start dropping the electronics layer in. Goal on the left/right consoles is have them interface to the rest of the pit with a single USB cable and a single power connection.



Sent from my SM-G960U using Tapatalk

[aniron]

What would happen if you moved your virtual view? From the IRIS docs it seems like it grabs a section of the screen and streams it out so what would be streamed if you were looking around outside for example?



DCS has built-in duplication of the MFD's, you just render them on a scecond monitor (or off screen) by editing a .lua inputting the coordinates to start the render.



It's what is normally used with Helios and a secondary, directly attached monitor.

[jrsteensen]

Figured these deserved some pictures.
