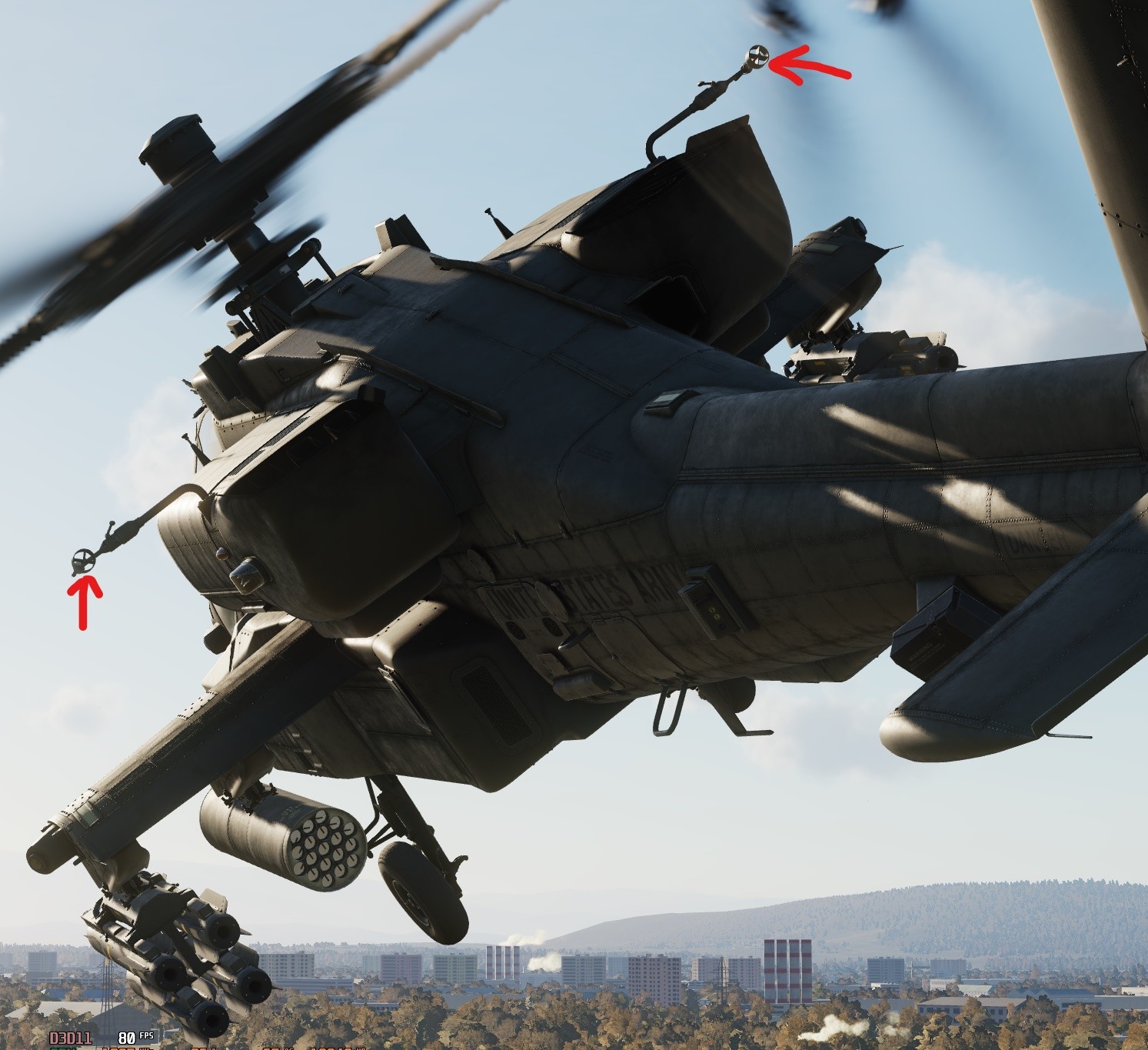

Rex Posted May 8, 2022 Posted May 8, 2022 (edited) I've been searching around, but it's hard to find info on them when you don't know what they're called. "Fan looking things on the end of a stick +Apache helicopter" doesn't get it done. Edited May 8, 2022 by Rex Rex's Rig Intel i9-14900K | Nvidia RTX 4090 | 64GB DDR5 | 3x4TB 990 Pro M2 SSDs | HP Reverb 2 | 49" Samsung 5120x1440 @ 120Mhz TM Warthog Stick + Throttle | TM Pendulum Pedals | MS Sidewinder 2 FFB | Track IR | Cougar MFD x 2
Solution Kang Posted May 8, 2022 Solution Posted May 8, 2022 Those cute little things are the air data sensors. Used for speed and orientation measurements and whatnot. 2 1
M1Combat Posted May 8, 2022 Posted May 8, 2022 They're high tech wind socks 2 1 Nvidia RTX3080 (HP Reverb), AMD 3800x Asus Prime X570P, 64GB G-Skill RipJaw 3600 Saitek X-65F and Fanatec Club-Sport Pedals (Using VJoy and Gremlin to remap Throttle and Clutch into a Rudder axis)
Devrim Posted May 8, 2022 Posted May 8, 2022 Air Data Sensors as mentioned above. ADS sensors. Quick Start Manual page 33 & 187. 1 1 Intel i7-14700@5.6GHz | MSI RTX4080 SuperSuprimX | Corsair V. 64GB@6400MHz. | Samsung 1TB 990 PRO SSD (Win10Homex64) Samsung G5 32" + Samsung 18" + 2x8"TFT Displays | TM Warthog Stick w/AVA Base | VPC MongoosT-50CM3 Throttle | TM MFD Cougars | Logitech G13, G230, G510, PZ55 & Farming Sim Panel | TIR5 & M.Quest3 VR >>MY MODS<< | Discord: Devrim#1068
Rex Posted May 8, 2022 Author Posted May 8, 2022 (edited) Awesome, thank you all so much! Edited May 8, 2022 by Rex Rex's Rig Intel i9-14900K | Nvidia RTX 4090 | 64GB DDR5 | 3x4TB 990 Pro M2 SSDs | HP Reverb 2 | 49" Samsung 5120x1440 @ 120Mhz TM Warthog Stick + Throttle | TM Pendulum Pedals | MS Sidewinder 2 FFB | Track IR | Cougar MFD x 2
Rex Posted May 8, 2022 Author Posted May 8, 2022 FWIW, I downloaded this thing to try and identify them, but if they're in there, I don't see them. It's pretty cool otherwise, though. Rex's Rig Intel i9-14900K | Nvidia RTX 4090 | 64GB DDR5 | 3x4TB 990 Pro M2 SSDs | HP Reverb 2 | 49" Samsung 5120x1440 @ 120Mhz TM Warthog Stick + Throttle | TM Pendulum Pedals | MS Sidewinder 2 FFB | Track IR | Cougar MFD x 2
ddc196 Posted May 8, 2022 Posted May 8, 2022 (edited) The Air Data System (ADS) consists of two independent air data subsystems: the Flight Management Computer (FMC) and the Helicopter Air Data System (HADS). The HADS is comprised of the High Integrated Air Data Computer (HIADC) and two Airspeed And Direction Sensor (AADS) probes. The AADS probes sense airspeed magnitude, direction, and free airstream temperature. The HIADC uses this data, along with ambient and pitot pressure sensors, to compute air mass related data. The FMC computes pressure altitude, pitot airspeed, and density altitude related information. The FMC receives longitudinal and lateral true air speeds, static temperature, and non-filtered true air speeds from the HIADC. That's from the DCS manual. There's also a diagram on page 187. Edit: Just noticed Devrim said the same thing in a much shorter post. Edited May 8, 2022 by ddc196 Intel i9-14900KF - NVIDIA GeForce RTX 4090 - 64GB 3200 - Win 11 - 4 TB SSD (game drive) - Quest 3.
lahsoldier Posted May 9, 2022 Posted May 9, 2022 Cow balls like you find on the bumper hitch of some trucks? Asus Prime 390A, Intel I7-8700k@4.8ghz, 32g ram, Nvidia EVGA GeForce RTX 2070, Track IR5, SSD(DCS dedicated), HDD for Win 10. TM Warthog 78051 Track IR5 Thrustmaster pedels
Razor18 Posted May 9, 2022 Posted May 9, 2022 (edited) So in short, this is a Pitot-tube plus static port for airspeed and air pressure, a 2 DOF (2 degree of freedom: turning around the vertical axis and tilting up and down) pointer (into the relative wind at any time) and a thermometer integrated in one sensor unit (or pair of them for backup/redundancy). The 2DOF (most likely) controls the Velocity Vector/Flight Path Marker on your IHADDS by simply putting the VV symbol to the point in space, where the physical sensor is pointing to at any moment. Edited May 9, 2022 by Razor18 1
Floyd1212 Posted May 9, 2022 Posted May 9, 2022 How can they even function at all in the downwash of the main rotor?
Razor18 Posted May 9, 2022 Posted May 9, 2022 Probably aerodynamically balanced out for the downwash evenly?...
Razor18 Posted May 9, 2022 Posted May 9, 2022 https://rochesteravionicarchives.co.uk/collection/air-data/helicopter-air-data-probe 2
