Multi-monitor set-up guide & help (unofficial)


MadTommy
 Share

Recommended Posts

Multi monitor set-up guide: DCS-A10c & BlackShark 2





Display your MFCDs, CDU, RWR etc on a 2nd, 3rd etc monitor



Initial note: This guide is to help people create bespoke multimonitor configurations in DSC-Warthog, no matter what your configuration the principles are the same. Please add any tips or correct any errors i have made. I'll adjust this accordingly.



My set-up is two 22inch displays side by side, i'll use this as the primary example, but the logic covers any set-up. I have included several monitor set-up examples to help explain the principles.



Essential Requirements:

  • Full screen OFF (ingame).

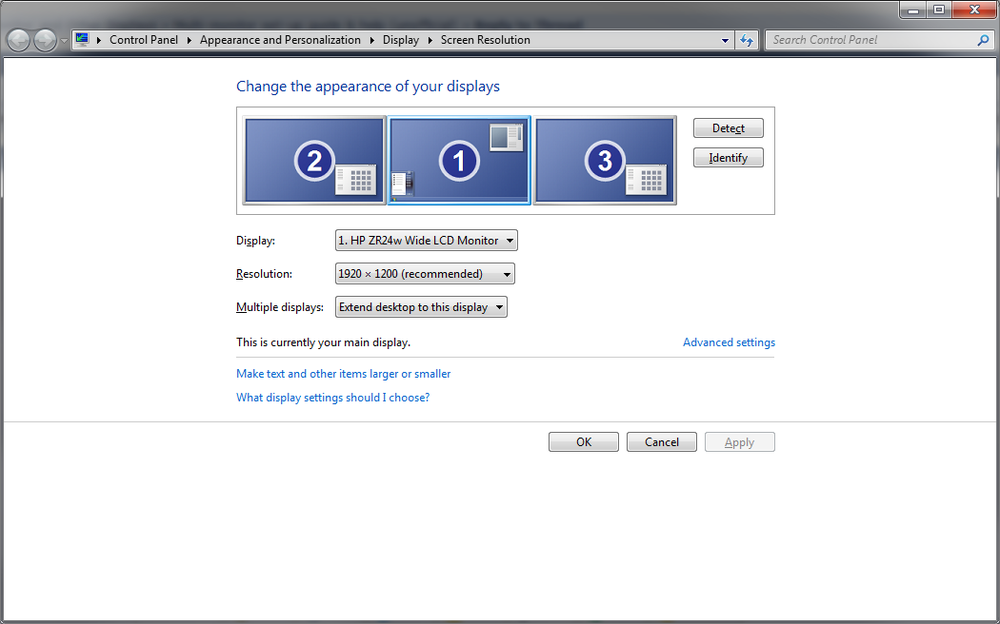

  • Extended desktop enabled in Windows.
  • The 'primary' monitor, in Windows, needs to be your top left most monitor, otherwise you may have problems.
  • You need to create one lua file.

BlackShark 2 note:



  • Shkval is Left_MFCD
  • Abris is Right_MFCD



** Before editing DCS files please read this post: http://forums.eagle.ru/showpost.php?p=599686&postcount=1



The Guide: 3 steps



Step 1:

1st thing you need to do is workout your total resolution of your combined monitors. Use the image below to help you work this out if you are unsure. Here you will find 3 example layouts..




Note this figure down, this is your combined resolution.



Step 2:

Create you own bespoke multimonitor *.lua file and save it here: \Eagle Dynamics\DCS A-10C\Config\MonitorSetup\



How do this: (Read through this entire section before starting your *lua file), 1st time through you might well go WTF!, but trust me it is not that complicated. :)



First look at the default existing files in this location; (\Eagle Dynamics\DCS A-10C\Config\MonitorSetup\). They are good examples and the default ones provided with the game:



There is one example original ED file: LMFCD+Camera+RMFCD.lua



_ = function(p) return p; end;

name = _('MFCD');

Description = 'Left MFCD on the left monitor,Right MFCD on the right and camera on the center'

Viewports =

{

Center =

{

x = screen.width / 3;

y = 0;

width = screen.width / 3;

height = screen.height;

viewDx = 0;

viewDy = 0;

aspect = screen.aspect / 3;

}

}



LEFT_MFCD =

{

x = 0;

y = 0;

width = screen.width / 3;

height = screen.height;

}



RIGHT_MFCD =

{

x = screen.width *(2 / 3);

y = 0;

width = screen.width / 3;

height = screen.height;

}



UIMainView = Viewports.Center

My example: My_example.lua



_ = function(p) return p; end;

name = _('My_example');

Description = 'Two monitor configuration';

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 1680;

height = 1050;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}



LEFT_MFCD =

{

x = 1680;

y = 105;

width = 840;

height = 840;

}



RIGHT_MFCD =

{

x = 2520;

y = 105;

width = 840;

height = 840;

}



UIMainView = Viewports.Center





NOTES: What it all means:



ED have used wording rather than numeric x/y coordinates. This is to allow flexibility. You can also use this format, but i find it more complicated, so i use the numeric pixel option. In ED's method screen.width = the combined width of all your monitors, (x), screen.height = the combined height of all your monitors, (y). So for me screen.width = 3360 (2x1680), screen.height = (1050)



I wanted both MFCDs on my 2nd monitor, this is located on the right of my main monitor. Both my monitors are 1680x1050.



Center = your cockpit view



x=0, y=0; is always located at the top left corner of your 'primary' monitor, in Windows.



The x & y coordinates always refer to the top left corner of each element. i.e the location of each MFCD is their top left corner.



You do not generally need to edit viewDx, viewDy or aspect. But it's worth checking the aspect ratio. This is calculated by dividing your width by height of you cockpit monitor.



name = is the name that will be displayed in the game options drop down under Monitors. (Make it unique)



width = & height = are x & y resolutions in pixels associated with each item, cockpit (centre), MFCDs, RWR, CDU etc.



Look at the spoilers below to explain the x/y system:



Screen coordinates explanation: 3 example setups to help explain screen coordinates.


Both x & y start on the top left corner of the left most monitor. x goes across the horizontal while y goes down the vertical.



My example set-up displayed: - putting it into practice, refer to my lua file My_example.lua above to understand what is going on.




Ok now you should be able to start creating your own bespoke multi-monitor file accordingly to your own set-up, if i have made this clear enough and you have wrapped your brain around how this all works. I'd suggest you use my example above and edit it to suite your setup.



You need to save this file as file type .lua and save it in \Eagle Dynamics\DCS A-10C\Config\MonitorSetup.



Step 3:



Launch the game.. go to Options. (Here you need to do two things)



Firstly you should now be able to select your bespoke file from the drop down list labelled; MONITORS (If it is not in the list you have most likely made a small mistake with the lua code.. check for missing { , ) etc. if any part of the code is missing it will not be available to select.)



Secondly you need to enter your combined resolution, you can simply type this in. This is the total resolution you worked out at the start of this guide.

See image below:




Your aspect ratio will alter itself.



General Notes:

You can edit you monitor file on the fly, i.e without having to quit the game. Can save a lot of hassle. If you don't get the results you want simply quit flight, alt tab, edit the file, alt tab back and click fly again... your new setting will be used.



I hope this is clear enough. Enjoy.



Screenshot of my set-up:










____________________________________________



____________________________________________

Advanced section:



Adding CDU, RWR, Clock etc as Viewports =



Please read icemaker's thread http://forums.eagle.ru/showthread.php?t=70716 on how to do this.



Below is my present setup incorporating MFCDs, RWR & CDU



_ = function(p) return p; end;

name = _('Tommy_v3');

Description = 'Two monitor configuration';

Viewports =

{

Center =

{

x = 0;

y = 0;

width = screen.width /2;

height = screen.height;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}

LEFT_MFCD =

{

x = 1728;

y = 380;

width = 620;

height = 620;

}

RIGHT_MFCD =

{

x = 2440;

y = 380;

width = 620;

height = 620;

}

CDU_SCREEN =

{

x = 1770;

y = 25;

width = 426;

height = 324;

}

RWR_SCREEN =

{

x = 2280;

y = 147;

width = 178;

height = 178;

}

UIMainView = Viewports.Center





Incorporating Hawg Touch:



Clear Dark's Hawg Touch program: http://forums.eagle.ru/showthread.php?t=71729



My Hawg Touch profiles: http://forums.eagle.ru/showthread.php?t=70364

I'll be releasing a new Hawg Touch profile for the MFCDs, CDU & RWR shortly. Just awaiting to clear up a issue with it.



Here is what it looks like:






Updated 27th June 2011.


Edited by MadTommy
  • Like 15

i5-3570K @ 4.5 Ghz, Asus P8Z77-V, 8 GB DDR3, 1.5GB GTX 480 (EVGA, superclocked), SSD, 2 x 1680x1050, x-fi extreme music.



TM Warthog, Saitek combat pro pedals, TrackIR 4

Link to comment
Share on other sites

+1 : Nice write up! Perhaps ED can include something similiar in the GUI documentation!



Note that if you use multi monitor setup you will be unable to fly Multiplayer as the server setup screen looses visibility of the necessary buttons to create and join!



@ED: Any fix for this would be most welcome, the same problem exists with Black Shark! Why not just move the buttons to the top of the screen - they should then be visible! Hopefully a simple fix?

Rig: MSI Mag X570 Tomahawk| AMD 5600 | 32 GB DDR3 | M2 NVME Gen4 1TB SSD | Samsung EVo 850 2TB, 500 & 256 GB SSD | Gigabyte AORUS GTX 1080Ti | Samsung 24" (1920x1200) |

2 x Iiyama 22" T2250MTS touch screen (1920x1080) | 2 x 6.4" LCD | Cougar MFDs | Thrustmaster Warthog | CH Pro Pedals | Windows 10



[sIGPIC][/sIGPIC]

Link to comment
Share on other sites

Note that if you use multi monitor setup you will be unable to fly Multiplayer as the server setup screen looses visibility of the necessary buttons to create and join!



That's a good point, but very dependant on your set-up. But very annoying for those affected, and its only the splash screen that causes the problem. Still you can easy flick between two options files for online & offline sorties. Not ideal.

  • Like 1

i5-3570K @ 4.5 Ghz, Asus P8Z77-V, 8 GB DDR3, 1.5GB GTX 480 (EVGA, superclocked), SSD, 2 x 1680x1050, x-fi extreme music.



TM Warthog, Saitek combat pro pedals, TrackIR 4

Link to comment
Share on other sites

That's a good point, but very dependant on your set-up. But very annoying for those affected, and its only the splash screen that causes the problem. Still you can easy flick between two options files for online & offline sorties. Not ideal.



just do what I did in Black Shark and move the graphics button cordinates, to the center.:thumbup:

" any failure you meet is never a defeat; merely a set up for a greater comeback " WF.

"Success is not final, failure is not fatal, it is the courage to continue that counts," Sir Churchill

" He who never changes his mind, never changes anything," WC, GBS.

"Asus Maximus X AC WiFi z370 || i9x9900k||ddr4-64gb PC4000||RTX 3080Ti-12gb||EVGA SN 1300 G2 ||turtle beach elite pro 7.1||Win10x64|| ViRpiL,T50cm2 + VPC SharKa-50 + VPC Hawk-60  || |MFG Crosswinds/dpnrmod || Virpil TCM50x2 Throttle||EVGA RGB z10 / Trqx10|| PioMax 8KX 3840x3160, normal FOV, 90HRZ. 115 FOV.

Link to comment
Share on other sites

  • Like 1

" any failure you meet is never a defeat; merely a set up for a greater comeback " WF.

"Success is not final, failure is not fatal, it is the courage to continue that counts," Sir Churchill

" He who never changes his mind, never changes anything," WC, GBS.

"Asus Maximus X AC WiFi z370 || i9x9900k||ddr4-64gb PC4000||RTX 3080Ti-12gb||EVGA SN 1300 G2 ||turtle beach elite pro 7.1||Win10x64|| ViRpiL,T50cm2 + VPC SharKa-50 + VPC Hawk-60  || |MFG Crosswinds/dpnrmod || Virpil TCM50x2 Throttle||EVGA RGB z10 / Trqx10|| PioMax 8KX 3840x3160, normal FOV, 90HRZ. 115 FOV.

Link to comment
Share on other sites

+1 :

Note that if you use multi monitor setup you will be unable to fly Multiplayer as the server setup screen looses visibility of the necessary buttons to create and join!



The "phantomMonitorFix" exe works for me too:pilotfly:

You can download it here:

click me

  • Like 1

[sIGPIC][/sIGPIC]

Link to comment
Share on other sites

@Mastiff:

Will try the solution you and Nasty have come up with today to see if this will work. It looks as if it just might - coolio and thanks for the pointer! I'll now try this in Black Shark too!



:)

Rig: MSI Mag X570 Tomahawk| AMD 5600 | 32 GB DDR3 | M2 NVME Gen4 1TB SSD | Samsung EVo 850 2TB, 500 & 256 GB SSD | Gigabyte AORUS GTX 1080Ti | Samsung 24" (1920x1200) |

2 x Iiyama 22" T2250MTS touch screen (1920x1080) | 2 x 6.4" LCD | Cougar MFDs | Thrustmaster Warthog | CH Pro Pedals | Windows 10



[sIGPIC][/sIGPIC]

Link to comment
Share on other sites

The "phantomMonitorFix" exe works for me too:pilotfly:

You can download it here:

click me



Thanks for the suggestion I shall try Mastiff's approach first, as I thought the need for the "phantomMonitorFix" had gone away.



:thumbup:

Rig: MSI Mag X570 Tomahawk| AMD 5600 | 32 GB DDR3 | M2 NVME Gen4 1TB SSD | Samsung EVo 850 2TB, 500 & 256 GB SSD | Gigabyte AORUS GTX 1080Ti | Samsung 24" (1920x1200) |

2 x Iiyama 22" T2250MTS touch screen (1920x1080) | 2 x 6.4" LCD | Cougar MFDs | Thrustmaster Warthog | CH Pro Pedals | Windows 10



[sIGPIC][/sIGPIC]

Link to comment
Share on other sites

A Quick photo of my muliti-monitor goodness. Working MFD's under my TM Cougar MFD's. Thanks very much for the Tutorial Tommy!



attachment.php?attachmentid=44247&stc=1&d=1289029516


Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J

i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k

Combat Wombat's Airfield & Enroute Maps and Planning Tools




Link to comment
Share on other sites

Has anyone tried SoftTH? DCS just crashes when I tried it although the notes that come with it say it is compatible. It worked with beta1 so not sure if this is just a beta2 issue.



i did something that looks similar to shu77s setup with softth2.0.3,except my MFDs were stuck on at top of 2nd monitor, and it worked. Win7x32 and beta2



1920x1080 main screen, 1680x1050 2nd screen.



Problem with framerates still since it wants to render full width /height of both screens (depending on orientation)...prob cause its fullscreen mode.



DCS needs a smarter way to render these MFDs/ABRIS etc on secondary screens, esp now offtheshelf hardware exists to support them in pits (thrustmaster frames)

  • Like 1
Link to comment
Share on other sites

Yeah I was debating getting a second 20" so I can run 2x 1680x1050, but the 19" at that angle running 1280x1024 works fine. Frame drop is maybe 5FPS in normal conditions if that, so I have dropped water to low to compensate. I'm quite happy with the trade off given this means you can read all detail on the MFD's and see what the buttons do.

  • Like 1

Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J

i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k

Combat Wombat's Airfield & Enroute Maps and Planning Tools




Link to comment
Share on other sites

I can't figure out how to set up x and y coordinates for the screens. I have 2 screens and I would like to have the view in the middle one and mfd's on the right one. Is this currently possible? I've attached images of the screen setup. I've been messing around with the x and y's but the view seems to always start from the middle of the center screen. How to fix this?







_ = function(p) return p; end;

name = _('MFCD');

Description = 'Left MFCD on the left monitor,Right MFCD on the right and camera on the center'

Viewports =

{

Center =

{

x = 1920;

y = 0;

width = screen.width;

height = screen.height;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}



LEFT_MFCD =

{

x = 0;

y = 120;

width = screen.width / 2;

height = screen.height;

}



RIGHT_MFCD =

{

x = 960;

y = 120;

width = screen.width / 2;

height = screen.height;

}









["graphics"] =

{

["multiMonitorSetup"] = "Camera+MFD",

["color"] = "32",

["heatBlr"] = 1,

["resolution"] = "3840x1200",

["water"] = 0,

["fullScreen"] = false,

["visibRange"] = "Medium",

["aspect"] = 1.6,

["haze"] = 1,

["shadows"] = 2,

["TranspSSAA"] = true,

["width"] = 3840,

["effects"] = 3,

["MSAA"] = 1,

["textures"] = 2,

["height"] = 1200,

["HDR"] = true,

["civTraffic"] = "",

["lights"] = 2,

["clutterMaxDistance"] = 0,

["scenes"] = "high",

}, -- end of ["graphics"]





Link to comment
Share on other sites

_ = function(p) return p; end;

name = _('MFCD');

Description = 'Left MFCD on the left monitor,Right MFCD on the right and camera on the center'

Viewports =

{

Center =

{

x = 1920;

y = 0;

width = screen.width;

height = screen.height;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}



LEFT_MFCD =

{

x = 0;

y = 120;

width = screen.width / 2; in these lines remove them. make like mine, or Kuky.

height = screen.height;}



RIGHT_MFCD =

{

x = 960;

y = 120;

width = screen.width / 2;

height = screen.height;}

Mastiffs MFCD

_ = function(p) return p; end;

name = _('MFCD');

Description = 'camera Top/Center, LMFD Bottom/Left, RMFD Bottom/Right'

Viewports =

{

Center =

{

x = 0;

y = 0;

width = 1920;

height = 1200;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}



LEFT_MFCD =

{

x = 120;

y = 1200;

width = 570;

height = 470;

}



RIGHT_MFCD =

{

x = 1200;

y = 1200;

width = 570;

height = 470;

}

" any failure you meet is never a defeat; merely a set up for a greater comeback " WF.

"Success is not final, failure is not fatal, it is the courage to continue that counts," Sir Churchill

" He who never changes his mind, never changes anything," WC, GBS.

"Asus Maximus X AC WiFi z370 || i9x9900k||ddr4-64gb PC4000||RTX 3080Ti-12gb||EVGA SN 1300 G2 ||turtle beach elite pro 7.1||Win10x64|| ViRpiL,T50cm2 + VPC SharKa-50 + VPC Hawk-60  || |MFG Crosswinds/dpnrmod || Virpil TCM50x2 Throttle||EVGA RGB z10 / Trqx10|| PioMax 8KX 3840x3160, normal FOV, 90HRZ. 115 FOV.

Link to comment
Share on other sites

_ = function(p) return p; end;

name = _('MFCD');

Description = 'Left MFCD on the left monitor,Right MFCD on the right and camera on the center'

Viewports =

{

Center =

{

x = What here?;

y = 0;

width = 1920;

height = 1200;

viewDx = 0;

viewDy = 0;

aspect = 1.6;

}

}



LEFT_MFCD =

{

x = 960;

y = 120;

width = 960;

height = 960;

}



RIGHT_MFCD =

{

x = 1920;

y = 120;

width = 960;

height = 960;

}



Gets the MFCD's on the right position, but no matter what x I set for Center, it starts from the middle of the center screen. Any ideas? Or is this just not possible with 3 screens? I've tried the figures I can think of, but I'm getting nowhere.

Link to comment
Share on other sites

try making the names the same, i see "mfcd" on one, and "Camera+MFD" on the other. I think those should be the same. right?



["multiMonitorSetup"] = "Camera+MFD",

and

name = _('MFCD');


Edited by jerda
  • Like 1
Link to comment
Share on other sites

try making the names the same, i see "mfcd" on one, and "Camera+MFD" on the other. I think those should be the same. right?



["multiMonitorSetup"] = "Camera+MFD",

and

name = _('MFCD');



yes that would be correct. If you have an incorrect name it will mess it up.

" any failure you meet is never a defeat; merely a set up for a greater comeback " WF.

"Success is not final, failure is not fatal, it is the courage to continue that counts," Sir Churchill

" He who never changes his mind, never changes anything," WC, GBS.

"Asus Maximus X AC WiFi z370 || i9x9900k||ddr4-64gb PC4000||RTX 3080Ti-12gb||EVGA SN 1300 G2 ||turtle beach elite pro 7.1||Win10x64|| ViRpiL,T50cm2 + VPC SharKa-50 + VPC Hawk-60  || |MFG Crosswinds/dpnrmod || Virpil TCM50x2 Throttle||EVGA RGB z10 / Trqx10|| PioMax 8KX 3840x3160, normal FOV, 90HRZ. 115 FOV.

Link to comment
Share on other sites

i did something that looks similar to shu77s setup with softth2.0.3,except my MFDs were stuck on at top of 2nd monitor, and it worked. Win7x32 and beta2



1920x1080 main screen, 1680x1050 2nd screen.



Problem with framerates still since it wants to render full width /height of both screens (depending on orientation)...prob cause its fullscreen mode.



DCS needs a smarter way to render these MFDs/ABRIS etc on secondary screens, esp now offtheshelf hardware exists to support them in pits (thrustmaster frames)



Hmm interesting. DCS just crashes when it tries to initialise SoftTh on my rig. I tried both 2.00 and 2.03. Beta1 didnt have this problem.

  • Like 1

Intel i7 990X, 6GB DDR3, Nvidia GTX 470 x2 SLI, Win 7 x64

http://picasaweb.google.com/sweinhart

Link to comment
Share on other sites

Name doesn't matter. The game just can't handle my monitor setup like I'd like it to. I have to move my left monitor to be on the most right in ATI CCC and then use 5760 as screen width. Now it all works, but it f's up normal desktop usage so I have to swap the screen around when I'm playing. Or I could move the screens around, but I'd like the middle one to be "primary" with task bar etc.

  • Like 1
Link to comment
Share on other sites

Fantastic guide, works a treat on my 2 x 1980 x 1080 monitors, now have all my mfds on right screen.



Thanks for taking the effort, to do this guide.



Cowboy10uk

  • Like 1





[sIGPIC][/sIGPIC]



Fighter pilots make movies, Attack pilots make history, Helicopter pilots make heros.



:pilotfly: Corsair 570x Crystal Case, Intel 8700K O/clocked to 4.8ghz, 32GB Vengeance RGB Pro DDR4 3200 MHZ Ram, 2 x 1TB M2 drives, 2 x 4TB Hard Drives, Nvidia EVGA GTX 1080ti FTW, Maximus x Hero MB, H150i Cooler, 6 x Corsair LL120 RGB Fans And a bloody awful Pilot :doh:

Link to comment
Share on other sites

Multiplayer Files



If you wish to use Multi Monitors and are having problems with the Buttons being offscreen then put the attached extracted files in ..\Eagle Dynamics\DCS A-10C Beta\FUI\Resources\Multiplayer\ having first backed up the originals!



This works for a 1920x1200 with two 600x480 below! It may work with other configurations!



Mastiff and Nasty pointed me in the right direction for this solution, although with A10C the Multiplayer screens have changed compared to Black Shark hence more files need to be edited!



Hope this helps!



The attached files do not work with Current release only upto Beta 4!!!

Multiplayer MultiMonitor A10C Beta 2.zip


Edited by nebuluski
Final A10C Release

Rig: MSI Mag X570 Tomahawk| AMD 5600 | 32 GB DDR3 | M2 NVME Gen4 1TB SSD | Samsung EVo 850 2TB, 500 & 256 GB SSD | Gigabyte AORUS GTX 1080Ti | Samsung 24" (1920x1200) |

2 x Iiyama 22" T2250MTS touch screen (1920x1080) | 2 x 6.4" LCD | Cougar MFDs | Thrustmaster Warthog | CH Pro Pedals | Windows 10



[sIGPIC][/sIGPIC]

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
