Hi Guys, I want to change max and min read value of potentiometer in DCS bios (so simply change angle of active movement). Have anyone experience with this ??? It should be done with map function like here, but I have hard time to find right syntax:music_whistling:... Can someone help pls :helpsmilie:

Maybe in version 2.0 :) I will do something based on this https://forums.eagle.ru/showthread.php?t=89974 that is reason why it is now missing upper holder for colimination glass. I have to first build up my projection system and then maybe....:music_whistling:

Progress on EZ42...Some small things are still missing :joystick:...

Found X10, but quiet expensive in my opinion http://www.inovauto.com/index.php/sei-x10-506.html#product_tabs_downloads

OK thx I was not aware about this it can be my plan B, if I will be not able to obtain VID60:thumbup:. If you will be so kind you can share with us the way how to mod X27 (I have Vid 29 it should be the same) in between:pilotfly:. Still if somebody has Vid60 in his possession or know way how to obtain it, I will buy it …

That is different kind of motor similar to VID29 so with 315° movement I have 10 of them for different gauges... For altimeter you need 360°(continuous) if you don't want to use gearbox… Like here https://forums.eagle.ru/showthread.php?t=145193&highlight=vid60

Hi All, I am currently working on gauges for my fw190D pit, but I am still missing Vid60 stepper motor for altimeter. A have already checked aliexpress, ebay and amazon but without success. I have done the same for X10 stepper motor as substitution but also with zero effect (even I dont know if this motor can be used for this purpouse)... Any advice where to buy this kind of staff???:helpsmilie::helpsmilie::helpsmilie:

So EZ 42 in progress...

Here you can see spare part list of fw 190D gashebel. It has assembly number 150.700.01 and there is no manual handle for propeller pitch. Picture what you have post is kind of mixture :), on the left is drawing of standard grip from FW190A, in the middle is picture of EZ42 grip used on FW190A-8/R8 (on some another pictures is this grip together with adjusting device with ballistic table for MK108 ) and the last drawing 150-750-201 is mystery for me, because it is lot of time named as gashebel for Ta152 but look at the pictures of Ta152 from NASM:doh:. I dont think so the Jumo powered Ta 152H (similar motor like FW190D) had manual handle for propeller pitch, for DB603 powered I am not sure (I never investigate this)...

As I know this version was used only on FW 190A. FW 190D was not able to manually handle propeller pitch, also the switch for manual/automatic prop. pitch mode is missing in FW190D...

Thanks, I will make this label again:doh:

3D printed parts are here:cheer3nc: . All EZ42 parts and some special knobs for panels:pilotfly:

I am still waiting 3D printed parts so in meanwhile I have started some another activities with pit. First I have found someone who was able to make padding on instrument panel covering. I think it is looking really good. I have also started playing with DCS Bios (again thanks ArturDCS for FW 190D module), and made gear/flaps position indicator gauge and some preparation for trim gauge. You can see results here and here ....

Can please somebody share wiring diagram for this code or in general for connection of stepper to arduino :helpsmilie:.. I am not able to find any eshop with vid29 (only producer site http://www.vid.wellgain.com/index.aspx) any advice how to obtain it, or can I use x27 instead with same arduino code http://www.jukenswisstech.com/products/x27/. There are planty of them on aliexpress....

Maybe stupid question but it is DCS running and unpaused when you are starting connect-serial-port.cmd(my painful experience :doh:)??? I am currently testing my panels also on machine with windows 10 without problems, there was no need to touch firewall setup.

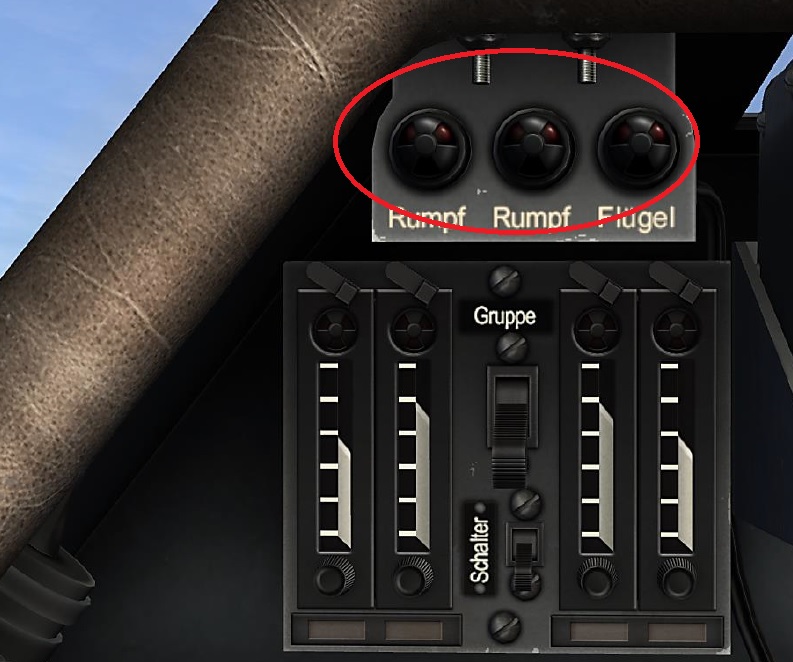

I think those are 4 lights on ZSKK4 see more here :https://forums.eagle.ru/showthread.php?t=128407&page=3

Hi Artur, can you confirm the lights above ZSKK4 are missing in your DCS bios module??? I am not able to find it:dunno:

It looks I must start constructing my second pit:pilotfly:....Perfect work on amazing aicraft:thumbup:

It is DCS bios now officially supporting also FW190D, Mi-8 and F-86 modules(Thanks to ArturDCS)???

Thanks man, you made my life easier :thumbup::thumbup::thumbup:

By full functionality I´ve mean workable switches, knobs and later on distance dial... I am not planning to include reticle projection at least not at this step...:angel:

There is no really big visible progress. I am doing a lot of small things, like electrical schematics, designing of some small staff like knobs and ZSK244. Repainting with correct RLM colors is completed. Left console is waiting for knobs from 3D printer and will be finished. EZ 42 is already modeled (with full functionality), in September I am planning to complete it.

Welcome in crazy guys club :pilotfly: I wish you luck with your project...

Perfect work...Those metal cockpits are another level of cockpit building:thumbup:

11 Impresive work :thumbup: I appreciate every metal pit...
