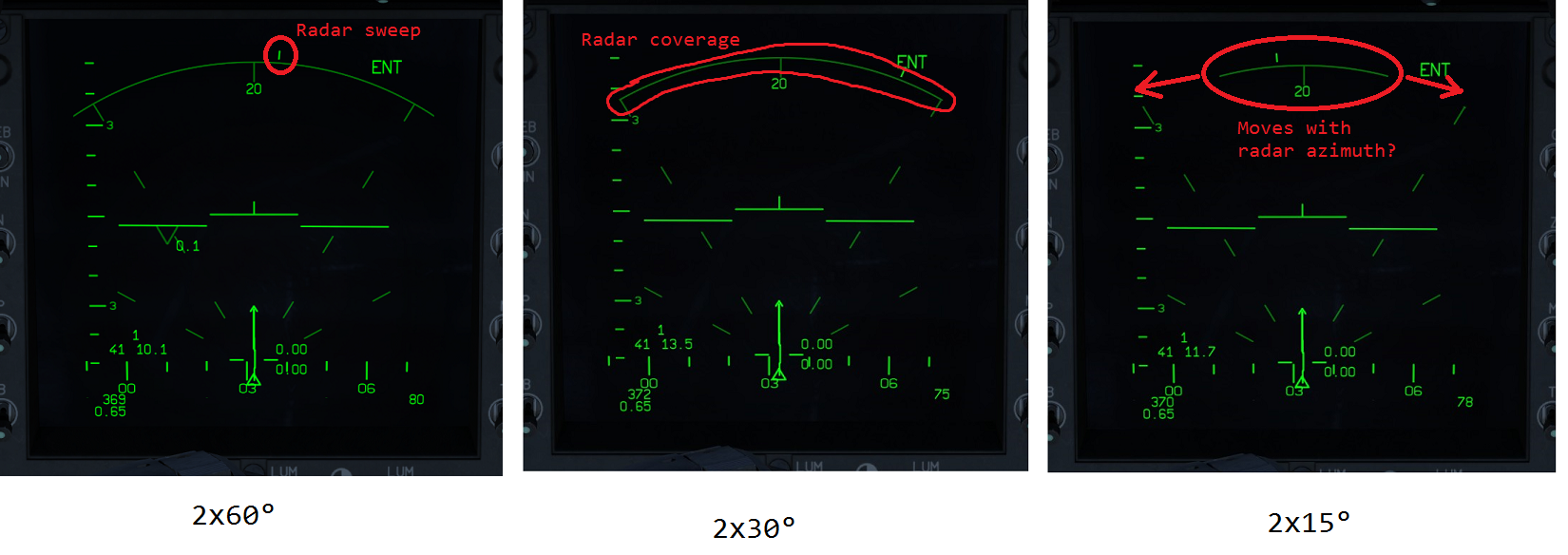

PiedDroit Posted February 28, 2016 Share Posted February 28, 2016 I will try to pay attention to that little square, on my next fly xD I was talking about the radar caret on the VTB, not interception flight director VTH. Here's a picture showing how I guess radar azimuth will be shown on the VTB - again, it's a guess ;) Link to comment Share on other sites More sharing options...
spiddx Posted February 28, 2016 Share Posted February 28, 2016 And elevation afaik is gonna be shown on the scale on the left side of the display. Specs: i9 10900K @ 5.1 GHz, EVGA GTX 1080Ti, MSI Z490 MEG Godlike, 32GB DDR4 @ 3600, Win 10, Samsung S34E790C, Vive, TIR5, 10cm extended Warthog on WarBRD, Crosswinds Link to comment Share on other sites More sharing options...
wdrago Posted February 28, 2016 Share Posted February 28, 2016 I was talking about the radar caret on the VTB, not interception flight director VTH. Here's a picture showing how I guess radar azimuth will be shown on the VTB - again, it's a guess ;) And elevation afaik is gonna be shown on the scale on the left side of the display. Thanks guys, I'm going to practice that, and see or not to see ... Lol [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
spiddx Posted February 28, 2016 Share Posted February 28, 2016 Well you can't since it's not in the game yet. It's being worked on... Specs: i9 10900K @ 5.1 GHz, EVGA GTX 1080Ti, MSI Z490 MEG Godlike, 32GB DDR4 @ 3600, Win 10, Samsung S34E790C, Vive, TIR5, 10cm extended Warthog on WarBRD, Crosswinds Link to comment Share on other sites More sharing options...

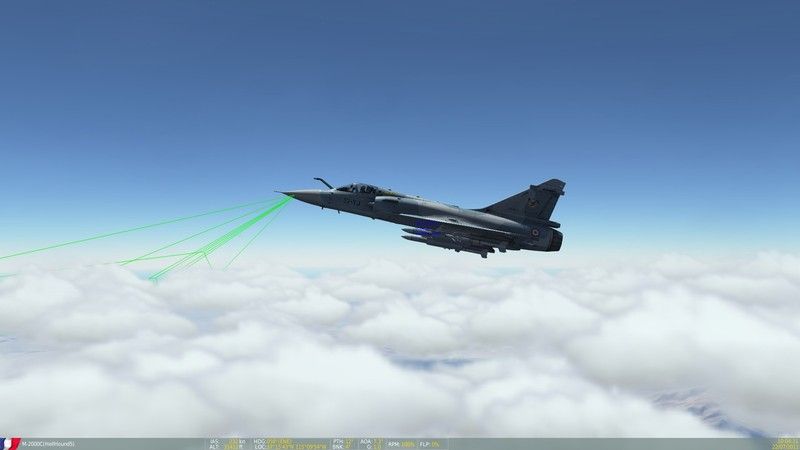

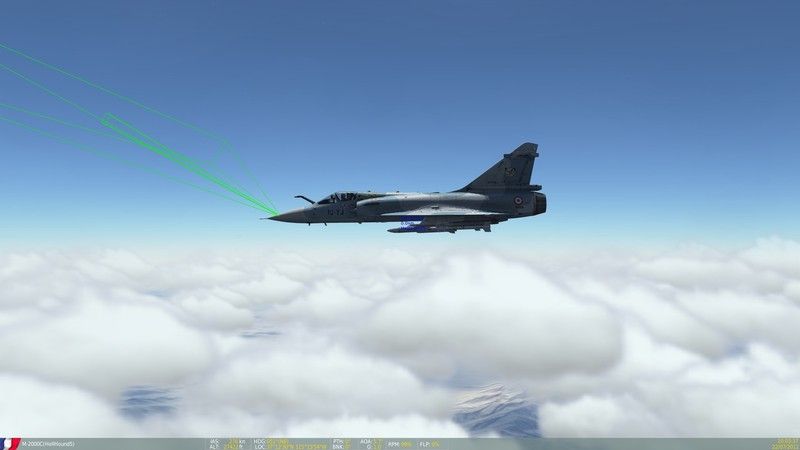

Zeus67 Posted February 29, 2016 Author Share Posted February 29, 2016 Testing the radar antenna elevation: "Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the Universe trying to produce bigger and better idiots. So far, the Universe is winning." "The three most dangerous things in the world are a programmer with a soldering iron, a hardware type with a program patch and a user with an idea." Link to comment Share on other sites More sharing options...
wdrago Posted February 29, 2016 Share Posted February 29, 2016 (edited) Cooooool :pilotfly: Edited March 3, 2016 by wdrago [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Enduro14 Posted February 29, 2016 Share Posted February 29, 2016 My Body is Ready!! Intel 8700k @5ghz, 32gb ram, 1080ti, Rift S Link to comment Share on other sites More sharing options...
YoYo Posted February 29, 2016 Share Posted February 29, 2016 Please to do axis for this, not only keys : ). Webmaster of http://www.yoyosims.pl Win 10 64, i9-13900 KF, RTX 4090 24Gb OC, RAM 64Gb Corsair Vengeance LED OC@3600MHz,, 3xSSD+3xSSD M.2 NVMe, Predator XB271HU res.2560x1440 27'' G-sync, Sound Blaster Z + 5.1, TiR5, [MSFS, P3Dv5, DCS, RoF, Condor2, IL-2 CoD/BoX] VR fly only: Meta Quest Pro Link to comment Share on other sites More sharing options...
rrohde Posted February 29, 2016 Share Posted February 29, 2016 Please to do axis for this, not only keys : ). +1 PC: AMD Ryzen 9 5950X | MSI Suprim GeForce 3090 TI | ASUS Prime X570-P | 128GB DDR4 3600 RAM | 2TB Samsung 870 EVO SSD | Win10 Pro 64bit Gear: HP Reverb G2 | JetPad FSE | VKB Gunfighter Pro Mk.III w/ MCG Ultimate VKBcontrollers.com Link to comment Share on other sites More sharing options...
TomCatMucDe Posted February 29, 2016 Share Posted February 29, 2016 (edited) Testing the radar antenna elevation: Now this, with the IFF, is all what I wanted! All the rest can wait! If it makes it to this Friday update, it would be worth the waiting! Edited February 29, 2016 by TomCatMucDe Link to comment Share on other sites More sharing options...
TomCatMucDe Posted February 29, 2016 Share Posted February 29, 2016 Please to do axis for this, not only keys : ). it s nice if you have a vertical indeed. Pity the Warthog doesnt have it on the throttle Link to comment Share on other sites More sharing options...
Voodooflies Posted February 29, 2016 Share Posted February 29, 2016 Testing the radar antenna elevation: Yiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiissss !!! :pilotfly: [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Pikey Posted March 1, 2016 Share Posted March 1, 2016 this is what ive been waiting for most ___________________________________________________________________________ SIMPLE SCENERY SAVING * SIMPLE GROUP SAVING * SIMPLE STATIC SAVING * Link to comment Share on other sites More sharing options...
GGTharos Posted March 1, 2016 Share Posted March 1, 2016 I know the angle might be trucking me a bit - are those scan zones parallel to the ground? [sIGPIC][/sIGPIC] Reminder: SAM = Speed Bump :D I used to play flight sims like you, but then I took a slammer to the knee - Yoda Link to comment Share on other sites More sharing options...
Zeus67 Posted March 1, 2016 Author Share Posted March 1, 2016 Radar elevation marker in the screen, the number next to the marker indicates the current search bar. With this I consider the antenna elevation control finalized. Tomorrow I'll work on the azimuth control. "Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the Universe trying to produce bigger and better idiots. So far, the Universe is winning." "The three most dangerous things in the world are a programmer with a soldering iron, a hardware type with a program patch and a user with an idea." Link to comment Share on other sites More sharing options...
myHelljumper Posted March 1, 2016 Share Posted March 1, 2016 You deserved it : Helljumper - M2000C Guru Helljumper's Youtube https://www.youtube.com/channel/UCK3rTjezLUxPbWHvJJ3W2fA Link to comment Share on other sites More sharing options...
Kreye Posted March 1, 2016 Share Posted March 1, 2016 You deserved it : :megalol: Link to comment Share on other sites More sharing options...
Coder Posted March 1, 2016 Share Posted March 1, 2016 I'm sorry to ask this "obvious" question, but can de radar only search at "one elevation"? (I only see one marker in the picture) or does it work like in the F15 where I can set the radar to search betweeen 0 and 23'000 feet? Radar elevation marker in the screen, the number next to the marker indicates the current search bar. With this I consider the antenna elevation control finalized. Tomorrow I'll work on the azimuth control. [sIGPIC][/sIGPIC] Find me on stackexchange or GitHub Link to comment Share on other sites More sharing options...
nomdeplume Posted March 1, 2016 Share Posted March 1, 2016 I'm sorry to ask this "obvious" question, but can de radar only search at "one elevation"? (I only see one marker in the picture) or does it work like in the F15 where I can set the radar to search betweeen 0 and 23'000 feet? It's like other radars, you have configurable number of 'bars' of search: 1, 2, or 4. The radar cone is approximately 3 degrees, so a 1 bar search will cover 3 degrees, 2 bars covers about 6 degrees, and 4 bars covers about 12 degrees. What you're controlling with the antenna elevation control (and what is indicated by the marker in the display) is the amount the antenna is angled up or down in the middle of its scan zone. The min/max altitude this area encompasses depends on your own altitude, and the distance from your aircraft: 3 degrees covers a much wider area 40 miles away than it does 4 miles away. The images in this post might help visualise this. Link to comment Share on other sites More sharing options...
Azrayen Posted March 1, 2016 Share Posted March 1, 2016 (edited) The radar cone is approximately 3 degrees, so a 1 bar search will cover 3 degrees, Correct. 2 bars covers about 6 degrees, and 4 bars covers about 12 degrees. This is indeed about how it is now in DCS, but in RL you'd have some overlapse between bars. I'm sorry to ask this "obvious" question, but can de radar only search at "one elevation"? (I only see one marker in the picture) or does it work like in the F15 where I can set the radar to search betweeen 0 and 23'000 feet? You set "one value" for antenna orientation in elevation (vertical axis), but then you have (or should/will have, it's not implemented now), next to the TDC, the distance (between you and the TDC) in NM, plus the min/max thousands of feet the antenna scans at this distance (in "S" mode) or the thousand of feet at the center of the radar beam at this distance (in "Z" mode). S or Z => switch on the radar console. S is default mode, useful when you search on your own. Z is a nice mode for when a GCI/AWACS controllers guides you to a target and gives you its distance from you and its altitude. ++ Az' Edited April 17, 2016 by Azrayen typo Link to comment Share on other sites More sharing options...
spiddx Posted March 1, 2016 Share Posted March 1, 2016 So I'm assuming if a TWS locked contact leaves my designated scan zone (elevation, azimuth) I will lose lock while in STT the radar antenna will follow the lock to the gimbal limits. Correct? Specs: i9 10900K @ 5.1 GHz, EVGA GTX 1080Ti, MSI Z490 MEG Godlike, 32GB DDR4 @ 3600, Win 10, Samsung S34E790C, Vive, TIR5, 10cm extended Warthog on WarBRD, Crosswinds Link to comment Share on other sites More sharing options...
Zeus67 Posted March 1, 2016 Author Share Posted March 1, 2016 So I'm assuming if a TWS locked contact leaves my designated scan zone (elevation, azimuth) I will lose lock while in STT the radar antenna will follow the lock to the gimbal limits. Correct? If you have a contact locked in TWS, the antenna will follow the target elevation. Azimuth is a little more tricky, so I'll see what can be done. "Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the Universe trying to produce bigger and better idiots. So far, the Universe is winning." "The three most dangerous things in the world are a programmer with a soldering iron, a hardware type with a program patch and a user with an idea." Link to comment Share on other sites More sharing options...
spiddx Posted March 1, 2016 Share Posted March 1, 2016 If you have a contact locked in TWS, the antenna will follow the target elevation. Azimuth is a little more tricky, so I'll see what can be done. I see, thanks. Specs: i9 10900K @ 5.1 GHz, EVGA GTX 1080Ti, MSI Z490 MEG Godlike, 32GB DDR4 @ 3600, Win 10, Samsung S34E790C, Vive, TIR5, 10cm extended Warthog on WarBRD, Crosswinds Link to comment Share on other sites More sharing options...
myHelljumper Posted March 1, 2016 Share Posted March 1, 2016 (edited) If you have a contact locked in TWS, the antenna will follow the target elevation. Azimuth is a little more tricky, so I'll see what can be done. Thx for the heads up. Will the antenna be giro-stabilized in the elevation update ? Edited March 1, 2016 by myHelljumper Helljumper - M2000C Guru Helljumper's Youtube https://www.youtube.com/channel/UCK3rTjezLUxPbWHvJJ3W2fA Link to comment Share on other sites More sharing options...
Zeus67 Posted March 1, 2016 Author Share Posted March 1, 2016 Thx for the heads up. Will the antenna be giro-stabilized in the elevation update ? Yes. "Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the Universe trying to produce bigger and better idiots. So far, the Universe is winning." "The three most dangerous things in the world are a programmer with a soldering iron, a hardware type with a program patch and a user with an idea." Link to comment Share on other sites More sharing options...
