F-14 Cockpit and instrument dimensions

[Uxi]

On 3/6/2022 at 4:55 PM, hitmanalpha1 said:

I’m going to start trying to do some videos on what I’ve done so far. I’m thinking about taking each panel and doing a video series. One panel at a time. Something on a 1st Grade level.

You just need a proper ejection seat and you'd be fine.  And white vinyl for your throttle grips.

[draconus]

8 hours ago, Rockerfeller said:

...and AFCS panel, but in VR its a bit off size.

You've made it out of proportions and your switches are a bit smaller too. You need all 1:1 size and placement for perfect VR feel.

It's still great if you ask me

[VF31_Subsonic]

Finally got these wired into PDCP...







[hitmanalpha1]

16 hours ago, VF2 Subsonic said:

Finally got these wired into PDCP...







I'm assuming those are interlock switches? Ive looked into the interlock switches, but they all seemed small. Do you mind referencing which one you used?

[Uxi]

18 hours ago, VF2 Subsonic said:

Finally got these wired into PDCP...





pdcp.mov 4.87 MB · 6 downloads



Will you share your cap design?

[VF31_Subsonic]

On 3/18/2022 at 4:10 PM, hitmanalpha1 said:

I'm assuming those are interlock switches? Ive looked into the interlock switches, but they all seemed small. Do you mind referencing which one you used?

https://www.amazon.com/gp/product/B07PBR871M/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1



[VF31_Subsonic]

On 3/18/2022 at 5:48 PM, Uxi said:

Will you share your cap design?

Page 17 has the design.  I do not share stl files here...sorry.

[hitmanalpha1]

17 hours ago, VF2 Subsonic said:

https://www.amazon.com/gp/product/B07PBR871M/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1



Thank you!

[VF31_Subsonic]

On 3/20/2022 at 5:31 PM, hitmanalpha1 said:

Thank you!

[Woody81]

On 3/12/2022 at 12:26 PM, Rockerfeller said:

Hi,
Currently I am trying to make my left side console panels, but I cant't find some panel sizes. I see the width is 5.75" to all panels, but the heights are missing. I have done an inlet ramps/throttle control panel and AFCS panel, but in VR its a bit off size. I have no info for ICS panel, tone/volume control panel, com/nav command control panel heights. I will be really glad if somebody can help me with that info.



Hi, If it helps I've taken dimensions from the panels in the game based on the fact that the width is 145mm. They may be a couple of millimetres off from the real thing, but without access to actual panels it's probably as close as I can get myself.

[AH_Solid_Snake]

1 hour ago, Woody81 said:

Hi, If it helps I've taken dimensions from the panels in the game based on the fact that the width is 145mm. They may be a couple of millimetres off from the real thing, but without access to actual panels it's probably as close as I can get myself.

Also if it helps the standard panel width is 5.25”

[RustBelt]

On 3/19/2022 at 11:38 PM, VF2 Subsonic said:

Page 17 has the design.  I do not share stl files here...sorry.

Have you considered putting them on Cgtrader.com for money at least?

Edited April 24, 2022 by RustBelt

[winghunter]

On 12/19/2021 at 1:51 PM, winghunter said:

I have reworked the textures and geometry to exactly replicate the F14 heatblur cockpit for VR.

I'll be releasing the full plans and instructions in 1-2 weeks so everyone can build their own F14 cockpit.

Tools required: inkjet or laser printer, exacto knife, large ruler (1m or 3 feet), 5mm (3/16 inch) foamboard, hotglue

Material cost: ~ $50-$60

Build time: 4-8 hours





Here are my PDF files for printing the panels on paper. Size: A4 (Europe)

https://www.file.io/V18n/download/sfo3EFTX4rHX

Edited June 12, 2022 by winghunter
reup

[Lt_Jaeger]

1 hour ago, winghunter said:

Here are my PDF files for printing the panels on paper. Size: A4 (Europe)

https://easyupload.io/m/bnbbzz

Thank you

[LASooner]

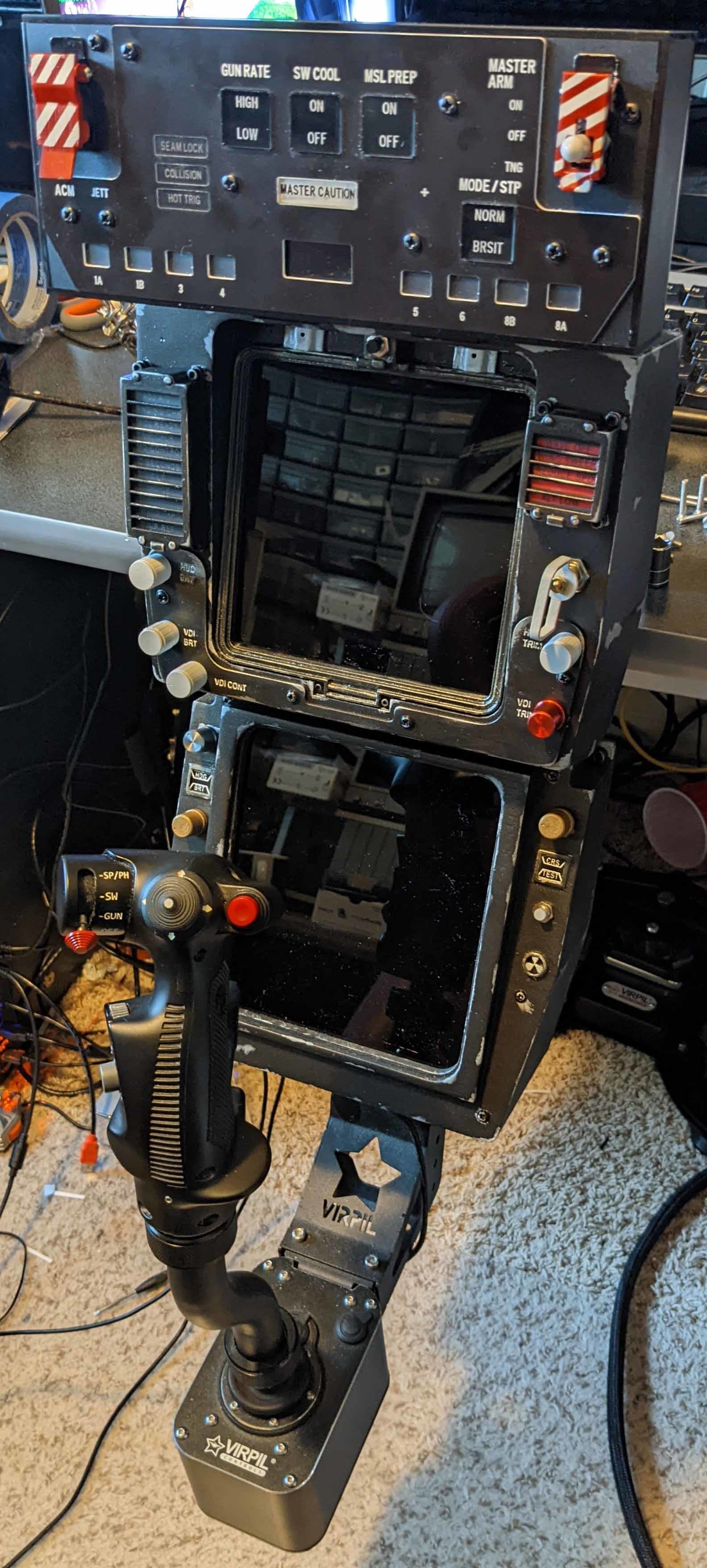

So this happened.

You can see what all it replaced here




[Lt_Jaeger]

@LASooner

Man, that is so great. Any chance you would share your plans / files for this?

This is definitely a wet dream come true. For this I would immediately stop my work on the TEDAC.



Edited May 1, 2022 by Lt_Jaeger

[LASooner]

I want to take care of some of the issues I ran into and had to manually fix, but the plan is to upload them all to Shapeways and make them downloadable, currently the HUD filter handle is already there as it worked exactly as expected. I'm not putting any markup on these so if you have them print them you're paying the price they charge. The quality was really good though. For that price it better be.

All of them will show up here, and if you click on the Handle that's already there you can see at the bottom of the page you can download it.



https://www.shapeways.com/shops/lasooner-3d-junk

Edited May 1, 2022 by LASooner

[Rockerfeller]

I tried a new technic: 2 layer of 3mm plywood, and 1 layer engravable foil, cutted and engraved with diode laser. (Because diode laser can't cut white acrylic).

[LASooner]

On 5/1/2022 at 12:23 AM, LASooner said:

So this happened.

You can see what all it replaced here




Available to download or have Shapeways print

https://www.shapeways.com/shops/lasooner-3d-junk

Print at your own risk



[LASooner]

Parts:

Push Pull Switch For HUD Filter

Long shaft Potentiometers for VDI pots

Standard pots for HSD Brightness

Momentary Push Buttons for VDI Filter and Bit Test button

LED bulbs

Plexiglass Red

Plexiglass Clear

Plexiglass Black Opaque

Arduino Uno

No Detent Rotary with push Button for Course and Heading knobs on HSD


Used a brother P-Touch Label maker for the caution lights laid on top of the plexi, using this tape.

Silver Knob Caps for pots and rotarys

Sandable Primer|

Krylon Fusion Aluminum Paint  For Base Coat

Metallic Grey  second coat

Metallic Red for Trim Knob

White Coat for Knobs

Clear Coat for finishing


I think that's all of it.

[Lt_Jaeger]

3 hours ago, LASooner said:

Available to download or have Shapeways print

https://www.shapeways.com/shops/lasooner-3d-junk

Print at your own risk



That is so great and generously. Thank you very much



[AH_Solid_Snake]

First holy crap that looks amazing.

Second - holy crap thats eye wateringly expensive to print at shapeways.



I was going to try other vendors but I cant find the download button from your screenshot.

[Lt_Jaeger]

24 minutes ago, AH_Solid_Snake said:



I was going to try other vendors but I cant find the download button from your screenshot.

Had the same problem, you need to register with shapeway and lock into your account then



[lunaticfringe]

Absolutely superb, Sooner.  Many thanks.  If you ever put a tip jar somewhere for this work, please link it here.

And for those wondering if they can do this in a basic printer volume: remove the back panel (by deleting the wire support bodies) and you can fit both panels in the basic volume of an Ender 3.



[Lt_Jaeger]

I did a quick check, 3 days of printing for one box (including supports bottom down.)



Still couldn't figure out how to mount them on my setup, but will work the problem soon.



I'm trying currently to convert the obj Files in something I could edit in fusion 260. For the HSD it works quiet well, the VDI is more stubborn.

Edited May 3, 2022 by Lt_Jaeger
