DDSSTT Posted November 29, 2018 Posted November 29, 2018 I am looking to replace the standard type knobs with the correct kind for my work in progress pit... see picture below... I've been looking all over and found a few places that have knobs like the real ones but either they are out of stock or only sell large orders because they have to make them... Does anyone here have the ability to make them or know some place that will make a small personal order? I fly in VR so even unfinished 3D prints are fine... Here is the list of Knobs: Rudder Trim (does not need a push button) (.250/6.35mm Knurled Shaft) Formation & Position Lights (once my ThrottleTek 18 arrives early next year)(.250/6.35mm Knurled Shaft) Select Jett (solid, using a push button encoder)(.250 Smooth Shaft) Console, Instrument, Flood, & Warning/Caution Lights (.250/6.35mm Knurled Shaft) Radar and INS (.250/6.35mm D-Shaft) Bleed air would be a nice to have... Thanks guys! [sIGPIC][/sIGPIC] http://www.csg-2.net/
Icebeat Posted November 29, 2018 Posted November 29, 2018 (edited) hi, I found today this. Inside you can found all the specification for many of the Knobs. Here is one of then I am almost sure that Deadman will help you. P.S(i am interested as well) maybe someone can run a couple of batches? Edited November 29, 2018 by Icebeat

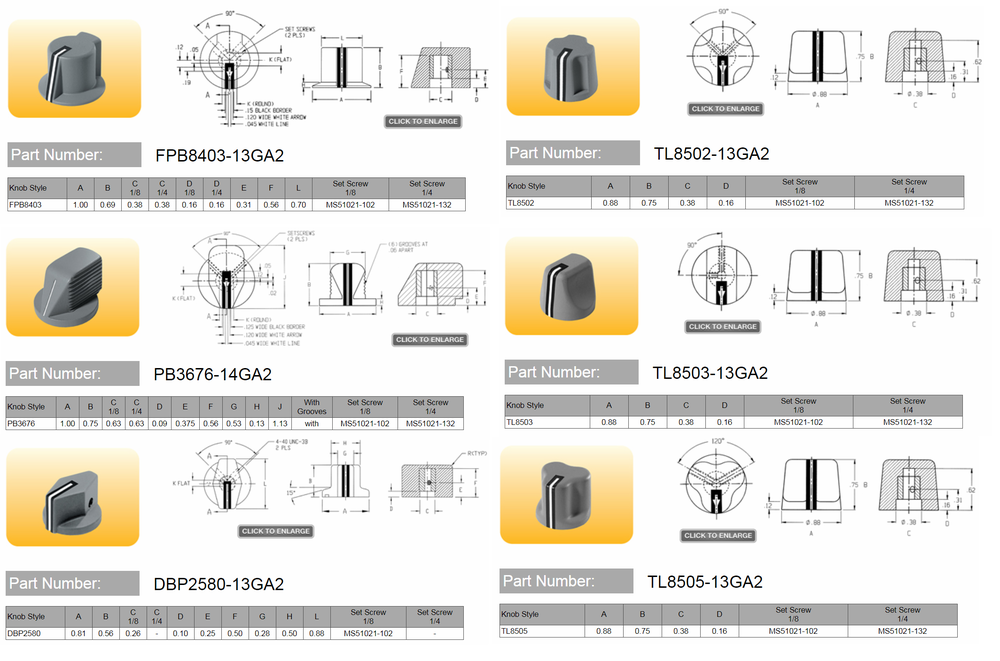

DDSSTT Posted November 30, 2018 Author Posted November 30, 2018 Heck if Deadman can run some batches that'll be great!!! They have almost all of them and they also have the measurements... http://www.ehcknobs.com/index.php?id=TM Deadman if you read this, I attached the knobs I'd like, I see you already have some in your shop and I'd like to place an order when you are able!!! [sIGPIC][/sIGPIC] http://www.csg-2.net/
cichlidfan Posted November 30, 2018 Posted November 30, 2018 :lol: ASUS ROG Maximus VIII Hero, i7-6700K, Noctua NH-D14 Cooler, Crucial 32GB DDR4 2133, Samsung 950 Pro NVMe 256GB, Samsung EVO 250GB & 500GB SSD, 2TB Caviar Black, Zotac GTX 1080 AMP! Extreme 8GB, Corsair HX1000i, Phillips BDM4065UC 40" 4k monitor, VX2258 TouchScreen, TIR 5 w/ProClip, TM Warthog, VKB Gladiator Pro, Saitek X56, et. al., MFG Crosswind Pedals #1199, VolairSim Pit, Rift CV1 :thumbup:
Nikolas_A Posted November 30, 2018 Posted November 30, 2018 Here is one of then Did someone here buy them? If yes, I could buy a couple...
Icebeat Posted November 30, 2018 Posted November 30, 2018 (edited) Did someone here buy them? If yes, I could buy a couple... Some here, I am interested in buy one or two as well Edited November 30, 2018 by Icebeat
RightStuff Posted November 30, 2018 Posted November 30, 2018 My current results (just a subset) in ABS: A little brushup after printing is neccessary, but so far I‘m satisfied.
tonypu1 Posted December 1, 2018 Posted December 1, 2018 Try this link http://pcflights.com/index.php?main_page=index&cPath=61
Deadman Posted December 2, 2018 Posted December 2, 2018 (edited) Most of PC flights knobs are just as inaccurate as their panels just an FYI. Making accurate knobs takes quite a bit of time. making the models for one person it would not work. if there are several people interested and have confirmed the knobs need let me know Edited December 3, 2018 by Deadman https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
DDSSTT Posted December 3, 2018 Author Posted December 3, 2018 YES!!! Thank you Deadman! I am already planning an order for 11x 1tl1-1 & 5x Eaton... I was going to order some of your knobs but they said 3mm shaft? They are not going to fit the potentiometers or my encoders... :( [sIGPIC][/sIGPIC] http://www.csg-2.net/
Deadman Posted December 3, 2018 Posted December 3, 2018 Yes what? I may decide to add the f-18 knobs if they are confirmed the actual knobs for the control panels and if there is demand. One person does not make demand. yes the knobs do say 3mm you can use that as a guide and drill the hold to what size will fit your device https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
DDSSTT Posted December 3, 2018 Author Posted December 3, 2018 Yes that you are considering it... If I can drill out to a larger size then I'll get those. Wasn't sure if that would work or not. Thank you! [sIGPIC][/sIGPIC] http://www.csg-2.net/
Deadman Posted December 3, 2018 Posted December 3, 2018 That or you can message me with the size you want the holes for your knobs https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Deadman Posted December 3, 2018 Posted December 3, 2018 you will need to tap the holes for the set screws if you have any other questions just ask https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Icebeat Posted December 3, 2018 Posted December 3, 2018 you will need to tap the holes for the set screws if you have any other questions just ask I am in deadman, just let us know when
Mr_Burns Posted December 4, 2018 Posted December 4, 2018 Has anyone got a drawing of a landing gear handle that I could covert to Sketchup? I want a handle that will light up/flash red and with a stalk that will fit over a standard toggle switch that I can use a grub screw. A guy at work has said he would print one for me and would probably design it too if I could give him an idea of the size of one. I know a few people have designed ones for a-10 and f/a-18 with the led holders in them, I could probably add the tube to fit over a toggle switch. Any assistance would be appreciated!
bnepethomas Posted December 5, 2018 Posted December 5, 2018 Has anyone got a drawing of a landing gear handle that I could covert to Sketchup? I want a handle that will light up/flash red and with a stalk that will fit over a standard toggle switch that I can use a grub screw. A guy at work has said he would print one for me and would probably design it too if I could give him an idea of the size of one. I know a few people have designed ones for a-10 and f/a-18 with the led holders in them, I could probably add the tube to fit over a toggle switch. Any assistance would be appreciated! While not directly answering the Q - heres a gear handle for those of us downunder - has gone into a few pits without issue http://www.ruscool.co.nz/landing_gear.html cheers Peter
Deadman Posted December 8, 2018 Posted December 8, 2018 So .88Dia and straight line markings is what your looking for? https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Deadman Posted December 10, 2018 Posted December 10, 2018 8403 and 8502 are both for sale on my Shape ways site in the new F-18 section with .25 inch shafts and #4 set screw holes for tapping. https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
DDSSTT Posted December 10, 2018 Author Posted December 10, 2018 Awesome!!! Thanks! Ordered! [sIGPIC][/sIGPIC] http://www.csg-2.net/
Deadman Posted December 11, 2018 Posted December 11, 2018 (edited) your welcome had some time off and the wife had to work so i just plowed a couple of them out cheers Edited December 11, 2018 by Deadman https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
