Starting to draw a F18 radar elevation wheel for the THRUSTMASTER WARTHOG HOTAS.



at the end it should be

- selfcentering, springloaded

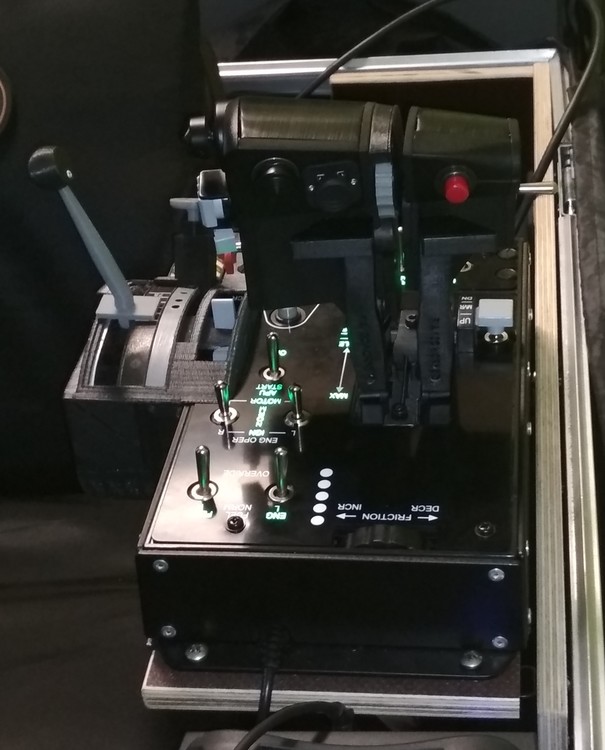

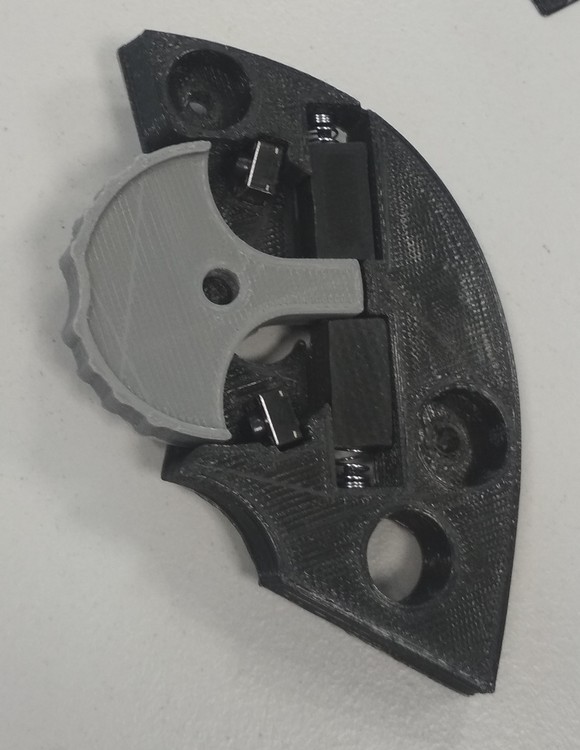

- designed to have two micro buttons soldered to the right lever^s cooliehat next to its slew control

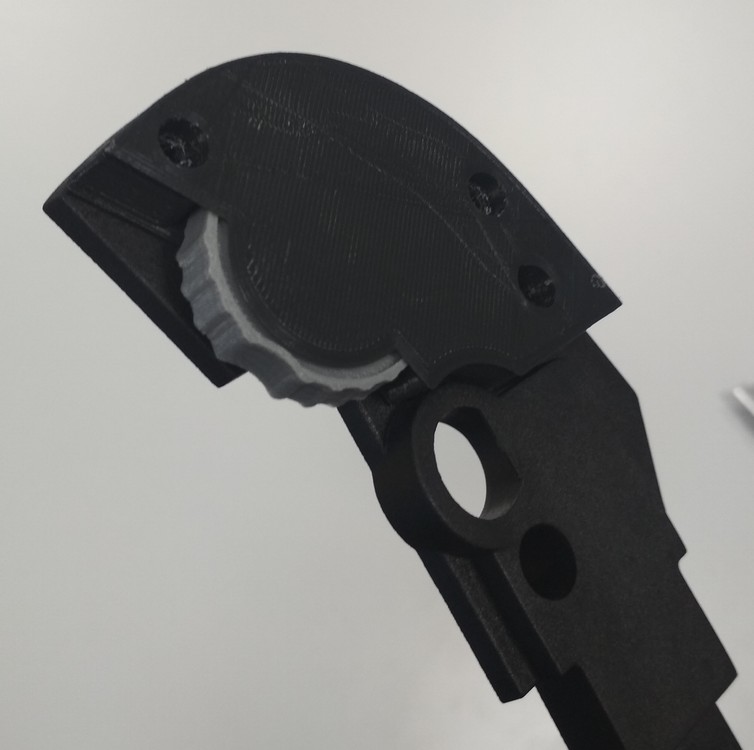

- easy mountable

- easy to print



Edited by FoxDelta
  • Like 1
Link to comment
Share on other sites

STL files for download

https://www.dropbox.com/sh/dctsac67egwlzzk/AADQRie7ggOyvsE54mQnepWda?dl=0



DISCLAIMER: appplying this MOD will definately VOID your WARRANTY, be aware!

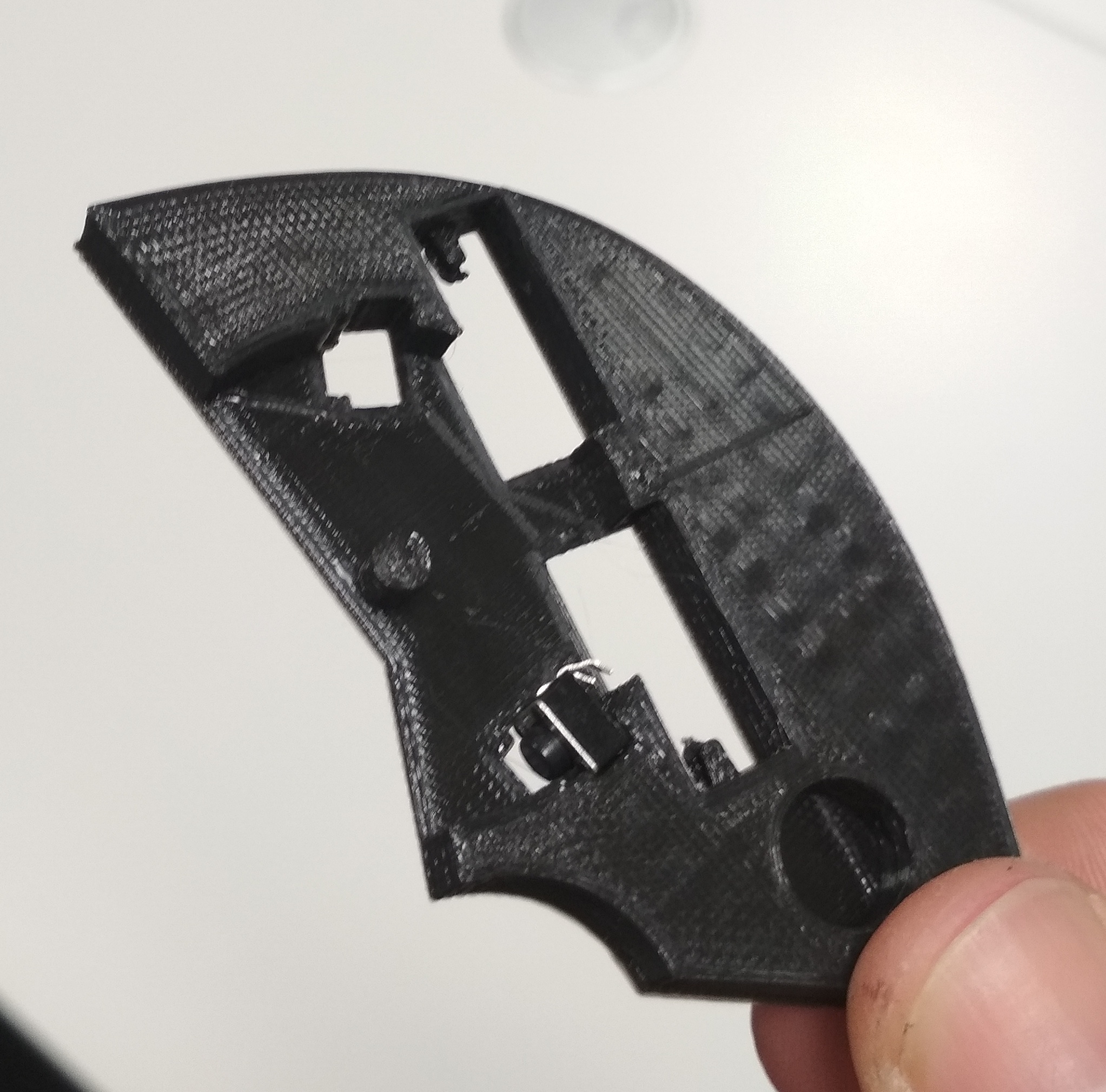

all parts are again divided into "EVERYONE can print that" parts, so u should have no troubles printing them,

no supports needed, i used PLA.

I own a GEEETECH A10 which is quite good for its price.



u will have to use a seperate usb board or just solder those 4x4mm buttons to one of the warthog s coolie hats, u can use the standard directions 90° then u will need two yellow and 1 orange and 1 brown cable, if u want to use the 45° just solder two more coloured cables to the buttons, 45° directions are registered when two buttons(yes those coolie hats just use 4 buttons) are pressed at the same time.

UPDATE Nopileus was so kind to post his solution for the 45° soldering

If anyone wants to get this working with the coolie hat diagonals you will need a couple diodes between the hat switches.

Without this trying to wire it as suggested by FoxDelta would leave the hat unable to work in the four main directions, you'll always get a diagonal no matter what you press.



As for the Microswitches for the elevation rocker, i used Omron B3F-1022 which require only 1.47N of force to press so you don't need a lot of pressure to hold it depressed but still get a nice little click.

There is an even lighter 0.98N variant in the B3F-1020, but i imagine you lose even more tactility at that point.



Lastly i suggest to not use the cheapest print service you can find, my parts didn't turn out terribly great and the manufacturer hid the defect side of the rocker part in the photos i had to sign off on before shipping, luckily ABS is easy to rework :music_whistling:





for the springs i used a rollerpen s , u will need some screws, which i got from an old harddrive and other parts i am sure u will find some applicable.

u will have two drill two holes into the sidecover for the buttons/wiring and another two for screws into the levers sideplate



i am not a professional constructor , i used FUSION360.

u might have to cut some parts for better fitting, mine fitted quite well



do well

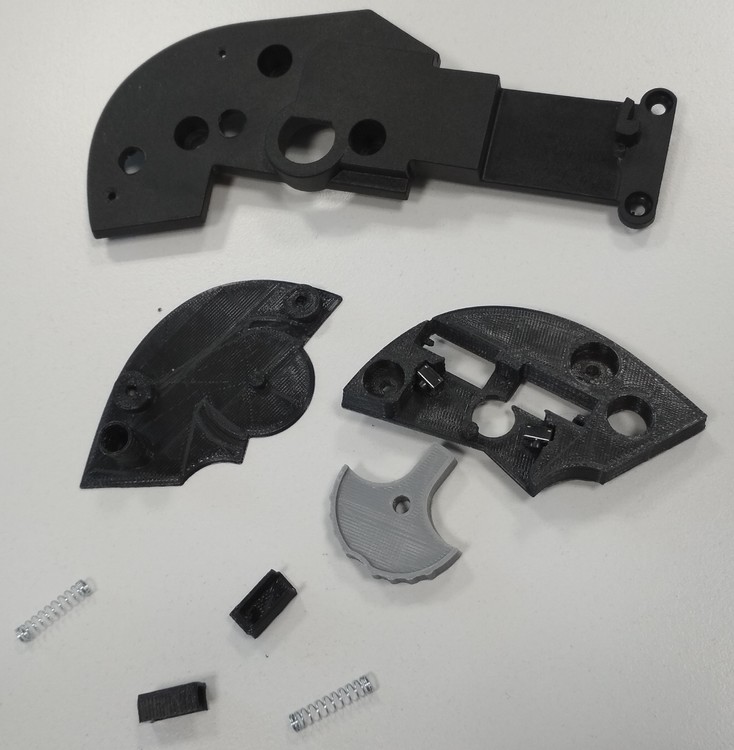

NOTE: Federschieber.stl needs to be printed twice
