Teknetinium Posted October 29, 2007 Share Posted October 29, 2007 Nice jobb trigger, will be cool to see the finle result 51st PVO Discord SATAC YouTube Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted October 29, 2007 Author Share Posted October 29, 2007 ..that warm fuzzy feeling... Cool stuff Trig. WTF, why the wait.:P .. I so agree with you.. We have a section for it already on our forum at http://www.vvs504.co.uk ..! So speaking only for myself, I guess I just hadn't thought about it before now.? But that will change fellow Squad Comrades.. But I'll never leave the beloved Bomber Wing.. :thumbup: Nice jobb trigger, will be cool to see the finle result .. Thatnx Tek' Personally I think it looks like a piece of semi-square turd right now (laughing nervously while looking at the floor). But I thought if I started a thread from beginning, not only will I be forced to make this good, but maybe someone else will also start building..? And then I wouldn't feel quite so geeky..! I think 99.99% are thinking along those line's. Lots of ooo's and aaaahs and the occasional WTF inderspersed with please please please work and one or two ( I pray not) the dreaded Blue screen.........DOH F***,F*** F************K AND one or two sitting in there top class pits soaring in cloud 9, I am so green with envy.:smilewink: .. FLAAASK..! How about starting an Apache cockpit on two seater config mate.. Damn that would just be the coolest.. Although I dread thinking of all the wiring and LUA/SIOC programming.. Brrrrr,...:cry: Ah....The nice kozy feeling of being surrounded by squadmates.. It's a thing of beauty.. Don't you think..? "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
grandsurf Posted October 30, 2007 Share Posted October 30, 2007 Cool that you asked right now, since I am working on then as we speek..! [ATTACH]75[/ATTACH] The push buttons will be made out of a 20x20mm square tube of plastic cut to the appropriate hight. And I'll connect them to some cheap microswitches I bought from RS Components... Between the bottom plate and the button I'll just jam some foam or a spring (most likely a square piece of foam) to make them spring back into place as the switch has a spring inside it as well.. I'll make a better picture and post later today.. Can anyone say, if there an english version of this tool for IOCard? http://www.3rd-wing.net/index.php?showtopic=5688&hl=LOSIOC Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted October 30, 2007 Author Share Posted October 30, 2007 english LOSIOC.. Can anyone say, if there an english version of this tool for IOCard? http://www.3rd-wing.net/index.php?showtopic=5688&hl=LOSIOC YES THERE IS..:thumbup: I spent some time last winter translating it from french to english myself. I'll see if I can't find it and either post it here, or PM to you.. [ATTACH]86[/ATTACH] It just a packed file that you unpack. And run the "Editeur LOSIOC v1.06.hta" program.. After that it's make so simple that anyone can auto-produce the .los file for SIOC and the export.lua file.. (because it does it for you..) Have fun..!:smilewink:Editor LOSIOC US v1.06.rar "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
grandsurf Posted October 30, 2007 Share Posted October 30, 2007 Cool, thx and you have a PM . Link to comment Share on other sites More sharing options...

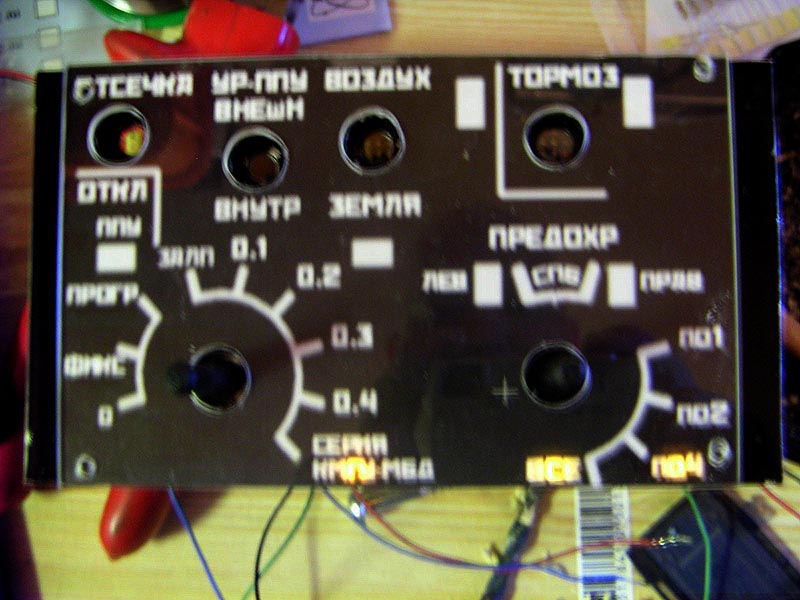

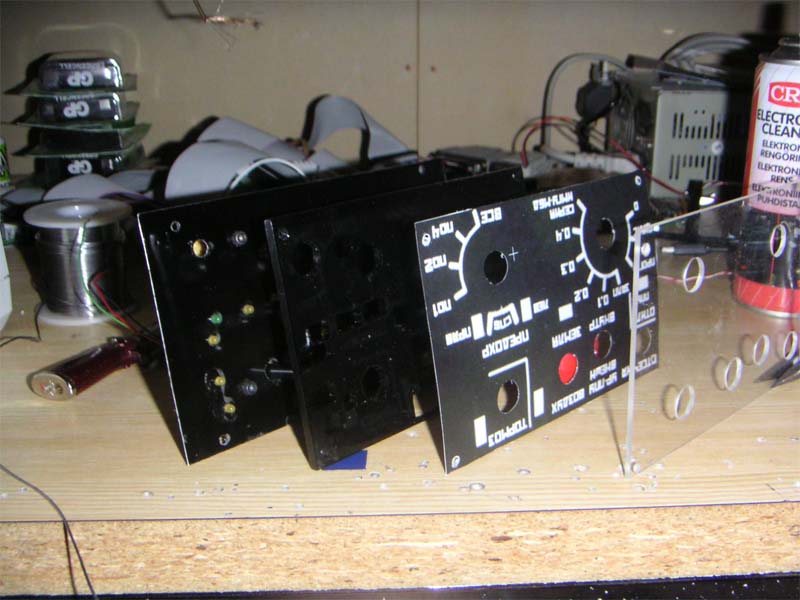

Triggerhappy69 Posted October 30, 2007 Author Share Posted October 30, 2007 Panels.. Triggerhappy69, How are the Panels pursued then? Heu Grandsurf.. :smartass: To be honsest I haven't even started on them yet. But as soon as I come up with an idea for the 3-way switches to be buildt and have something to fit them om I'll be on it. But I guess I'll use the same method that I usen with the WSCP for the Su-25. [ATTACH]87[/ATTACH] As you can see it's made of a backplate of alumium, then some 8mm plexy with holes cut out for text backlighting (on this one I was going to have the active function reconised by what text got lit up by the LED behind it. Lot'sa SIOC programming that I never got around to do). Then the text laserprintet on paper, and laminated between another 1mm sheet of plexi. Lastly I sealed all egdes with some black paint to keep the light inside of it. [ATTACH]88[/ATTACH] See... the LED thing actually worked well.. [ATTACH]89[/ATTACH] But there was a whole bunch of them needed (as well as 2 rotary switches, 3 two-way switches and a variable potensiometer that would controll the angle of the SPPU) But this time I'll have the benefit of a in-house CnC Milling machine to get all the parts exact..:pilotfly: "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
grandsurf Posted October 30, 2007 Share Posted October 30, 2007 Cool Stuff! I am just with the rebuilding of mine racing cockpit 1 2 3 as combat sim cockpit and would like to insert such things also absolutely. Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted October 30, 2007 Author Share Posted October 30, 2007 Fine looking setup..! ... Damn man..! That is a sweet looking setup you have there.. Is that a touch LCD running Touchbuddy I see..? "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
grandsurf Posted October 30, 2007 Share Posted October 30, 2007 Yes, its a 15" Touchscreen that i use for Zorlac's great Touchbuddy Soft. Not to see: Seat build in TFS2 (Tactile Feedback System v2.0) for the right feeling ;). Link to comment Share on other sites More sharing options...
352nd_Oscar Posted October 30, 2007 Share Posted October 30, 2007 Ahh - Touchbuddy. Don't leave home field without it!! Link to comment Share on other sites More sharing options...
Ditch3r Posted October 30, 2007 Share Posted October 30, 2007 There is some nice looking work going on in here. I have started to put together some stuff too, but I don't have any pics yet. I don't have a lot of room so I am building individual panels and then I will have to try to find somewhere to put them ;) https://www.youtube.com/@ditch3rgames Link to comment Share on other sites More sharing options...
flask Posted October 31, 2007 Share Posted October 31, 2007 .. .. FLAAASK..! How about starting an Apache cockpit on two seater config mate.. Damn that would just be the coolest.. Although I dread thinking of all the wiring and LUA/SIOC programming.. Brrrrr,...:cry: quote] Yea about a mile of wiring:) Id much prefer to watch and admire,keep it up mate I am dying to see the finished product, mind you remember ED will be producing a new add on every nine months,so keep the frog formost.:thumbup: Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted October 31, 2007 Author Share Posted October 31, 2007 .. .. FLAAASK..! How about starting an Apache cockpit on two seater config mate.. Damn that would just be the coolest.. Although I dread thinking of all the wiring and LUA/SIOC programming.. Brrrrr,...:cry: quote] Yea about a mile of wiring:) Id much prefer to watch and admire,keep it up mate I am dying to see the finished product, mind you remember ED will be producing a new add on every nine months,so keep the frog formost.:thumbup: ED's gift to us in form of FC's frog will always be one step from my heart.. This is my 1st complete pitbuild. So maybe the next will be a frog with a fully functional cockpit.. dreaming..:smilewink: "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted November 1, 2007 Author Share Posted November 1, 2007 ..Oh sanding... Oh sanding.. If I never see a piece of sandpaper again in my life, it will be a good thing..! I have tried several different (and what I hoped would be easyer) ways to get the front of the seat looking "sort of" like the real thing.. And this is my progres since last post.. [ATTACH]104[/ATTACH] As you can see, it has been a looong sanding prosess..! [ATTACH]105[/ATTACH] But I fell that with a bit of filler and some more sanding to get the arches right, it will have something resembling the front of the k-27. [ATTACH]107[/ATTACH] If you look close you will notice a black line drawn on the top of the profiled corner. This is where I will remove the excess wood to give the impresion that it's just one thin plate rounding the corner off.. So onwards and forwards.. Time to bring out the trusty old hand router and fill the room with fine wood-dust.. AGAIN..!:cry: Also I have rebuildt the front pedestal.. more on that later..:smartass: Edited later: By The Way guys..! Anyone have a clue about what this "pocket" on the ejection seat actually is for..? I know I don't, but I would like to..! Ideas anyone..? "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
JaNk0 Posted November 2, 2007 Share Posted November 2, 2007 Nice, keep us updated! [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted November 3, 2007 Author Share Posted November 3, 2007 ...Pitbuild update 03.november 2007... Todays update.. Only Pictures as of now.. I'll elaborate on it later.. [ATTACH]118[/ATTACH] .. Yes..! That is me grinning here..! [ATTACH]119[/ATTACH] Seat back might seem a bit high, but I'll make a temporary seat-cushion tomorow and see if it needs to be lowered a bit. [ATTACH]120[/ATTACH] Qiute pleased with the proportions now . I buildt new front lower panels tonight because the old ones were to long (or at least I thought they were..) [ATTACH]121[/ATTACH] The setup without me in it.. Another thing I'll start tomorrow is to make the floor... [ATTACH]122[/ATTACH] The new Left front lower panel ready for the fuel cut-off and rotorbrakes handles.. Well that's all for today folks.. More updates tomorrow if all goes well. My plan for tomorrow is: 1. Make a seat cushion, and check the hight if the seat backside. 2. Start making the "floor" and designing the pedals. 3. Make a new upper frontpanel (the angles are not right, and I need to make room for monitors to project the instruments on). 4. Start working on the Collective stick. (Obviously I need to do this after making the seat cushion). :cry: "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted November 3, 2007 Author Share Posted November 3, 2007 ... Aaaahhh... I almost forgot..! I still wonder about that "pocket" at the front of the ejection seat..? Anyone have an idea what is's for..? (other that to attach the ejection hadle)? "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted November 5, 2007 Author Share Posted November 5, 2007 Panel planning .. started planning the layout for the right lower panel now..:music_whistling: It will use some cheap 10x10mm push-buttons I have ordered from RS Components. And they will have a 15x15x14mm piece of plexyglass glued on top of them. Then a print of the selective button, followed by a 15x15x2mm plexy-glass piece glued on top. A 6mm hole will be made in the bottom piece to let the incorporated LED in each button light up the buttons text. And the sidewalls will be painted black to avoid light escaping through the sides. [ATTACH]128[/ATTACH] The 7-segment displays are 12,3x19mm and cost next to nothing. And it all will be controlled by my cards from Opencockpits.. [ATTACH]129[/ATTACH] "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
Triggerhappy69 Posted November 16, 2007 Author Share Posted November 16, 2007 KA-50 Collective almost done ... Just waiting is boring. So I took the time to finish the Collective drawings. It's made from of the shelf parts, apart from the switch-box.. Pics as soon as the paint dries..! [ATTACH]190[/ATTACH] [ATTACH]191[/ATTACH] "But (504)Brewber said they were'nt friendly.. So I took'em out.!" [sIGPIC][/sIGPIC] Link to comment Share on other sites More sharing options...
leafer Posted November 16, 2007 Share Posted November 16, 2007 That's what I'm talking about, Triggerhappy! If ya gonna make a collective for military sim, give it a military persona. What program did you use to draw it? ED have been taking my money since 1995. :P Link to comment Share on other sites More sharing options...
grandsurf Posted November 16, 2007 Share Posted November 16, 2007 Looks good, no Slider for the Shkval tracking gate size ;)? Link to comment Share on other sites More sharing options...
Nordic Posted November 16, 2007 Share Posted November 16, 2007 Looking good. Which switches are you going to use for the 4-way buttons? Link to comment Share on other sites More sharing options...
352nd_Oscar Posted November 16, 2007 Share Posted November 16, 2007 Excellent work Triggerhappy. I don't suppose you'd share the dimensional information for the center, left and right consoles? I'd like to copy those parts. Link to comment Share on other sites More sharing options...
grandsurf Posted November 16, 2007 Share Posted November 16, 2007 Looking good. Which switches are you going to use for the 4-way buttons? 1 Hat switch to slew search/landing lights and one to select the external wapon hardpoints i think - "get real" ;). Link to comment Share on other sites More sharing options...
Nordic Posted November 16, 2007 Share Posted November 16, 2007 1 Hat switch to slew search/landing lights and one to select the external wapon hardpoints i think - "get real" ;). Actually i meant something else. Not the function of the button, but the type of switch. I'm using for my hat button a joystick switch from http://www.conrad.de part nr.: 705178 - 62. It works well and has tactile feedback (you feel a click), but there might be some better alternatives with a shorter actuation range. The one from conrad has a travel of 8°, which is okay, but it could be a little less. Link to comment Share on other sites More sharing options...
