EDM EXPORTER for Blender 2.8

[Sarabi]

Hi all, just to let you know I downloaded the new version of Blender (2.90) and try it with the latest EDM (version 1.04) for Blender with the start up cube and open it on Model Viewer 2 and still working (cube shows on it). Best regards and take care

[Grajo]

Hi all, just to let you know I downloaded the new version of Blender (2.90) and try it with the latest EDM (version 1.04) for Blender with the start up cube and open it on Model Viewer 2 and still working (cube shows on it). Best regards and take care



Thanks for the info Sarabi. Best and take care also :]

[lee1hy]

Doesn't work on 2.83. I'm using a some of addons But only the edm plugin doesn't work.



Do i need other settings? or something

Edited September 4, 2020 by lee1hy

[tobi]

Doesn't work on 2.83. I'm using a lot of addons like hardops/boxcutter/msfs/gis etc. But in 2.83 the edm plugin doesn't work.



Do i need other settings? or something

Hi lee1hy,

I used it very often with 2.83 and it worked quite well. Would you like to describe the problem? Is it installed correctly? Are there any error messages?

[lee1hy]

Hi lee1hy,

I used it very often with 2.83 and it worked quite well. Would you like to describe the problem? Is it installed correctly? Are there any error messages?



log says that the install was successful, but it is not in the list of enable addons. not even in export

[RustyGunner]

Looking for some guidance on how to make a building "solid" so a helicopter can land on it. I didn't see much in this thread about collision models that helped and the Blender 2.9 manual didn't help me either.



For a tool trial a 5x5x5 meter cube was made (basically the standard starting point in Blender 2.9 and making the cube larger). A red texture was applied and exported to .edm file format. Cube exports fine and looks good in DCS but vehicles will drive through it and helicopters can not land on it. This was expected as a collision box was not added and I was just checking out this tool to verify I could export .edm files. So, I should be able to make a building in Blender 2.9 and have it display in DCS. Just need a collision model to go with it now.



I took a DCS collision model and made it a static object to view in DCS. The static collision model is invisible to the eye in DCS but it's there as a vehicle driving over it will jump into the air while on the object. In ModelViewer2 this collision model looks solid and blue in color.



A collision box (Rigid Body Type = Box) was added around the trial 5x5x5 cube. Collision field absorption values of 0 and 1 were tried. Rigid body Type of Active and Passive were tried. A bunch of other stuff was tried too but still could not get a rigid landing surface.



Interesting to note is that the trial 5x5x5 cube is now invisible to the eye in DCS as a static object but shows fine in Modelviewer2 with a red color. The trial cube seems to be close to what is needed but I seem to be missing the magic combination or approach to support collisions.



Any help would be appreciated. BTW: thanks for providing this super tool!

　



Rusty

[tobi]

Hey Rusty,

You need two objects for that. One for rendering (render node) and one for collision (shell node). Usually shell nodes are lowpoly for efficient collision calculation.





In this video Grajo sets up both in one edm file. The other possibilty is to use 2 or more edm files and a lod file.

[RustyGunner]

tobi, thanks for the response but Grajo's video starts with the collision shell already set up. What settings were used in the collision shell? I can tie the two meshes together but I can not get the collision shell to work right which is why I was looking at it separately.





Rusty

[tobi]

tobi, thanks for the response but Grajo's video starts with the collision shell already set up. What settings were used in the collision shell? I can tie the two meshes together but I can not get the collision shell to work right which is why I was looking at it separately.





Rusty



Hey Rusty, the only setting you have to do is to set the Rendertype to ShellNode at the edm panel. Then the object is invisible in DCS but works as a collision box. Grajo selects the collisionobject for a short time at about 2:28. When he does that you can see the edm panel on the right bottom of the screen. You have to use a second box which is set to Rendernode if you want to see something it in DCS. In summary: Create one cube for visual appearence in DCS parent it to a bone and choose RenderNode at the edm panel. Create a second cube parent it to the same bone and choose shellnode at the edm panel. Both objects don't have to be tied except they have to be parented to the same armature and no other blender internal physics settings are needed.

[tobi]

Btw: You mentioned the blender 2.9 manual and this thread but not the readme of the addon at github. A lot of user overlook it but it should be the first place to look how to use the addon.

[RustyGunner]

tobi, yes the github readme was read when the tool was downloaded. ShellNode was/is used for the collision object being rendered.



I did what you stated above but for some reason collisions were not working right for me. An AI vehicle will steer around the object indicating to me it knows a collision object is in front of it. However, put a helicopter on the object and the helicopter will bounce around wildly or will be on its side and jitter (seemed like a collision variable was not set correctly). I do not have this problem with collision objects removed from DCS models (example: leopard-2-collision.edm). That model works perfect as an invisible static collision object.



I started with default physic settings but got strange results which is why I moved to a stand alone collision model for testing and trying to zero in on my problem. That approach eliminates any influence from the base object. After getting weird results with everything tried I had to asked about collision settings. BTW: Blender defaults didn't change from prior versions in 2.9 did they?





I will download both the tool and Blender 2.9 again and see if perhaps a bad download may be the culpit. Thanks for the input.





Rusty

[tobi]

Hey Rusty,

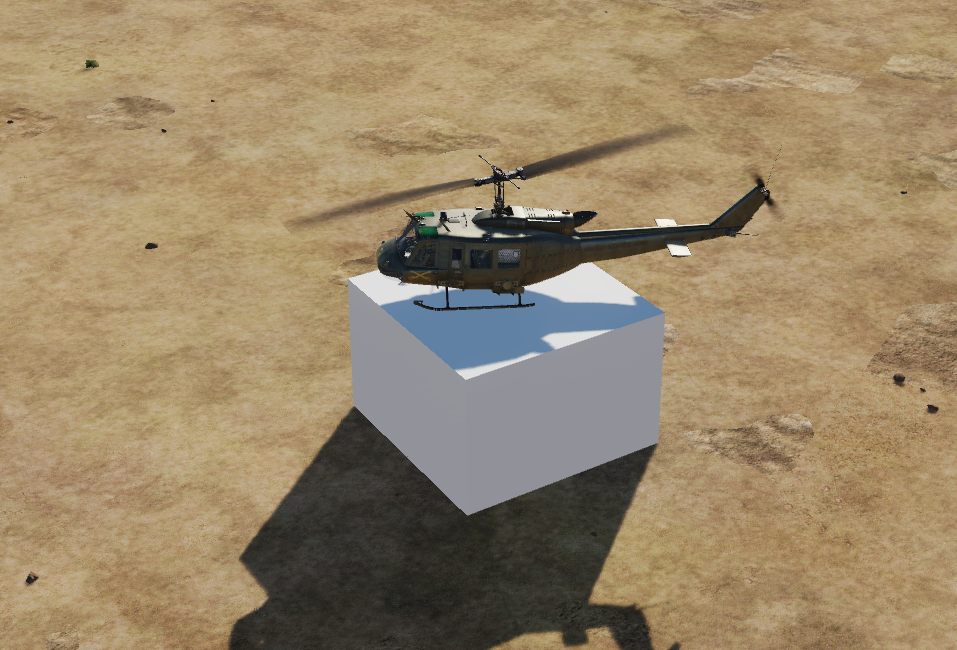

I tried to reproduce the problem but i wasn't able to. I build a cube and landed a Huey on it. I upload the blend file and the dcs mod folder here. May be it helps you to compare to your setup. I am not quite shure what you mean with physics settings. The only "physic setting" DCS recognizes in this case is Rendertype ShellNode. Other physic settings are not exported and there is not place for it in an edm file. Let me know if you can identify the problem!

CubeTest.zip

Edited September 18, 2020 by tobi
upload

[RustyGunner]

tobi, I downloaded Blender 2.9 again and all appears to be working Ok now. The new download also cured the disappearing gridlines that were blinking in and out at random times.



Thanks for the Test Cube file too. I did noticed your armature is much larger that the one I used. Does the size of the armature matter?



Rusty

[lee1hy]

anyone issue with one and "only one armature" error ? I select the fuselage, then bone, then ctrl+p select bone relative and the object moves together. I checked the parent and export but no luck



this is sample 3d model from internet

this model already many bone with animation





http://pds18.egloos.com/pds/202010/04/61/e0077961_5f79aa92ce7fc.png



You can see the parent line. Export is not successful even though parent is successful

Edited October 4, 2020 by lee1hy

[tobi]

Hi Lee1hy,

I see more than one armature in the list and that is the problem. If you build up your model from scratch use one armature from the begining. If you use a downloaded model and there are more than one armatures you have to try to merge them to one armature.

[lee1hy]

Hi Lee1hy,

I see more than one armature in the list and that is the problem. If you build up your model from scratch use one armature from the begining. If you use a downloaded model and there are more than one armatures you have to try to merge them to one armature.





Thanks for reply



Even if there is one armature, it doesn't export. find and filter the all armature then merged , but it doesn't convert. Is there any other way to check the armature? maybe hidden armature



http://pds20.egloos.com/pds/202010/05/61/e0077961_5f7a5c974e683.png

[tobi]

Thanks for reply



Even if there is one armature, it doesn't export. find and filter the all armature then merged , but it doesn't convert. Is there any other way to check the armature? maybe hidden armature



http://pds20.egloos.com/pds/202010/05/61/e0077961_5f7a5c974e683.png





Hi lee1hy,

you can switch the display mode of the outliner from for example "view layer" to "Blender File". There you can see all objects even if an armature has no bones or something like that. I tried to use "join" with armatures. All bones are in one armature and the other armature becomes invisible but stays in the blend file. This may have caused your problems

Edited October 6, 2020 by tobi

[tobi]

Hi guys. I need a little help. Ive modeled one aircraft for my own use, exterior model, and right now Im using one of community mod lua files as a reference. I make all animations etc, but I have a problem with aircraft to surface contact. Whatever I do, make collision with actual edm shape or separated collision shape, my aircraft fall trough ground. But if I keep collision shape from that community mod, my extirior model not making contact with ground, actualy gears or something from invinsible community mod making contact (is it that lua positioning numbers or collision from that specific collision shape, IDK), so I cant find solution for that whatever I do... Im using blender as one exporter. Thank you in advance.





Hi FlyNeX,

i am no expert with that but i think you have to use collision lines with certain names. I have seen a thread about it in the forum or on a discord channel but did not find it again for the moment.

[T-Pap]

Hi , I was wondering if any pointers can be given to me to resolve and export error . When trying to export a complex model , despite having everything setup etc it get the following error :



Traceback (most recent call last):

File "C:\Users\Tomas\AppData\Roaming\Blender Foundation\Blender\2.82\scripts\addons\io_BlenderEdmExporter\__init__.py", line 41, in execute

prepareObjects()

File "C:\Users\Tomas\AppData\Roaming\Blender Foundation\Blender\2.82\scripts\addons\io_BlenderEdmExporter\edmexporter.py", line 1459, in prepareObjects

me.calc_tangents(uvmap=c.data.uv_layers[0].name)

RuntimeError: Error: Tangent space computation needs an UVMap, "UVMap" not found, aborting



I am using this with blender . Ive never had this issue before and just cant find what is missing . All uvs and texture are accounted and setup ...



Any help will be great !

[dolfo]

That happened to me when I had an object withut a mesh. (had deleted the mesh in edit mode and left the object). Deleting that object fixed the issue.

[T-Pap]

That happened to me when I had an object withut a mesh. (had deleted the mesh in edit mode and left the object). Deleting that object fixed the issue.



Don't suppose you know any way to narrow down which one could be the culprit ? I have around 300+ objects :/

[Djent33]

That happened to me when I had an object withut a mesh. (had deleted the mesh in edit mode and left the object). Deleting that object fixed the issue.



Don't suppose you know any way to narrow down which one could be the culprit ? I have around 300+ objects :/

I once used a rule of thumb I.e deleted 1/2 and saw which one caused the problem, after a few repetitive steps like that I was down to a handful of objects on which I could click an move to see what they were.



Another way is to select all Objects then > Edit mode (Vertex)>“Select”- drop down menu> Select by trait> Select loose geometry, with all that selected, you can then inspect what that is.

[M0nkey]

hi,



i've just got into blender and tried to exporte a Project with the exporter but nothing show up once loaded into the modelviewer.

i've also tried with

but with the same result.



I an important step to make the object rander?

[mechatoine]

Hello everyone, first and foremost I want to say thank you to Tobi for making this fantastic add-on, hats off to you! Also, I have been using 2.83 LTS for the time being because the add-on says it's for 2.8. Question is, with 2.91 having been recently released and a lot of new features being really appealing(New boolean system, I'm looking at you :smilewink:), I am wondering if this add-on will work reliably with 2.91?

[Djent33]

hi,



i've just got into blender and tried to exporte a Project with the exporter but nothing show up once loaded into the modelviewer.

i've also tried with

but with the same result.



I an important step to make the object rander?

If you followed that video step by step, then there shouldn’t be any uncertainty
