already placed objects like building bridge

[Maxime]

Hi, On the DCS maps there are already placed objects like building bridge etc... my question is how to know in the logs if the deck has been destroyed we can find the shots but not the destruction

[Mano]

I think static scenery items can't be really considered destroyed as targets... This is a long term missing thing in dcs imho.



However I've seen that for static scenery items there are arguments and variables to assign. I've never tried them but I can assume they can be used to verify whether a building is destroyed or something else.



Inviato dal mio CPH1877 utilizzando Tapatalk

[toutenglisse]

This function works using M.I.S.T.

Here a .miz working exemple (unit near bridge for you to observe, explosion occures on bridge at 3 seconds and destroys it, then the M.I.S.T. function detects the bridge destroyed in zone and triggers a text and green smoke)



"Object.isExist" function with inbuilt DCS Scripting should also work but I don't know how.

MIST-SceneryObject-destroyed.miz

[Rudel_chw]

This function works using M.I.S.T.

Here a .miz working exemple ...



Very nice tip .. thank you :thumbup:

[Maxime]

Cool merci toutenglisse

[wraith70]

I use the mist.flagFunc.mapobjs_dead_zones() function. It works for bridges, haven't tried it on anything else:



Just put a trigger zone over the bridge (ie named 'BridgeZone')



handler = {}

handler.init = function()
world.addEventHandler(handler)
end

handler.onEvent = function (self,event)

local vars = {}
vars.zones = { 'BridgeZone' }
vars.flag = 1

mist.flagFunc.mapobjs_dead_zones(vars)
end



To use this code, call it like this in ME:

DO SCRIPT



mist.flagFunc.mapobjs_dead_zones{ zones = {'Bridge11'}, flag = 1, req_num = 1 }

Edited April 14, 2020 by wraith70

[nebsar]

I use the mist.flagFunc.mapobjs_dead_zones() function. It works for bridges, haven't tried it on anything else:



Just put a trigger zone over the bridge (ie named 'BridgeZone')



handler = {}

handler.init = function()
world.addEventHandler(handler)
end

handler.onEvent = function (self,event)

local vars = {}
vars.zones = { 'BridgeZone' }
vars.flag = 1

mist.flagFunc.mapobjs_dead_zones(vars)
end



Excuse me but I am new to DCS. Where do you write and run this piece of code?

[wraith70]

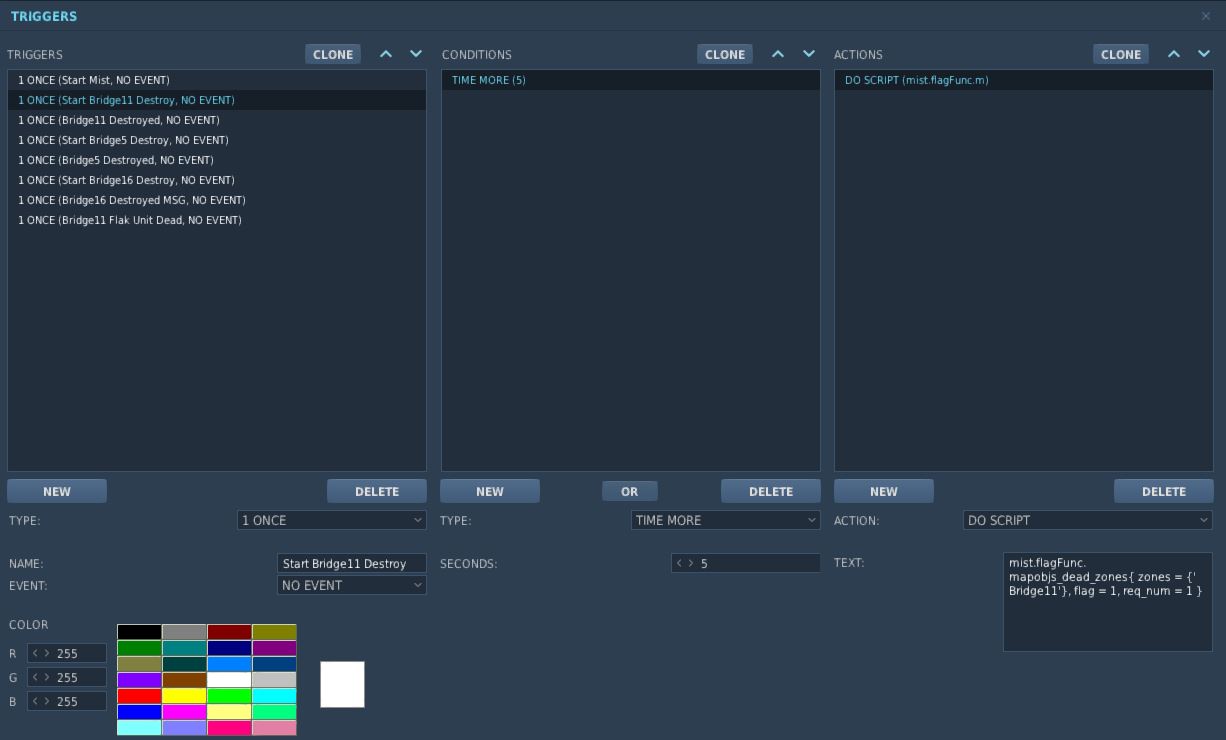

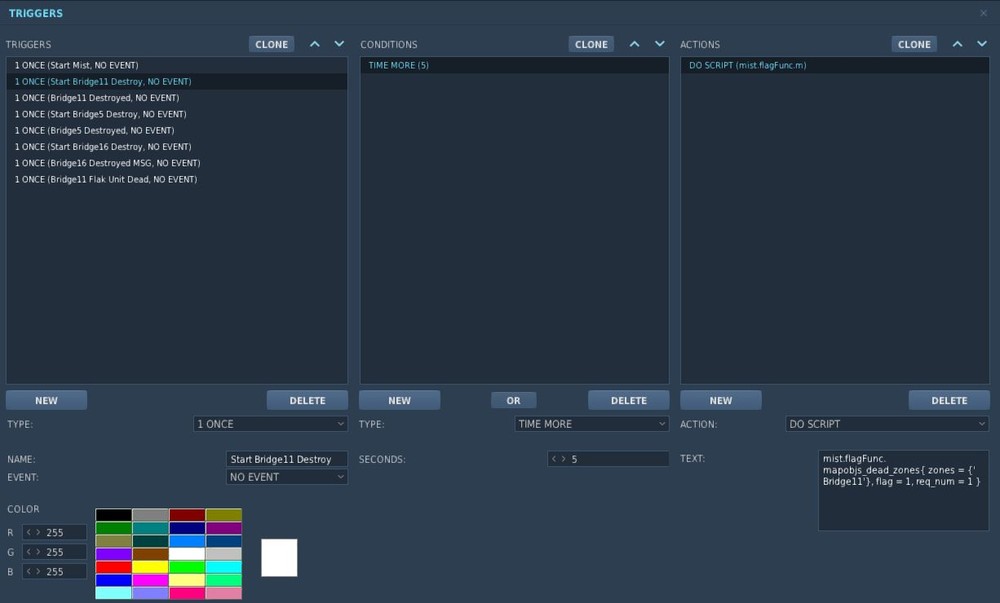

Please see the 3 screenshots of how I did it for a bridge.

First screenshot - Make sure you load the latest MIST first

Second screenshot - Copy the code above

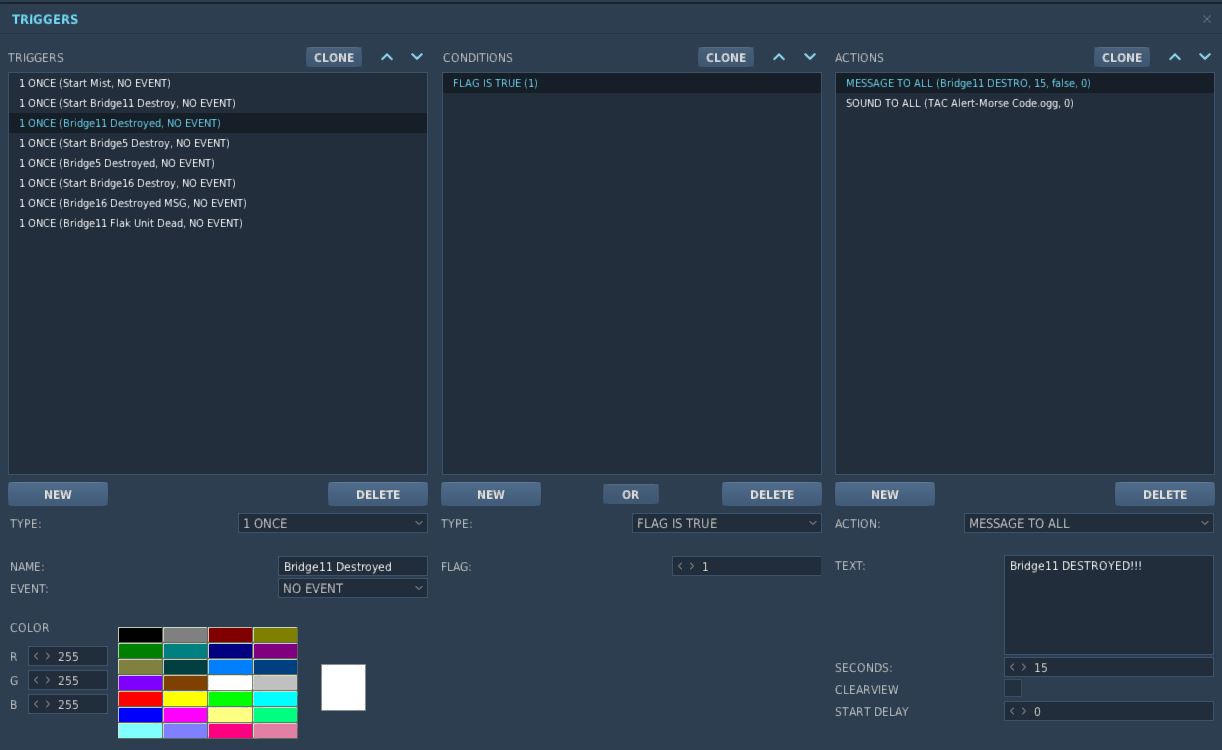

Third screenshot - When bridge is destroyed, flag 1 is TRUE, do something like I did. Message to ALL



Substitute Bridge11 in the code with the name of your trigger zone.

[wraith70]

My bad...I gave you the actual function. The snippet you put in the trigger is:



mist.flagFunc.mapobjs_dead_zones{ zones = {'Bridge11'}, flag = 1, req_num = 1 }

[Majinbot]

Without using MIST, you can use the last function of the editor. You right-click on a building/Bridge/.., the word "assign as" appears, if you click on the word, you create a trigger zone connected to the building, then you have to copy the object id value, es. 123456. ADD SCRIPT:



Handler = {}
function Handler:onEvent(event)
if event.id == world.event.S_EVENT_DEAD and event.IniUnitName == [color="red"]123456 [/color]then
trigger.action.setUserFlag('1', true)
end
end
world.addEventHandler(Handler)

[wraith70]

Without using MIST, you can use the last function of the editor. You right-click on a building/Bridge/.., the word "assign as" appears, if you click on the word, you create a trigger zone connected to the building, then you have to copy the object id value, es. 123456. ADD SCRIPT:



Handler = {}
function Handler:onEvent(event)
if event.id == world.event.S_EVENT_DEAD and event.IniUnitName == [color="red"]123456 [/color]then
trigger.action.setUserFlag('1', true)
end
end
world.addEventHandler(Handler)



That is slick!! I never knew about the "assign as"

Thanks for contributing.

[GTFreeFlyer]

I've been using the MIST functions successfully, but does anyone know if there's a way to count the number of ALIVE objects in a zone? For example, if I put a triggerzone around a city, I'm looking for a function to return how many objects are in that city.





Thanks.

[Veteran66]

hi all



i try this script but it will not fire Flag 111



Handler = {}

function Handler:onEvent(event)

if event.id == world.event.S_EVENT_DEAD and event.IniUnitName == 217416645 then

trigger.action.setUserFlag('111', true)

end

end

world.addEventHandler(Handler)





what is wrong?

[Majinbot]

hi all



i try this script but it will not fire Flag 111



Handler = {}

function Handler:onEvent(event)

if event.id == world.event.S_EVENT_DEAD and event.IniUnitName == 217416645 then

trigger.action.setUserFlag('111', true)

end

end

world.addEventHandler(Handler)





what is wrong?



When I wrote the script I had loaded Moose, to work without moose try this



HandlerScenery = {}
function HandlerScenery:onEvent(event)
if event.id == world.event.S_EVENT_DEAD and event.initiator:getName() == 217416645 then
trigger.action.setUserFlag('111', true)
end
end
world.addEventHandler(HandlerScenery)

[Veteran66]

THX this will work :)

[Pizzicato]

Very naive question, but where is the function onEvent defined? Is that a MOOSE function, or an embedded DCS function? Is there any documentation I can reference around it?



HandlerScenery = {}

function HandlerScenery:onEvent(event)

[Majinbot]

Is there any documentation I can reference around it?



https://wiki.hoggitworld.com/view/DCS_func_addEventHandler

[Pizzicato]

https://wiki.hoggitworld.com/view/DCS_func_addEventHandler





Thanks for responding, Majinbot. I'm not sure how that relates to my question, though. I understand the concept of Events and Event Handlers, but I'm not clear on is how the function Handler:onEvent(event) definition works:



Handler = {}

function Handler:onEvent(event)

if event.id == world.event.S_EVENT_DEAD <...snip...>



As far as I can tell, Handler is initially declared as a generic Lua table. In the next line, however, it's being used as an EventHandler to capture the Event Table from a DCS event in the parameter named event.



I looked the SSE page you referenced, but that doesn't have any reference to the onEvent() method call that's being used as part of the function definition. Where is that coming from, and how does it "know" to catch a DCS event?



Apologies if I'm being super-dense, but I really want to wrap my head around this.
