GV5Js Datacard Generator

[raus]

Hi!



I just wanted to share the experiment I started some time ago, to have a small app creating PNG images with the flightplan filled in, to use as kneeboard in VR. With some time, and the help and encouragement of my virtual squadron mates, and some users here, this has grown from a small experiment into something that is useful (at least, I hope so), so I thought it would be worth sharing.



Currently, in version 1.5.0, the features are (quick summary, not updated in a long time, so some features could habe been missed in the re-cap):

• Mission importing from .miz file
• Selection between Blue/Red coalition
• Green/Red NVG filter applicable to all pages
• Export formats: individual PNG files, ZIP file with all PNG images, PDF file
• Possibility to select individual pages to export
• Standalone format (.5js) to save status/distribute the cards, and continue edition
• Option to add a startup delay to all waypoints TOS (for Cold start) and up to two station times (AAR, CAP, HOLD...)
• Mission Datacard
  • Mission timing: check-in, taxi, takeoff (delays adjustable)
  • Display of info from up to 5 flights (Package section): Callsign, Task, Tacan, Aircraft type, Frequency and TOT (manually filled)
  • Departure/Recovery/Alternate airfield info: populated from flight plan, but editable. Name TCN, ILS, Freq (UHF/VHF selectable), Elevation and Runway heading (BRC if carrier)
  • Weather data: QFE, temperature, Wind, cloud base, cloud ceiling
  • Flight info: pilot name, tacan(manual edit), BORT number, laser code (manual edit)
  • Joker and bingo calculation
  • Waypoints: action/name, altitude, heading, distance, coordinates, TOS
  • Right click a waypoint to send its coordinates to the notes1 tab
    • Coordinates can be changed between DDMMSS.SS, DDMM.MMM and MGRS Grid
  • Manually modify the TOS of any waypoint, with the option to re-calculate timing before that point
  • Support package, for the comm card:
    • AWACS
    • Up to 3 tankers
    • Up to 2 JTAC/AFAC
• Commcard
  • Support of 2 radios with 20 preset channels
  • Posibility to overwrite .miz file with presets
  • Codewords: GV5Js standard, but possible to edit manually
• Pop-up calculator
  • Left/Right action graphics with all parameters
• Notes
  • Notes 1: text + image layout (option to send TGT Coordinates from Mission Datacard to Notes1, with mouse right click)
    • Default image: AMSL authentication. Can be changed clicking on it
  • Notes 2: Full page image
  • Notes 3: 2 images layout
• Navcharts
  • DCS and Combat Wombat's charts for Caucasus, Nevada, Persian Gulf and Syria
• Checklists
  • F/A-18C checklists
  • F-16 Cold Start and Mavericks
  • A-10C Cold Start
  • F-14 Pilot & RIO Cold Start
• Program notifies of updates available
  • Initial installation file in provided link
  • Updates through the app

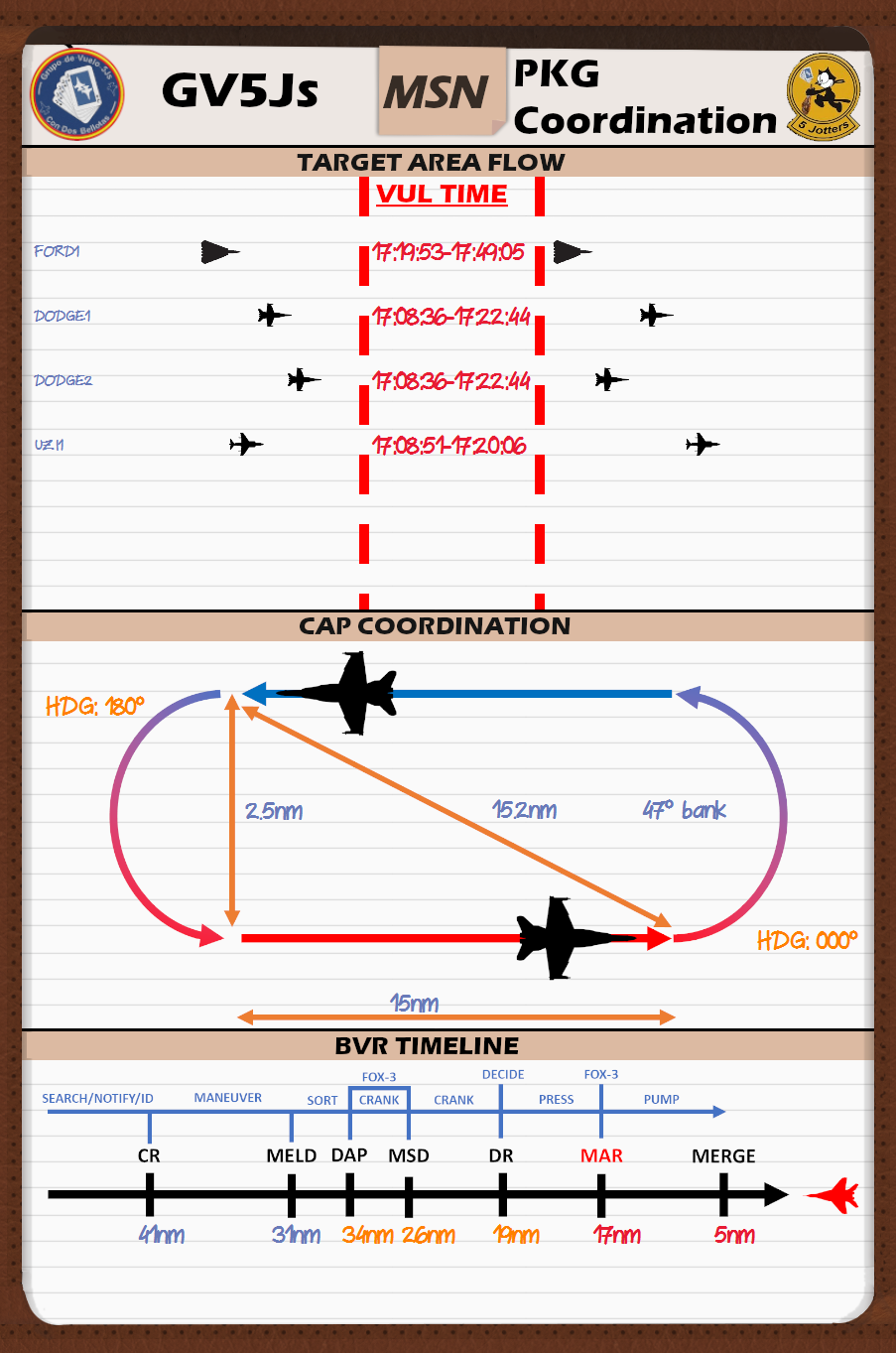

• Coordination Card
  • 1 or 2 CAP Patterns
  • Option to include a TGT Area Flow graph, defining timing for each flight in the package
    • Selection between PUSH/TOT or VUL time per each flight
  • BVR Timeline for main A-A threats
• Added 2-panel layout option, to visualize 2 tabs (can be dragged) at the same time



Download v1.8.6
