fixed AZ/RL page elevation and azimuth value bug

[GumidekCZ]

There is another bug in AZ/EL page other than I already reported (not accurate elevation scan borders - they show more than scan is).

Now the bug is about two or three things:

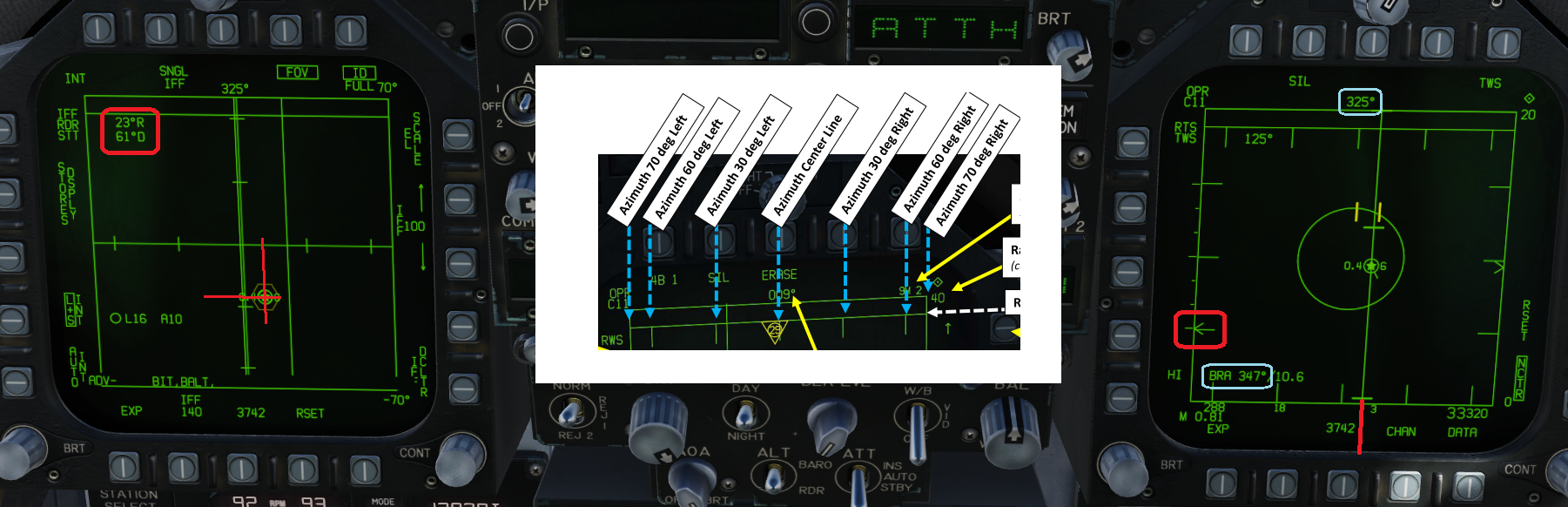

1) radar look angle values on top left corner of AZ/EL page. It shows wrong elevation when radar is in STT lock. When is RWS, TWS(MAN/AUTO), elevation value is correct. On picture you can read 61°D (down), but reality was as radar shows exact 30° down.

2) Azimuth value on top left corner of AZ/EL page shows 23°R (right), but as radar screen (and its azimuth scale marks) show, the target was only like 10° off nose of my Hornet. This error is homehow connected to BRAA value, because as you can easy calculate: 347° - 325° = 22°Right - and thats wrong.

3) Third and less apparent bug is hidden in AZ/EL contact mark, which is not exactly matching 30°down mark as can be seen on radar page, but is approximately 5° up of 30°mark (25°Down from nose).

APG-73_low_scan_STT.trk

Edited September 23, 2021 by GumidekCZ

[Hulkbust44]

Don't have the time to really read all of this right now, but it might be more helpful for comparing data if you disable the attack format declutter.

Mobius708

[GumidekCZ]

Ahh, ok, BRAA is NOT affected by seting MAG/TRUE in A/C page...it show always in TRUE. Is this also a bug?

[Jak525]

5 hours ago, GumidekCZ said:

Ahh, ok, BRAA is NOT affected by seting MAG/TRUE in A/C page...it show always in TRUE. Is this also a bug?

I thought they fixed this... but that would be a bug. Everything should reference magnetic unless set to true generally.

Edited September 24, 2021 by Jak525

[Svend_Dellepude]

20 hours ago, GumidekCZ said:

There is another bug in AZ/EL page other than I already reported (not accurate elevation scan borders - they show more than scan is).

Now the bug is about two or three things:

1) radar look angle values on top left corner of AZ/EL page. It shows wrong elevation when radar is in STT lock. When is RWS, TWS(MAN/AUTO), elevation value is correct. On picture you can read 61°D (down), but reality was as radar shows exact 30° down.

2) Azimuth value on top left corner of AZ/EL page shows 23°R (right), but as radar screen (and its azimuth scale marks) show, the target was only like 10° off nose of my Hornet. This error is homehow connected to BRAA value, because as you can easy calculate: 347° - 325° = 22°Right - and thats wrong.

3) Third and less apparent bug is hidden in AZ/EL contact mark, which is not exactly matching 30°down mark as can be seen on radar page, but is approximately 5° up of 30°mark (25°Down from nose).

APG-73_low_scan_STT.trk 586.81 kB · 5 downloads





I discovered this a few days ago too. Didn't notice the azimuth to be wrong, but elevation is. It seems like the 70° page is showing elevation as more than what it shows on the radar page. 30° looks to be right, while the <30° shows smaller values than what radar shows.

Edited September 24, 2021 by Svend_Dellepude

[BIGNEWY]

reported



the team will check.

thanks
