rocketeer Posted December 27, 2009 Author Posted December 27, 2009 I think the thrustmaster site states the dimension of the MFDs. Personally I won't build my own to achieve the exact A-10 dimensions. If TM can fix the quality problem then I'd buy it, since they look nice and even has backlighting. But there are two switches that need to be changed for the A-10. My A10C cockpit thread

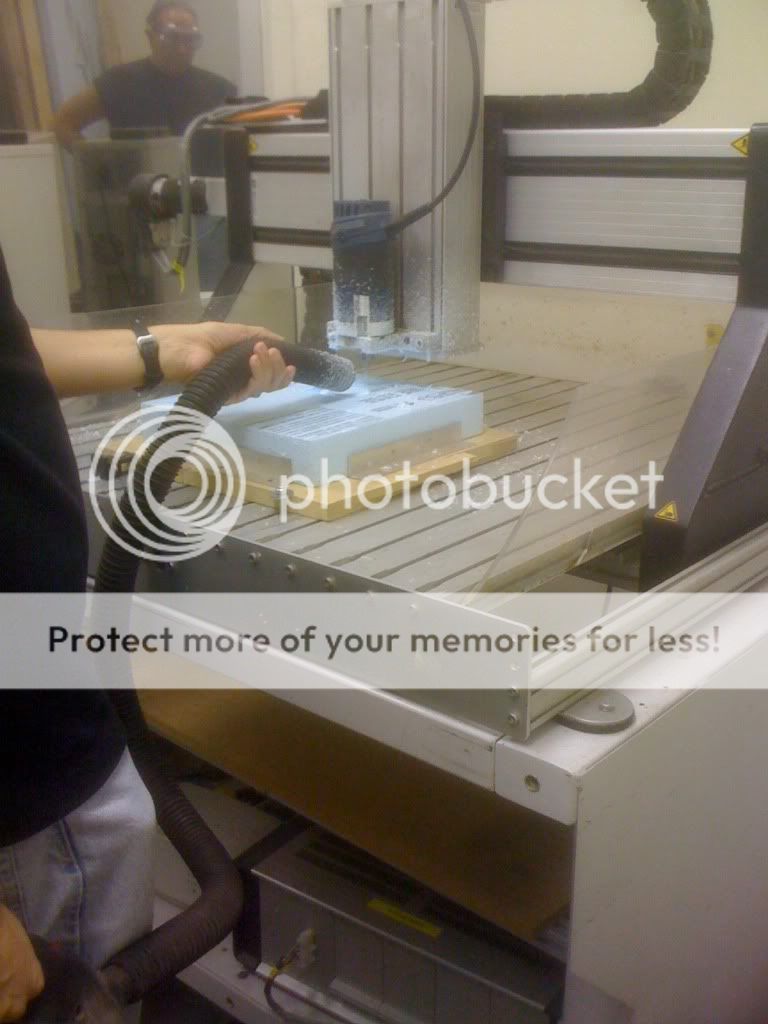

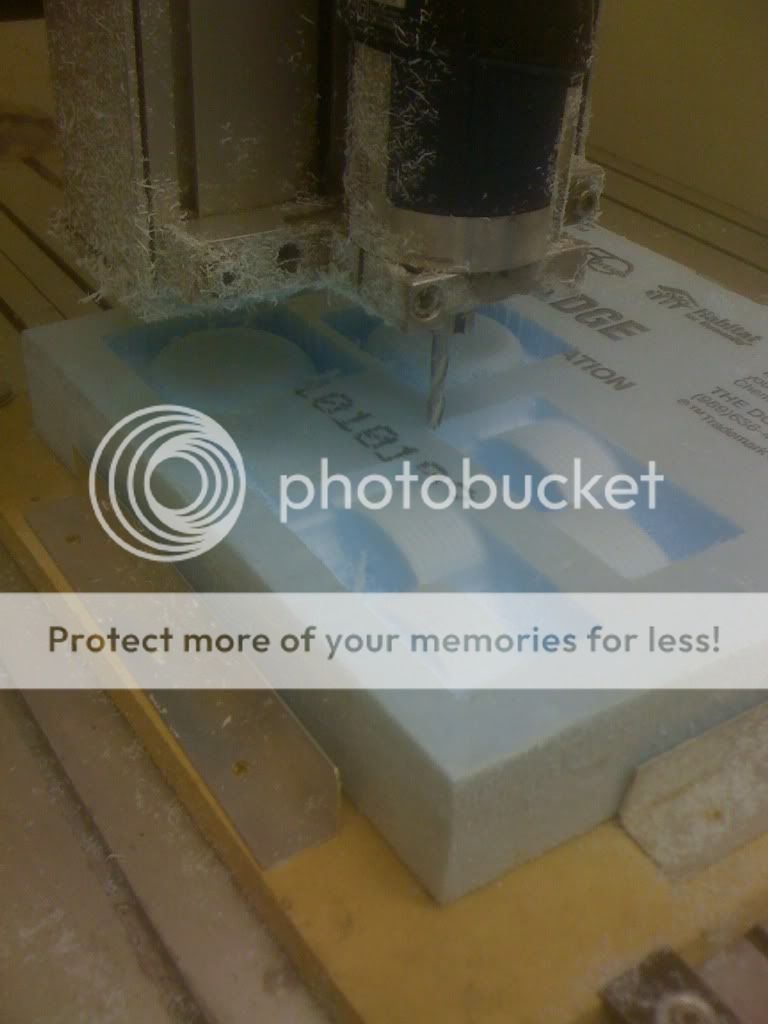

rocketeer Posted December 27, 2009 Author Posted December 27, 2009 Just came back from a CNC class at Techshop across the bay. We learned how to operate the desktop router CNC. The brand of the CNC is called Techno. Discussed about software like Mach3, solidworks, Cut2D and Cut3D etc. Then we learned how to install the end mill, which was a two flute 1/4" shank. Then we each get to have hands on for one pattern, loading the file, doing zeroing, setting speeds etc. Kinda fun. Sorry pictures taken with my iphone which has crappy camera. The material used was blue foam. I also talked to the instructor about cutting and engraving on acrylics. My A10C cockpit thread
Alex_rcpilot Posted December 27, 2009 Posted December 27, 2009 Yup, it all depends on personal requirements. Buddy, have you got time to log on Windows Live?
Alex_rcpilot Posted December 27, 2009 Posted December 27, 2009 Great class, I'll be focusing on using Solidworks when I have access to a CNC mill.
stelios2000 Posted December 27, 2009 Posted December 27, 2009 please take a look here... it has some 7" , 8" , 9" and 10" lcd monitor really nice and CHEAP http://www.chinavasion.com/index.php/cName/home-audio-video-lcd-monitors-tv/
Alex_rcpilot Posted December 27, 2009 Posted December 27, 2009 please take a look here... it has some 7" , 8" , 9" and 10" lcd monitor really nice and CHEAP http://www.chinavasion.com/index.php/cName/home-audio-video-lcd-monitors-tv/ Ah...interesting. Back to ground zero. This company is headquartered in Shenzhen, China. and they've got distributors all over the world. I was able to find some manufacturers who produce nice 8" and 9" monitors. But I need to actually see the product to buy it, because some panels on such products have really limited viewing angle.
CyBerkut Posted December 27, 2009 Posted December 27, 2009 A source for small VGA displays: http://www.aliexpress.com/product-gs/269195352-8-inch-LCD-monitor-for-car-PC-wholesalers.html http://www.aliexpress.com/category/100005088/Used-Monitors.html [sIGPIC][/sIGPIC] There's no place like 127.0.0.1
Alex_rcpilot Posted December 27, 2009 Posted December 27, 2009 It's kind of difficult for me to figure out the exact size of the MFD's by looking at the snapshot which Wags has released. Does anyone have this data? Thanks.
MackTheKnight Posted December 27, 2009 Posted December 27, 2009 Hannibal, is that one of the new Acer 23" touch screens in the pic? If so, how do you like it? -Mack
ED Team Wags Posted December 27, 2009 ED Team Posted December 27, 2009 It's kind of difficult for me to figure out the exact size of the MFD's by looking at the snapshot which Wags has released. Does anyone have this data? Thanks. 5 x 5 inch display area. Youtube: https://www.youtube.com/user/wagmatt Twitch: wagmatt System: https://forums.eagle.ru/showthread.php?p=3729544#post3729544
Alex_rcpilot Posted December 27, 2009 Posted December 27, 2009 5 x 5 inch display area. Thank you so much! I think it will take an 8" or 8.4 inch monitor to fit inside the area. I have the dimensions of an 8" unit here: I'd put put it vertical and expose the area inside the pink box behind a 5*5 frame. :thumbup:
y2kiah Posted December 27, 2009 Posted December 27, 2009 I've read from multiple sources that the A-10C MFD's are 5". I think the F-16's are 5.5", but I'm not certain of that, so that would suggest the thrustmaster MFD bezels are oversized by a little bit. I also wouldn't be surprised if they fit perfectly. Since it's probably impossible to find a 1:1 display at a reasonable price, the best you can do is get a 4:3, so 5.4", 6 or 6.4 would probably do fine.
Deadman Posted December 27, 2009 Posted December 27, 2009 The Color Multi Function Displays are 5 inch x 5 inch F-16 are smaller https://forum.dcs.world/topic/133818-deadmans-cockpit-base-plans/#comment-133824 CNCs and Laser engravers are great but they can't do squat with out a precise set of plans.
Aeroscout Posted December 27, 2009 Posted December 27, 2009 (edited) 5 x 5 inch display area. F/A-18 MFDs are also 5x5. I believe this to be pretty standard, though it wouldn't surprise me if the F-16's were smaller as it has such a tiny cockpit. If any one wants the bezel I used for my F/A-18 cockpit, feel free to PM me. They're 5in x 5in with 20 1/2in holes for the buttons. Aero EDIT: Or right here: Edited December 27, 2009 by Aeroscout DCS Wishlist: 1) FIX THE DAMN RIVERS!!! 2) Spherical or cylindrical panorama view projection. 3) Enhanced input options (action upon button release, etc). 4) Aircraft flight parameter dump upon exit (stick posn, attitude, rates, accel, control volume, control-surface positions, SAS bias, etc). 5) ADS-33 maneuver courses as static objects. 6) Exposed API or exports of trim position and stick force for custom controllers. 7) Select auto multiple audio devices

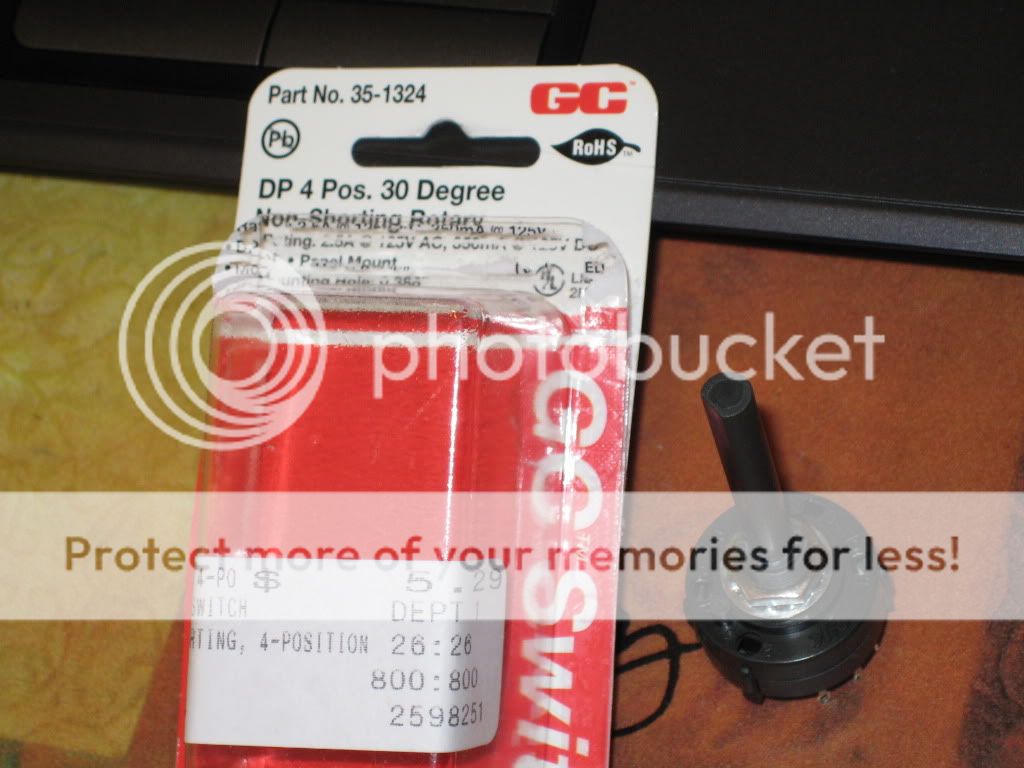

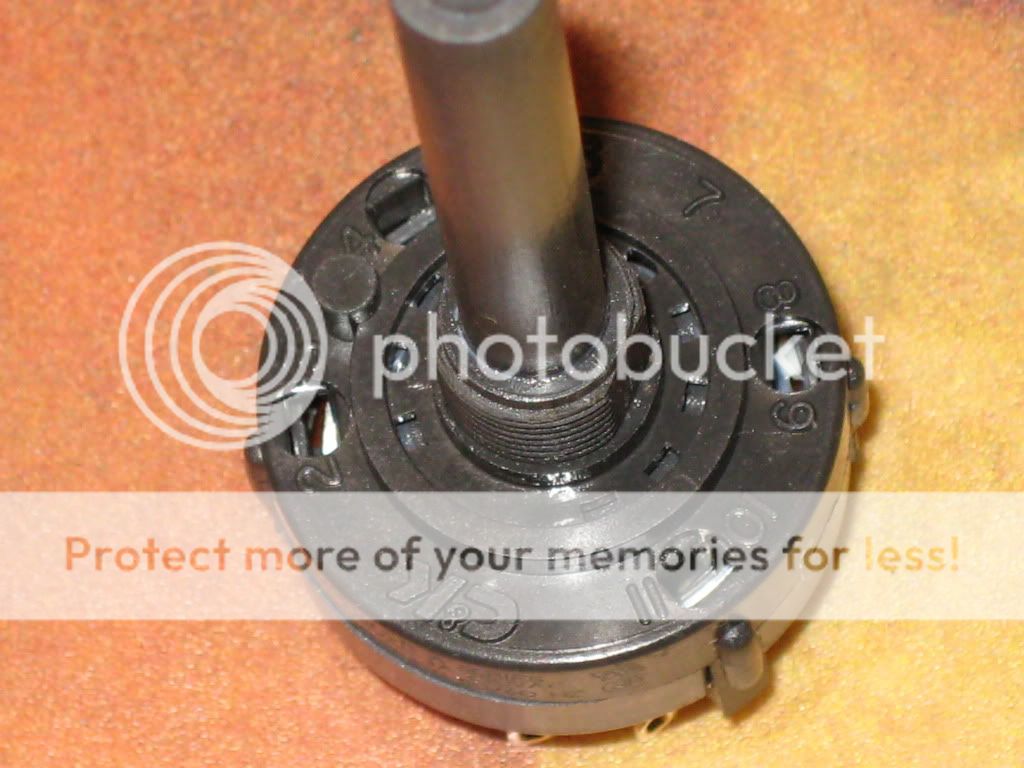

rocketeer Posted December 28, 2009 Author Posted December 28, 2009 Looking at the left and right side panels, there'd be over a dozen rotary switches needed. After analyzing the angles, I conclude that most of them require the 45 degree rotary switch, while only a few will be 30 degrees. Luckily Fry's sells the 30 degress rotary switch, and I bought a few to experiment. Although the package label says 4 position 30 degrees, I found that I can remove the locking ring and reset the number of positions to anything between 2 to 12 positions, of course at a fixed 30 degrees. After removing the first two rings, there is a third ring with a leg set in one of the holes. After prying this out with a small screwdriver, I tested putting it to the max, position 11. Considering the default position as position one, one turn points to position 2...11 turns point to position 12. And you are not restricted to even positions, you can set it to odd positions like 3 or 5 etc. So essentially although it says 4 positions switch I can set it to any number of positions I want. I've ordered similar switches but for 45 degrees. Note, before setting the number of positions with the locking ring, first rotate counter-clockwise all the way to the left. Then the number of positions will be set correctly. My A10C cockpit thread
rocketeer Posted December 28, 2009 Author Posted December 28, 2009 As Fry's doesn't sell the 45 degree rotary switch, I found onlinecomponents.com sells it, for the same brand GC. Actually it says made by C&K on the switch. This is a 1/4 inch shaft with D shape. I like this type of shaft as I can secure it well to knobs with a set screw to the flat side. My A10C cockpit thread
HitchHikingFlatlander Posted December 29, 2009 Posted December 29, 2009 Rocketeer great to see you around again and congrats on the new house. Look forward to sharing ideas with you and flying too. If you have a chance get on TS with Cat and I. I'm sure he'd like to hear about that CNC class as much as I would! http://dcs-mercenaries.com/ USA Squad
rocketeer Posted December 29, 2009 Author Posted December 29, 2009 Today the 45 degrees rotary switches arrived. Just as the 30 degrees ones, I could set them to any number of stops. With them installed, the panels look a bit more complete. Now waiting to get the various knobs from ehcknobs.com After looking at the pictures posted by Matt, I changed my push buttons to grey. My A10C cockpit thread

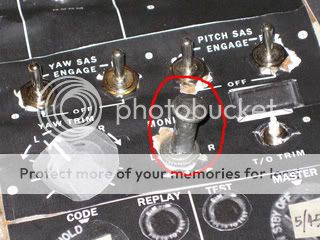

rocketeer Posted December 29, 2009 Author Posted December 29, 2009 (edited) Did some improvising. There are some toggles that are flat topped. These cost $49 each. So I used this 29 cents nylon flange. Covered the opening with epoxy paste. After painting, it looks like this. Edited December 29, 2009 by rocketeer 1 My A10C cockpit thread
rocketeer Posted December 29, 2009 Author Posted December 29, 2009 Similary for the big round tops. I used another 29 cents plastic cap, and painted it metallic gloss. It doesn't look exactly the same but at least it's bigger than the normal ones. My A10C cockpit thread
rocketeer Posted December 29, 2009 Author Posted December 29, 2009 Rocketeer great to see you around again and congrats on the new house. Look forward to sharing ideas with you and flying too. If you have a chance get on TS with Cat and I. I'm sure he'd like to hear about that CNC class as much as I would! Hi Chris did you get to build your Black Shark pit? I suppose Cat is done with his BS pit. Yeah I've been away for a year. It's good to be back, to prepare for my favourite plane the A-10. My A10C cockpit thread
HitchHikingFlatlander Posted December 30, 2009 Posted December 30, 2009 Nope never really started on anything pit related but I have added new pc.s to my exsisting one but not much. I'm still aiming to build something though work and family have kept me away and now my wife and I have a baby on the way. Can't wait to see your build progress as the hog is my favorite too! http://dcs-mercenaries.com/ USA Squad

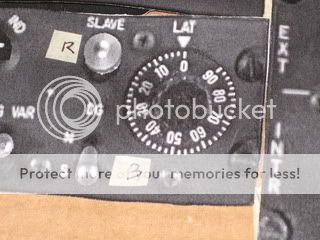

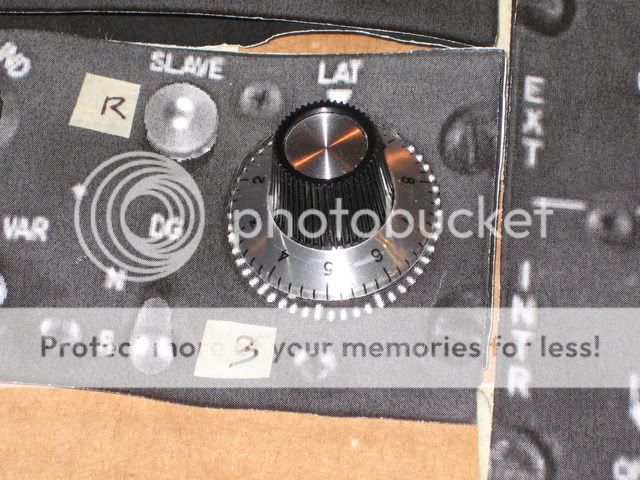

rocketeer Posted December 30, 2009 Author Posted December 30, 2009 For this dial, it has 0 to 90 degrees turn. I found this dial from 0 to 9 in Fry's. Increments steps of 1 instead of 10. Oh well, at least it's about the right size. It'd do for now. My A10C cockpit thread

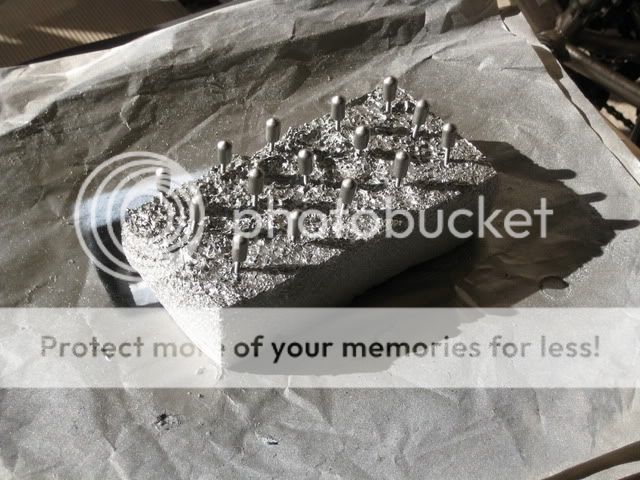

rocketeer Posted December 30, 2009 Author Posted December 30, 2009 This is the way I mass paint in one go. This one I used long screws stuck in a piece of foam. I sprayed each side and then rotate around the four sides. then sprayed lightly on the top. This repeats a few times, sometimes with primer first. When done, I sprayed two three coats of clear enamel for protection against finger prints and dust etc. This one I used my wife's hair pins. Sshhhh! Same routine. Primer, paint, clear enamel. I try to stand at some distance and give several light coats at intervals than stand too close and spray too heavy. That'd end up dripping and the result is not as good. My A10C cockpit thread
